  5. ELING ECP Rudder Angle Gauge(85mm)

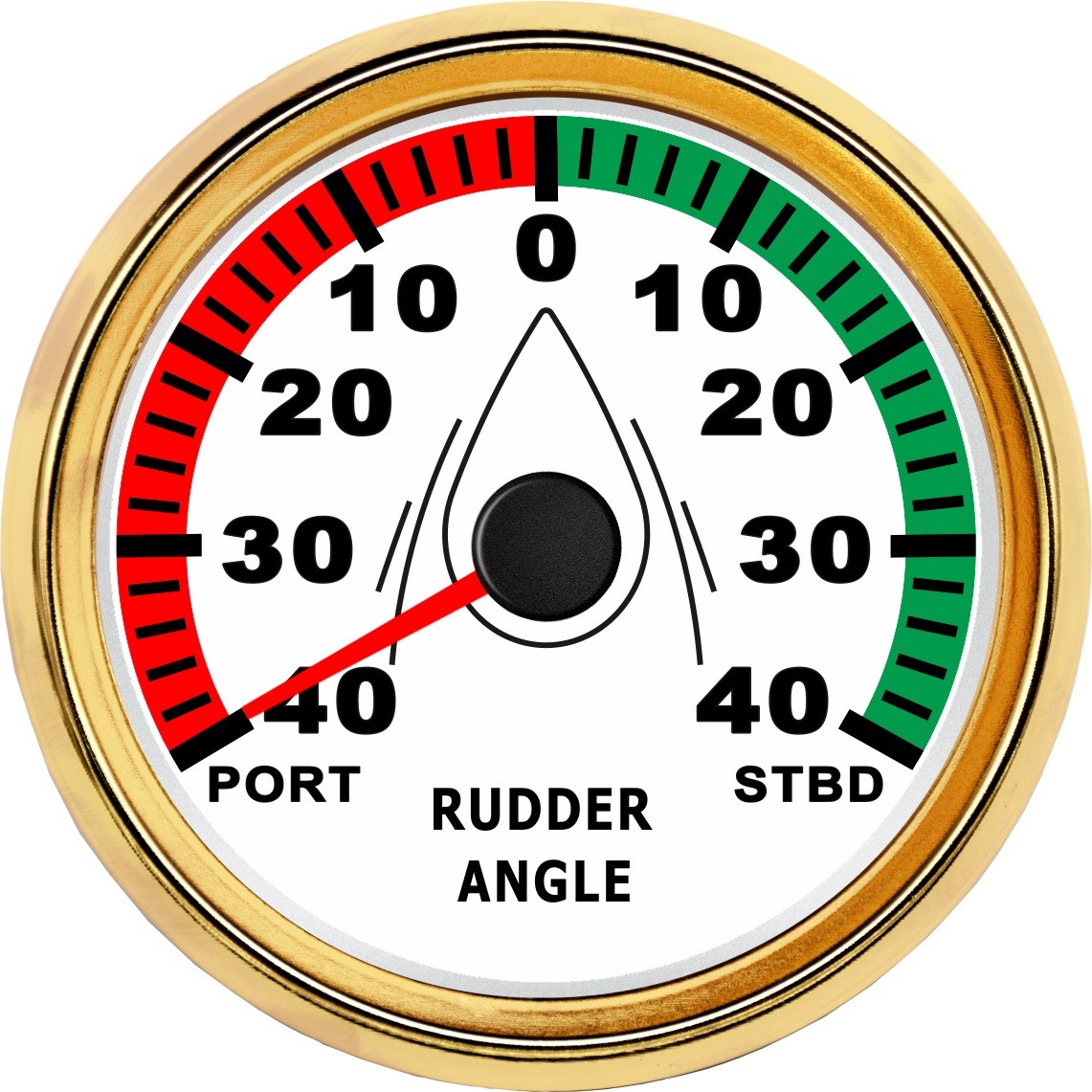

  • ELING ECP Rudder Angle Gauge(85mm)

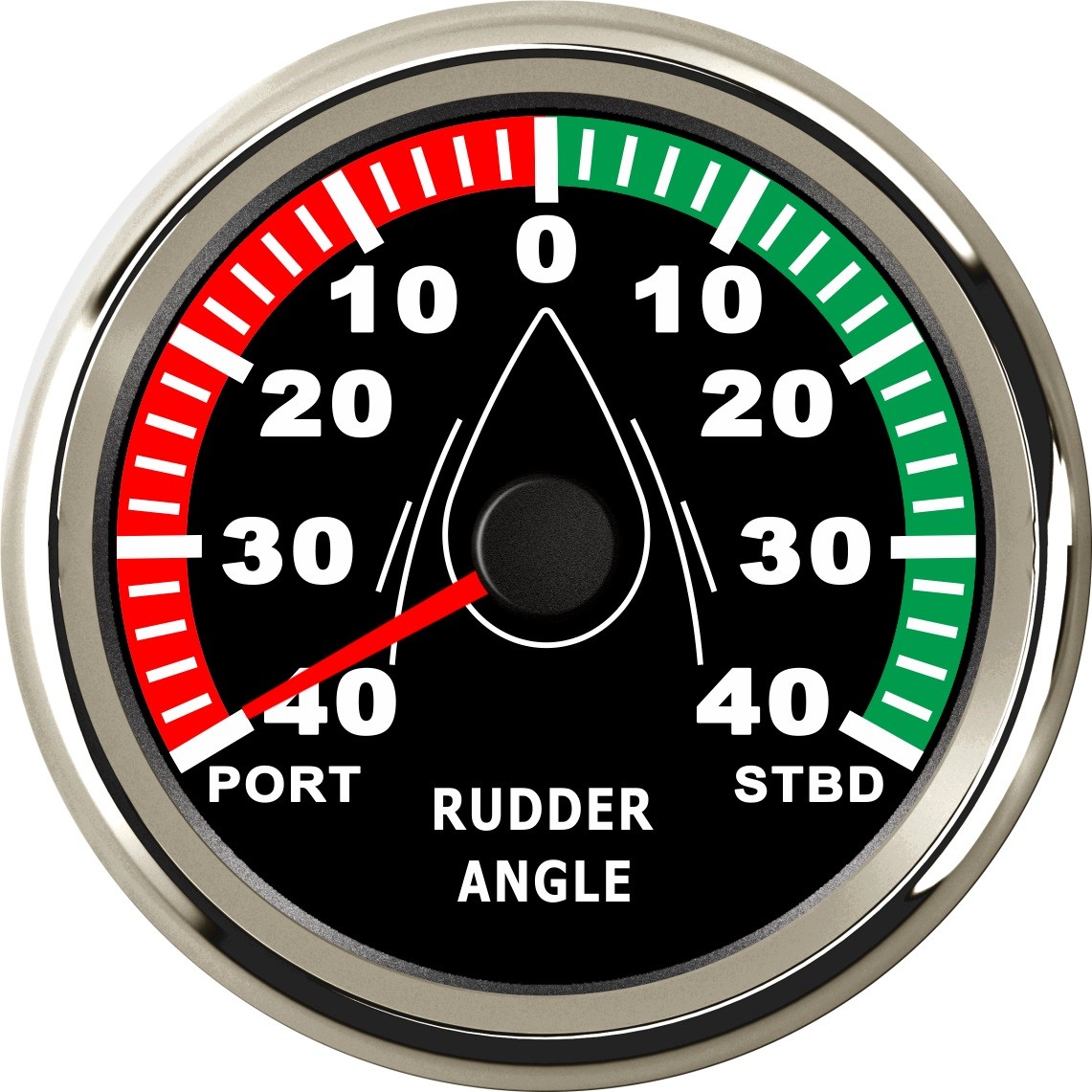

  • ELING ECP Rudder Angle Gauge(85mm)

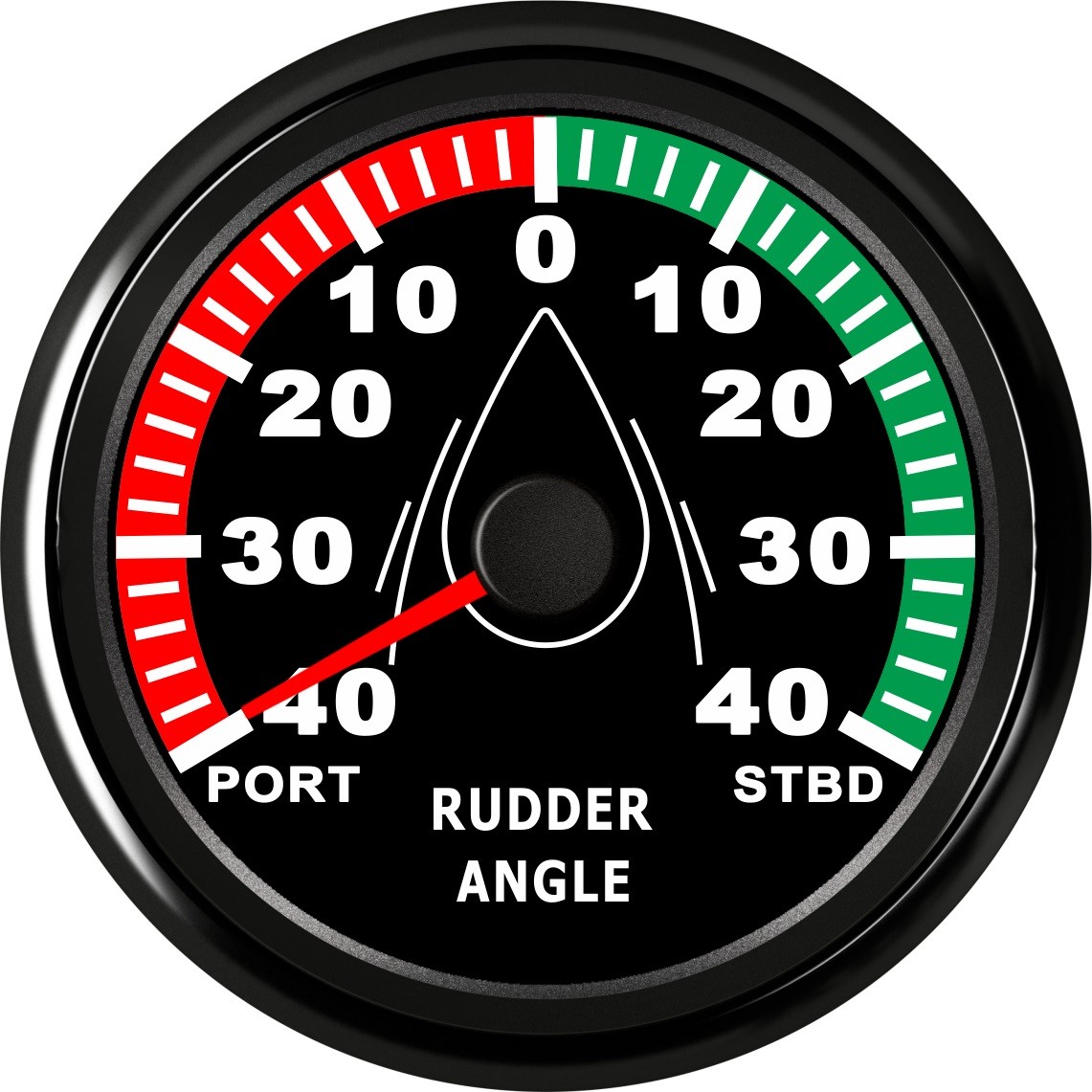

  • ELING ECP Rudder Angle Gauge(85mm)

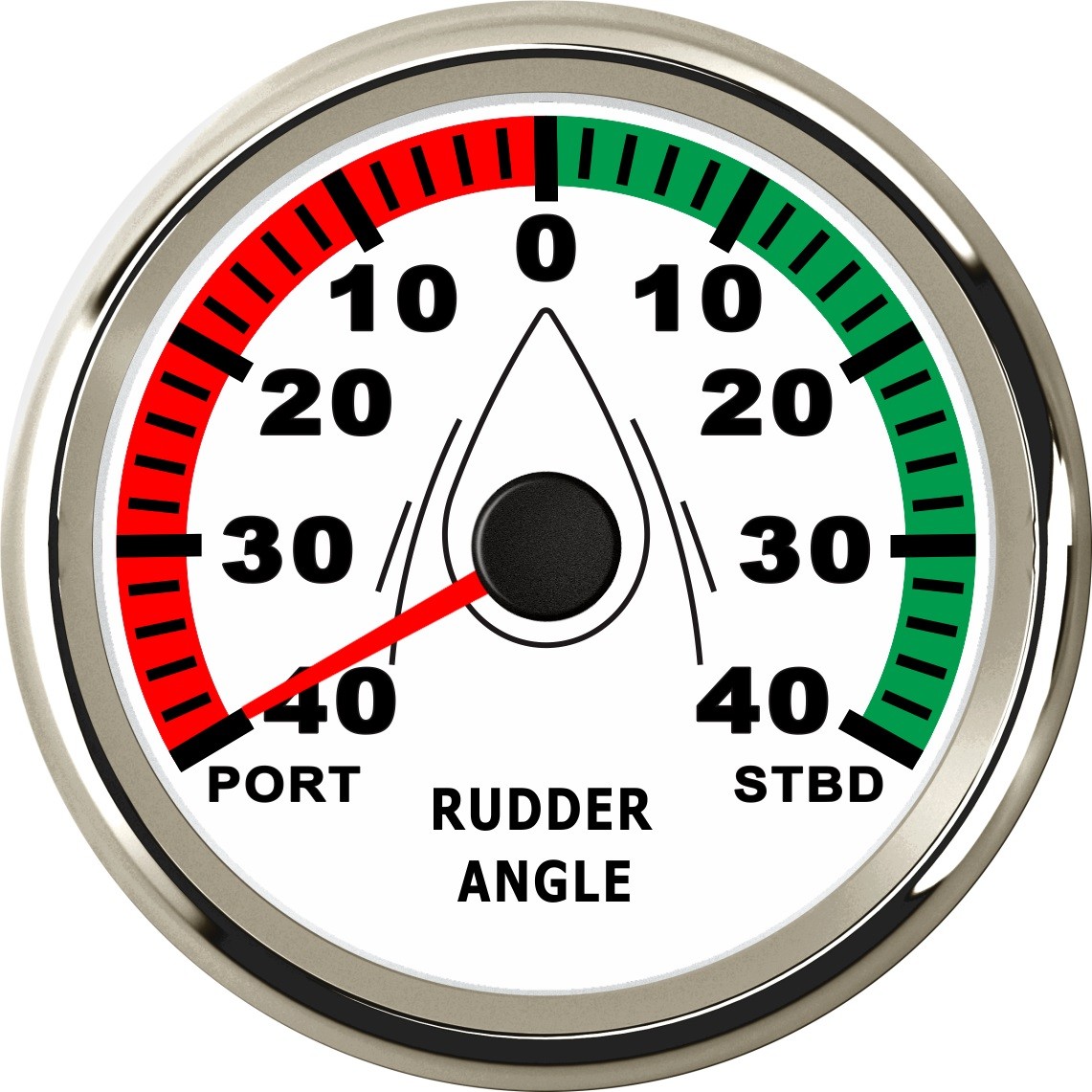

  • ELING ECP Rudder Angle Gauge(85mm)
ELING ECP Rudder Angle Gauge(85mm) ELING ECP Rudder Angle Gauge(85mm) ELING ECP Rudder Angle Gauge(85mm) ELING ECP Rudder Angle Gauge(85mm)

ELING ECP Rudder Angle Gauge(85mm)

  • Product Item:ELING ECP Rudder Angle Gauge(85mm)
  • Installation Dimension:85mm(3-3/8")
  • Working Voltage:9-32V
  • Backlight:Red
  • Indicating Range:R - L
  • rudder angle meter  , rudder angle gauge
    Inquiry Send Email PDF

    Description

    Product Features:

    -Be suitable for all kinds of rudder sensors, and display the direction of the underway marine.

    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.

    -IP67 waterproof and dustproof grade

    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.

    -With curved glass (with anti-fogging function)

    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Technical Data:

    -Fixing dimension: 85mm(3-3/8")

    -Indicating Range: 40L-40R

    -Signal: 0-190ohm

    -Working Voltage: 9-32V(12V/24V)

    -Backlight: Red

    -Operation mode: LCD display, stepper motor


    Package Includes:

    1x Rudder Angle Indicator

    1x Rudder Angle Sensor

    1x Multi-plug socket

    1x Installation Instruction
