Description
Function:
1.Suitable for all vehicles and off-road vehicles
2.The measuring device is characterized by high precision and short start-up time.
3.IP67 waterproof and dustproof
4.Reverse polarity protection and anti-fog performance
5.Stepper motors are used for the full range of pedometers, excellent function with lower power consumption, longer life, higher precision, etc.
Specification:
-Mounting dimension: 110 mm (4- 3/8")

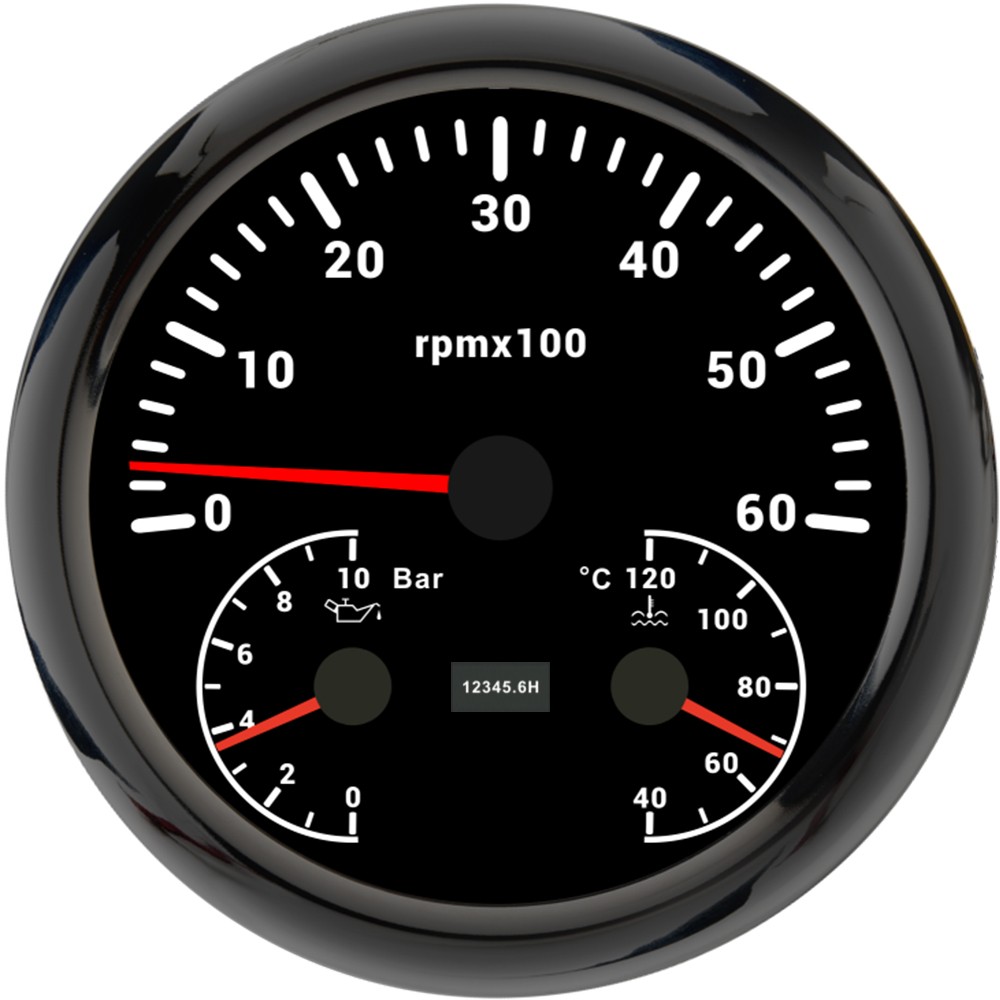

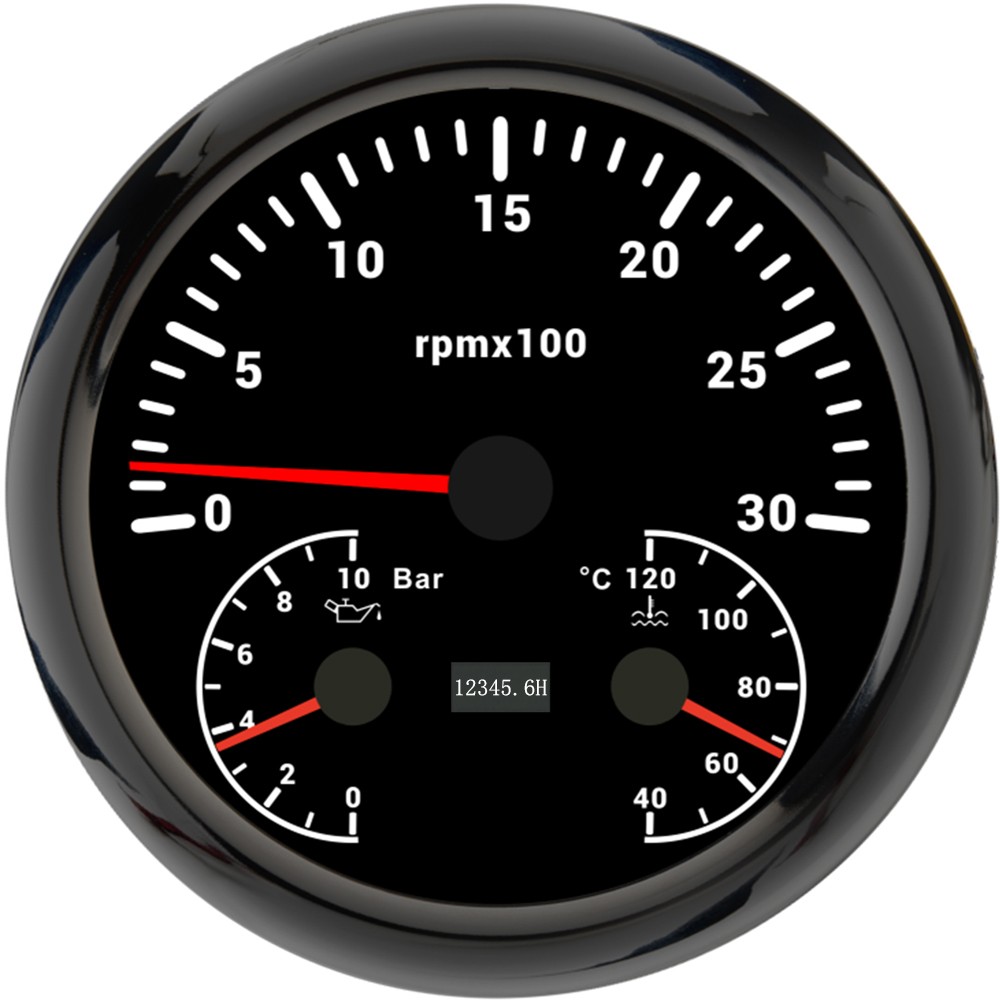

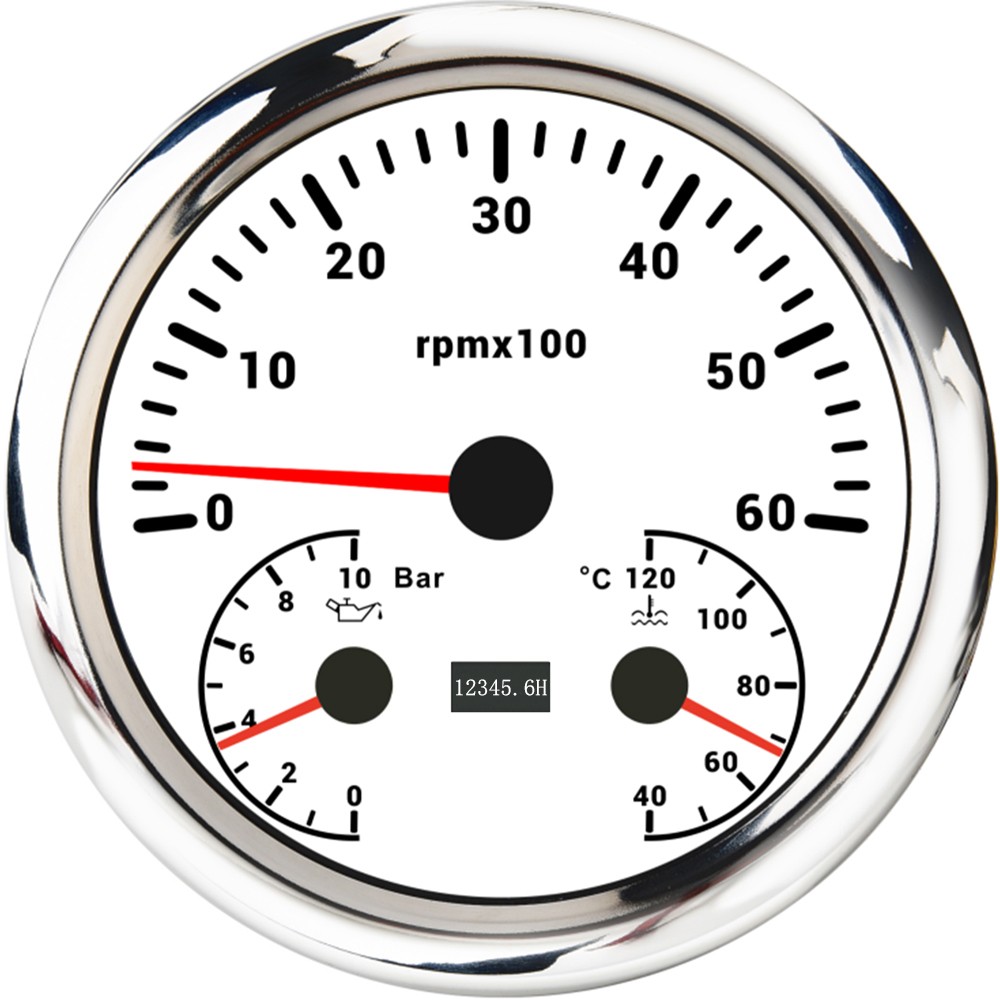

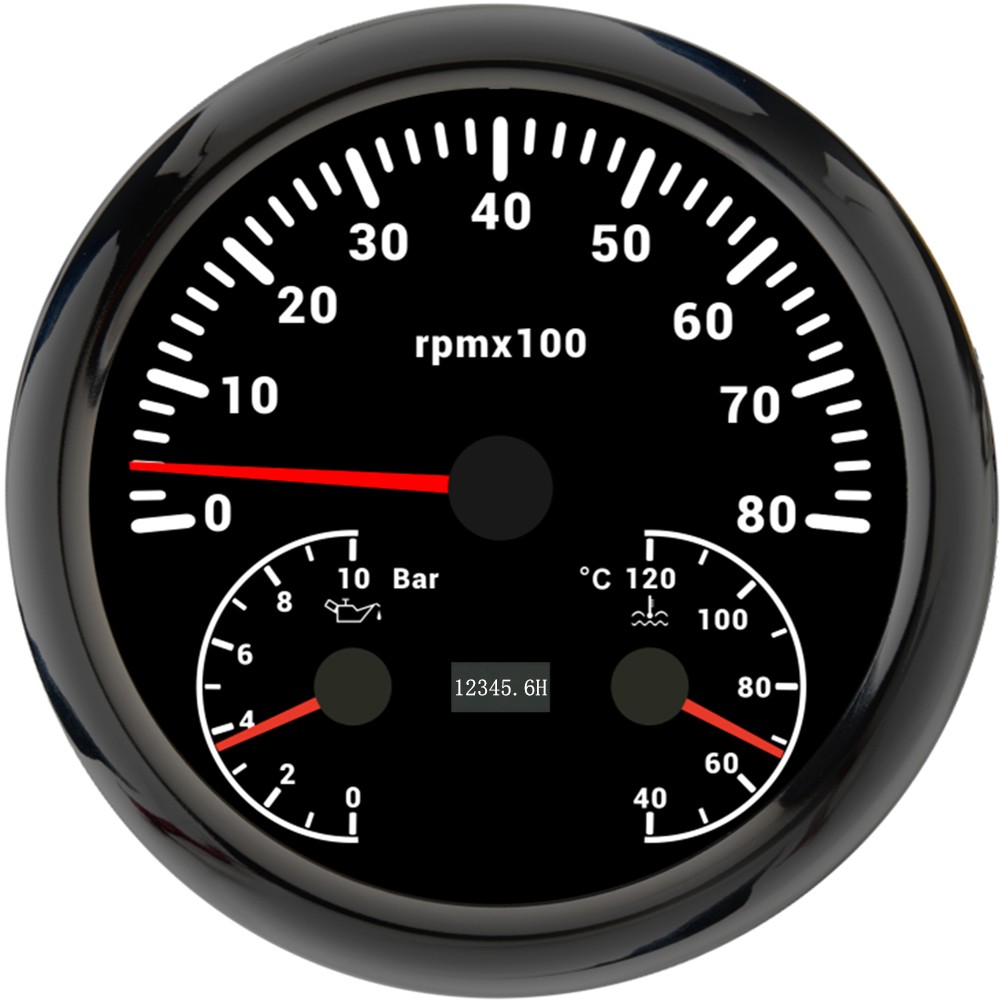

-Display range: 0-3000RPM/0-6000RPM/0-8000RPM and 0-10 bar and 40-120 degrees
-Hour counter: 0-99999 .9H
-Working voltage: 9-32VDC
-Speed ratio: 1.0-360 adjustable

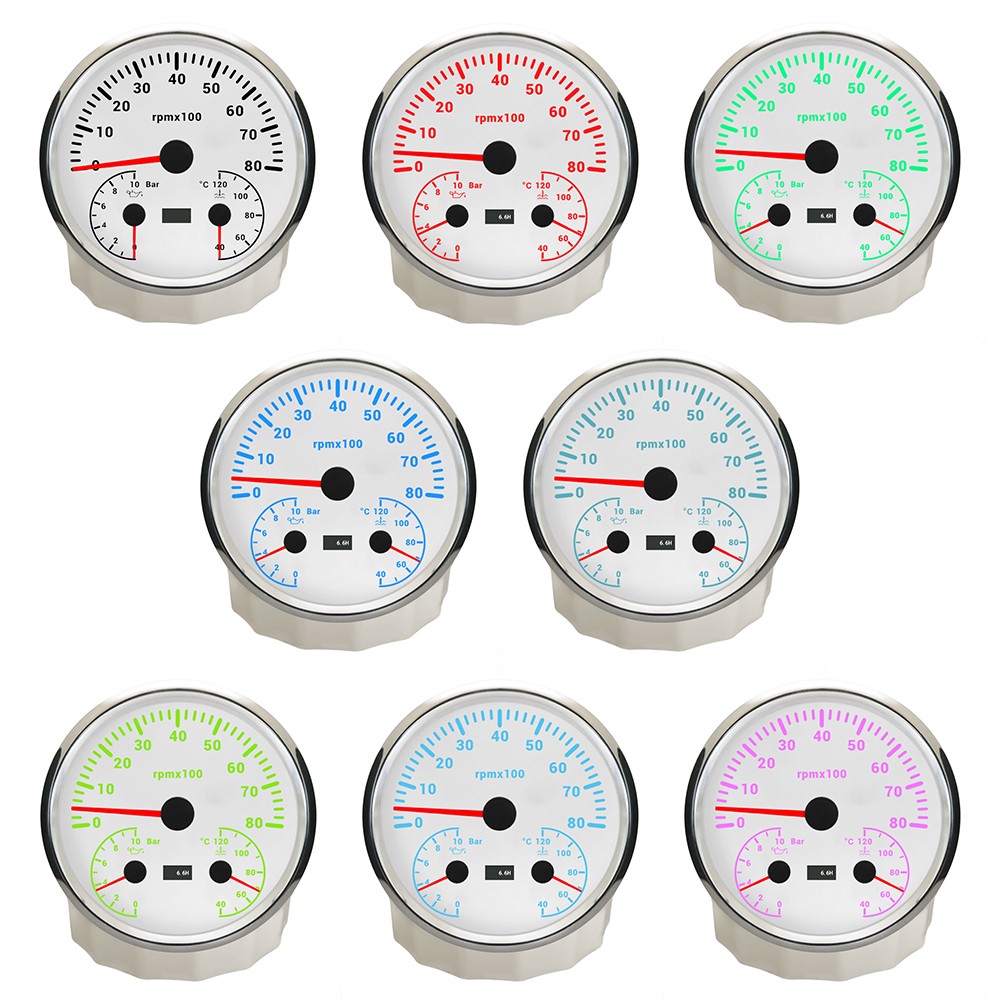

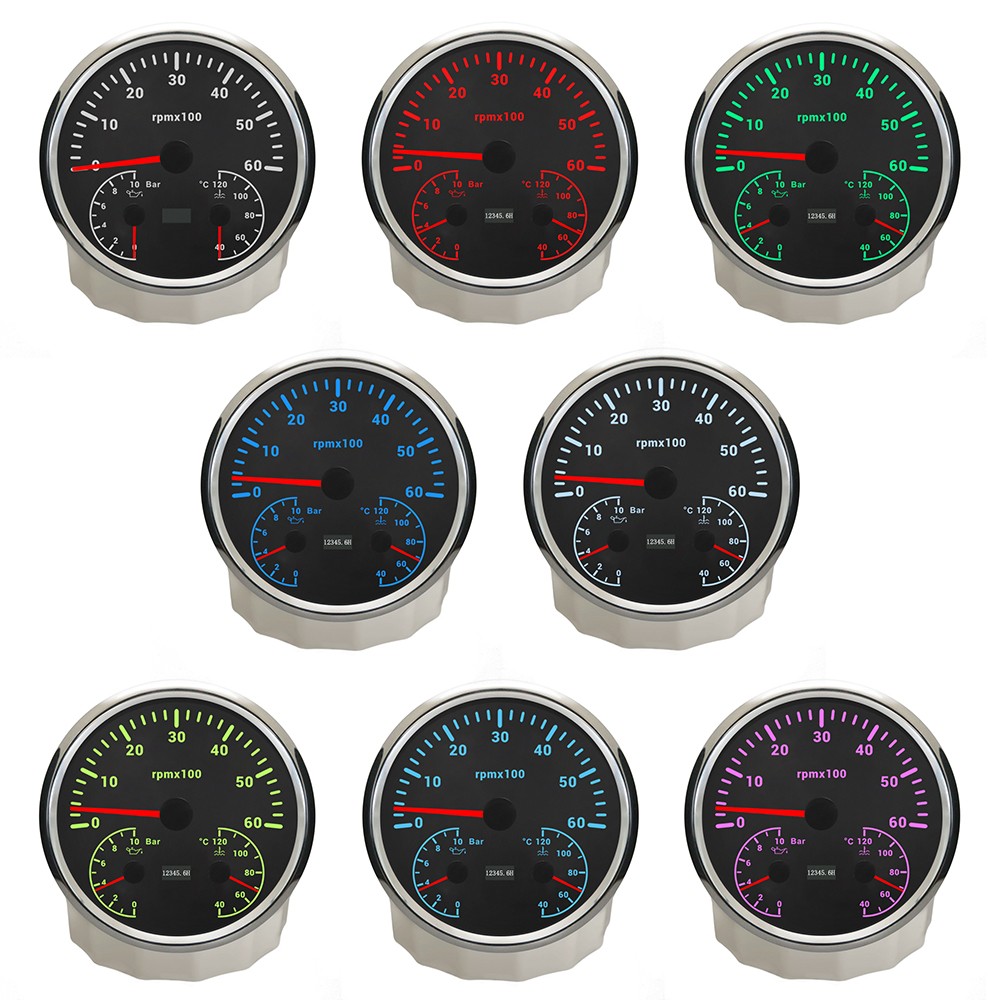

-Backlight: 7 backlights available (Red, Green, Blue, White, Yellow, Cyan, Purple)
-Working temperatures: - 30 to 80 °C
-Operating mode: LCD display, stepper motor

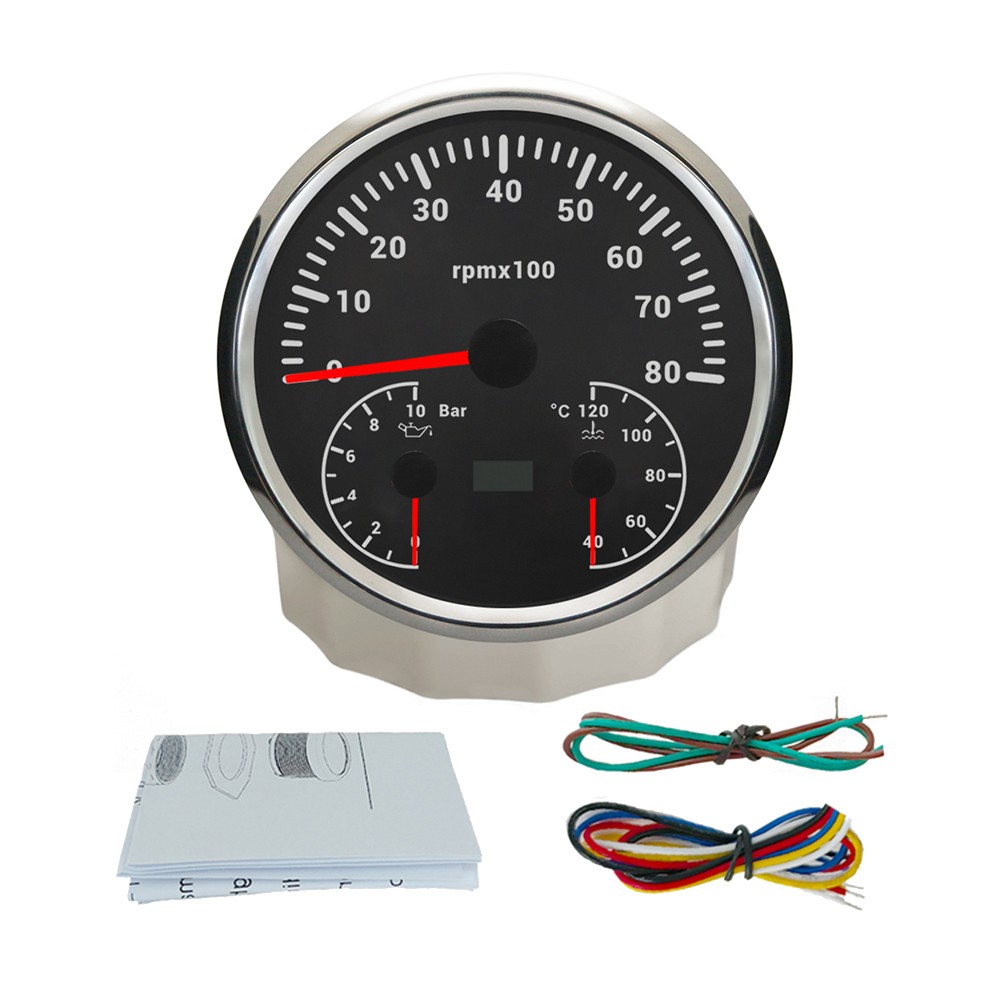

The package includes:
1x 3-in-1 multifunctional Gauge
2x multiple socket
