  5. ELING ECPW GPS Speedometer 80MPH

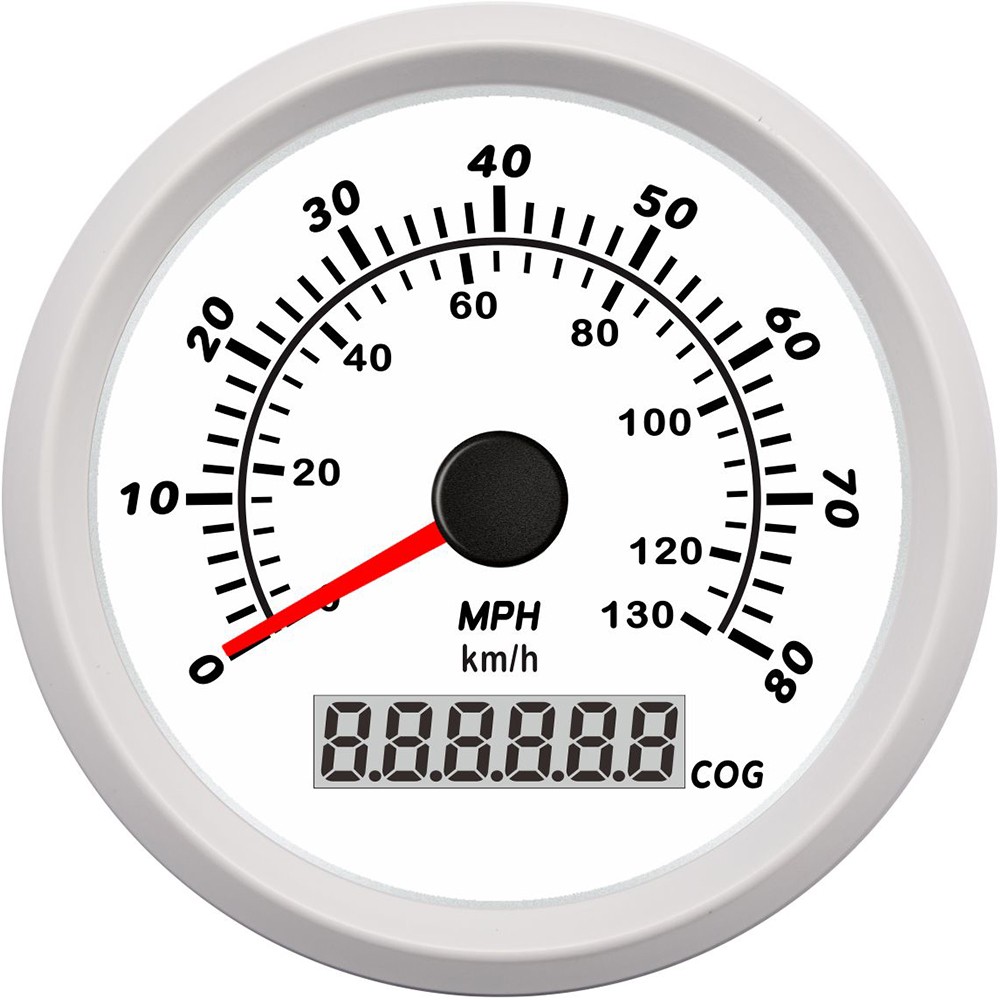

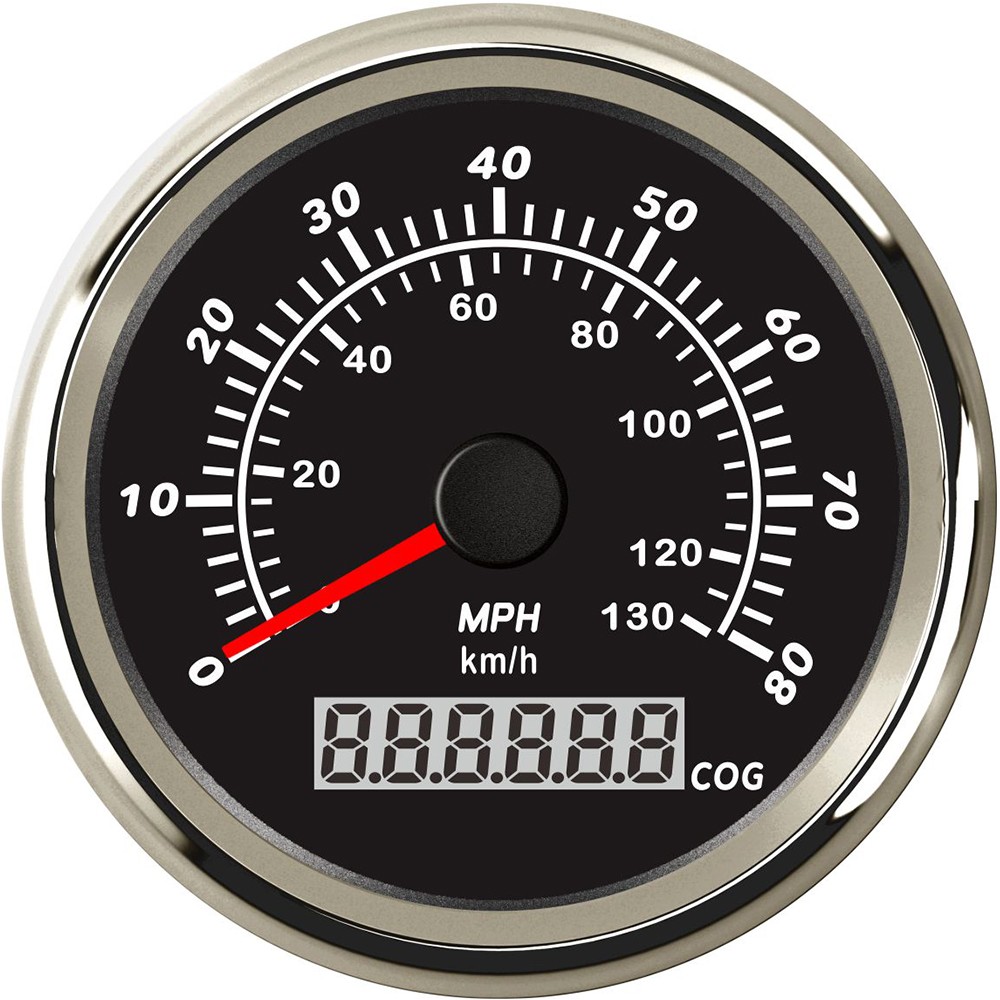

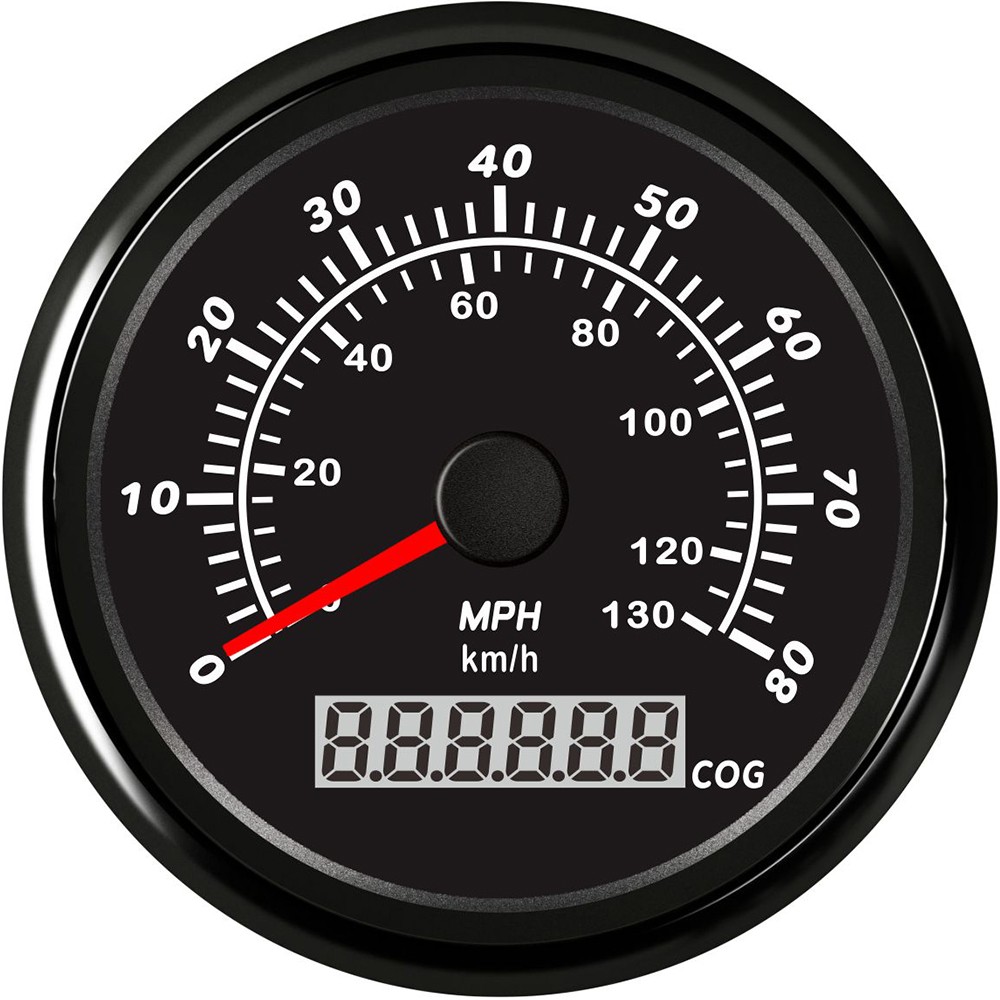

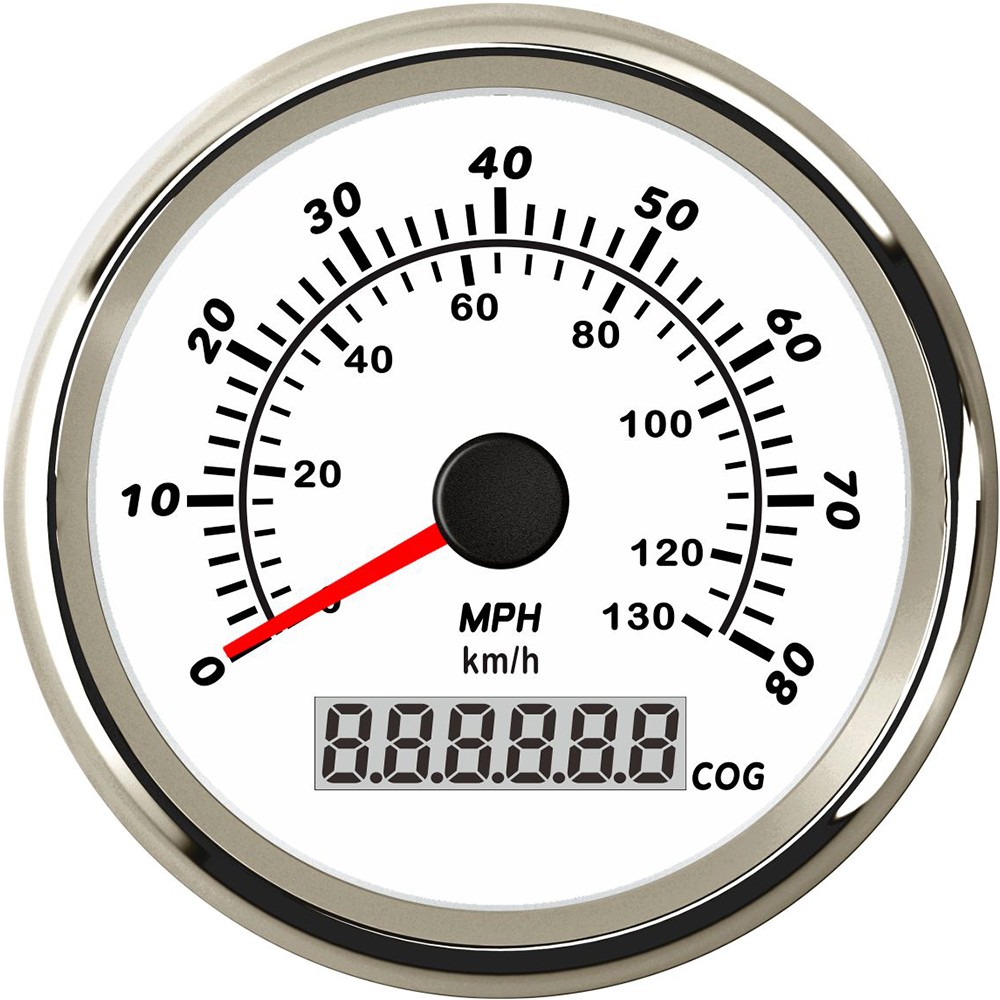

  • ELING ECPW GPS Speedometer 80MPH
  • ELING ECPW GPS Speedometer 80MPH
  • ELING ECPW GPS Speedometer 80MPH
  • ELING ECPW GPS Speedometer 80MPH
ELING ECPW GPS Speedometer 80MPH ELING ECPW GPS Speedometer 80MPH ELING ECPW GPS Speedometer 80MPH ELING ECPW GPS Speedometer 80MPH

ELING ECPW GPS Speedometer 80MPH

  • Product Item:ECPW GPS Speedometer 80MPH
  • Fixing dimension: 85mm(3-3/8 inches)
  • Indicating Range: 0-80MPH 0-130KM/H
  • Working Voltage: 9-32VDC(12VDC/24VDC)
  • Backlight: Red
  • gps speedometer  , mph speedometer  , speedometer
    Inquiry Send Email PDF

    Description

    Product Features:


    -Suitable for all vessels, boats, yachts, etc..


    -The signal comes directly from the satellite signal receiver(GPS Speed Sensor)


    -The gauge has the advantages of high precision, quick location confirmation and short start up time.


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With curved glass (with anti-fogging function)


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Technical Data:


    -Fixing dimension: 85mm(3-3/8 inches)


    -Indicating Range: 0-80MPH 0-130KM/H


    -COG(Course Over Ground):0-359


    -Working Voltage: 9-32VDC(12VDC/24VDC)


    -Backlight: Red


    -Functions: current speed and course(not odometer or trip meter)


    -Connection: Blue wire--Negative/Ground, Red wire--Positive, Orange wire--Positive(lighting wire)


    -This GPS Speedometer is complete unit, can work directly with gps sensor together, not need other sensor cables.


    -After connection, it takes about 30 seconds to get signal in the first time, but less than 3 seconds after that. It gets quicker under a clear view of the sky. Sometimes if signal is missing, pls. reconnect all wires and restart it.


    -Operation mode: LCD display, stepper motor


    Package Includes:


    1x GPS speedometer


    1x GPS Speed Sensor


    1x Multi-plug socket


    1x Installation Instruction
