  5. ELING CX 4in1 Multifunction Gauge with A

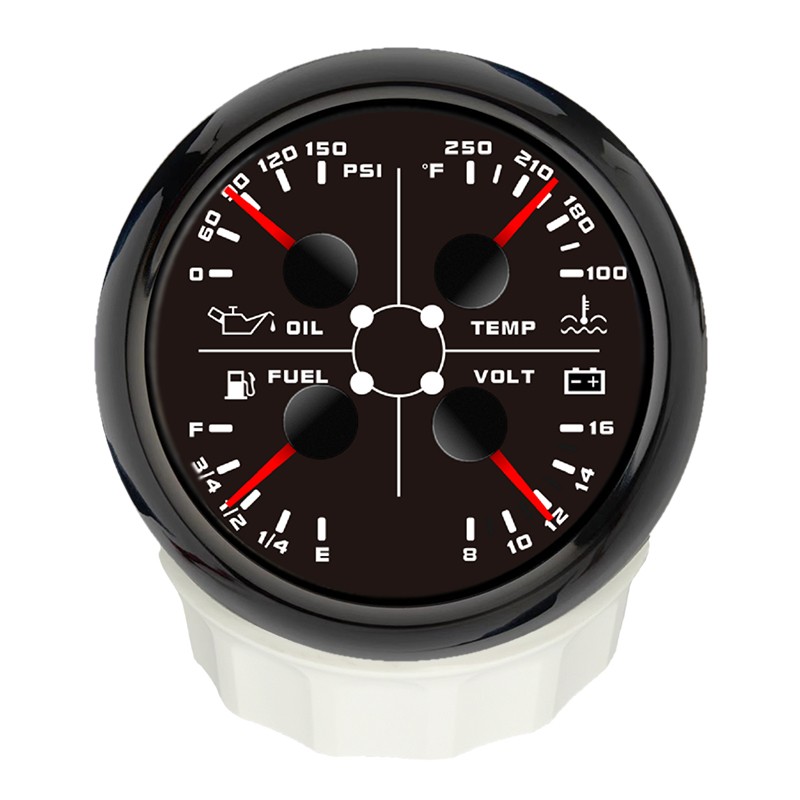

  • ELING CX 4in1 Multifunction Gauge with Alarm

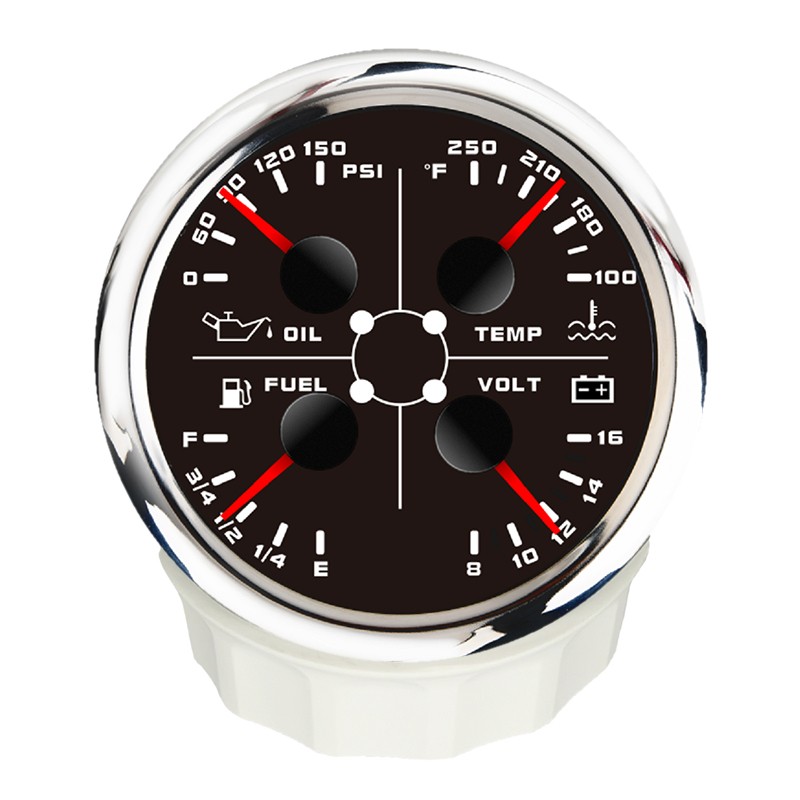

  • ELING CX 4in1 Multifunction Gauge with Alarm

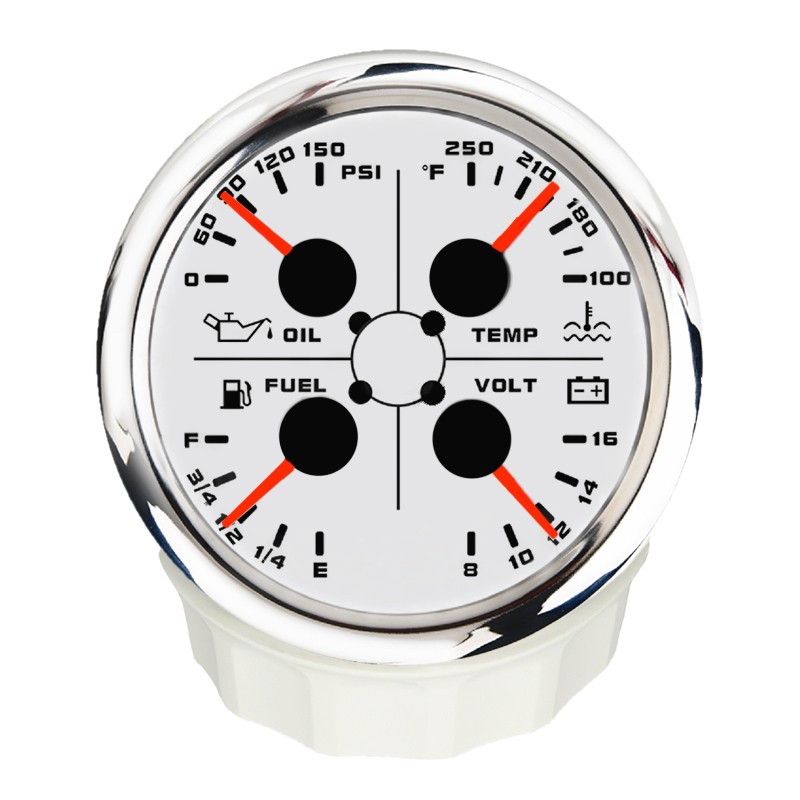

  • ELING CX 4in1 Multifunction Gauge with Alarm
ELING CX 4in1 Multifunction Gauge with Alarm ELING CX 4in1 Multifunction Gauge with Alarm ELING CX 4in1 Multifunction Gauge with Alarm

ELING CX 4in1 Multifunction Gauge with Alarm

  • Product Item:CX 4in1 Multifunction Gauge with Alarm
  • Fixing dimension: 85mm
  • Oil pressure: 0-150PSI;Water temperature: 100-250°F;Voltmeter: 8-16V;Fuel level: E-1/4-1/2-3/4-F
  • IP67 waterproof and dustproof grade
  • Backlight :Red
  • Multifunction Gauge  , 4in1 Meter  , Meter with Alarm
    Inquiry Send Email PDF

    Description

    Specification:


    -Be suitable for all kinds of vehicles and boats,ships


    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.


    -Operating temperature: -20°C ~+70°C


    -Protection rank : IP67.


    Technical data:


    -Name :85mm 4 In 1 Multifunction Gauge


    -Fixing dimension: 85mm


    -Backlight :Red


    -Oil pressure: 0-150PSI


    -Oil pressure sensor:10-184ohm


    -Water temperature: 100-250°F


    -Water temperature sensor:301-22ohm


    -Voltmeter: 8-16V


    -Fuel level: E-1/4-1/2-3/4-F


    -Fuel level Signal:0-190ohm/240-33ohm


    Alarm message


    -Fuel<1/8 alarm


    -Oil pressure<11.60PSI alarm


    -Water temp. >203℉ alarm


    -Voltage <11.5V alarm


    Package Included:


    1 x 85mm 4 in 1 Multifunctional Gauge


    2 x Multi-plug socket


    1 x Installation Instruction
