  • ELING ECH Oil Pressure Gauge
  • ELING ECH Oil Pressure Gauge
  • ELING ECH Oil Pressure Gauge
  • ELING ECH Oil Pressure Gauge
ELING ECH Oil Pressure Gauge ELING ECH Oil Pressure Gauge ELING ECH Oil Pressure Gauge ELING ECH Oil Pressure Gauge

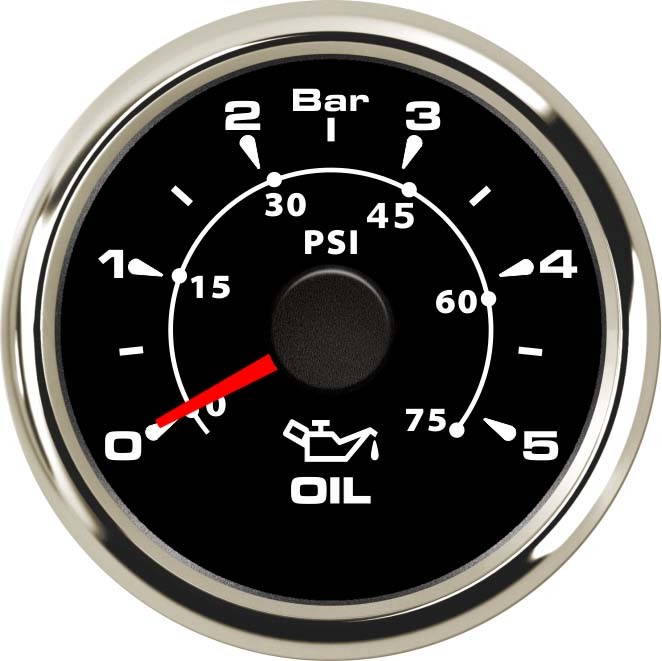

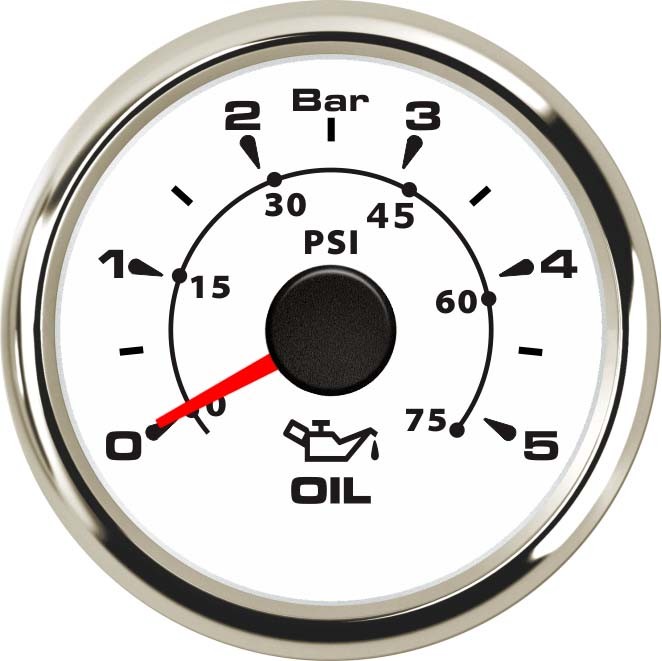

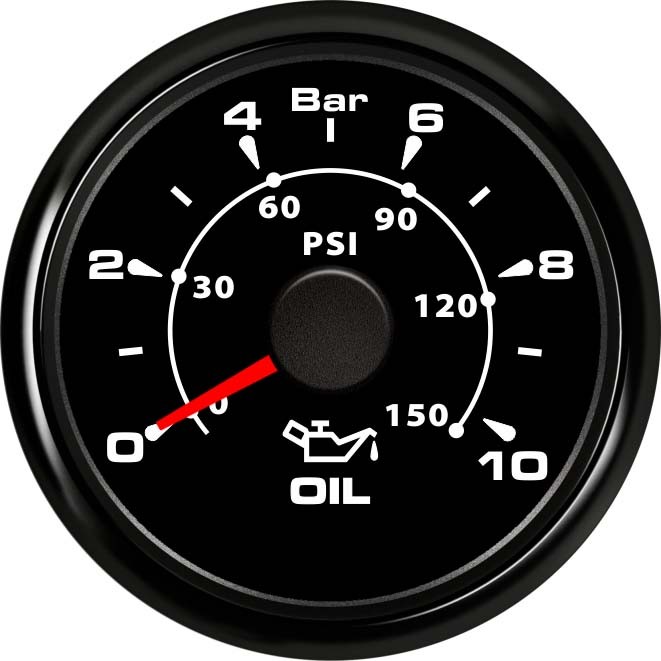

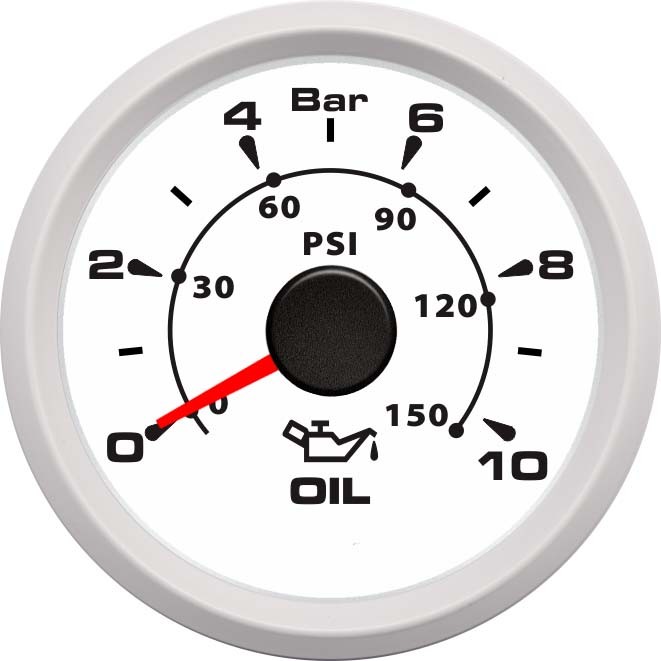

ELING ECH Oil Pressure Gauge

  • Product Item:ELING ECH Oil Pressure Meter
  • Installation Dimension:52mm(2")
  • Working Voltage:9-32V
  • Backlight: 8 Colors
  • Indicating Range: 0-5BAR 0-75PSI; 0-10BAR 0-145PSI
  • oil pressure gauge  , digital oil pressure gauge
    Inquiry Send Email PDF

    Description

    Product Features:

    -Be suitable for all kinds of pressure sensors, and display the value of oil pressure

    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.

    -IP67 waterproof and dustproof grade

    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.

    -With curved glass (with anti-fogging function)

    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).



    Technical Data:

    -Fixing dimension: 52mm(2")

    -Indicating Range: 0-5Bar 0-10Bar

    -Signal: 10-184ohm

    -Working Voltage: 9-32V(12V/24V)

    -Backlight: 8 colors

    -Operation mode: LCD display, stepper motor


    Package Includes:

    1x Oil Pressure Gauge

    1x Cabel

    1x Installation Instruction
