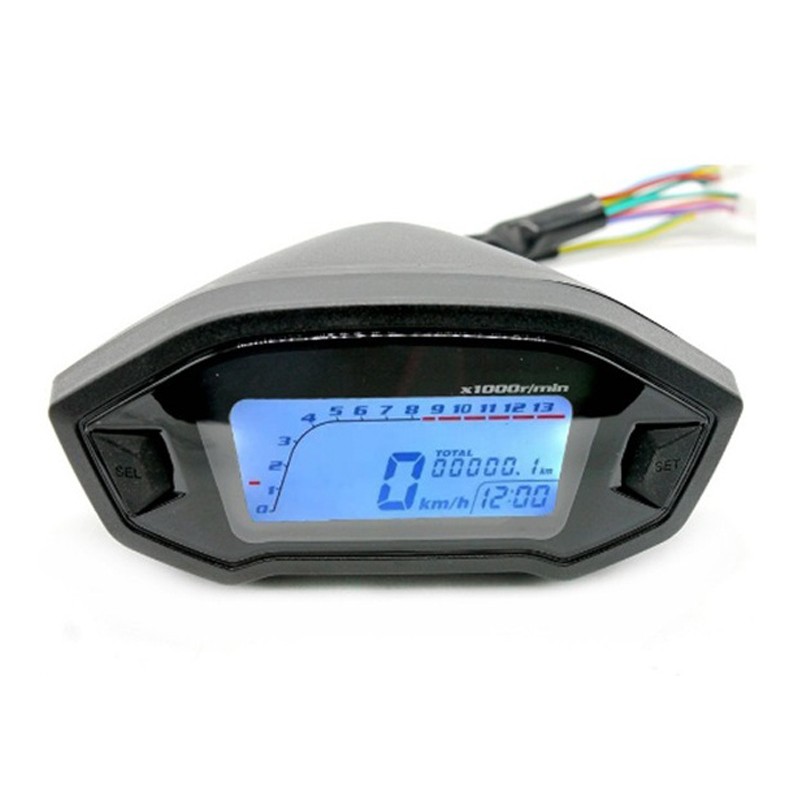

ELING Motorcycle Gauge MLS001

  • Product Item:Motorcycle Gauge MLS001
  • Speedometer: 0-199km/h; MPH
  • Tachometer: 0-13000RPM
  • Gear: 1-5
  • Odometer: 0-99999.9km; miles
  • Motorcycle Gauge  , Motorcycle speedometer  , Motorcycle tachometer
    Inquiry Send Email PDF

    Description

    Description:


    1. Shift between mph and km/h


    2. Trip distance clears


    3. Digital display speed, speed range 0-199km/h or mph


    4. Digital display trip distance, distance range 0-999.9km or miles


    5. Digital display Odo distance, distance range 0-99999.9km or miles


    6. LED display fuel level, low fuel warning and blinkering


    7. Needle display rpm, range 0-13000


    8. LED shows left and right blinker, N, gear, 1-5 gear, high-beam etc.


    9. Time


    10. Adjustable wheel perimeter


    11. Adjustable pulse


    12. It can be applied to different vehicles with different diameter


    13. It can be applied to different displacement vehicles


    14. Easy assembly, we provide install manual


    Specifications:

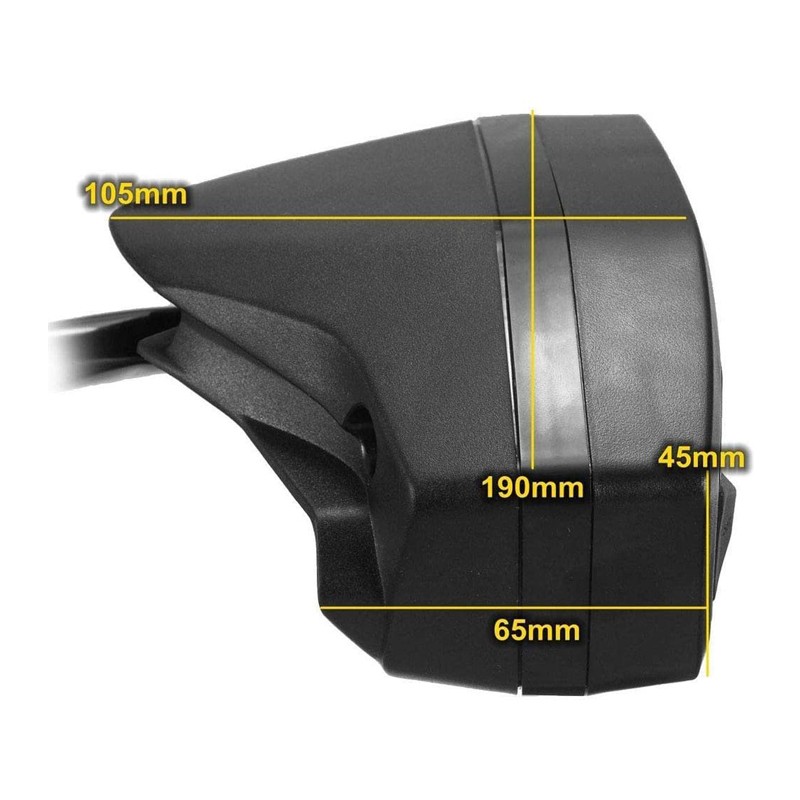

    -Item Height: 90 mm Width: 110 mm Length: 200 mm


    -Special Features: speed, Odo, trip, gear position, rpm, icons, fuel, clock etc.


    -Item Weight: 500 g


    -Working temperature: -30-85C


    -Working voltage: 9-16V


    Package included:


    1pc Motorcycle meter


    1pc Sensor(optional)


    1pc English wire diagram
