  • KUS TFT KMB-70 Integrated Data Monitor for two fuel engines
  • KUS TFT KMB-70 Integrated Data Monitor for two fuel engines
  • KUS TFT KMB-70 Integrated Data Monitor for two fuel engines
  • KUS TFT KMB-70 Integrated Data Monitor for two fuel engines
KUS TFT KMB-70 Integrated Data Monitor for two fuel engines KUS TFT KMB-70 Integrated Data Monitor for two fuel engines KUS TFT KMB-70 Integrated Data Monitor for two fuel engines KUS TFT KMB-70 Integrated Data Monitor for two fuel engines

KUS TFT KMB-70 Integrated Data Monitor for two fuel engines

  • Product Item:TFT KMB-70 Integrated Data Monitor
  • Dimension: 7.0 inches
  • Backlight adjustment (10%~100%)
  • Compatible with NMEA2000 and J1939
  • Operation Voltage: 9-32V DC
  • Inquiry Send Email PDF

    Description

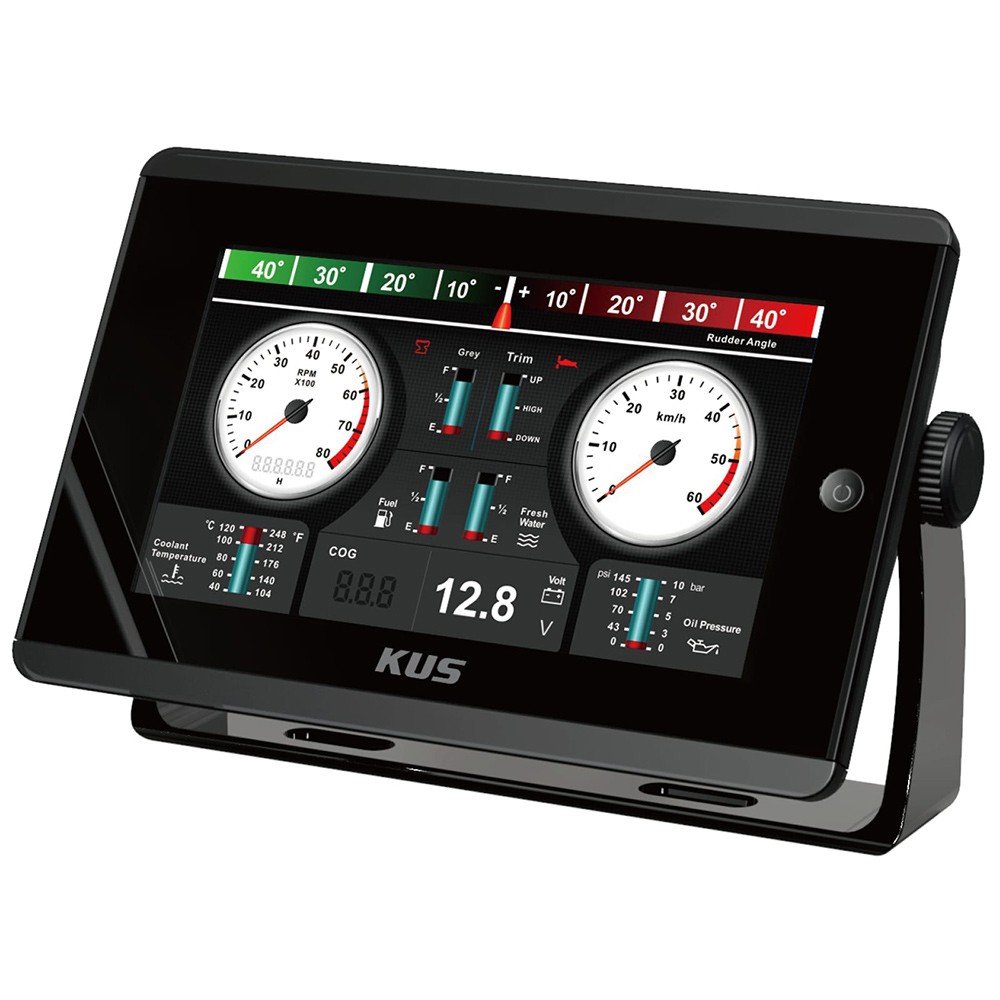

    The KMB-70 Series is an Integrated Data Monitor with an advanced TFT (Thin Film Transistor) screen.


    The KMB-70 displays real time network information including engine output, fluid levels, and speed.


    The unit is compatible with J1939 and NMEA 2000 systems.


    The KMB-70 is a perfect fit for marine applications that monitor information over the J1939 or NMEA 2000 network.


    Fits for two fuel engines

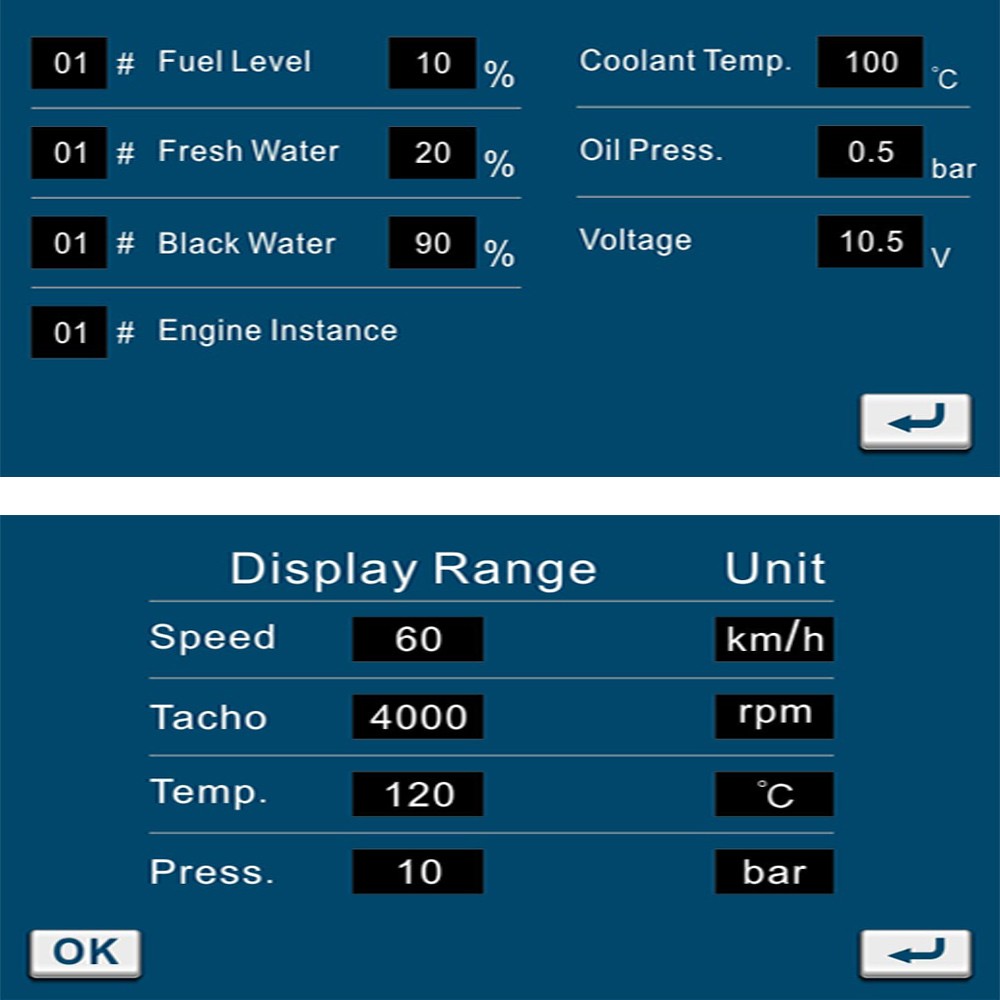

    Monitoring Data:


    1.Engine: speed, trim/balance, cooling water temperature, oil pressure, engine operating time


    2.Nautical: course over ground, speed over ground


    3.Liquid level management: oil level, water level, sewage level


    4.Rudder angle position and voltage


    Key Features:

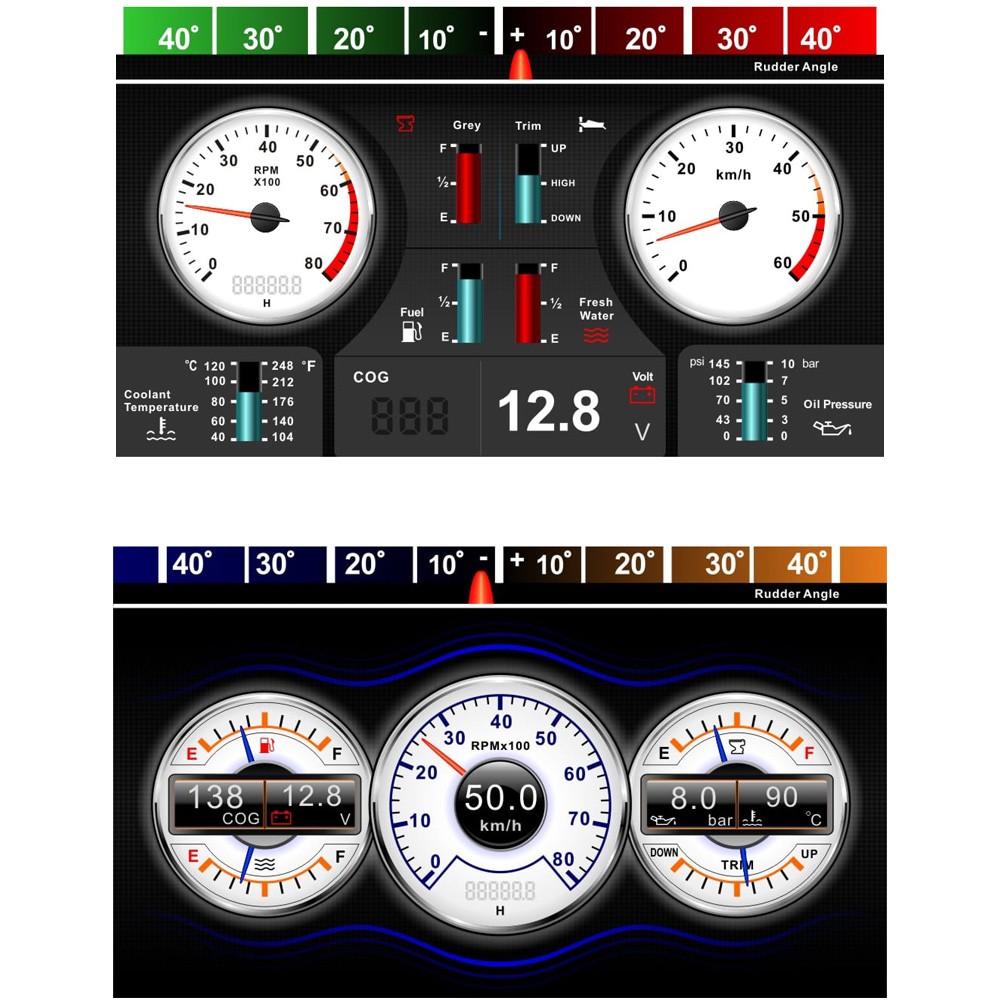

    1.Two styles to choose from


    2.Simple operation, supports English and Chinese language switch


    3.Compatible with NMEA2000 and J1939


    4.Customized alarm values for safe driving


    5.IP67 rated waterproof


    6.2-channel frequency, 10-channel resistance (0~999ohm)


    7.Black and white background color selectable; night cruise mode; a bright high-resolution touch screen display that can be seen in direct sunlight


    8.Backlight adjustment (10%~100%)


    9.Fast start-up speed


    10.32-bit Cortex-M3 core and high-speed FPGA framework

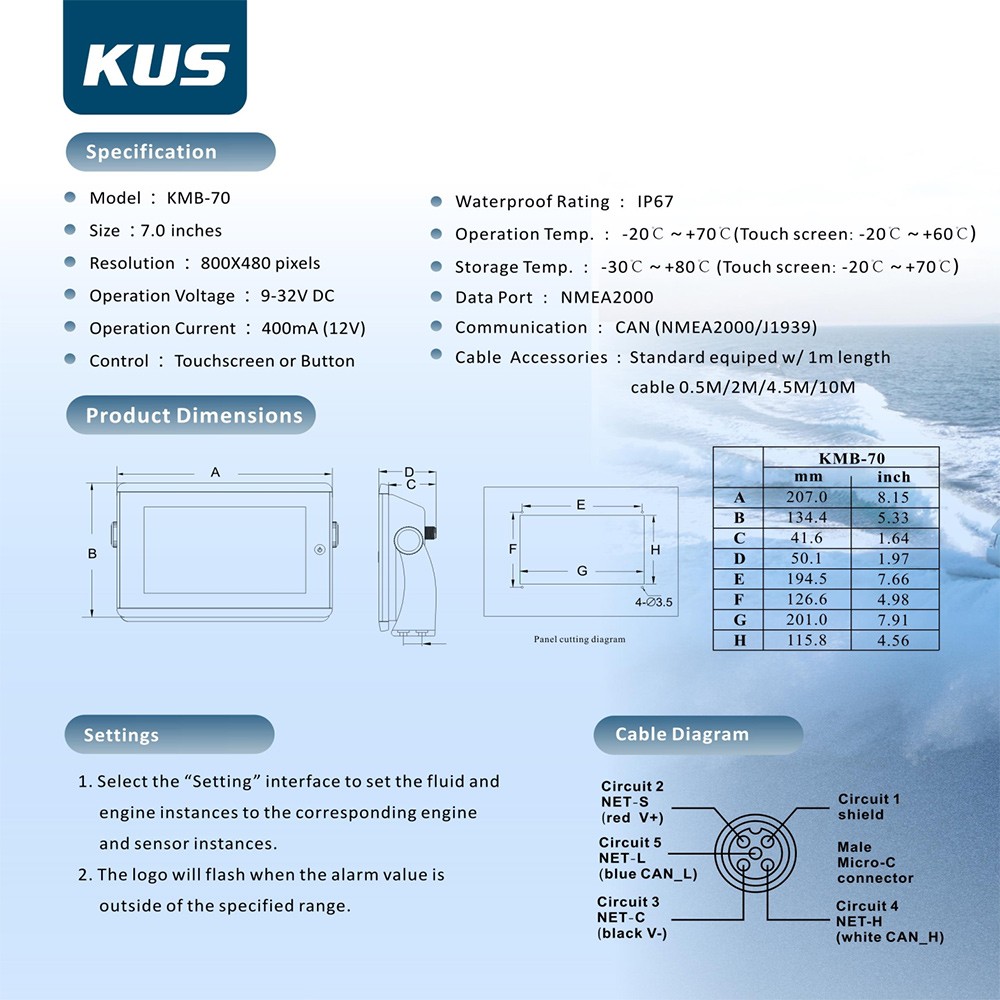

    Product Specifications:


    1.Dimension: 7.0 inches


    2.Resolution: 800×480 pixels


    3.Operation Voltage: 9-32V DC


    4.Operation Current: 400mA (12V)


    5.Operation Temp.: -20℃~+70℃/-4℉~158℉ (Touch screen: -20℃~+60℃/-4℉~140℉)


    6.Cable Accessories: 1m length cable included


    Package includes:


    1* 7 inches TFT Gauge Panel


    1* 1 meter long cable


    1* Bracket


    1* Instruction
