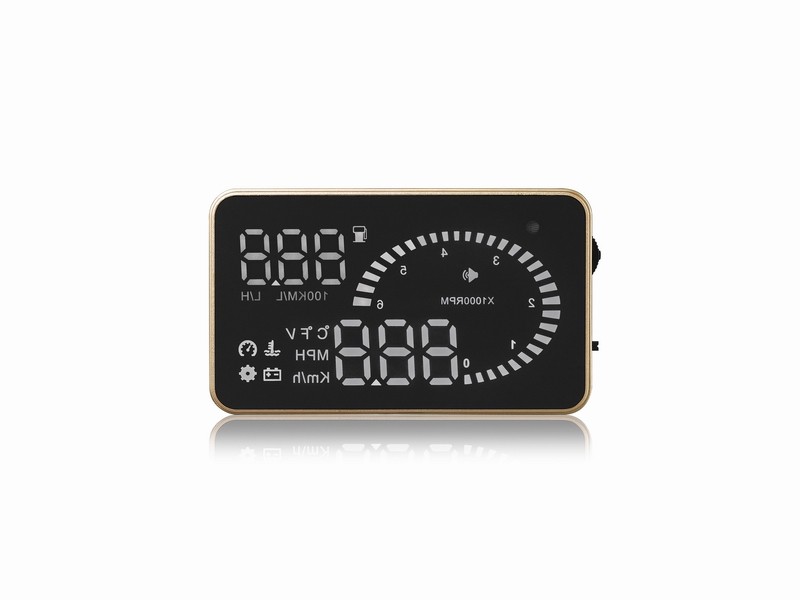

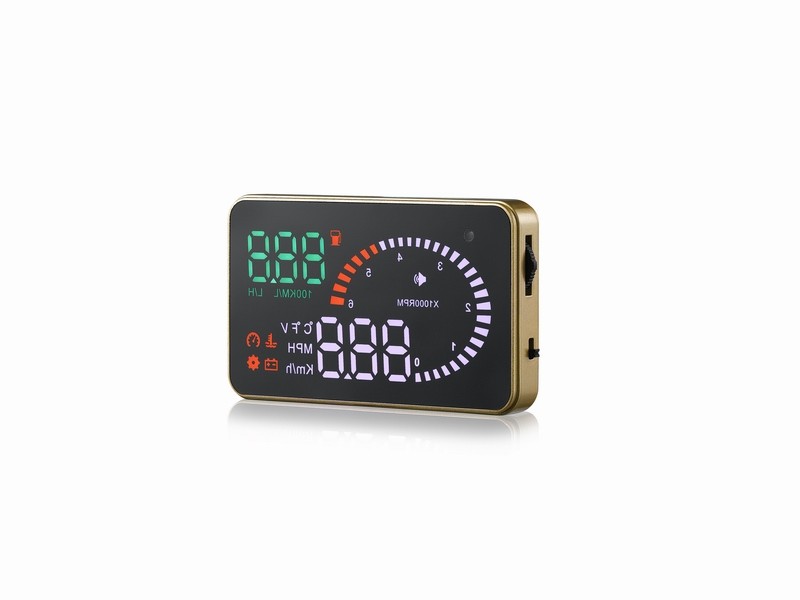

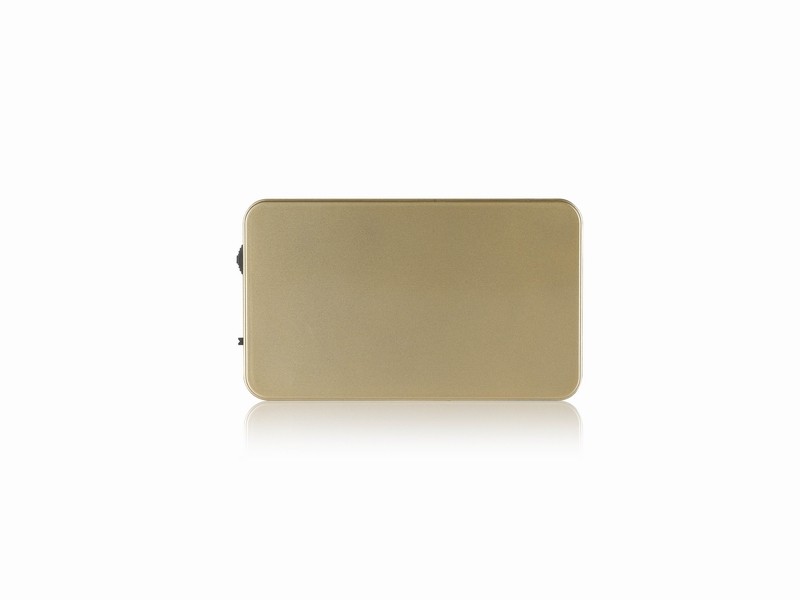

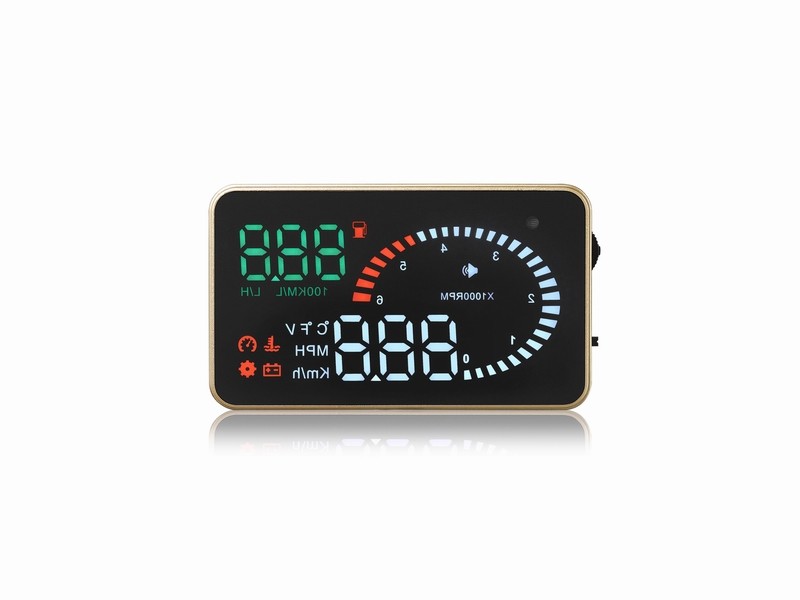

ELING OBD2 HUD Speedometer X6

  • Product Item:HUD X6
  • HUD
  • GPS Speedometer
  • Head Up Display
  • HUD  , Head Up Display  , GPS Speedometer  , Alarm
    Inquiry Send Email PDF

    Description

    Main Features:

    1. Automatic adaptation car models, and can apply for cars in line with OBD II or EUOBD (onboard automatic diagnostic system). Plug and Play.

    2. 3"screen and high-definition display.

    3. Multi-color design makes the screen more abundant and easier to read.

    4. The use of nano-technology to eliminate unwanted reflections and can make display information more sharper.

    5. Display rich content: speed, engine speed, water temperature, battery voltage, fuel consumption, low voltage alarm, high temperature alarm, speed alarm, free switching between kilometer and mile, free switching between ℃ and ℉.

    6. Auto power on and off with vehicle started and shutdown, effective protection of the car battery; while retaining the manual switch mode, and more easy to control HUD.

    7. Automatic and manual brightness adjustment mode, driving without glare.

    Technical Parameters:

    Environment temperature:  - 40℃— +80℃

    Barometric press:  86-106KPa

    Relative humidity:  10%-95%

    Environment voice:  <=60dB

    Alarm of sound level:  >=30dB(A)

    Work voltage:  9V~16Vdc(12Vdc/400mA)

    Size of product:  9*5.4*1.2(cm)

    Weight of product:  40g
