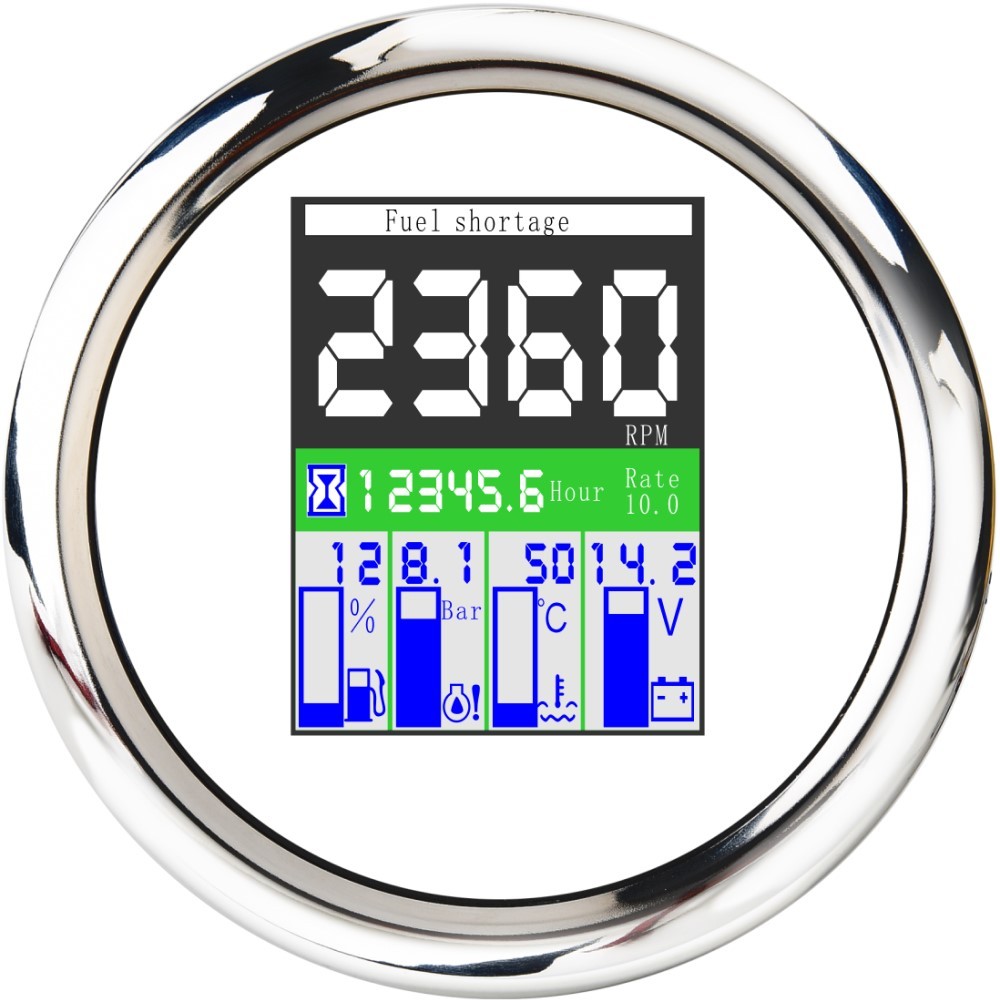

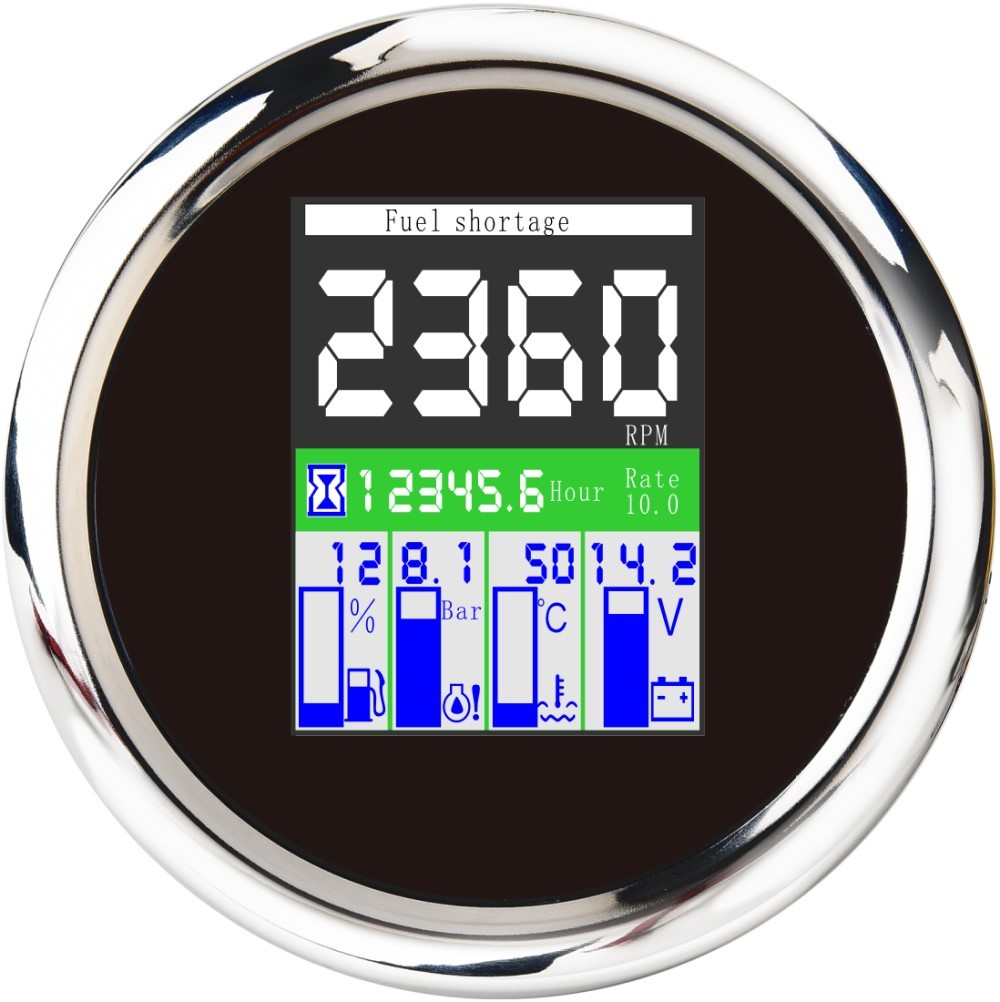

  • ELING 5 in 1 Multi functional Gauge Meter
  • ELING 5 in 1 Multi functional Gauge Meter
ELING 5 in 1 Multi functional Gauge Meter ELING 5 in 1 Multi functional Gauge Meter

ELING 5 in 1 Multi functional Gauge Meter

  • Product Item:ELING 5 in 1 Multi functional Meter
  • Installation Dimension:85mm(3-3/8'')
  • Backlight: TFT Screen
  • Indication range:RPM,fuel level,oil pressure,water temp,hour meter
  • Working Voltage:9-32V
  • tachometer  , fuel level gauge  , oil pressure gauge  , hour meter
    Inquiry Send Email PDF

    Description

    Features:

    -Tachometer: 0-9999RPM

    -Speed Ratio: 1.0-360.0; Step Value: 0.1
    -Oil Pressure: 0-10 bar/0-145psi   (Pressure sensor: 10-184ohm)

    (After power on, press the back button to adjust unit, if the oil pressure unit is "psi", the temperature unit will be "℉".)

    -Water Temperature: 0-120℃/0-250℉   (signal : 1600-22ohm)

    (The water temperature is displayed by default. If you need oil temperature, please contact us to customize.)
    -Voltmeter: 9-32V

    -Fuel Level: 0-100% (Press the back button to adjust the level signal:0-190Ω/240-33Ω available.)
    -Total Engine Hours: 0.0-99999.9H(Can be adjusted by the back button.)

    -Sensor Fault Alarm(Chinese and English can be switched)

    -Degree of Protection: IP67

    -Backlight: TFT Screen

    *Sensor are not provided with this gauge.

    *Plz. order the sensor separately if you need it.


    Setting:

    -Keep on pressing the back button for 3 seconds, and then enter into setting mode, if leave button more than 3 seconds, it will be out of setting mode.

    -The value will increase when you press the button. When you leave the button and then press it again, the value will decrease. The minimum step value is 0.1 and the adjustable range is 1-360.(tachometer setting)

    -When you get the required speed ratio value after adjustment, please leave the button. The tachometers will autoclave your setup after 3 seconds. If the setup doesn't meet your demand, please re-setup.

    -Must press the button first and power up, can select English or Chinese.


    Dimensions:

    -85mm diameter (3-3/8")

    -55mm Depth (2-3/4")


    Package Included:

    1*5 in 1 Multifunction Gauge

    1*multi-plug socket

    1*Instruction
