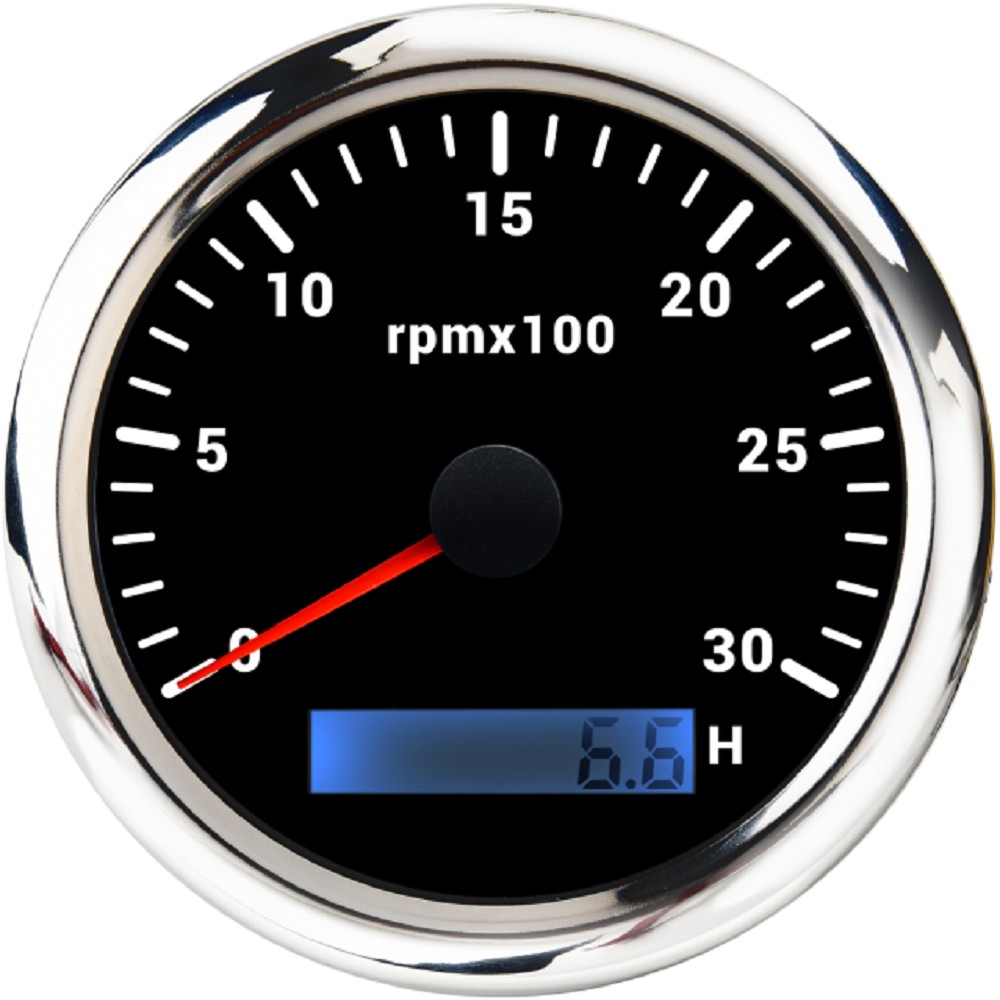

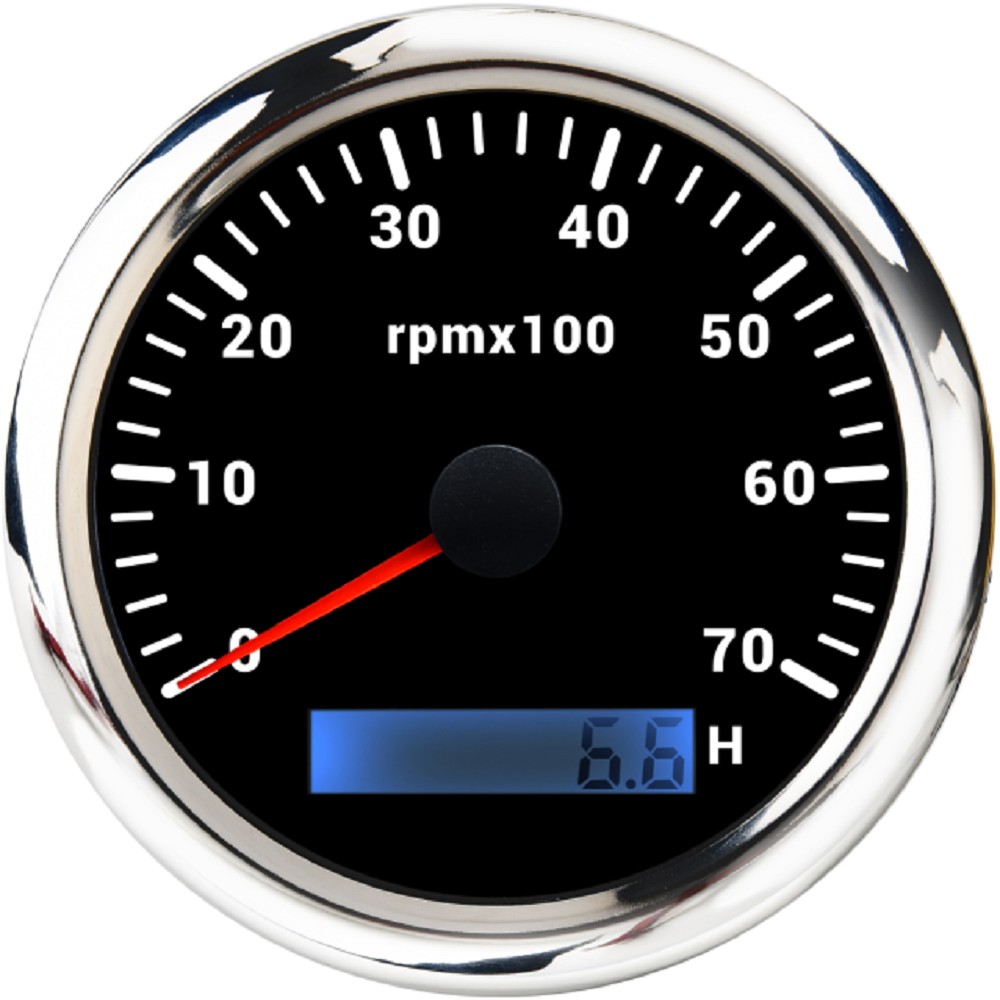

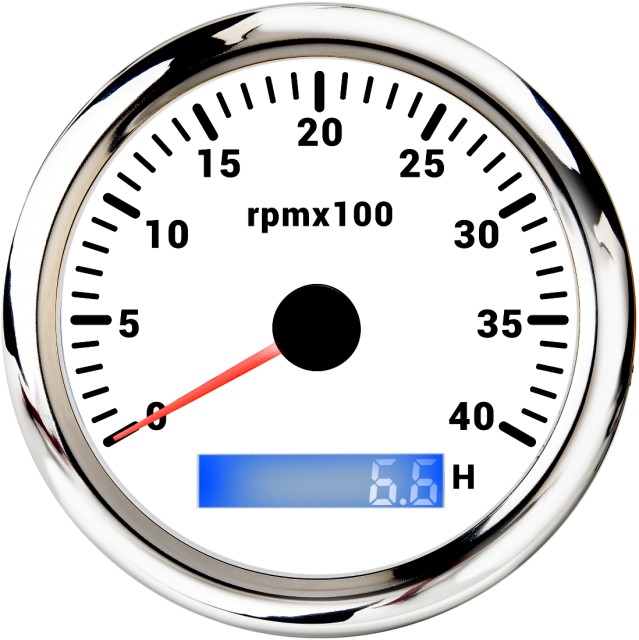

  5. ELING CX Tachometer Gauge 85mm
  • ELING CX Tachometer Gauge 85mm
  • ELING CX Tachometer Gauge 85mm
  • ELING CX Tachometer Gauge 85mm
  • ELING CX Tachometer Gauge 85mm
ELING CX Tachometer Gauge 85mm ELING CX Tachometer Gauge 85mm ELING CX Tachometer Gauge 85mm ELING CX Tachometer Gauge 85mm

ELING CX Tachometer Gauge 85mm

  • Product Item:CX Tachometer Gauge 85mm
  • Fixing dimension:85mm(3-3/8")
  • Indicating Range:0-3000RPM,0-4000RPM,0-6000RPM,0-7000RPM,0-8000RPM
  • Working Voltage:9-32V
  • Backlight:7 Backlights available (red, green, blue, white, yellow, cyan, purple)
  • tachometer  , tacho gauge  , rpm meter
    Inquiry Send Email

    Description

    Specification:


    - 7 Colors Backlight


    - Installation Dimension: 85mm


    - Signal : Pulse


    -Indicating Range: 0-3000RPM,0-4000RPM,0-6000RPM,0-7000RPM,0-8000RPM


    - Working voltage: 9-32VDC


    - Working current: <120mA


    - Backlight :7 backlights (red, green, blue, white, yellow, cyan, purple)


    - Engine hours: 0.0-99999.9H


    - Working temperature: -30-70℃


    - Storage temperature: -40-85℃


    - Waterproof and dustproof grade IP67.


    - Functions: current tacho/RPM and adjustable hour


    - Operation mode: LCD display, stepper motor


    - Tachometer fit for Car /Truck/ Boat /Diesel Generator Engine /Gasoline Engine


    Feature:


    - Waterproof: IP67 <br>- Excellent anti-fogging function;


    - With curved glass (with anti-fog function).


    - 316 Stainless steel bezel with curved glass;


    - Convenient Installation by multi-plug socket connecting way;


    Package Included


    1* Tachometer


    1* Cable


    1* Installation
