  5. ELING ECPW Holding Tank Level Gauge

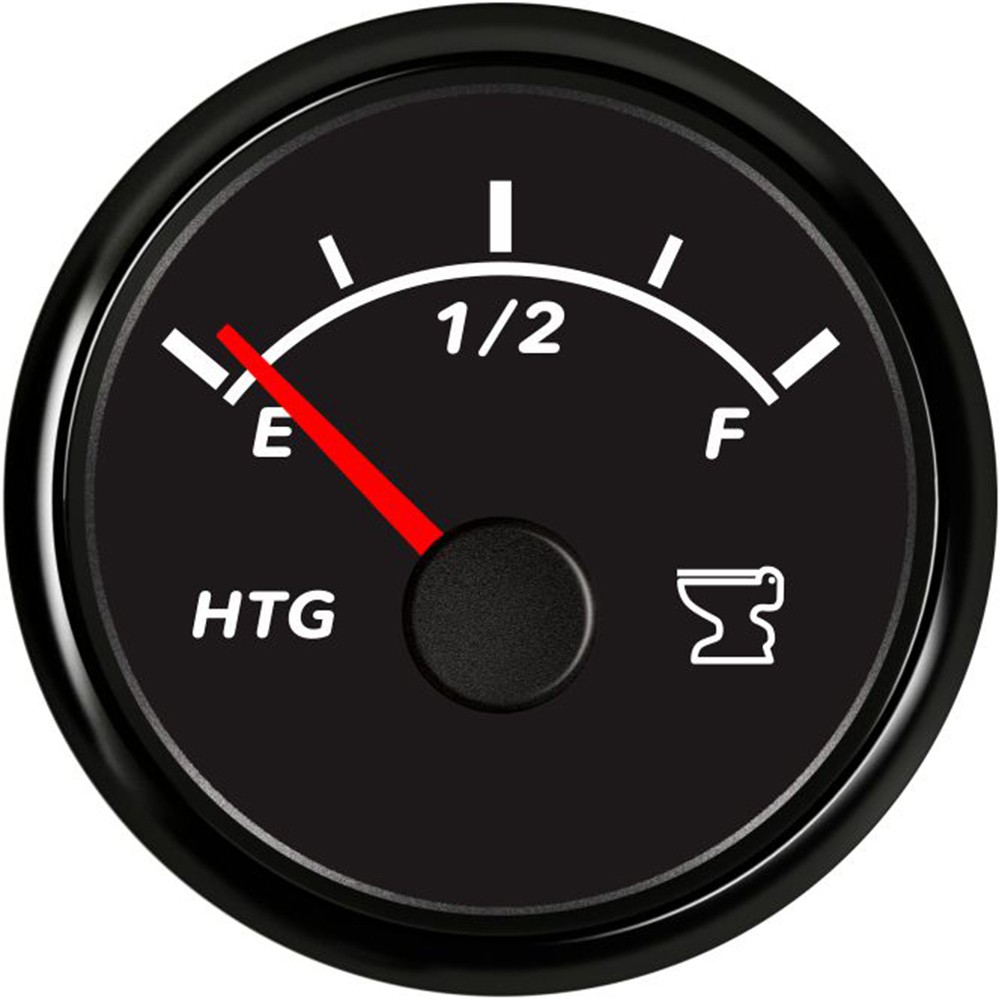

  • ELING ECPW Holding Tank Level Gauge

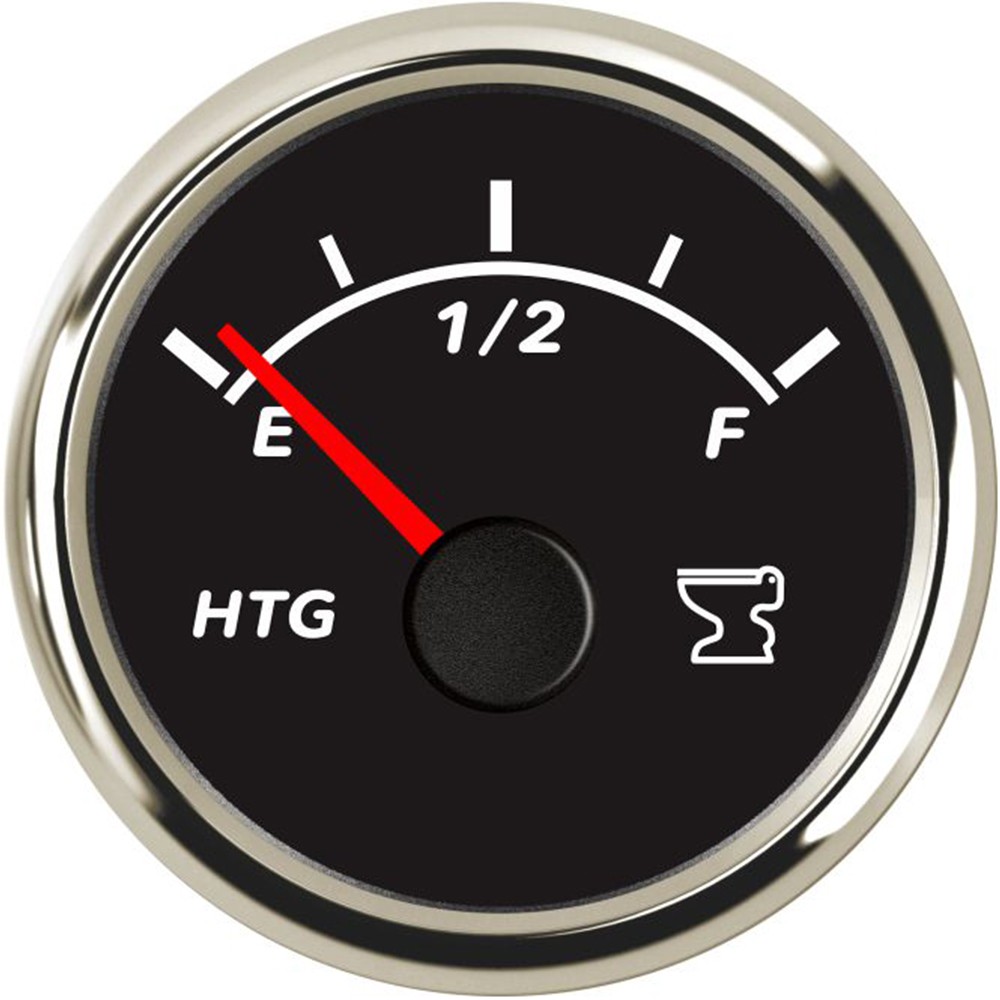

  • ELING ECPW Holding Tank Level Gauge

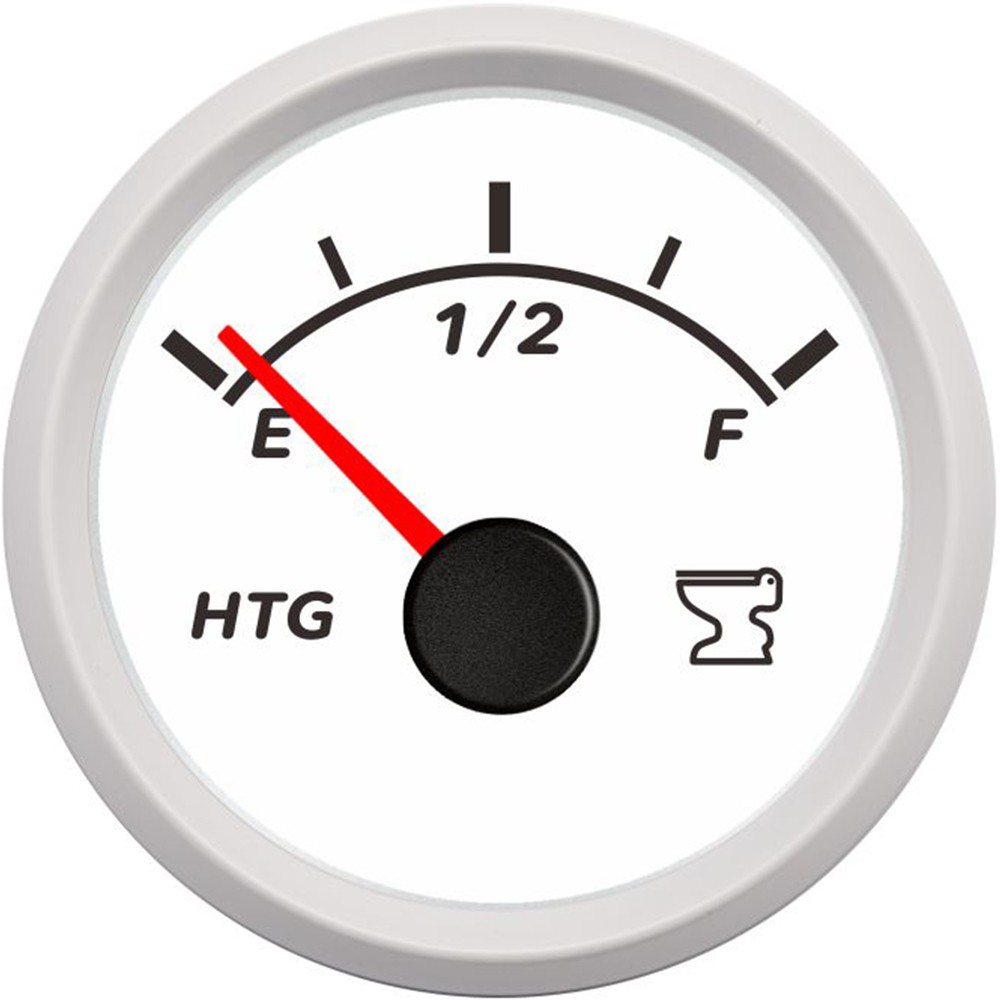

  • ELING ECPW Holding Tank Level Gauge

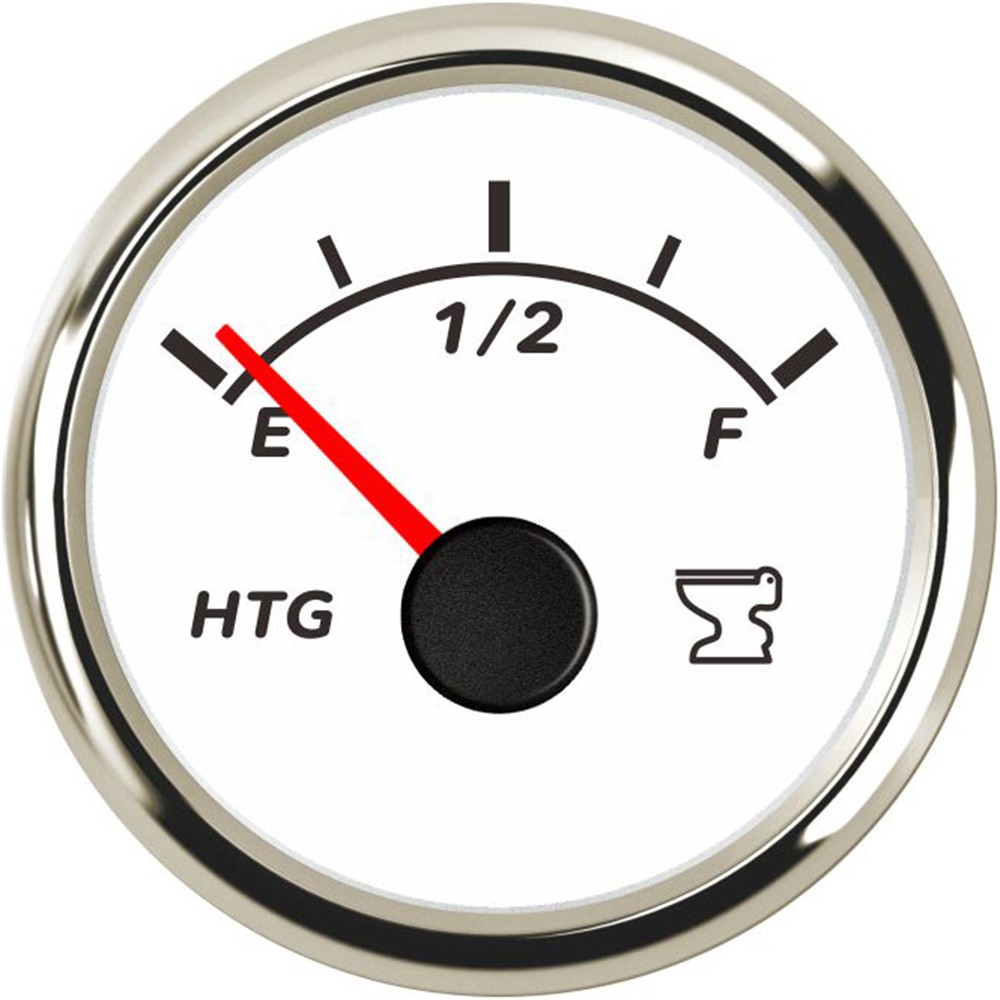

  • ELING ECPW Holding Tank Level Gauge
ELING ECPW Holding Tank Level Gauge ELING ECPW Holding Tank Level Gauge ELING ECPW Holding Tank Level Gauge ELING ECPW Holding Tank Level Gauge

ELING ECPW Holding Tank Level Gauge

  • Product Item:ECPW Holding Tank Level Gauge
  • Fixing dimension: 52mm(2
  • Backlight: Red
  • Signal: 0-190ohm,240-33ohm
  • Working Voltage: 9-32V(12V/24V)
  • holding tank gauge  , holding tank level gauge
    Inquiry Send Email PDF

    Description

    Product Features:


    -Be suitable for all kinds of holding tank level sensors with same signal , and display level of the holding tank


    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With curved glass (with anti-fogging function)


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Technical Data:


    -Fixing dimension: 52mm(2")


    -Indicating Range: E-1/2-FULL


    -Signal: 0-190ohm,240-33ohm


    -Working Voltage: 9-32V(12V/24V)


    -Backlight: Red


    -Operation mode: LCD display, stepper motor


    Package Includes:


    1x Holding Tank Level Gauge


    1x Multi-plug socket


    1x Installation Instruction
