  5. TN GPS MPH Speedometer(200MPH)
  • TN GPS MPH Speedometer(200MPH)
  • TN GPS MPH Speedometer(200MPH)
  • TN GPS MPH Speedometer(200MPH)
TN GPS MPH Speedometer(200MPH) TN GPS MPH Speedometer(200MPH) TN GPS MPH Speedometer(200MPH)

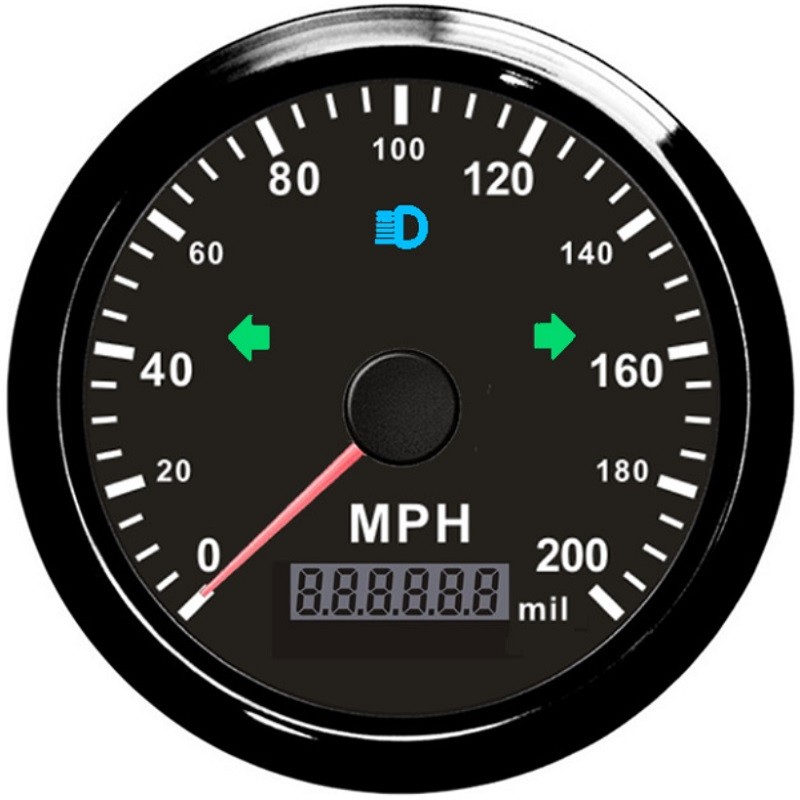

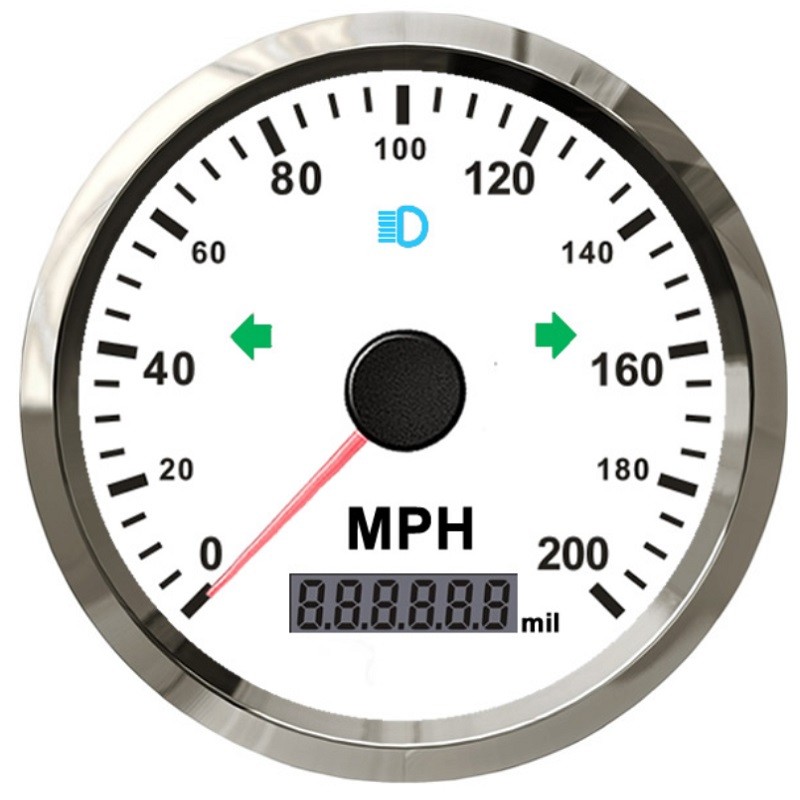

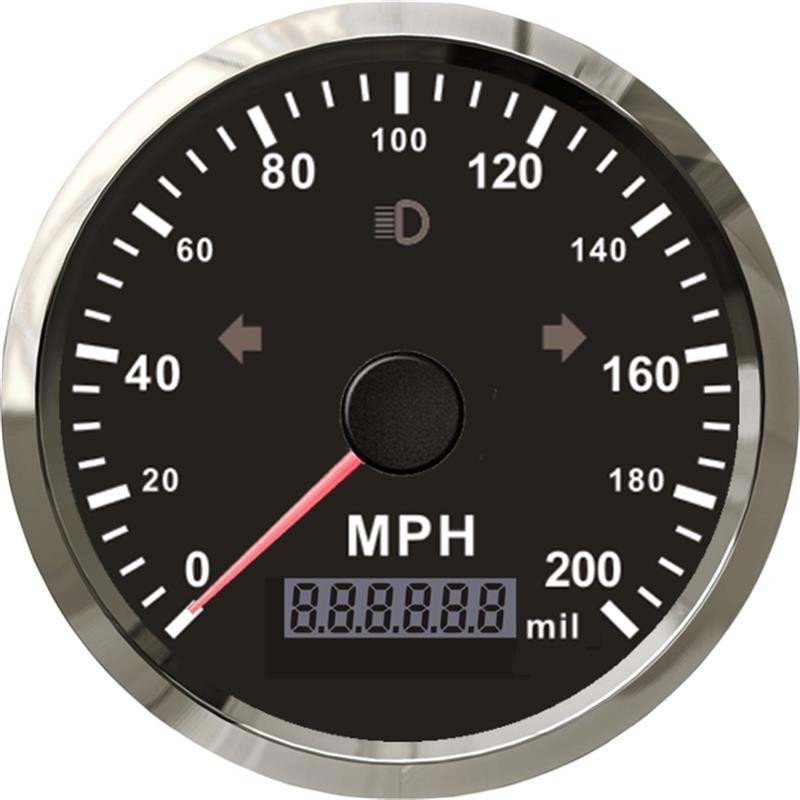

TN GPS MPH Speedometer(200MPH)

  • Product Item:TN 200MPH
  • Installation Dimension:85mm(3-3/8")
  • Working Voltage:9-32V
  • Backlight:Red and Yellow available
  • Speedometer Range:0-200MPH
  • gps speedometer  , mph speedometer  , speedometer  , mph
    Inquiry Send Email PDF

    Description

    Product Features:

    -Suitable for all vehicles and off-road vehicles

    -The signal comes directly from the satellite signal receiver(GPS Antenna), don't need other speed sensor.

    -The gauge has the advantages of high precision, quick location confirmation and short start up time.

    -IP67 waterproof and dustproof grade

    -Reverse polarity protection and anti-fogging performance

    -No Stationery Drift

    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    Technical Data:

    -Fixing dimension: 85mm(3-3/8")

    -Indicating Range: 0~200MPH

    -Working Voltage: 12V/24V

    -Total Mileage Adjustable, Mileage Range: 0-999999 miles

    -GPS Blind Area Odometer Compensation

    -OverSpeed Buzzer Alarm (Value Adjustable)

    -Indication light: LEFT, HIGH BEAM, RIGHT

    -Backlight: Red and Yellow available

    -Working temperatures: - 40 to 85°C

    -Operation mode: LCD display, stepper motor


    Package Includes:

    1x GPS speedometer

    1x GPS Antenna

    1x Multi-plug socket

    1x Installation Instruction
