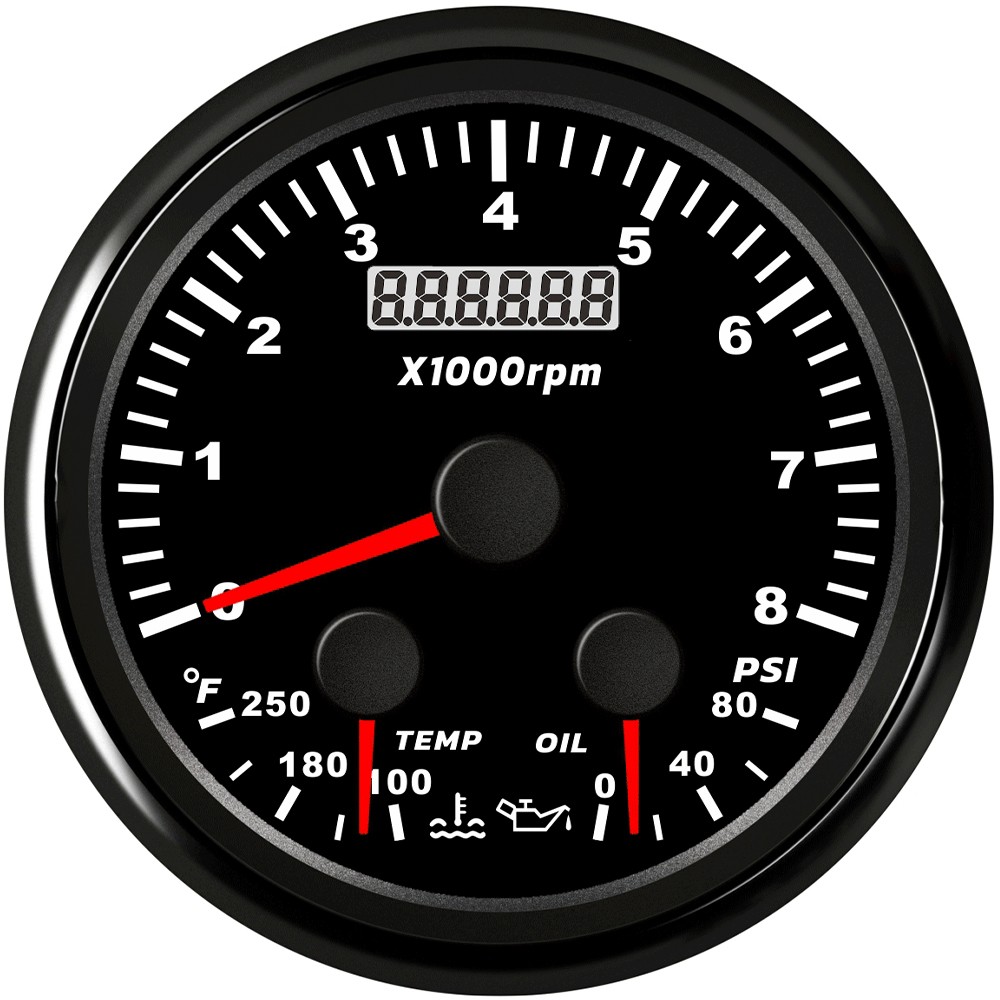

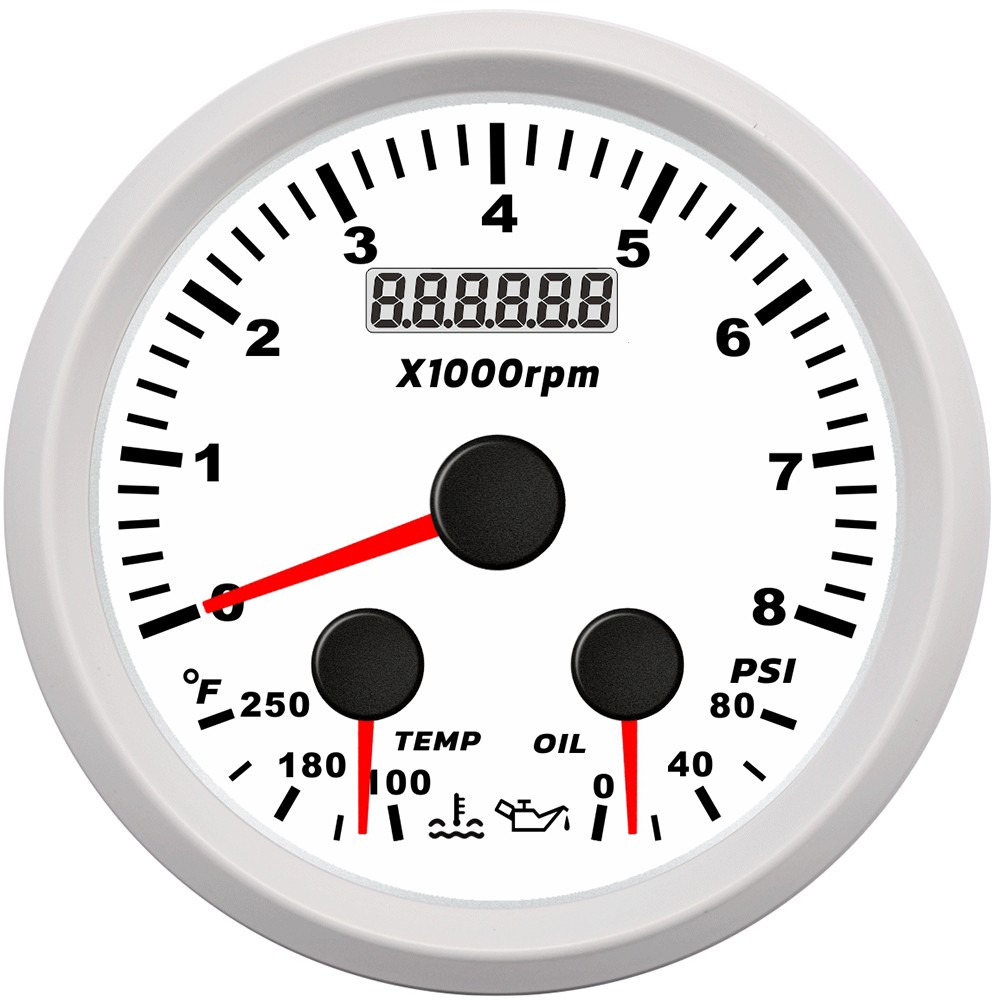

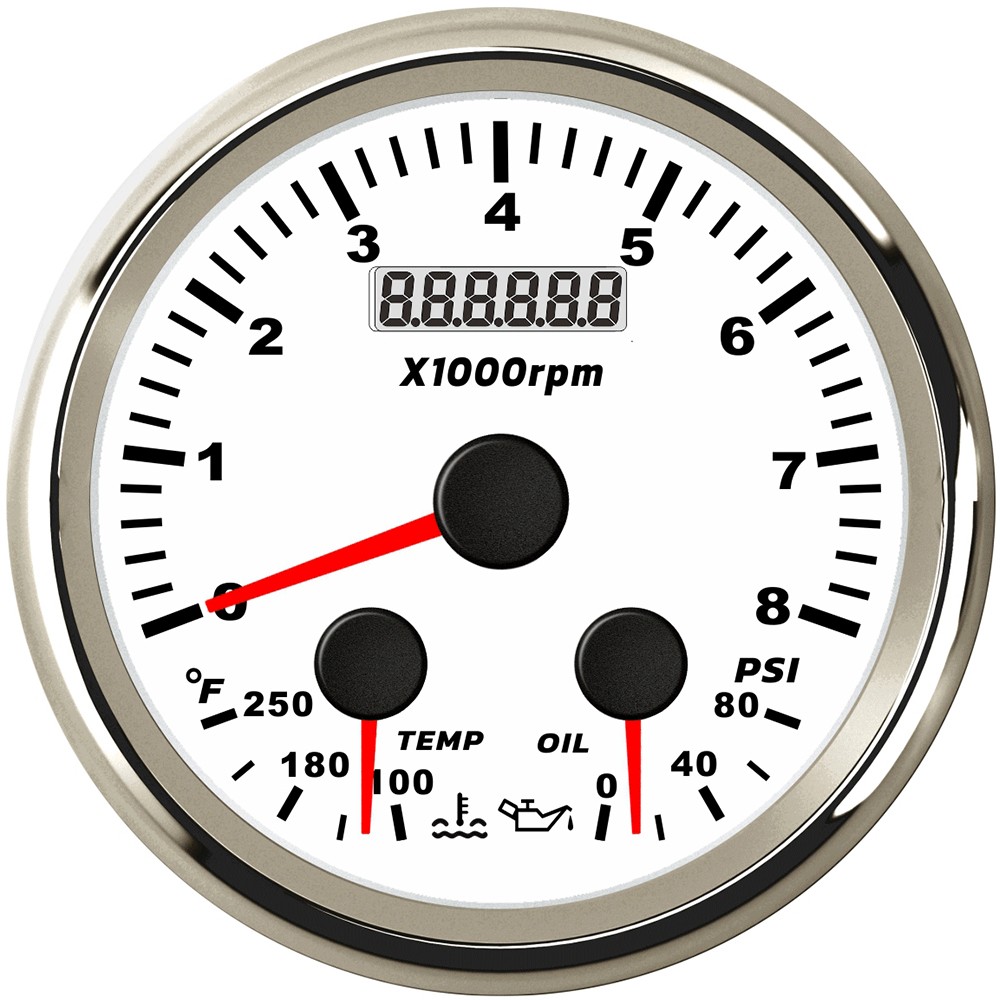

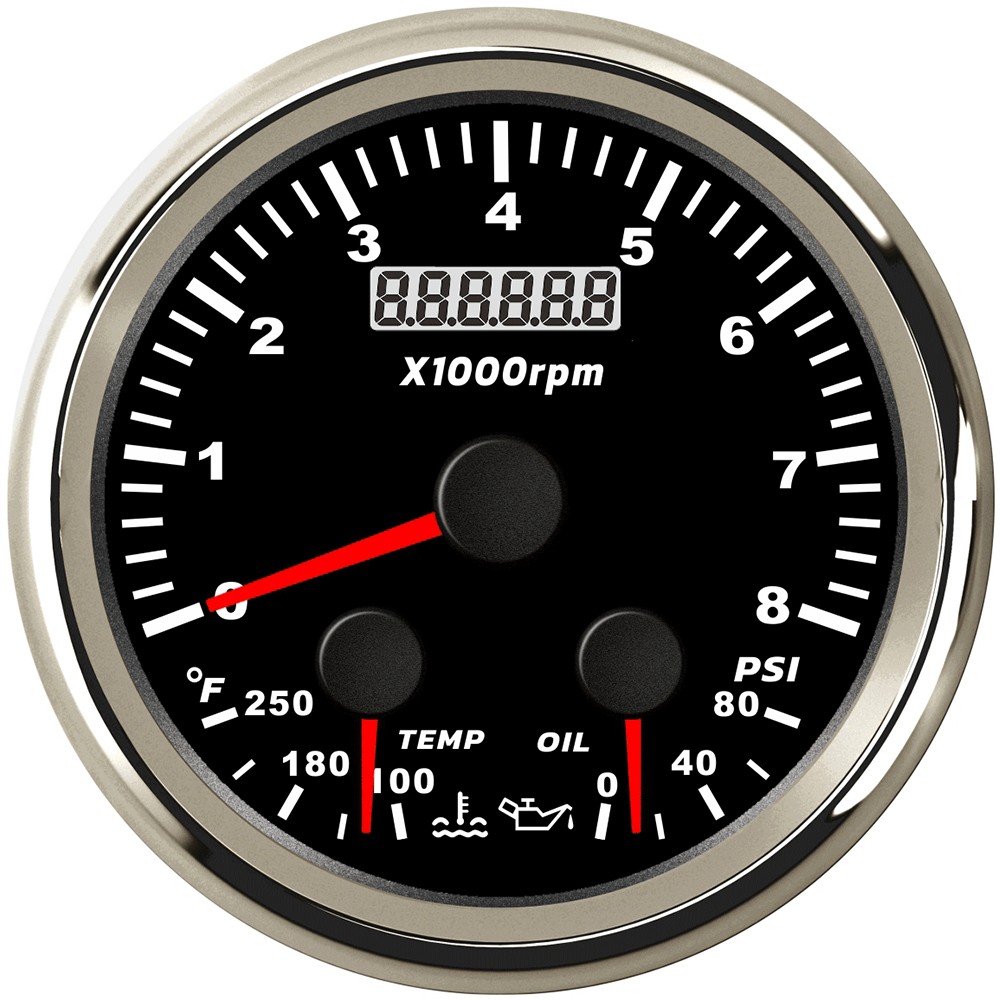

ELING ECP 3 in 1 Tachometer

  • Product Item:ECP 3 in 1 Tachometer
  • Tahcometer: 0-8000rpm
  • Water Temp Gauge: 100-250℉
  • Oil pressure meter: 0-80Psi
  • Installation Dimension: 85mm
  • Tachometer  , Water temp gauge  , oil pressure gauge  , 8000RPM
    Inquiry Send Email PDF

    Description

    Features:


    Suitable for all kinds of cars, boats, motorcycles, with instructions of high precision, repeatability and versatility, reliability and stability, drive and control is relatively simple and so on. Using a stepper motor drive pointer, accurate display of the tachometer, water temp., oil pressure, hour.


    Specifications:


    Materials: stainless steel+nickel-plated plastic


    Operating Voltage: 12V


    Indicating range:


    Tachometer: 0-8000rpm


    Water temp: 100-250℉


    Oil pressure: 0-80Psi


    Input signal:


    Water temp: 320-22ohm


    Oil pressure: 10-119ohm


    Protection Class: IP67, can work underwater 1meter position


    Sensors need to be purchased separately


    Package Includes:


    1 x 3 in 1 Multi-function Gauge


    1 x Cable


    1 x Owner's Manual
