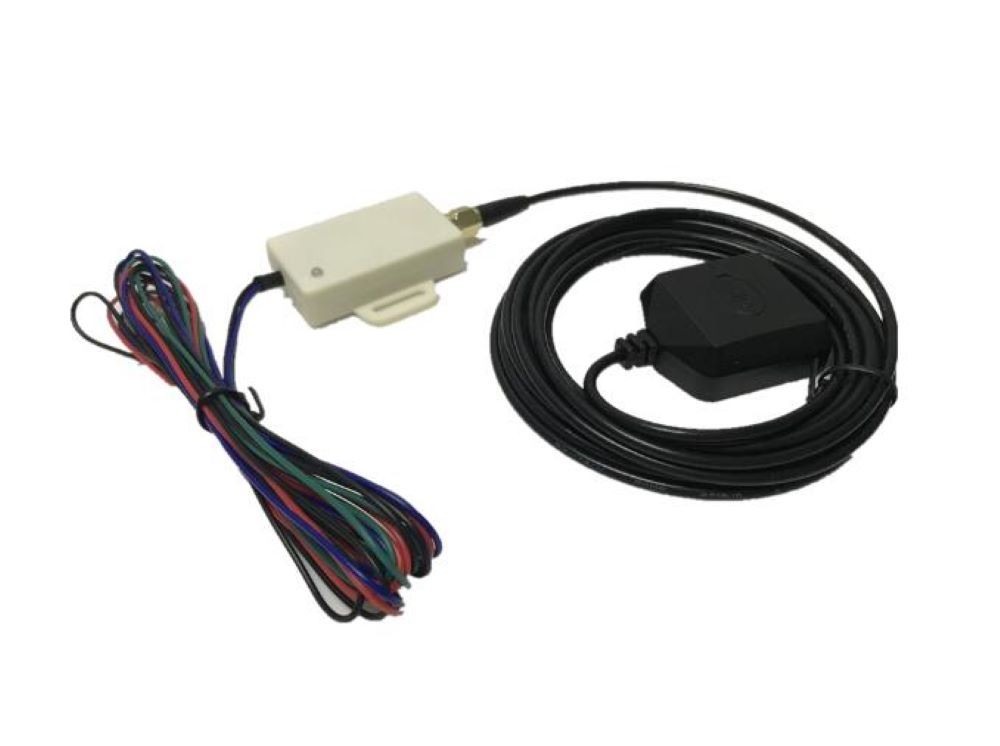

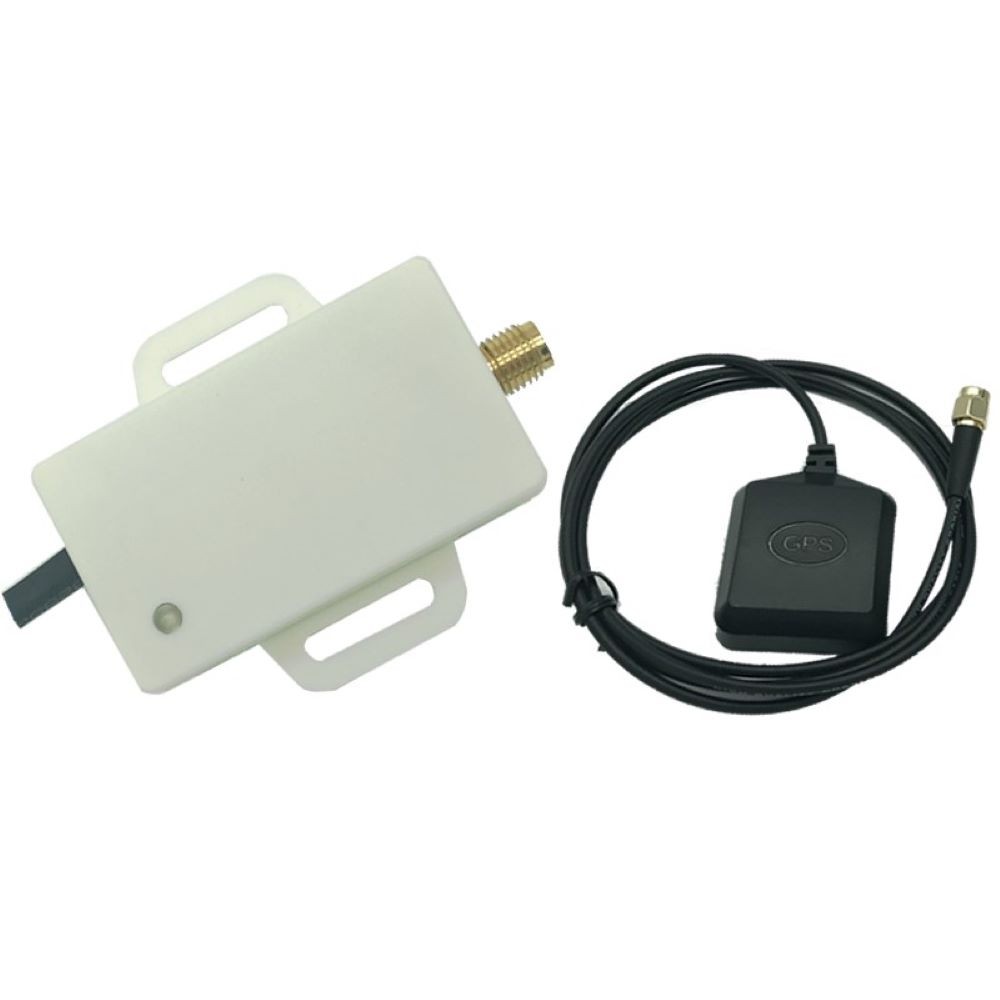

GPS Speedometer Sender Adapter Kit

  • Product Item:GPS Speedometer Sender Adapter Kit
  • Application: All kinds of Speedometer, Tachograph
  • White Mini Size: 4.5cm(L)x1.9cm(W), 100cm extended cable
  • GPS Speedometer  , sender adapter kit  , speedometer sender adapter kit
    Inquiry Send Email PDF

    Description

    Product Features:

    -Be suitable for all kinds of Speedometer, Tachograph

    -GPS Speedometer Sensor Kit allows you to easily install an aftermarket speedometer and monitor your vehicle’s driving speed without the need for a lengthy installation process

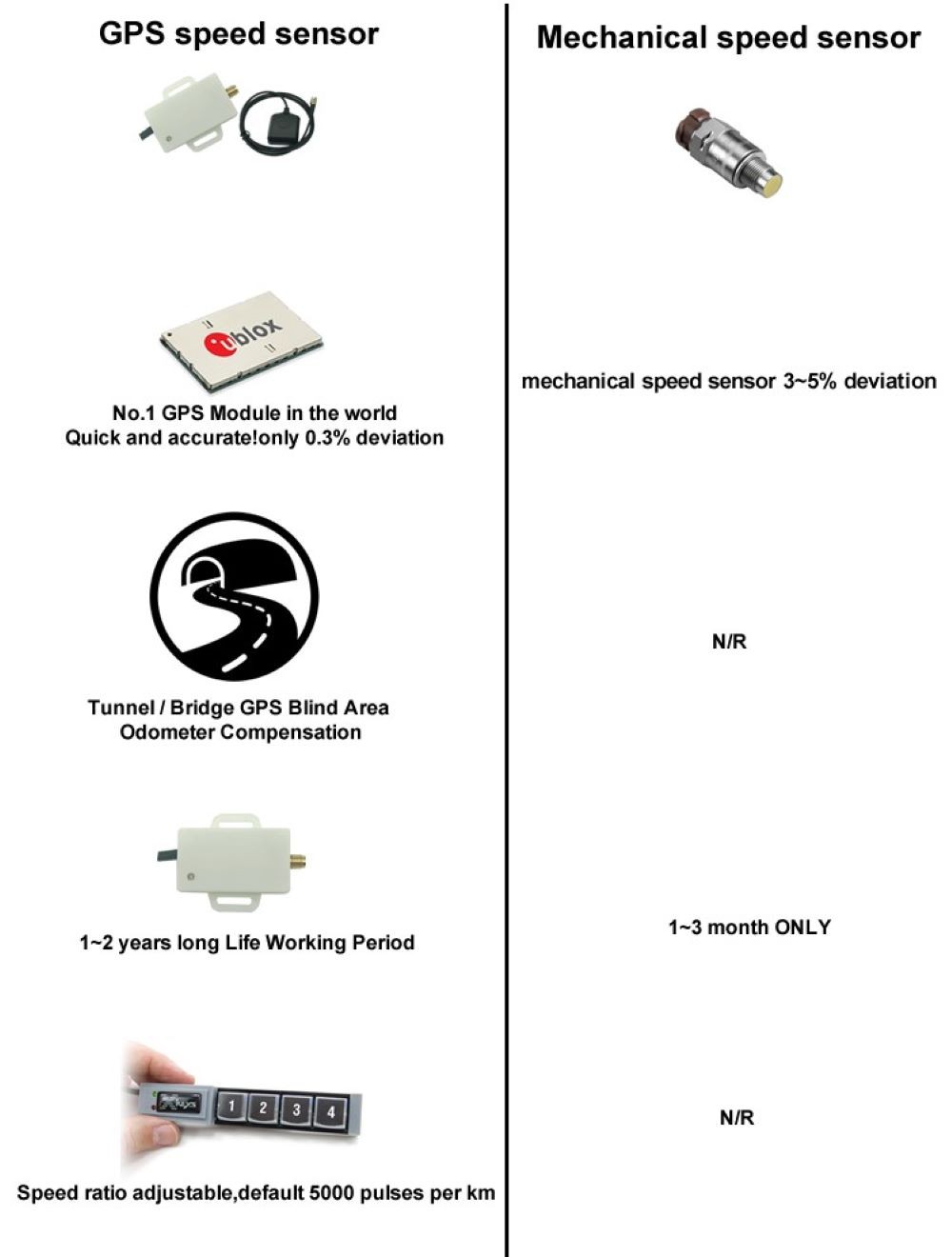

    -High Accuracy only 0.2% deviation (mechanical speed sensor will be 3~5% deviation)

    -Anti-GPS Stationary Drift technology.

    -Support both Negative & Positive Pulse output with Max 50,000pules/km

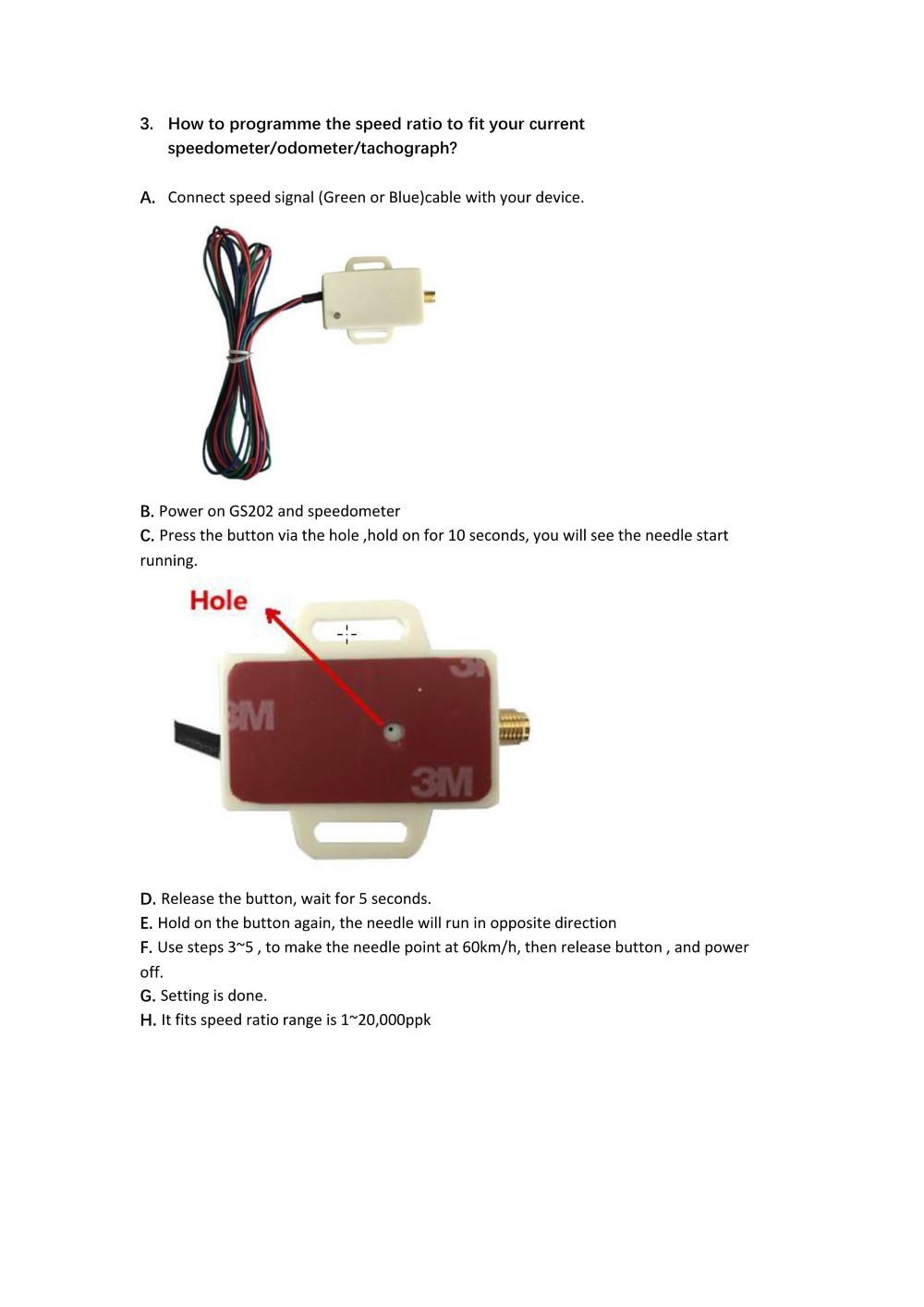

    -Compatible with different gauges with programmable speed ratio and lowest 0.5km/h speed to start.

    -Output two speed signals which are reverse

    - Shockproof and Circuit Protection design

    -Pulse/Odometer Compensation when in Tunnel or under Bridge Default Speed Ratio: 5000ppk (5000 pulses per km)

    -High quality GPS Active Antenna which performs well in windy or heavy rainy weather.


    Technical Data:

    -Mini Size: 4.5cm(L)x1.9cm(W), 100cm extended cable

    -GPS Antenna : 300cm extended cable

    -Working Voltage: DC12V/24V Power Supply (6~36V DC)


    How does it work?

    -GPS Odometer Speed Sender provides a reliable calibration-free replacement for mechanical speed senders.

    -Using data received from the Global Positioning Satellite network, the GPS Speed Sender calculates three- dimensional ground speed and provides a pulsed output compatible with existing mechanical speed senders.

    -This high-technology solution eradicates the dependency on vehicle specific parameters thereby reducing installation time and eradicating the need for periodic calibration.
