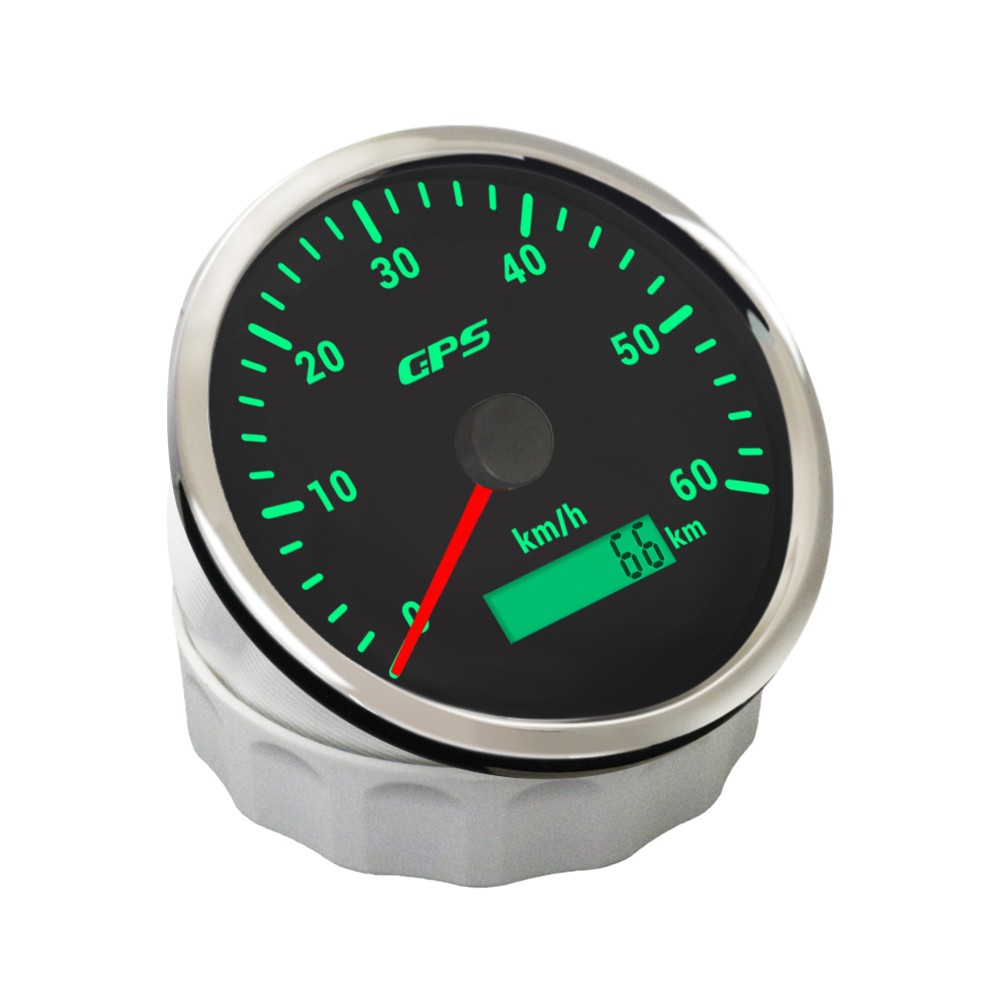

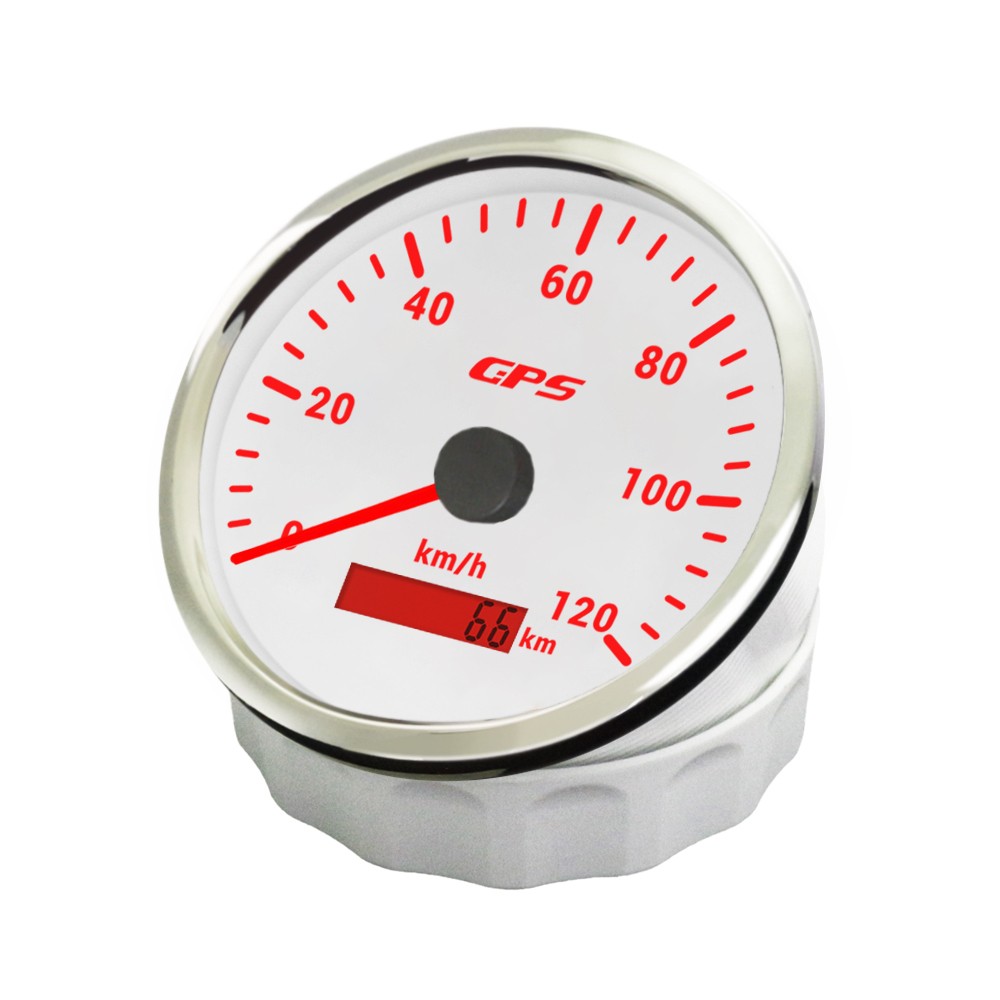

  • ELING CX 110mm GPS Speedometer
  • ELING CX 110mm GPS Speedometer
  • ELING CX 110mm GPS Speedometer
  • ELING CX 110mm GPS Speedometer
ELING CX 110mm GPS Speedometer ELING CX 110mm GPS Speedometer ELING CX 110mm GPS Speedometer ELING CX 110mm GPS Speedometer

ELING CX 110mm GPS Speedometer

  • Product Item:CX 110mm GPS Speedometer
  • Installation Diameter: Φ110mm (4- 3/8")
  • Backlight:7 Backlights available (red, green, blue, white, yellow, cyan, purple)
  • 9-32V Working Voltage
  • IP67 waterproof and dustproof grade
  • 110mm GPS Speedometer  , GPS Speedometer  , Odometer  , Speed Gauge Meter
    Inquiry Send Email PDF

    Description

    Feature:


    - High-brightness LED backlight.


    - 316 stainless steel for long-term use even in acid-base, humid environment.


    - IP67 waterproof and dust-proof grade.


    - With curved glass (with anti-fog function).


    - Suitable for all kinds of vehicle modification.


    - Using stepper motor drive pointer, accurate display of the engine speed, and with the LCD display clear display mileage.


    Specification:


    - Installation Diameter: Φ110mm (4- 3/8")

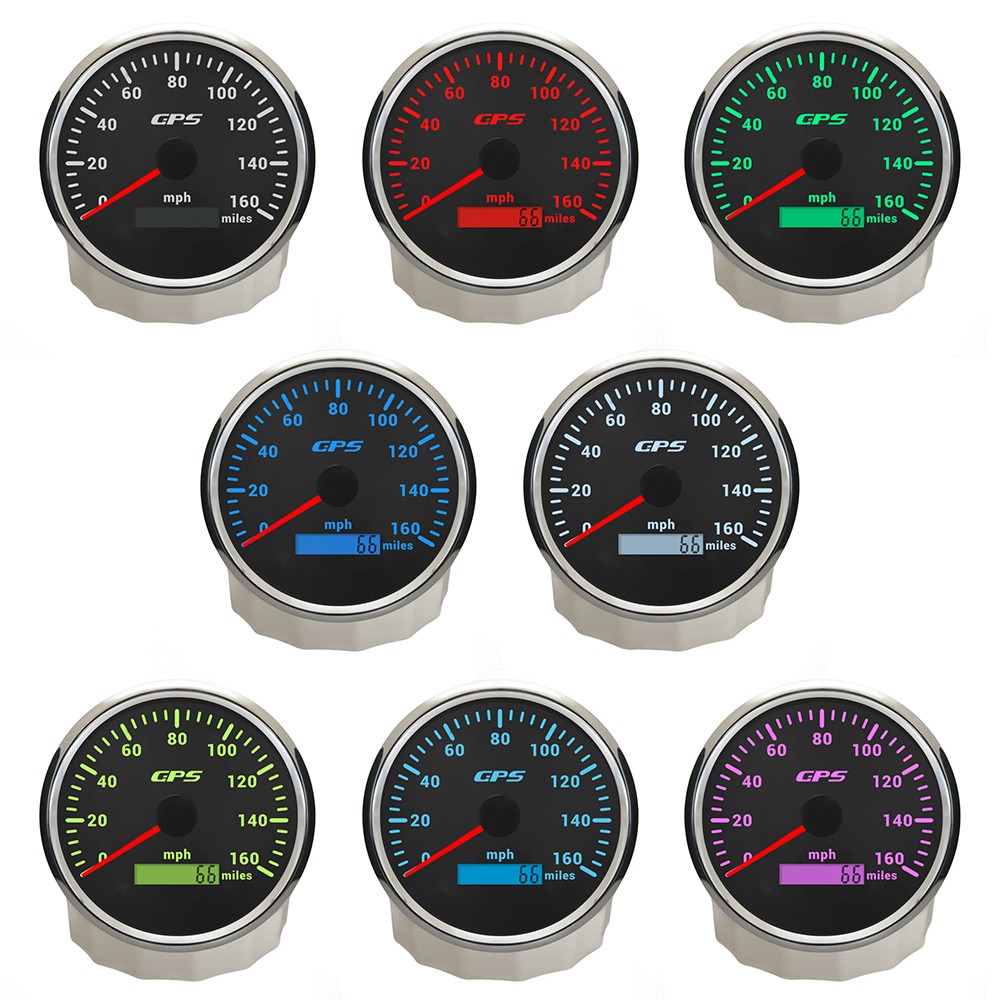

    - Backlight:7 Backlights available (red, green, blue, white, yellow, cyan, purple)


    - Function: Current speed and accumulative ODO(record the mileage after power off)


    - Indicating Range:0-60 KM/H;0-80 KM/H;0-80 MPH;0-120 KM/H;0-120 MPH;0-160 MPH;0-200 KM/H


    - Total mileage:0-999999 km or 0-999999 miles


    - Material: Stainless Steel 316L Bezel + Anti-fog Glass


    - Signal: GPS


    - Working Voltage: 9~32V DC


    - Working Current: ≤100mA


    - Operating Temperature: -30℃ ~ 75℃


    - Storage Temperature: -40℃ ~ 85℃


    - IP67 waterproof and dustproof grade

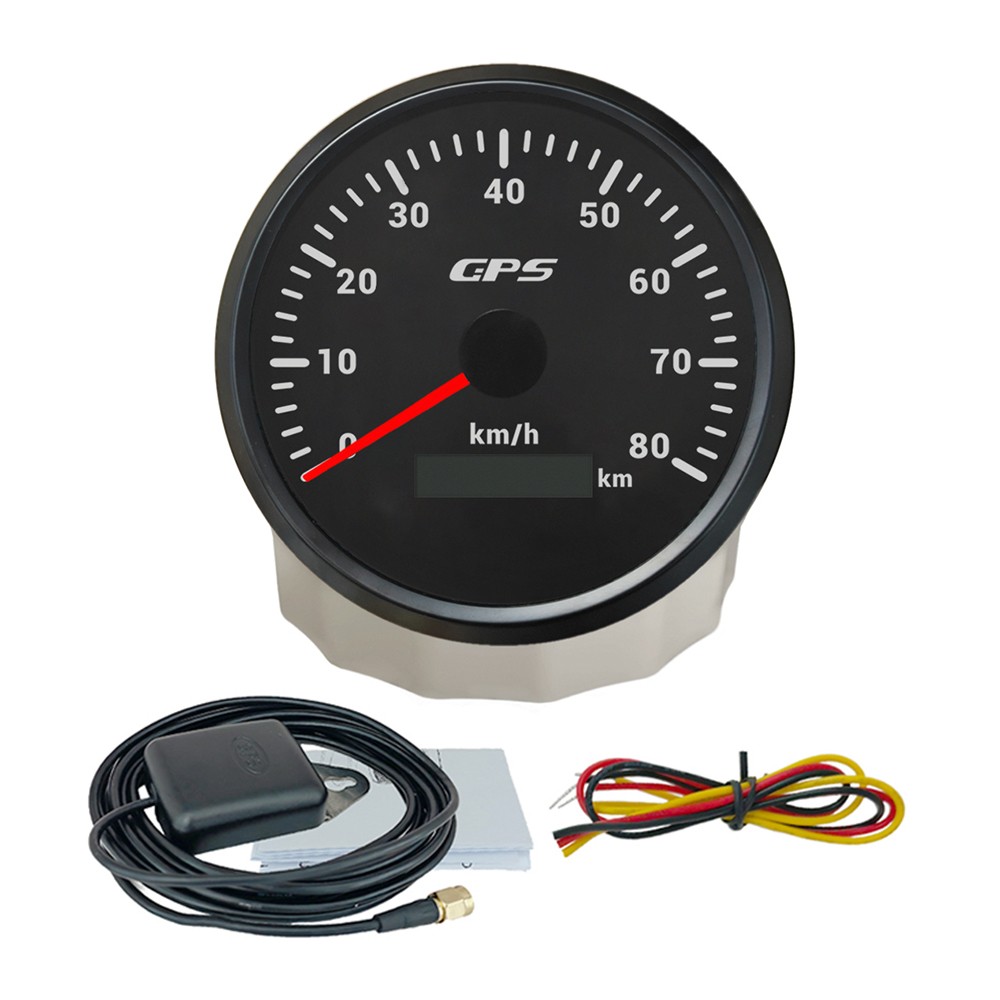

    Package Includes:


    1X GPS Speedometer


    1X GPS Antenna


    1X Multi-plug socket


    1X Installation Instruction
