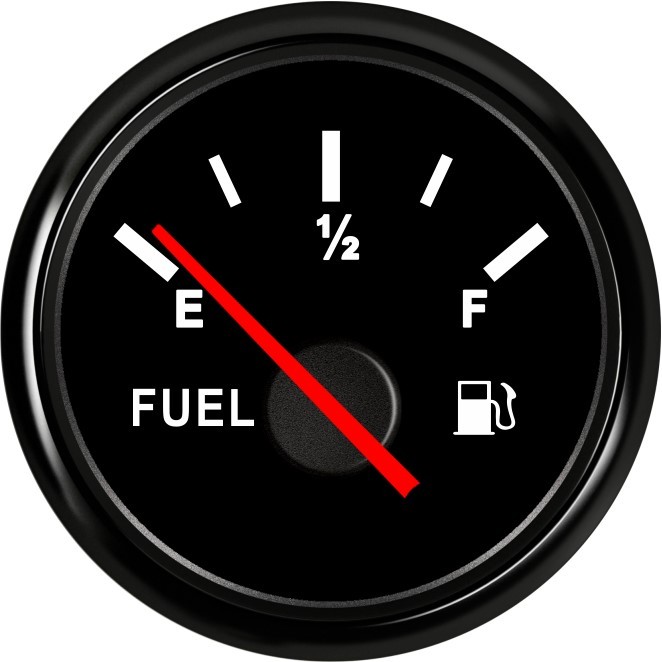

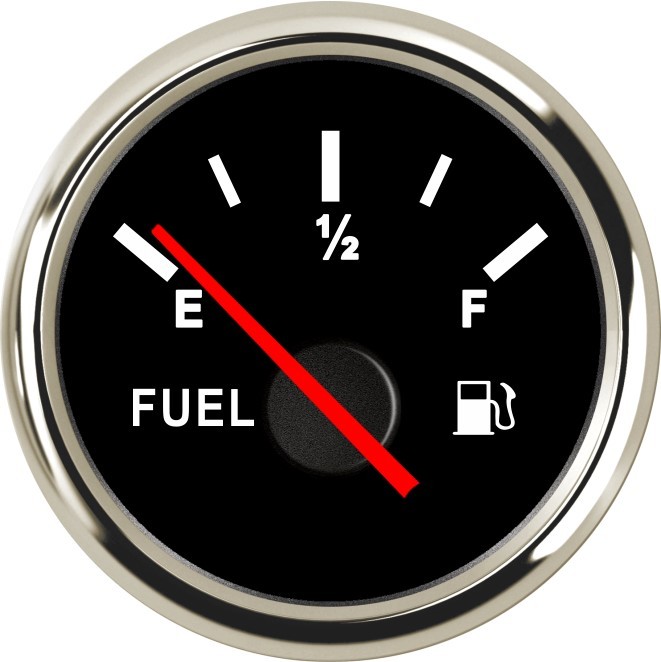

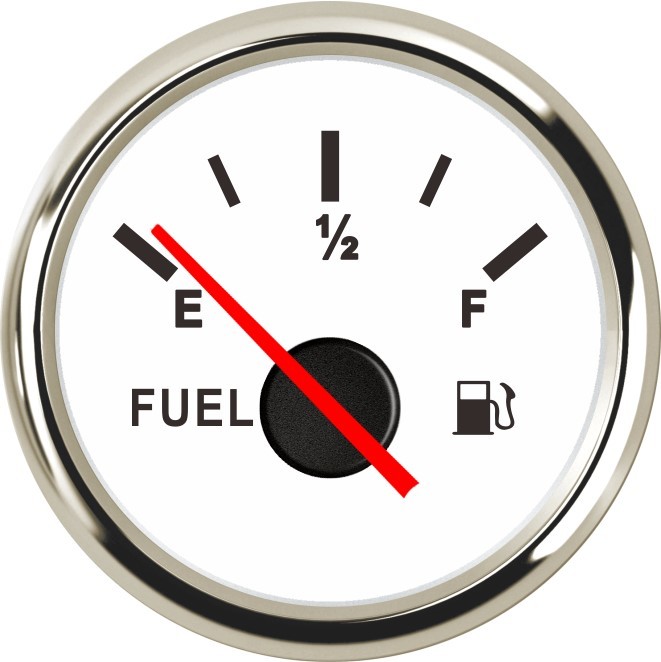

ELING ECC Fuel Level Gauge

  • Product Item:ELING ECC Fuel Level Gauge
  • Installation Dimension:52mm(2")
  • Working Voltage:9-32V
  • Backlight:Red
  • Input signal: 0-190ohm/240-33ohm
  • fuel levelgauge  , fuel gauge
    Inquiry Send Email PDF

    Description

    Product Features:

    -Be suitable for all kinds of fuel level sensors with same signal, and display liquid level of the oil tank

    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.

    -IP67 waterproof and dustproof grade

    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.

    -With curved glass (with anti-fogging function)

    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).



    Technical Data:

    -Fixing dimension: 52mm(2")

    -Indicating Range: E-1/2-F

    -Signal: 0-190ohm 240-33ohm

    -Working Voltage: 9-32V(12V/24V)

    -Backlight: Red

    -Operation mode: LCD display, stepper motor



    Package Includes:

    1x Fuel Level Gauge

    1x Installation Instruction
