  5. ELING ECP 85mm GPS Speedometer
  • ELING ECP 85mm GPS Speedometer
  • ELING ECP 85mm GPS Speedometer
  • ELING ECP 85mm GPS Speedometer
ELING ECP 85mm GPS Speedometer ELING ECP 85mm GPS Speedometer ELING ECP 85mm GPS Speedometer

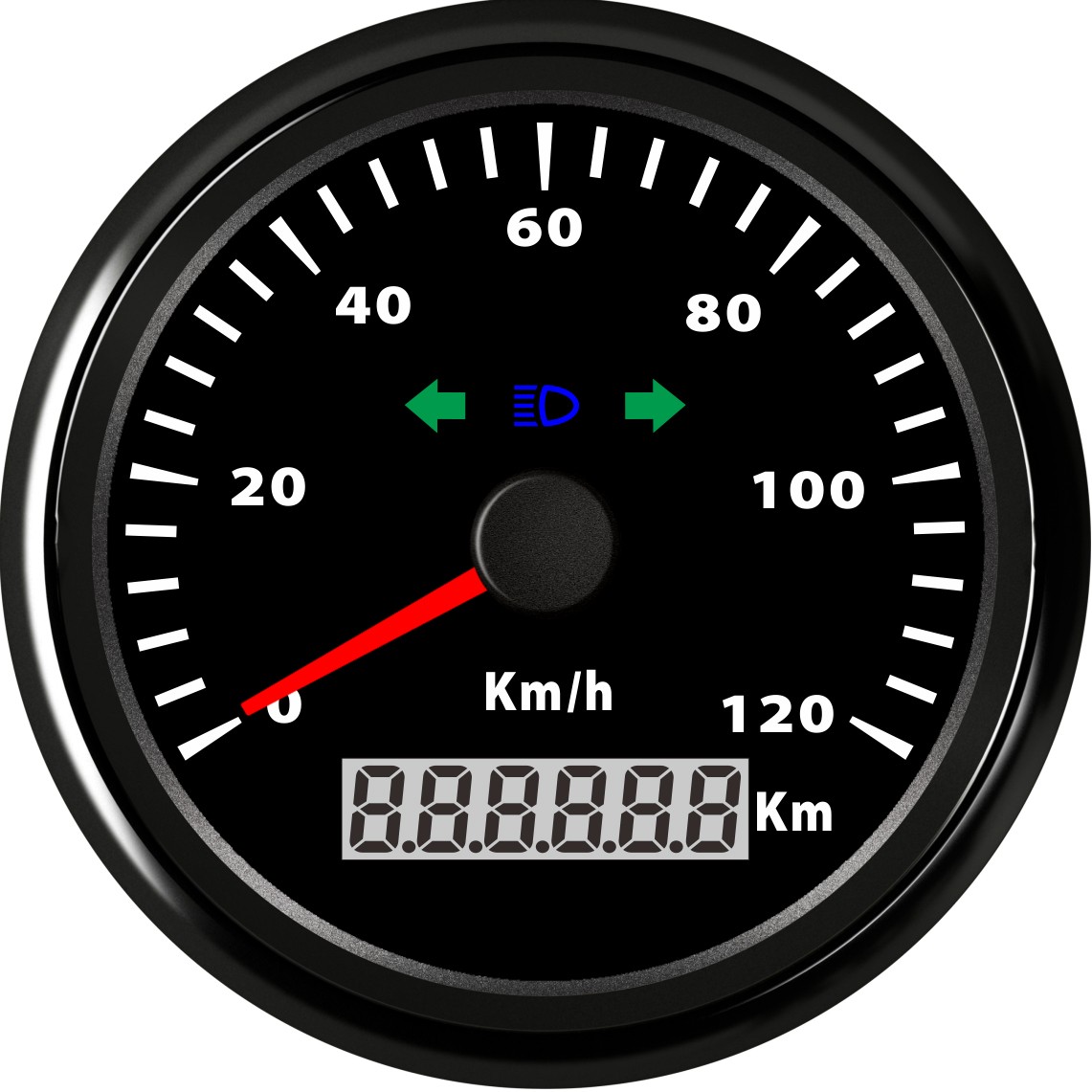

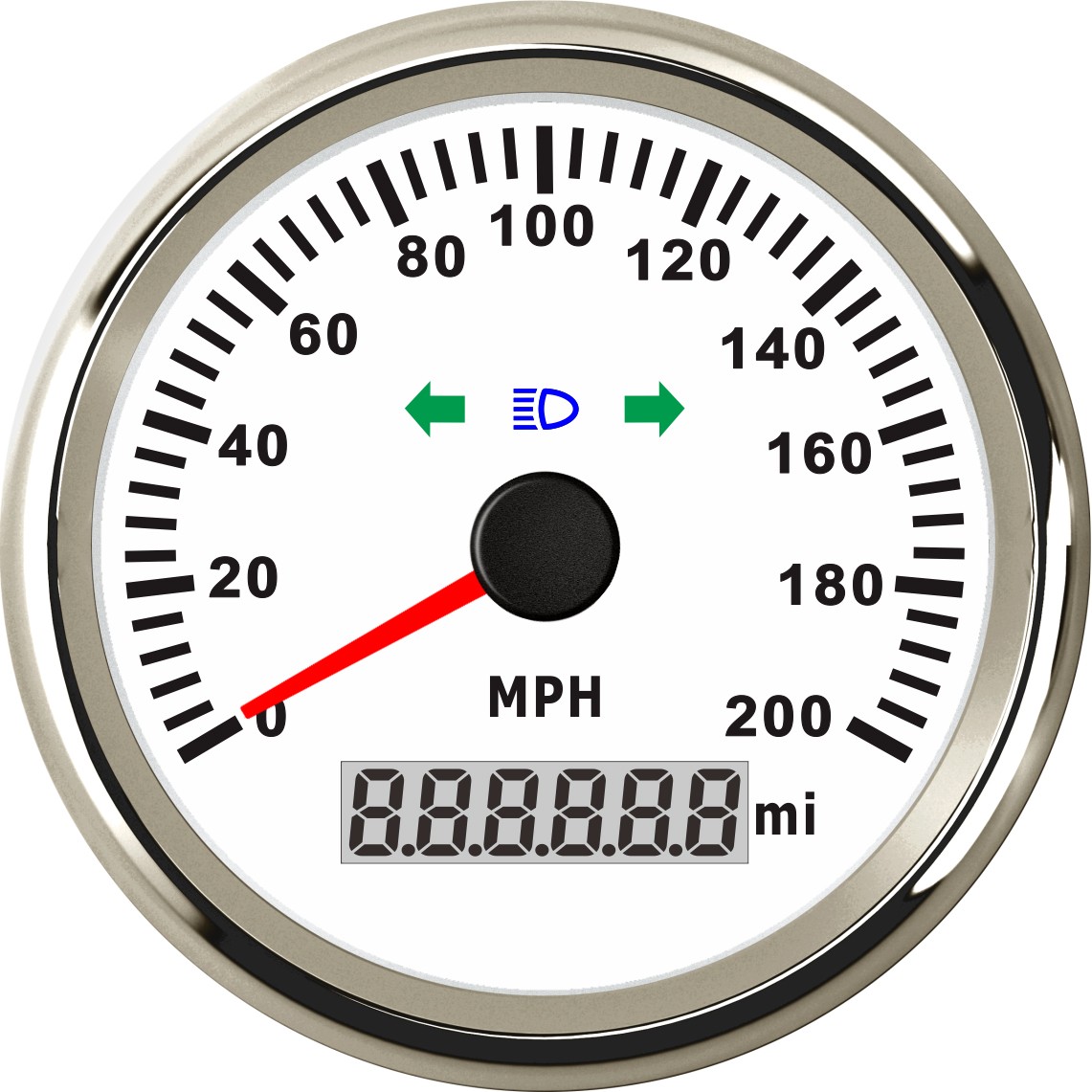

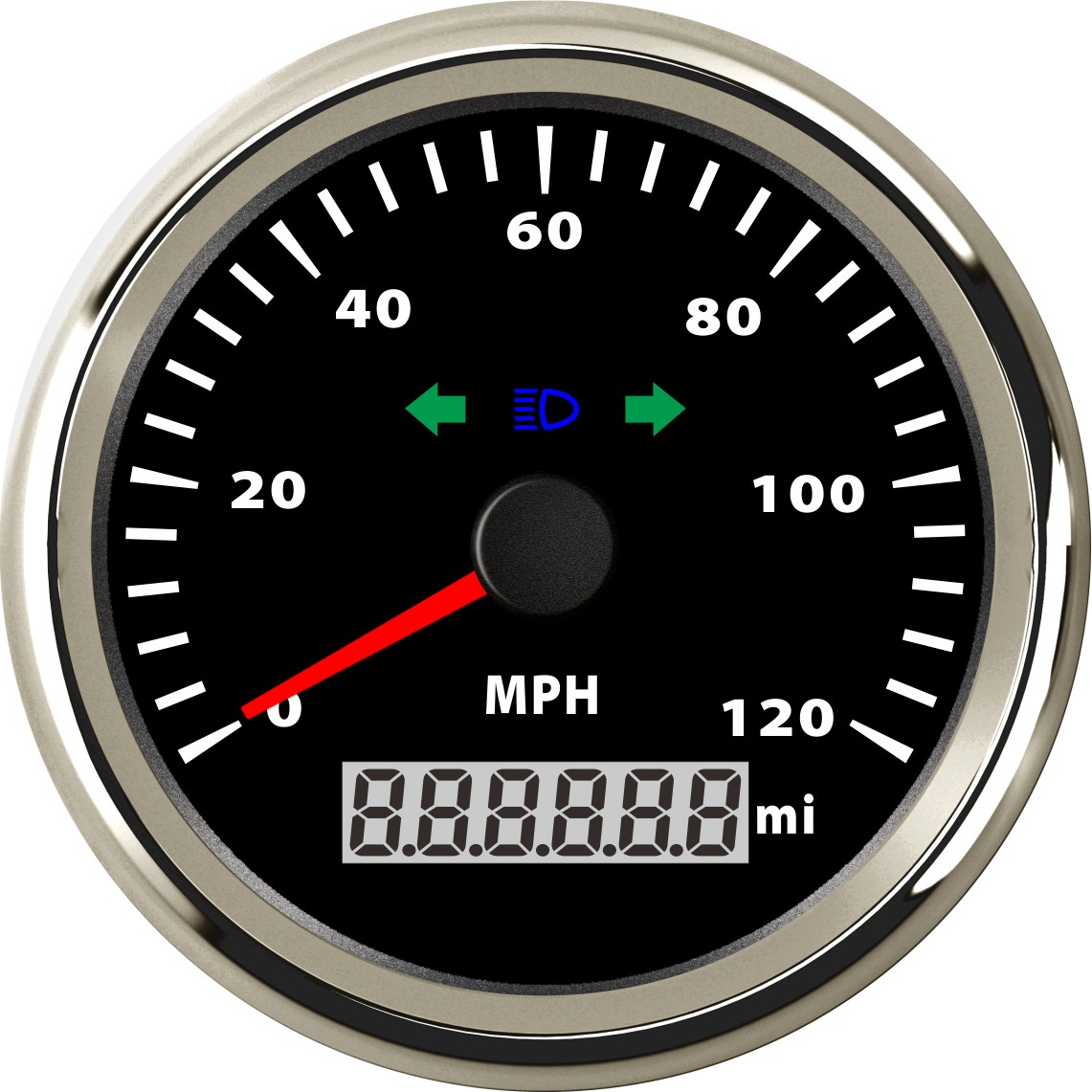

ELING ECP 85mm GPS Speedometer

  • Product Item:ECP 85mm GPS Speedometer
  • Fixing dimension: 85mm(3-3/8
  • Indicating Range 0-120KM/H,0-200KM/H.0-120MPH,0-200MPH
  • Working Voltage: 12V/24V
  • Indication light: LEFT, HIGH BEAM, RIGHT
  • 85mm GPS Speedometer  , GPS Speedometer  , Speedometer  , Odometer
    Inquiry Send Email PDF

    Description

    Product feature:


    -Suitable for all vehicles and off-road vehicles


    -The signal comes directly from the satellite signal receiver(GPS Antenna), don't need other speed sensor.


    -The gauge has the advantages of high precision, quick location confirmation and short start up time.


    -IP67 waterproof and dustproof grade


    -Reverse polarity protection and anti-fogging performance


    -No Stationery Drift


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    Technical data:


    -Fixing dimension: 85mm(3-3/8")


    -Speed range:0-120km/h,0-200km/h,0-120mph,0-200mph


    -Working Voltage: 12V/24V


    -Mileage Range: 0-999999 km,0-999999miles


    -Indication light: LEFT, HIGH BEAM, RIGHT


    -Backlight: Red


    -Working temperatures: - 40 to 85°C


    -Operation mode: LCD display, stepper motor


    Package include:


    1x GPS speedometer


    1x GPS Antenna


    1x Multi-plug socket


    1x Installation Instruction
