  4. ELING Digital Measuring Instrument 10A
  • ELING Digital Measuring Instrument 10A
  • ELING Digital Measuring Instrument 10A
  • ELING Digital Measuring Instrument 10A
ELING Digital Measuring Instrument 10A ELING Digital Measuring Instrument 10A ELING Digital Measuring Instrument 10A

ELING Digital Measuring Instrument 10A

  • Product Item:Digital Measuring instrument 10A
  • Voltage: 80-260V
  • Amp range: 0-10A
  • Frequency: 45-65Hz
  • Measuring instrument  , multi-function measurement  , 5A 10A 100A Ammeter
    Inquiry Send Email PDF

    Description

    Function:


    1. Electrical parameter measurement function (voltage, current, active power, energy, frequency, power factor)


    2. Overload alarm function (over power alarm threshold, backlight and power flashing to alarm)


    3. Power alarm threshold preset function (can set power alarm threshold)


    4. The energy can be reset use the key


    5. Store data when power off


    6. Large-screen LCD


    7. Backlight function


    Appearance and Key function:

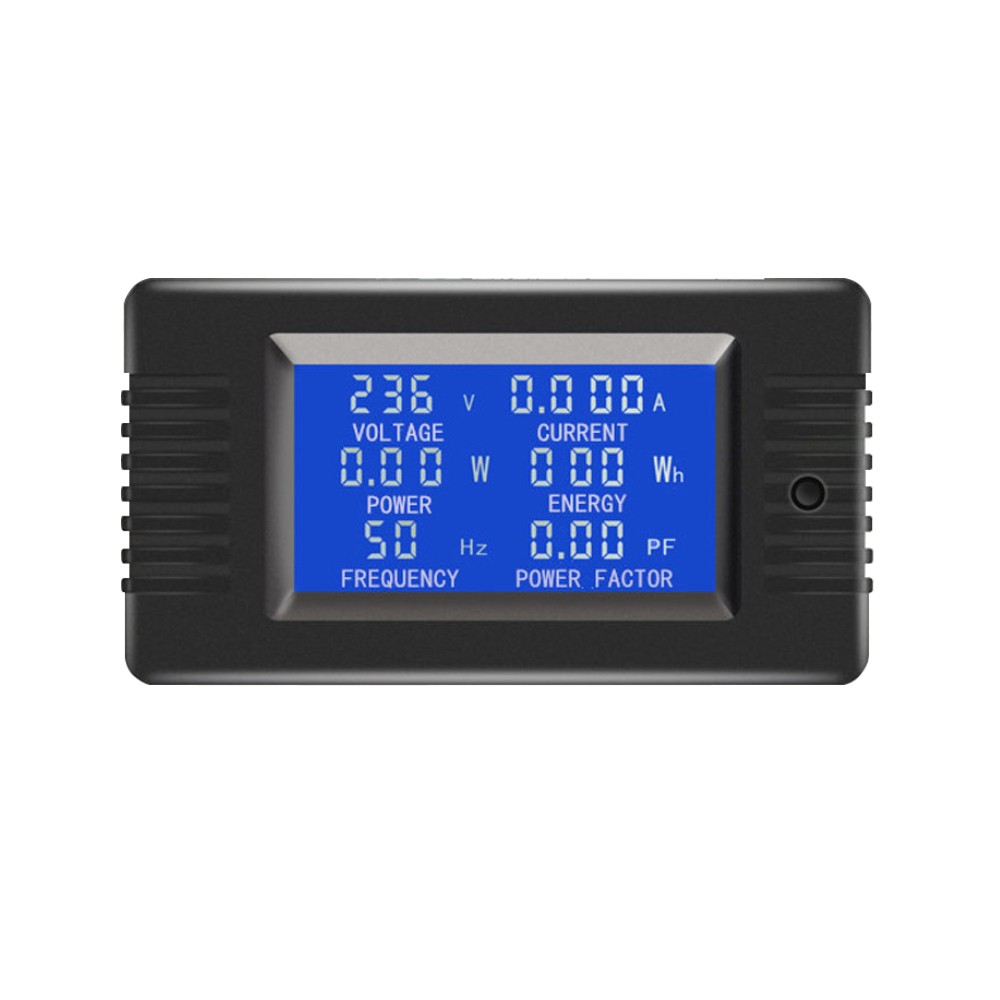

    Display interface is large-screen LCD, it can display six parameters at the same time


    Instruction:


    1. Backlight control


    Short press the key to turn on or off the backlight, the backlight has memory function, it can store the on or off state when power off


    2. Reset energy


    Step1: Long press the key for 5 seconds until the energy value flash, then release the key


    Step2: Short press the key again, then the energy value is cleared and exit the reset flashing state


    Step3: If there is no operation on the key within 5 seconds, it means the energy value is not cleared and will exit the reset state


    3. Set power alarm threshold


    Step1: Long press the key until the LCD screen display “SET CLr”, then release the key to enter the setting state


    Step2: Power window display the current power alarm value and the last digit begin to flash, then you can short press to plus 1, when there is no operating over 3 seconds, it will switch the digit position automatically, the setting method is as same as the above


    Step3: After finish the setting, long press the key over 5 seconds will store automatically and exit, the range of active power threshold is 0.0~2.5kW


    Precautions:


    1. This module is suitable for indoor, please do not use outdoor


    2. Applied load should not exceed the rated power

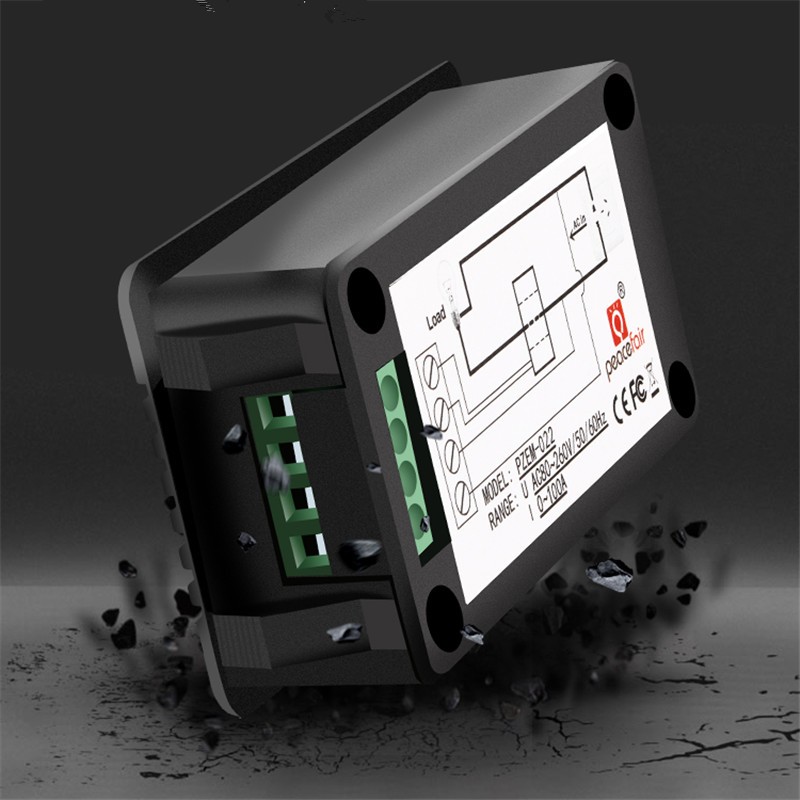

    3. Wiring order can not be wrong


    Package includes:


    1 × 020 AC Voltmeter Ammeter
