Description
Specification:
-Be suitable for all kinds of vehicles and boats,ships
-Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.
-Operating temperature: -20°C ~+70°C
-Protection rank : IP67.
Technical data:

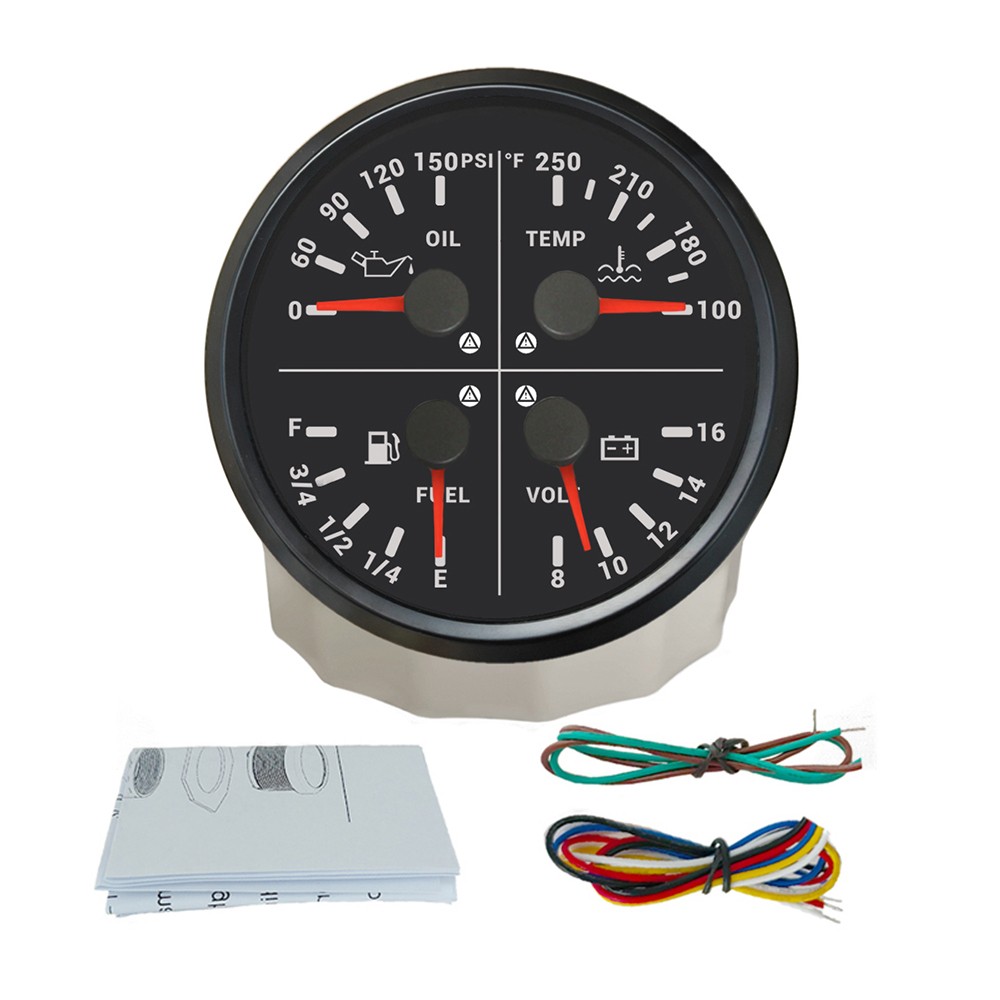

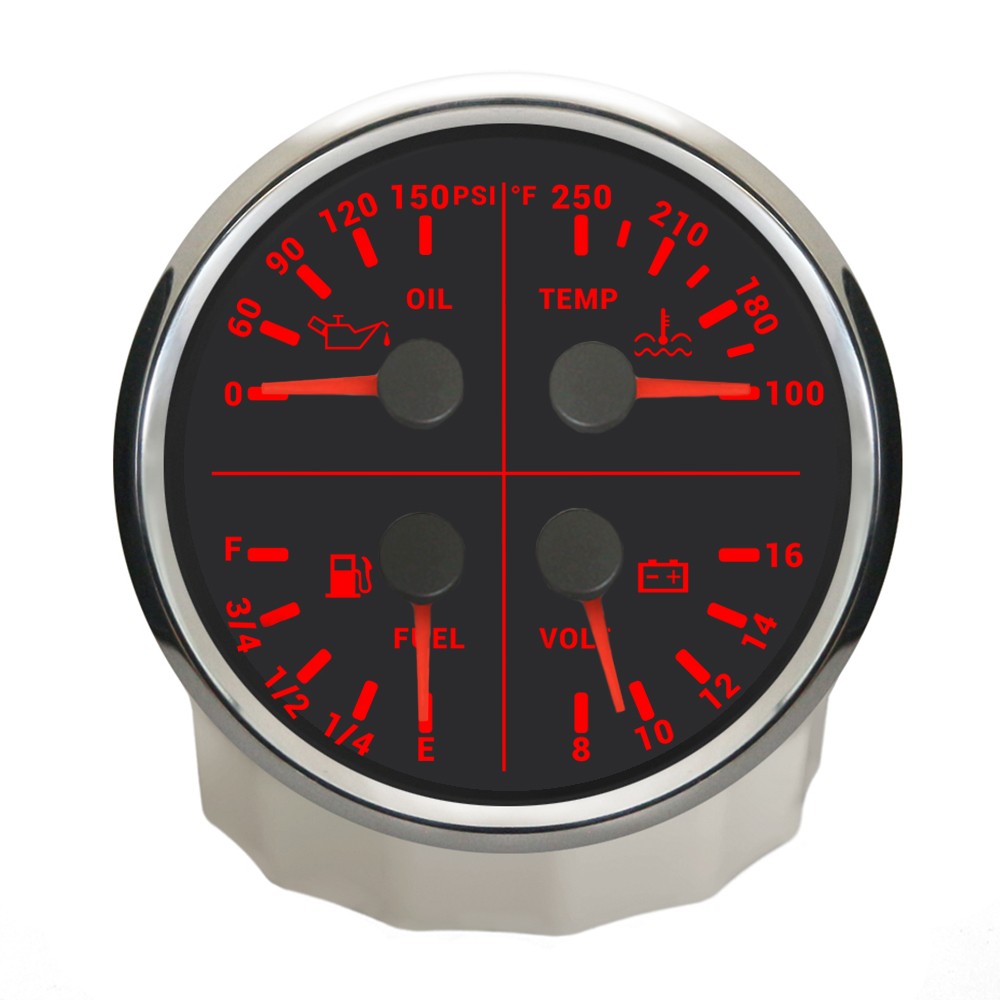

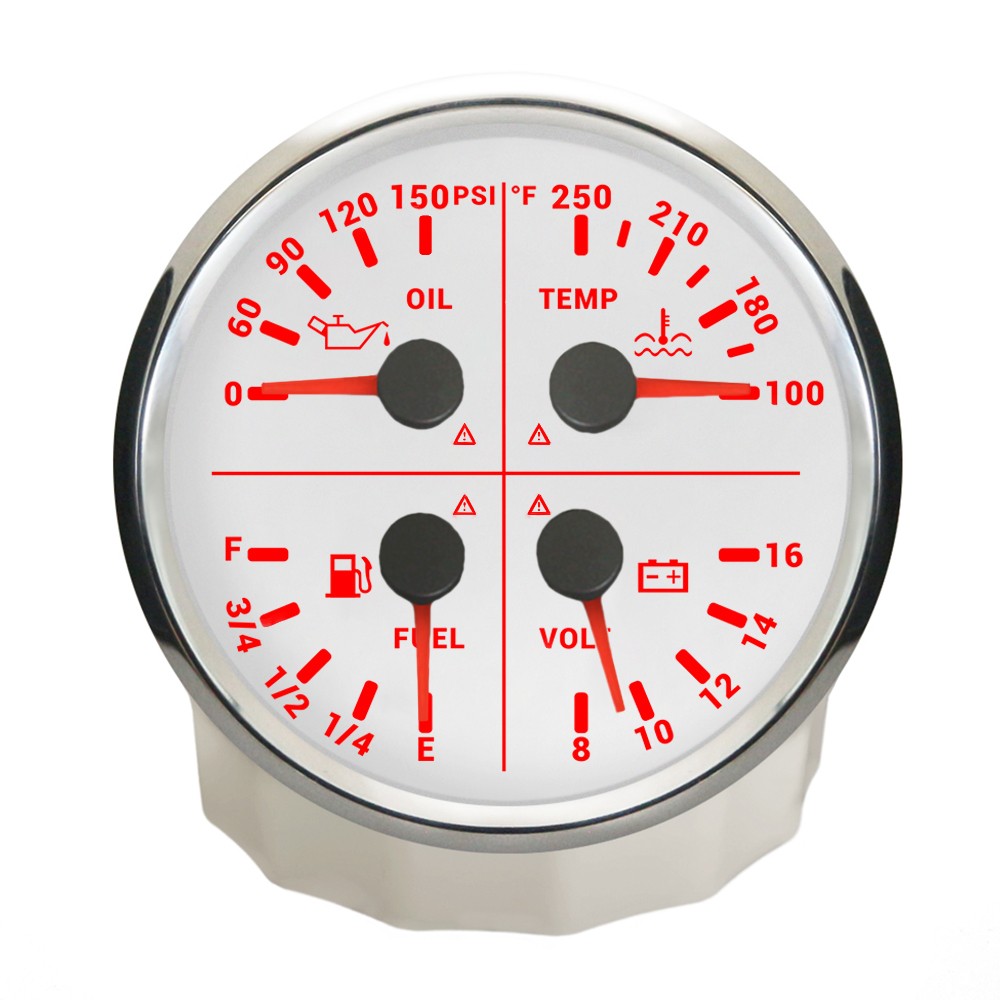

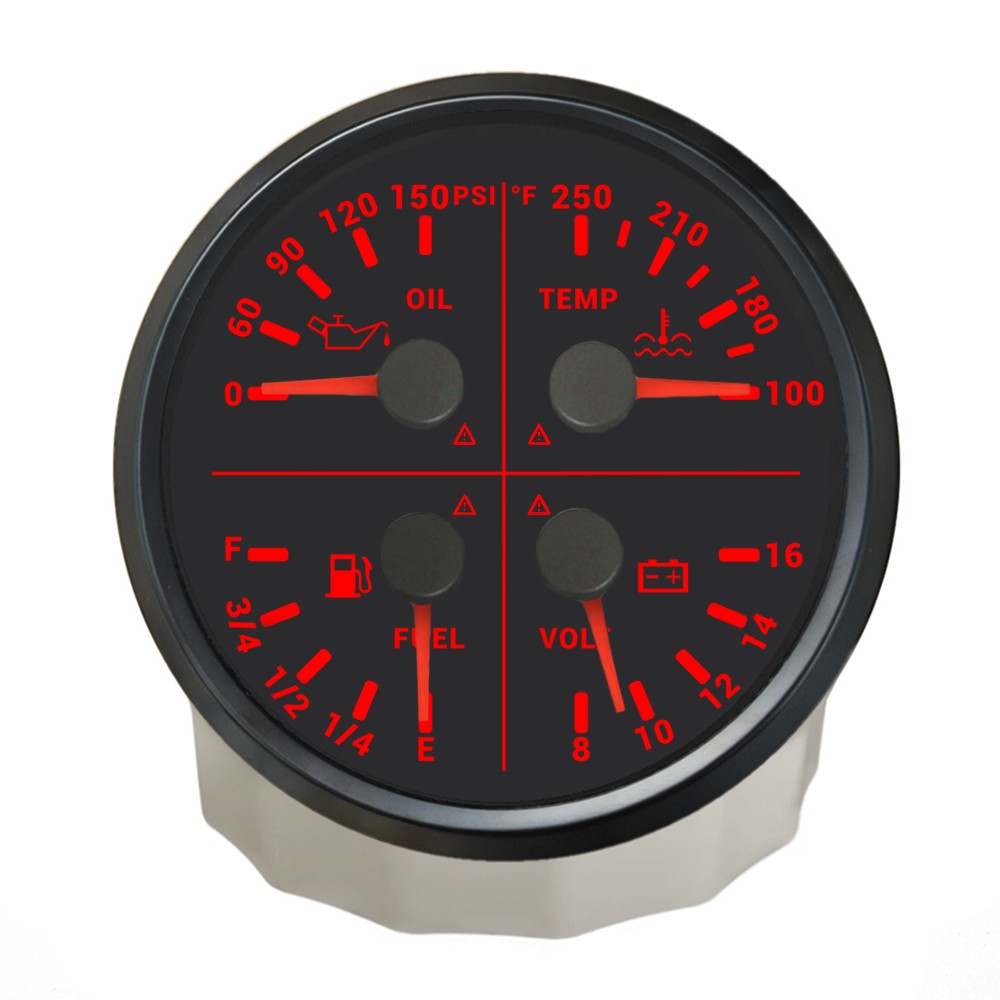

-Name :110mm 4 In 1 Multifunction Gauge
-Fixing dimension: 110mm
-Backlight :Red
-Oil pressure: 0-150 PSI
-Oil pressure sensor:10-184ohm
-Water temperature: 100-250 ℉
-Water temperature sensor:301-22ohm
-Voltmeter: 8-16V
-Fuel level: E-1/4-1/2-3/4-F
-Fuel level Signal:0-190ohm/240-33ohm
Alarm message
-Fuel<1/8 alarm
-Oil pressure<11.6 PSI alarm
-Water temp. >203 ℉ alarm
-Voltage <11.5V alarm
Package Included:
1 x 4 in 1 Multifunctional Gauge
2 x Multi-plug socket
