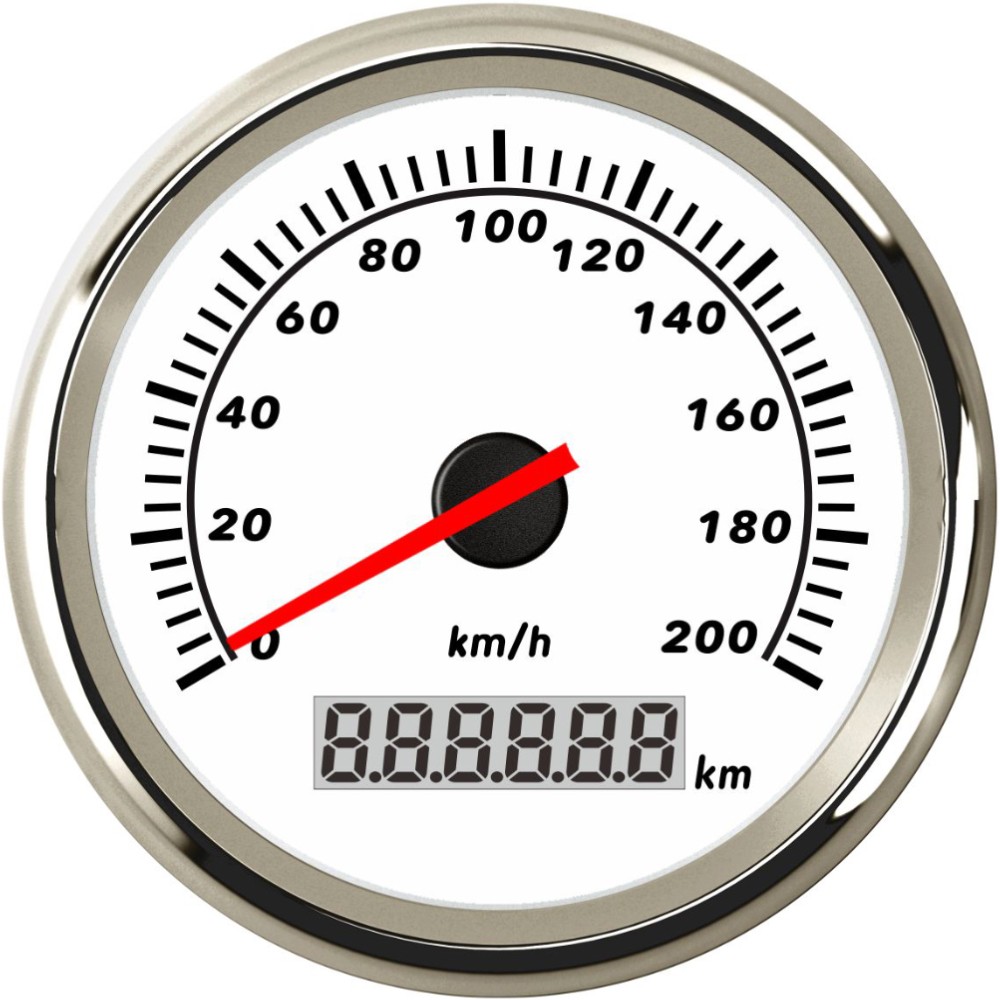

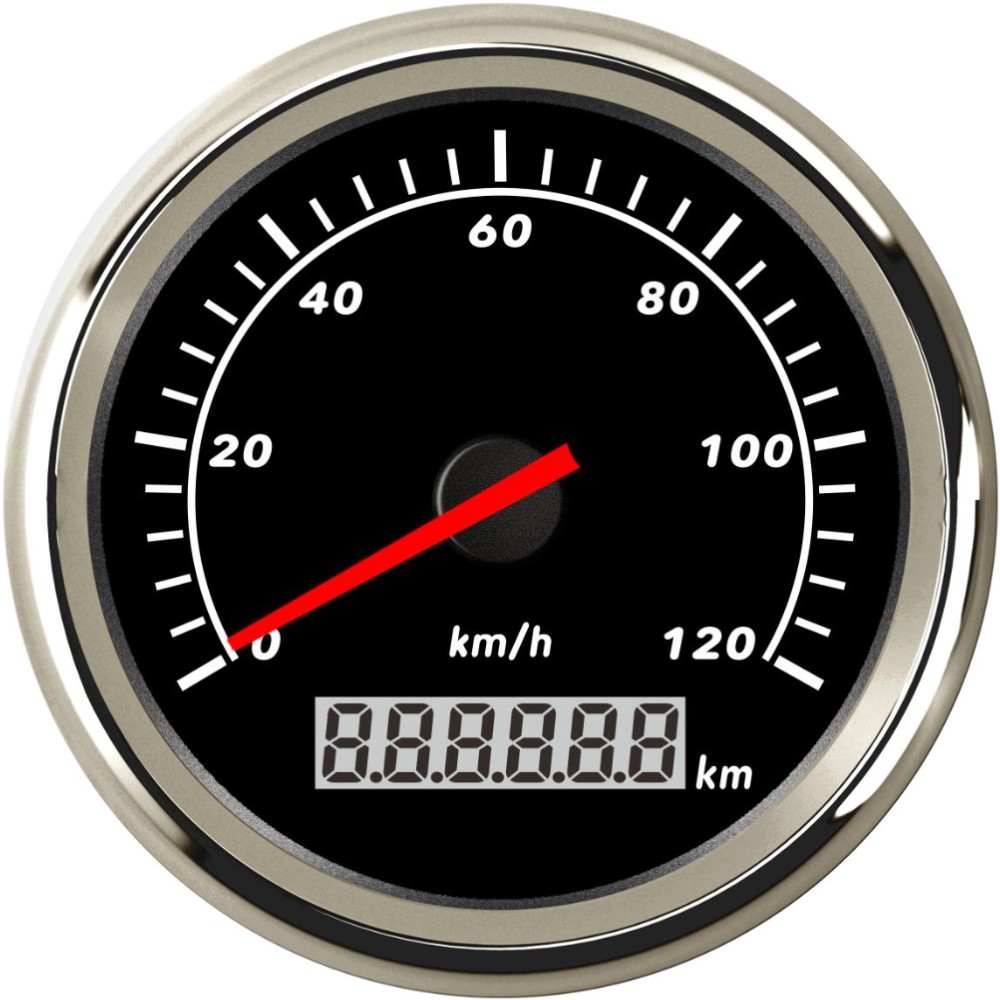

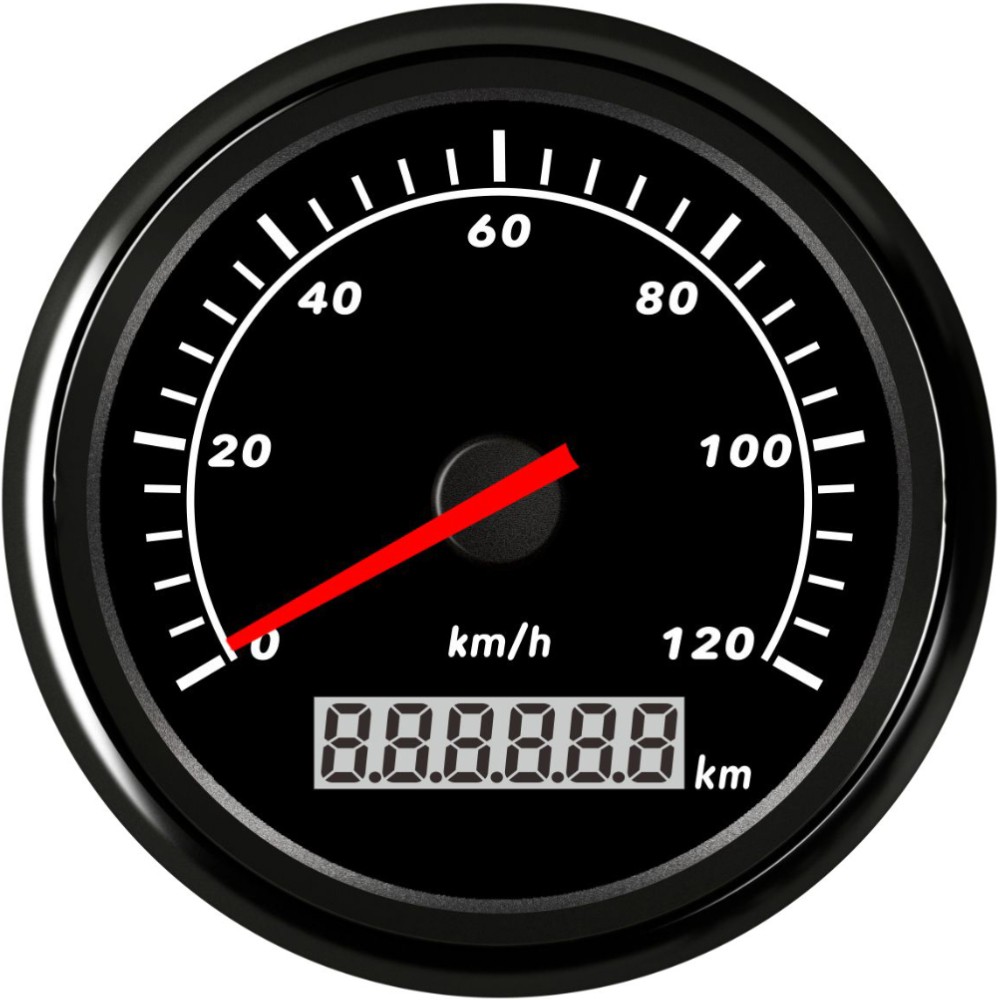

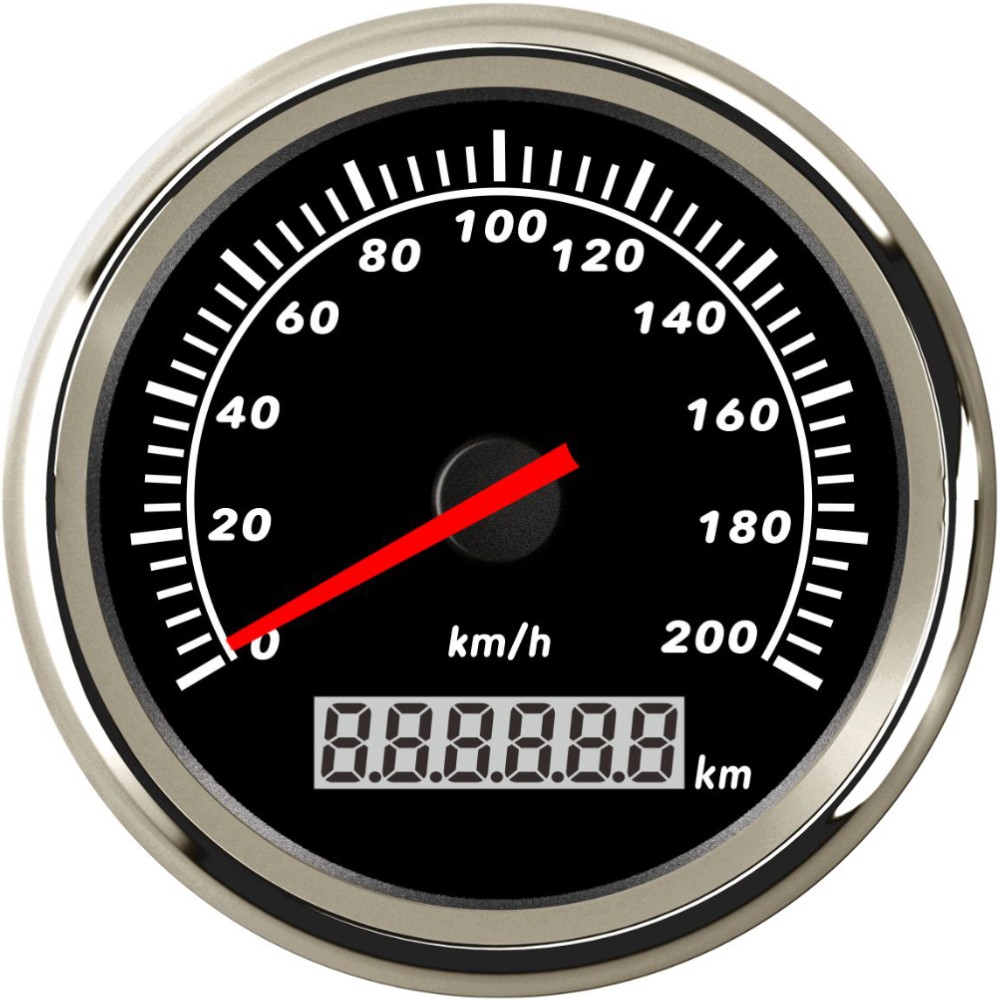

  • ELING ECCW Pulse Signal Speedometer
  • ELING ECCW Pulse Signal Speedometer
  • ELING ECCW Pulse Signal Speedometer
  • ELING ECCW Pulse Signal Speedometer
ELING ECCW Pulse Signal Speedometer ELING ECCW Pulse Signal Speedometer ELING ECCW Pulse Signal Speedometer ELING ECCW Pulse Signal Speedometer

ELING ECCW Pulse Signal Speedometer

  • Product Item:ECCW Pulse Signal Speedometer
  • Fixing dimension: 85mm (3-3/8")
  • Working Voltage:9-32V
  • Backlight:Red
  • Speedometer Range:0-120km/h,0-200km/h
  • pulse speedometer  , odometer  , speedometer
    Inquiry Send Email PDF

    Description

    Product Features:


    -Be suitable for all kinds of speed sensor, and display the speed and mileage of vehicles


    -The signal comes from speed sensor (pulse signal)


    -The gauge has the advantages of high precision, quick location confirmation and short start up time.


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With flat glass (with anti-fogging function)


    -With ultra-wide working voltage design (long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Technical Data:


    -Fixing dimension: 85mm (3-3/8")


    -Indicating Range: 0-120km/h,0-200km/h


    -Input Signal: The signal comes from pulse signal


    -Working Voltage: 9-32V(12V/24V)


    -Backlight: Red


    -Operation mode: LCD display, stepper motor


    Package Includes:


    -1x speedometer


    -1x Installation Instruction
