  5. ELING 6 Gang Switch Panel(4.2A)
  • ELING 6 Gang Switch Panel(4.2A)

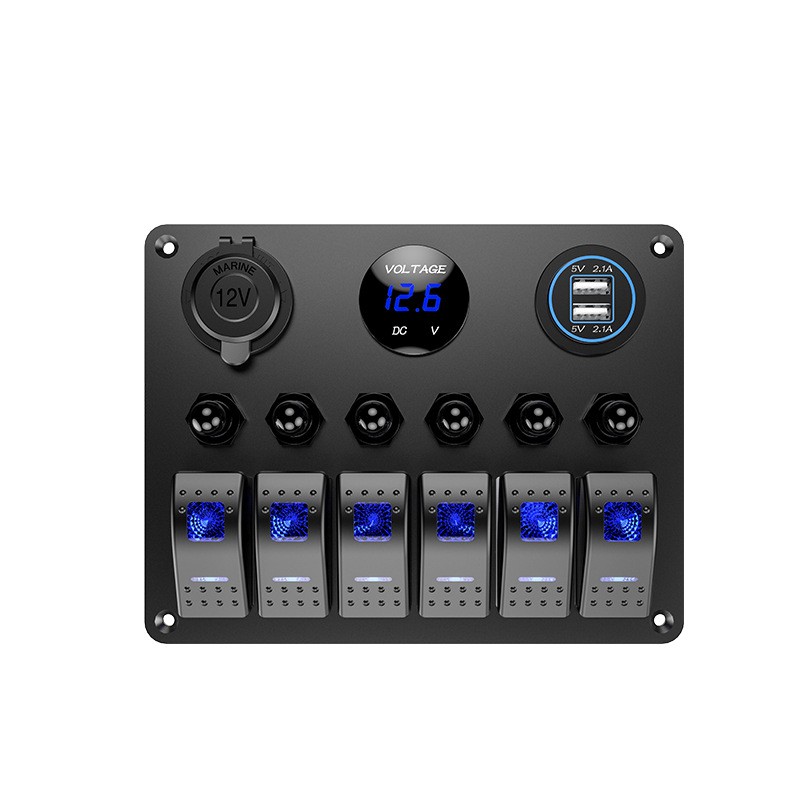

ELING 6 Gang Switch Panel(4.2A)

  • Product Item:Switch Panel
  • 6 Gang Switch Panel
  • Rocker switch
  • USb Charger
  • Voltmeter
  • 6 Gang Switch Panel  , Rocker switch  , USB Charger  , Voltmeter  , Cigarette Lighter
    Inquiry Send Email

    Description

    Specification:

    Product Model: SP-17

    Net Weight: 600g

    Product Weight: 550g

    Product Size: 180*140*80mm

    Product Material: ABS, nylon, aluminum plate resistant to high and low temperature, flame retardant and        environmentally friendly materials

    Light Color: Red/Green/Blue

    Product Color: Black

    Working Temperature: -25 ℃ -80 ℃

    Maximum Power: 240W

    Input Voltage: DC12V / 24V

    Output Voltage: 5V

    Output Current: 4.2A 10A 20A

    Protection Grade: IP65

    Voltmeter Detection Range: 6-30V

    Related Certificates: CE / ROHS / UL

    Product Use:

    Can be used as headlight switch, fog light switch, line-of-sight light switch, car refrigerator switch, car vacuum cleaner switch, car external device power supply, power supply for mobile phones, tablets, etc.

    Installation Scope: applicable to ships, yachts , RVs, buses and other high-end large-scale transportation tools installation and use

    Wiring instruction:

    Installation:pre-wired

    Can be vertical or horizontal mounted

    Red wire: connect the cathode of the storage battery.

    Black wire: connect the anode of the storage battery.

    Blue wire: connect the cathode of the storage battery.

    Yellow wire: connect the anode of the storage battery.

    Six sheet coppers: connect the load generator.

    Packing included:

    1 x Switch Panel
    1 x Label Sticker
    4 × Screw
