  • ELING ECPC 52mm Water Temp Gauge with Alarm
  • ELING ECPC 52mm Water Temp Gauge with Alarm
  • ELING ECPC 52mm Water Temp Gauge with Alarm
ELING ECPC 52mm Water Temp Gauge with Alarm ELING ECPC 52mm Water Temp Gauge with Alarm ELING ECPC 52mm Water Temp Gauge with Alarm

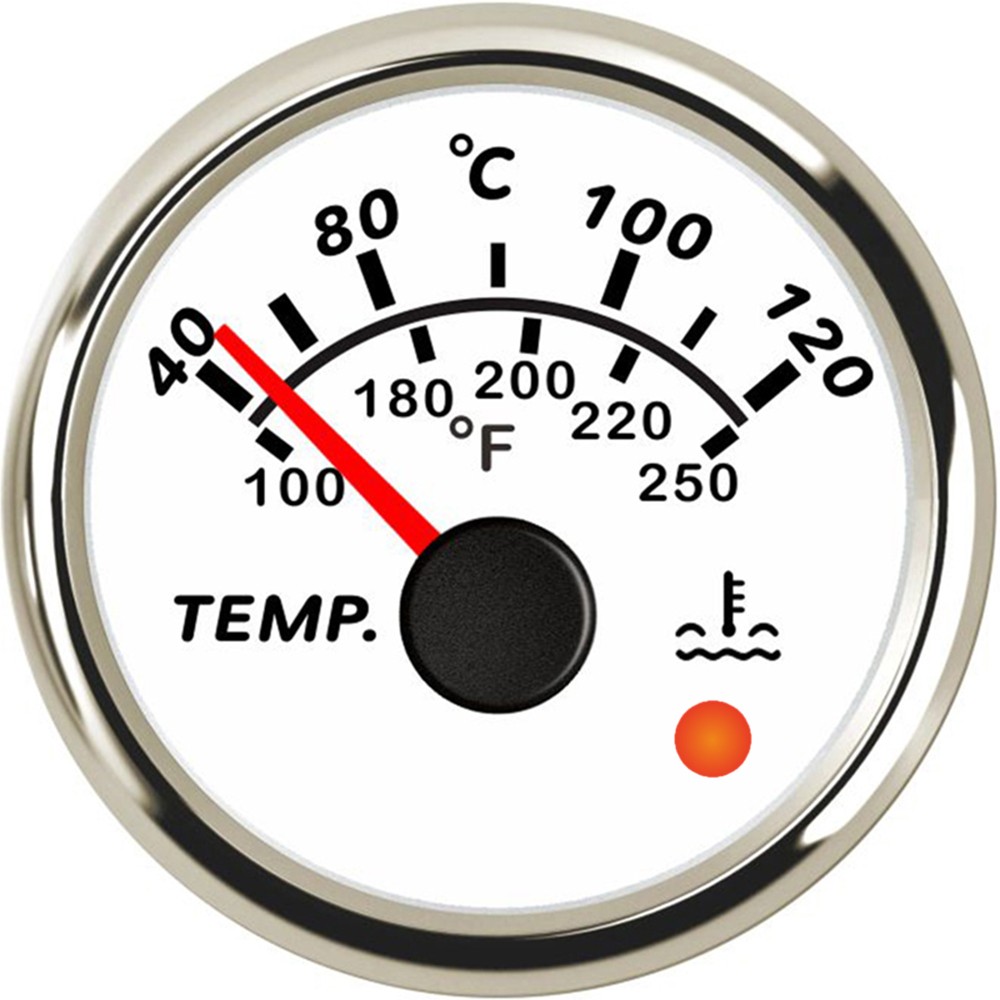

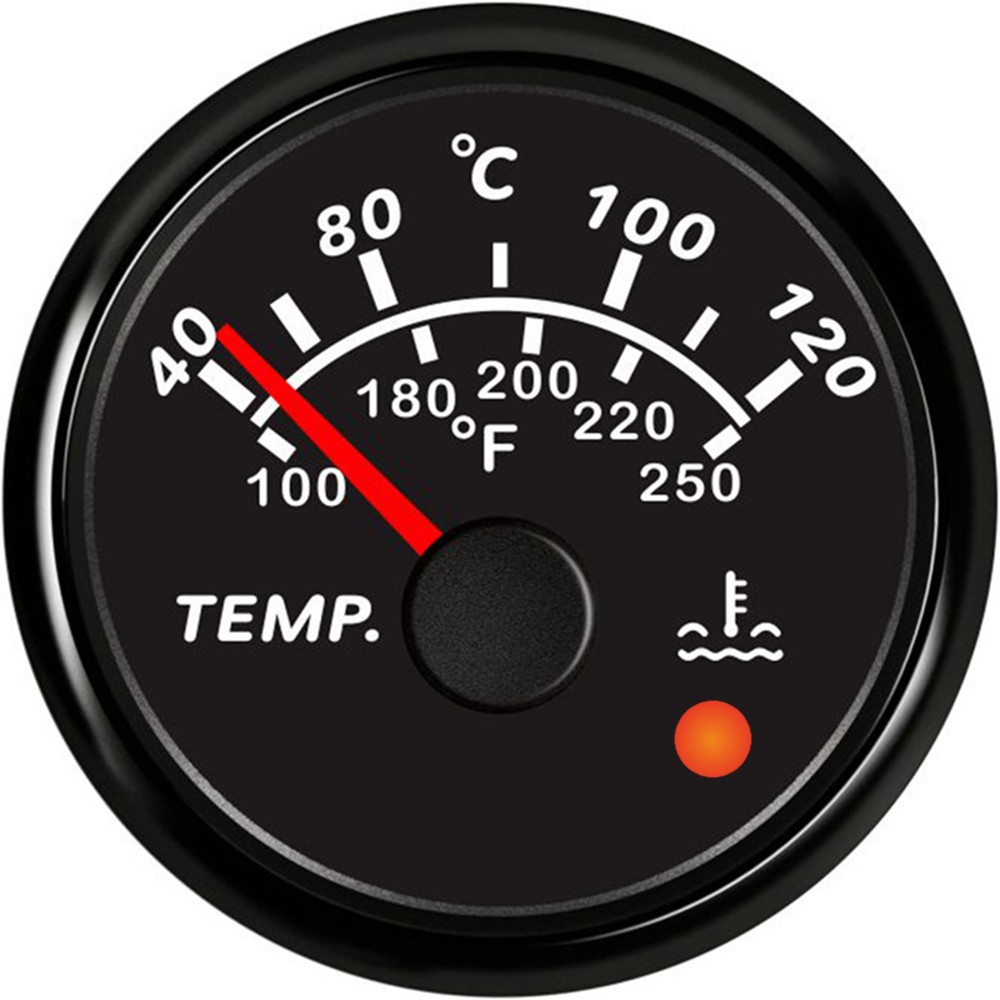

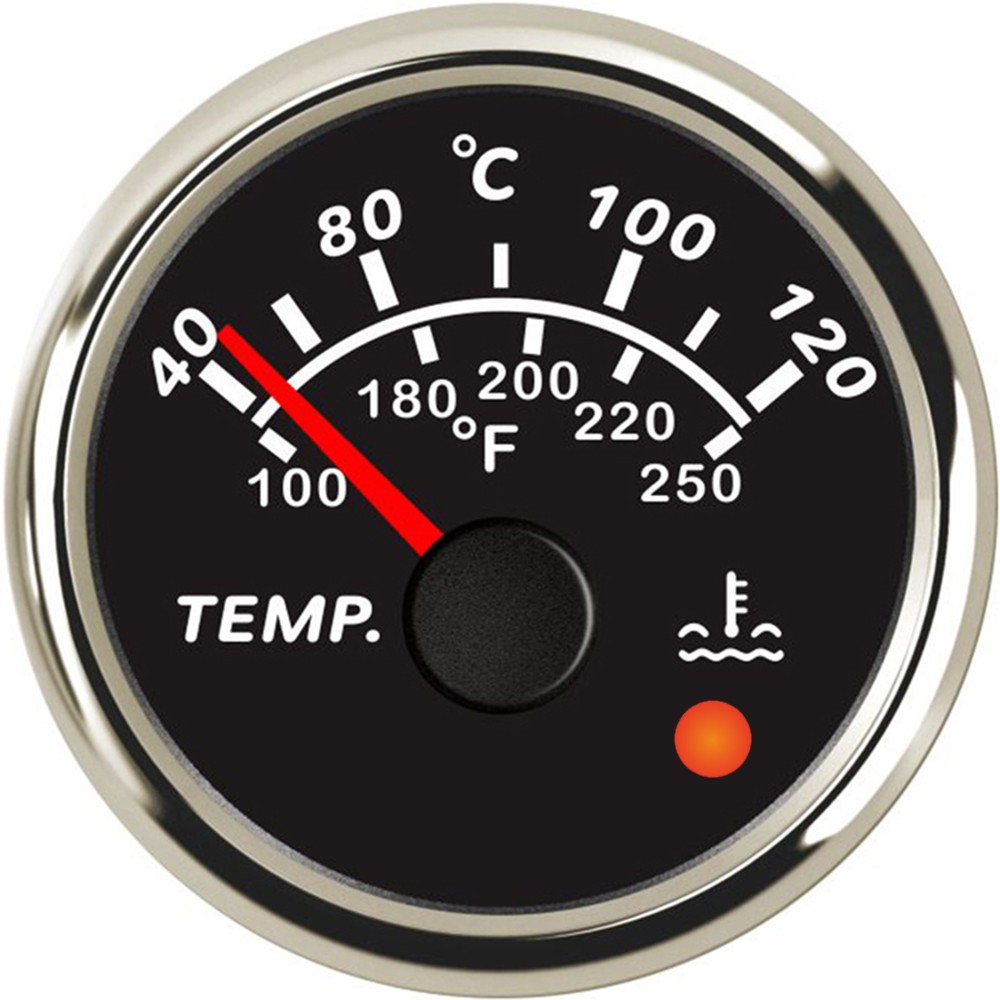

ELING ECPC 52mm Water Temp Gauge with Alarm

  • Product Item:ECPC 52mm Water Temp Gauge with Alarm
  • Fixing dimension: 52mm(2")
  • Indicating Range: 40-120℃
  • Signal: 287.4-22.4ohm
  • Default for gauges with alarm light :Water temperature ≥ 96℃ alarm
  • Water Temp Gauge  , Water Temperature Meter
    Inquiry Send Email PDF

    Description

    Product Feature:


    -Be suitable for all kinds of water level sensors with same signal, and display liquid level of the water tank


    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With curved glass (with anti-fogging function)


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Product Data:


    -Fixing dimension: 52mm(2")


    -Indicating Range: 40-120℃


    -Signal: 287.4-22.4ohm


    -Default for gauges with alarm light :Water temperature ≥ 96℃ alarm


    -Working Voltage: 9-32V(12V/24V)


    -Backlight: 8 Colors Backlight


    -Operation mode: LCD display, stepper motor


    Package include:


    1x Water Temp. Gauge


    1x Multi-Plug Socket


    1x Installation Instruction
