  5. KUS SQ Water Temp Meter
  • KUS SQ Water Temp Meter
  • KUS SQ Water Temp Meter

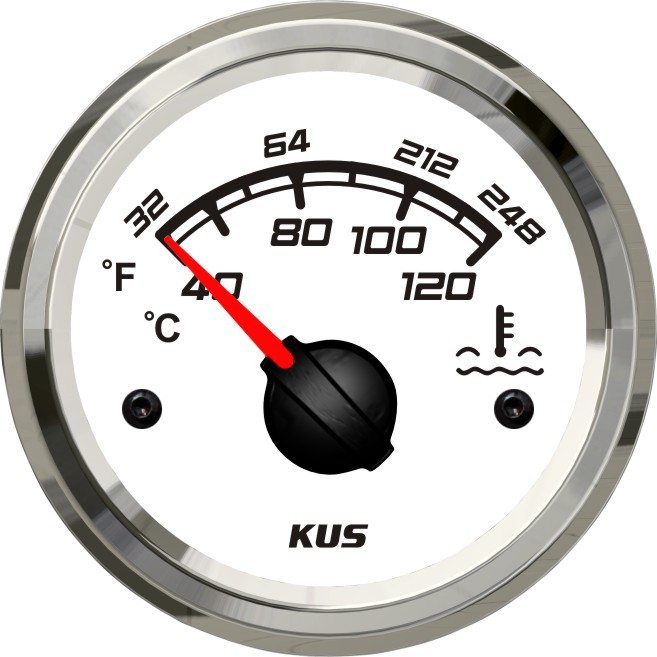

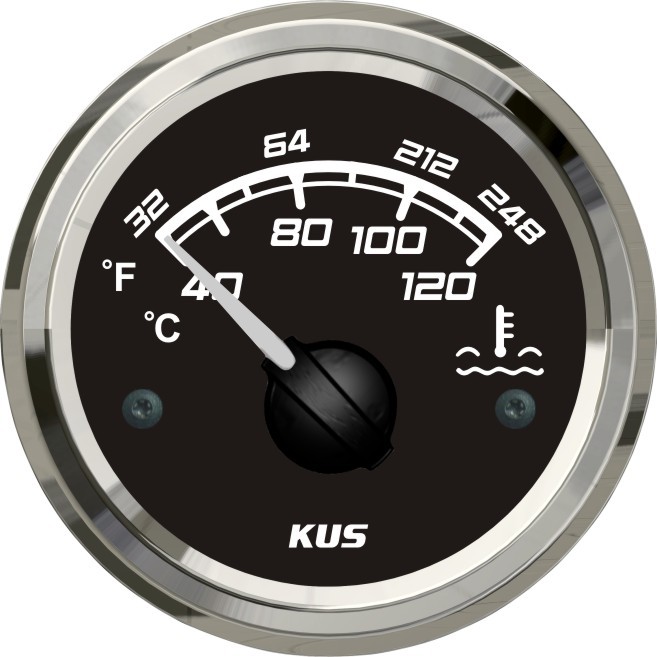

KUS SQ Water Temp Meter KUS SQ Water Temp Meter

KUS SQ Water Temp Meter

  • Product Item:KUS SQ Water Temp Meter
  • Installation Dimension:52mm(2")
  • Working Voltage:9-32V
  • Backlight:Red and Yellow available
  • Indicating Range: 40~120℃
  • water temp gauge  , water temp meter  , digital water temp
    Inquiry Send Email PDF

    Description

    Model : FPTR

    ♦ Display any sudden rise in coolant temperature, hence, helping to prevent serious damage to the engine

    ♦ Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration

    ♦ Style(SS=stainless steel): SS & black(BS),black SS & black(BN),SS & White (WS),

    ♦ Bezel Material: SUS316,Double layer anti-fogging glass

    ♦ Installation Dimension: Φ52mm(2”)

    ♦ Installation: lock the gauge to baseboard directly by hand

    ♦ Connector: integrate 12V/24V patchcord

    ♦ Background light: Red or Yellow

    ♦ Indicating Range: 40~120℃

    ♦ Working Voltage:12V/24V

    ♦ Signal: Matched with KUS temperature sensor

    ♦ Protection grade:IP67 for front side;IP65 for back side


    Package Includes:

    1x Digital Water Temp. Gauge

    1x Installation Instruction
