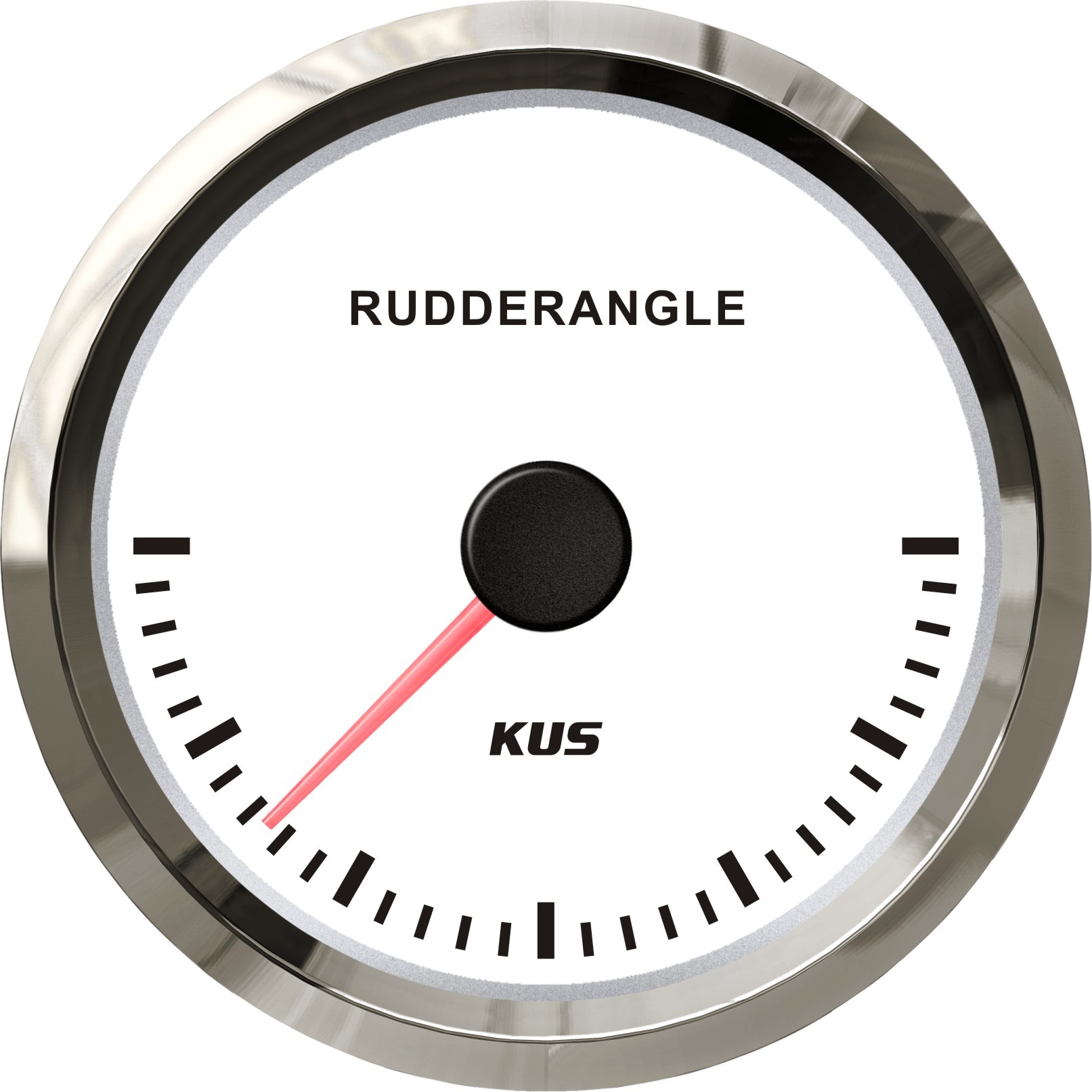

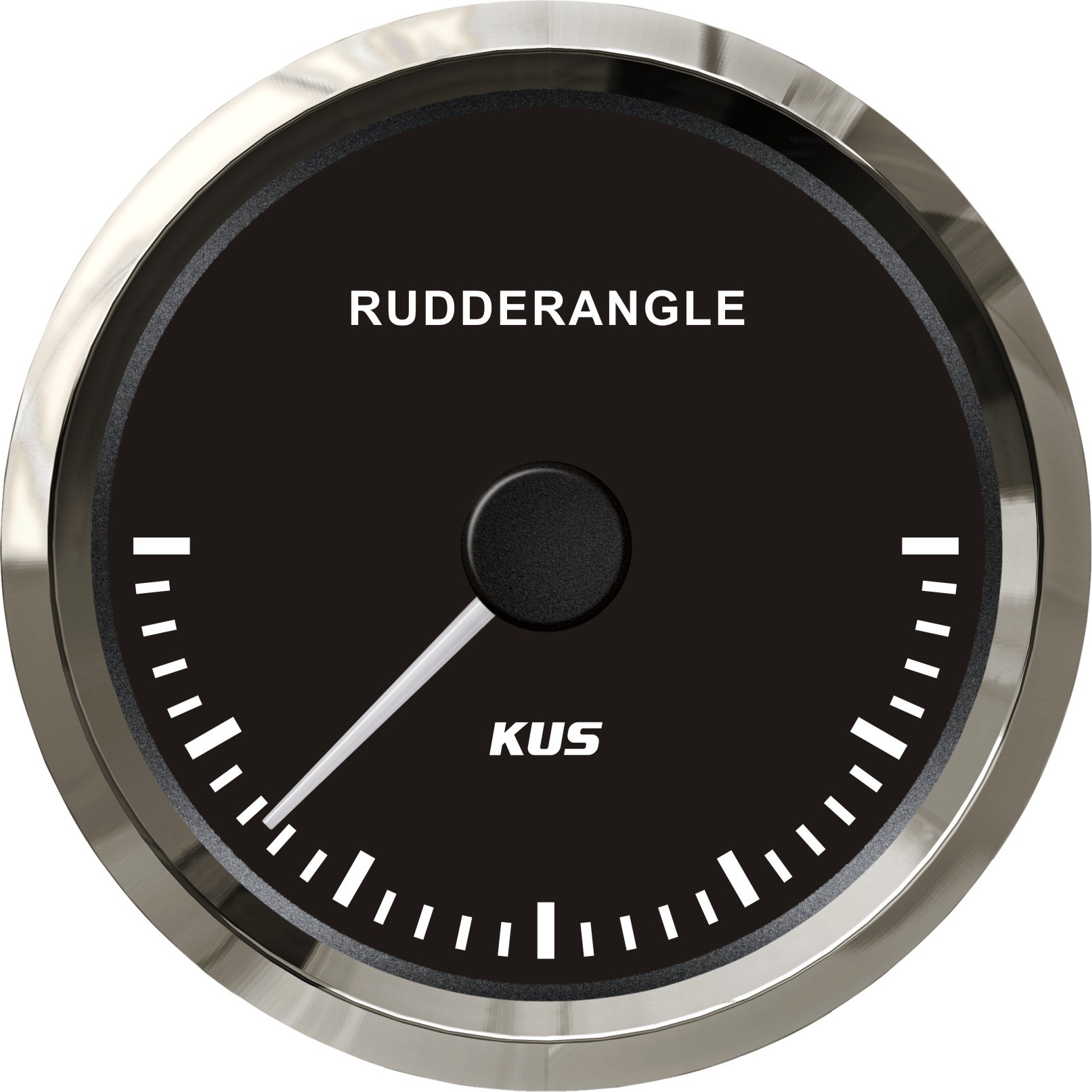

  5. KUS SV Rudder Angle Indicator(85mm)
  • KUS SV Rudder Angle Indicator(85mm)
  • KUS SV Rudder Angle Indicator(85mm)
KUS SV Rudder Angle Indicator(85mm) KUS SV Rudder Angle Indicator(85mm)

KUS SV Rudder Angle Indicator(85mm)

  • Product Item:KUS SV Rudder Angle Indicator(85mm)
  • Installation Dimension:85mm(3-3/8")
  • Working Voltage:9-32V
  • Backlight:Red and Yellow available
  • Indicating Range: R-L
  • rudder angle meter  , rudder angle gauge
    Inquiry Send Email PDF

    Description

    Key Features:

    -Be suitable for all kinds of rudder sensors, and display the direction of the underway marine.

    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.

    -Operating temperature: -40°C ~+85°C

    -Protection rank : IP67.



    Technical Data:

    -Fixing dimension: 85mm(3-3/8")

    -Indicating Range: R-L

    -Working Voltage: 12V/24V

    -Choice between red and yellow backlight

    -Operation mode: LCD display, stepper motor

    -Protection grade is IP67, the whole body is completely waterproof;

    -Excellent anti-fogging function;

    -316 Stainless steel bezel with curved glass;

    -Convenient Installation by multi-plug socket connecting way;



    Package Includes:

    1x Rudder Angle Indicator

    1x Rudder Angle Sensor

    1x Multi-plug socket

    1x Installation Instruction
