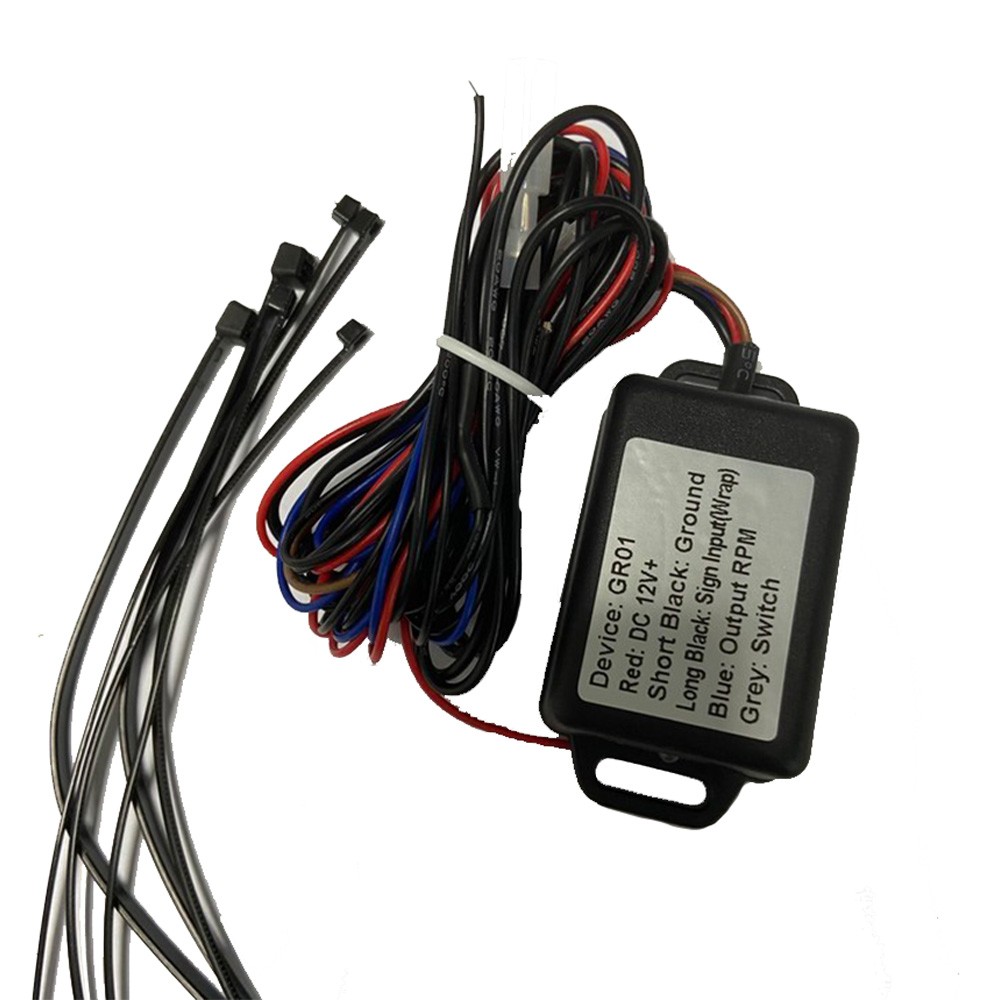

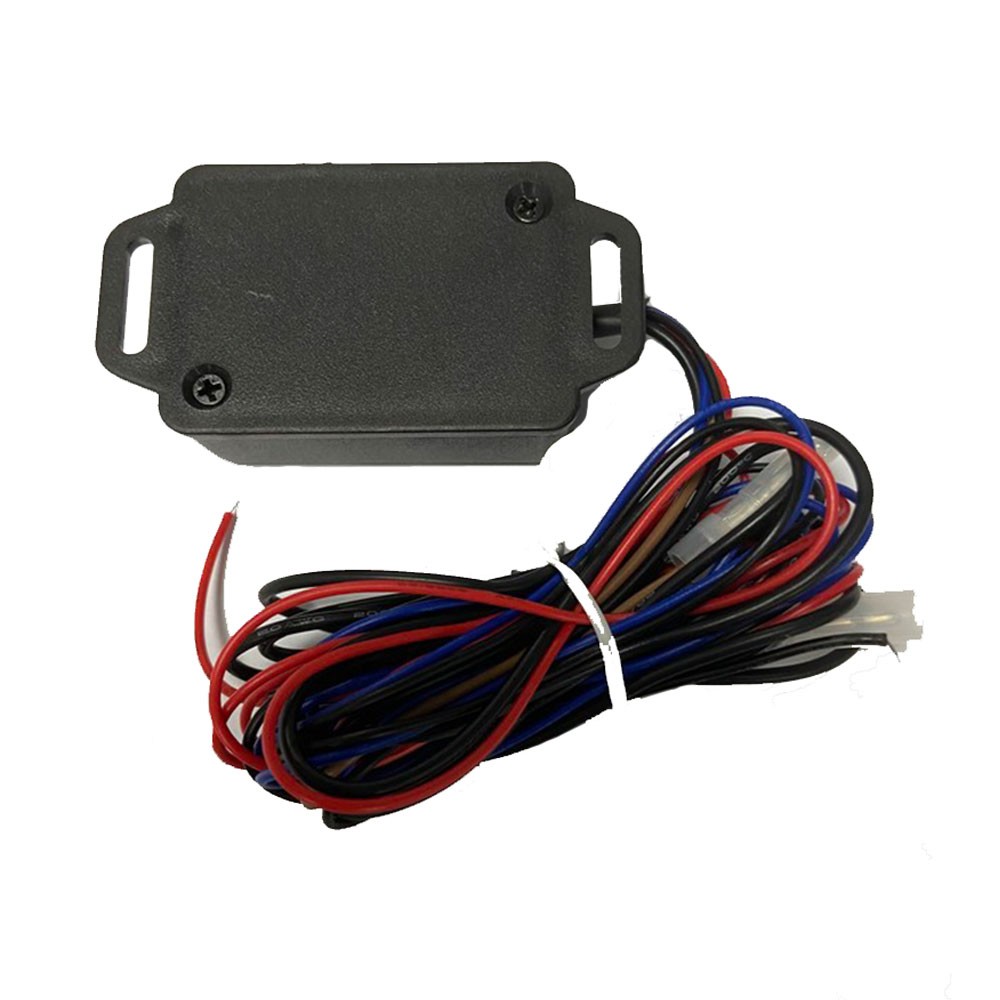

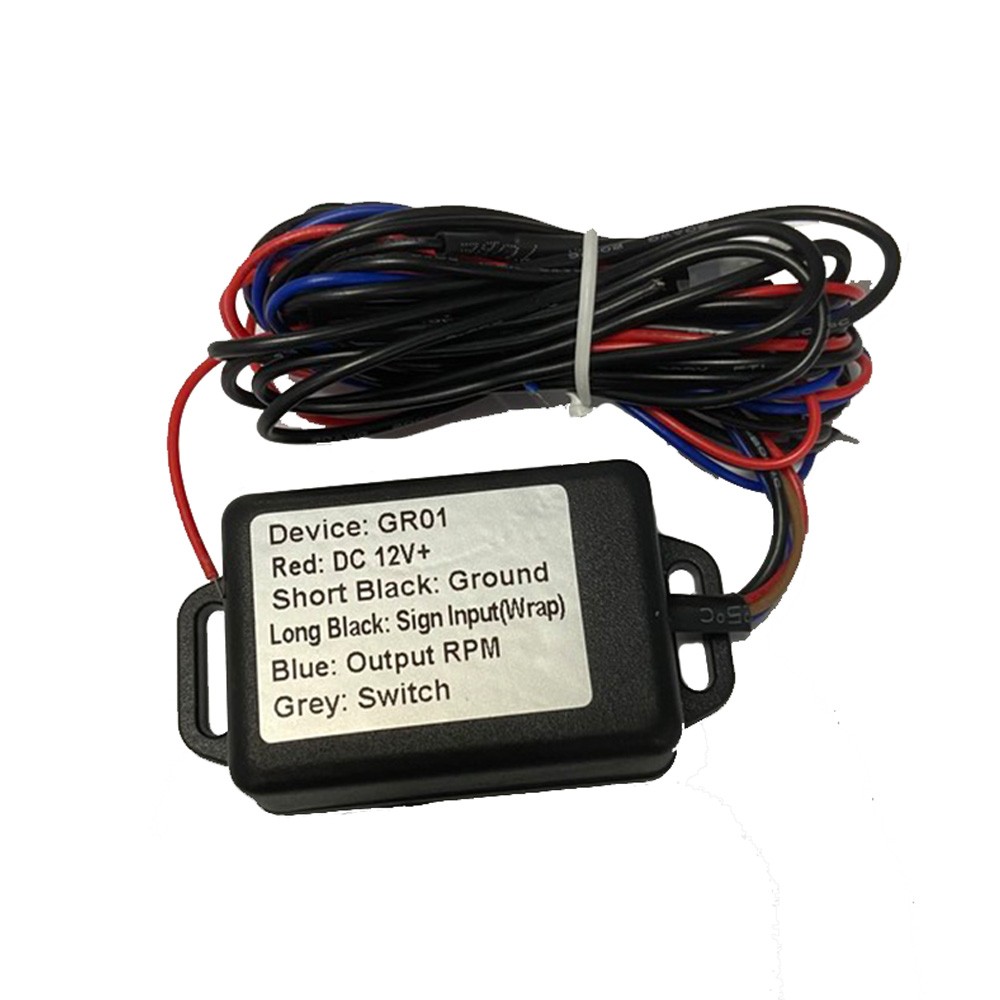

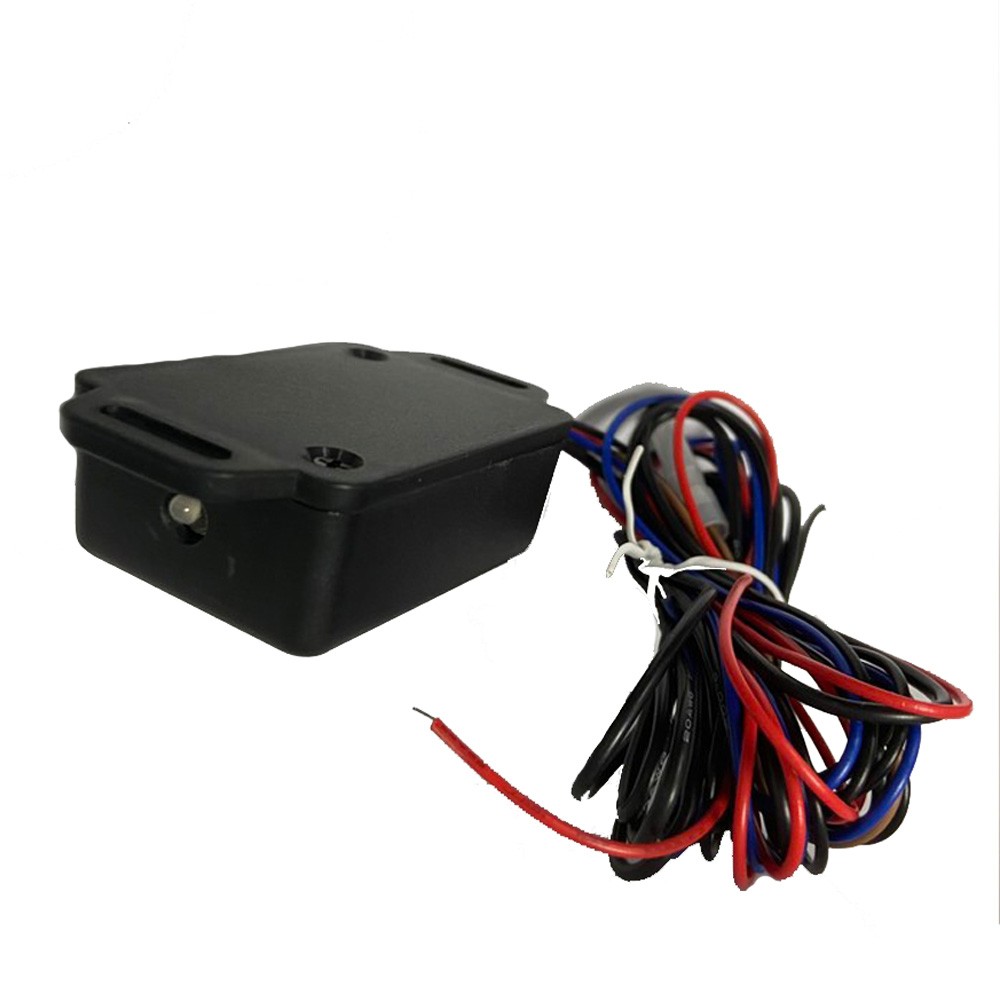

TN Tacho Sensor(Gasoline Engine)

  • Product Item:Tacho Sensor
  • Tacho Sensor
  • Gasoline Engine
  • 4 pulses/round
  • Tacho Sensor  , Gasoline Engine  , 4 pulsesround
    Inquiry Send Email PDF

    Description

    Application: All Types Gasoline Engine RPM Signal Pick Up


    1. How does it work?


    It senses current on the coil positive wire and converts it to a readable 9V pulse output for all types of Tachometer/RPM Gauge


    2. Features & Specifications:


    Compatible with all types of Gasoline Engine


    Easy Installation, no breaking cable, no need CANBUS/OBD


    Output Tach ratio: 4 pulses/round


    IP67 Waterproof


    Mini Size with Play & Plug design


    Power supply: 12V DC
