  5. ELING ECPC 52mm Fuel Level Gauge Meter w

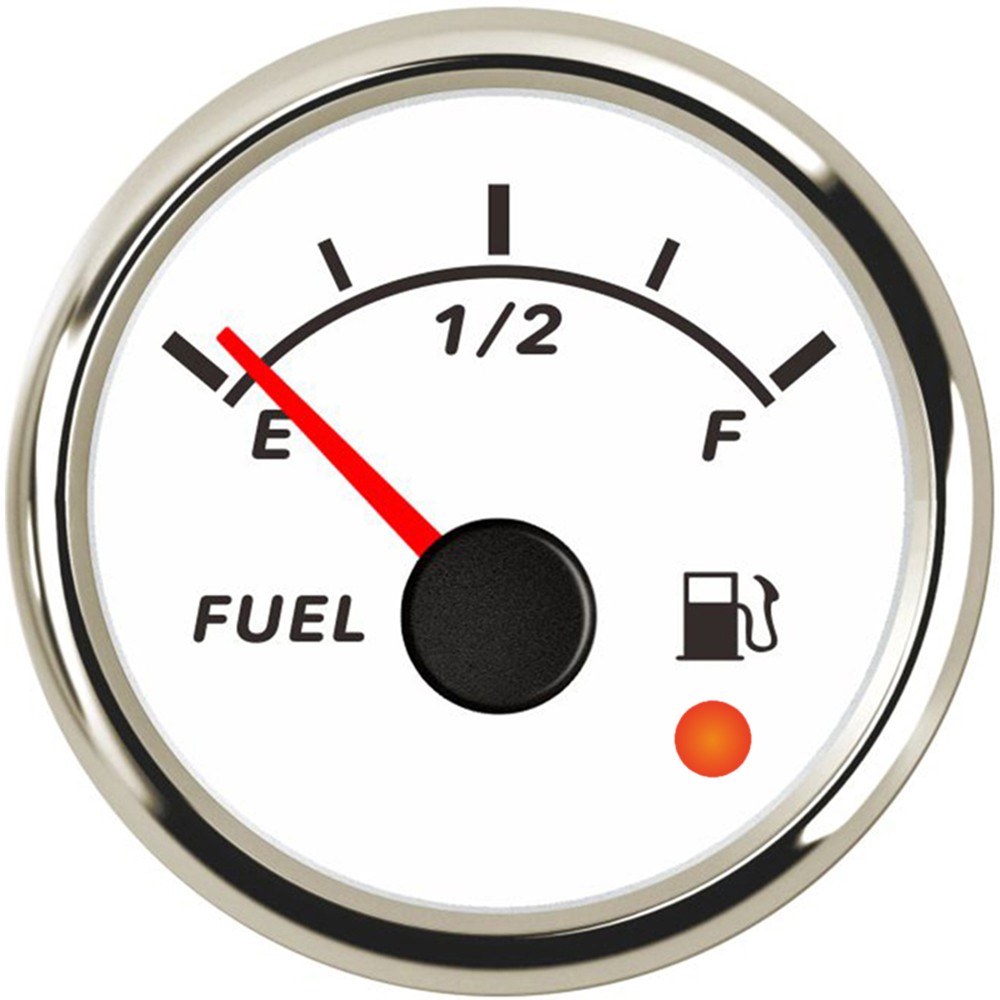

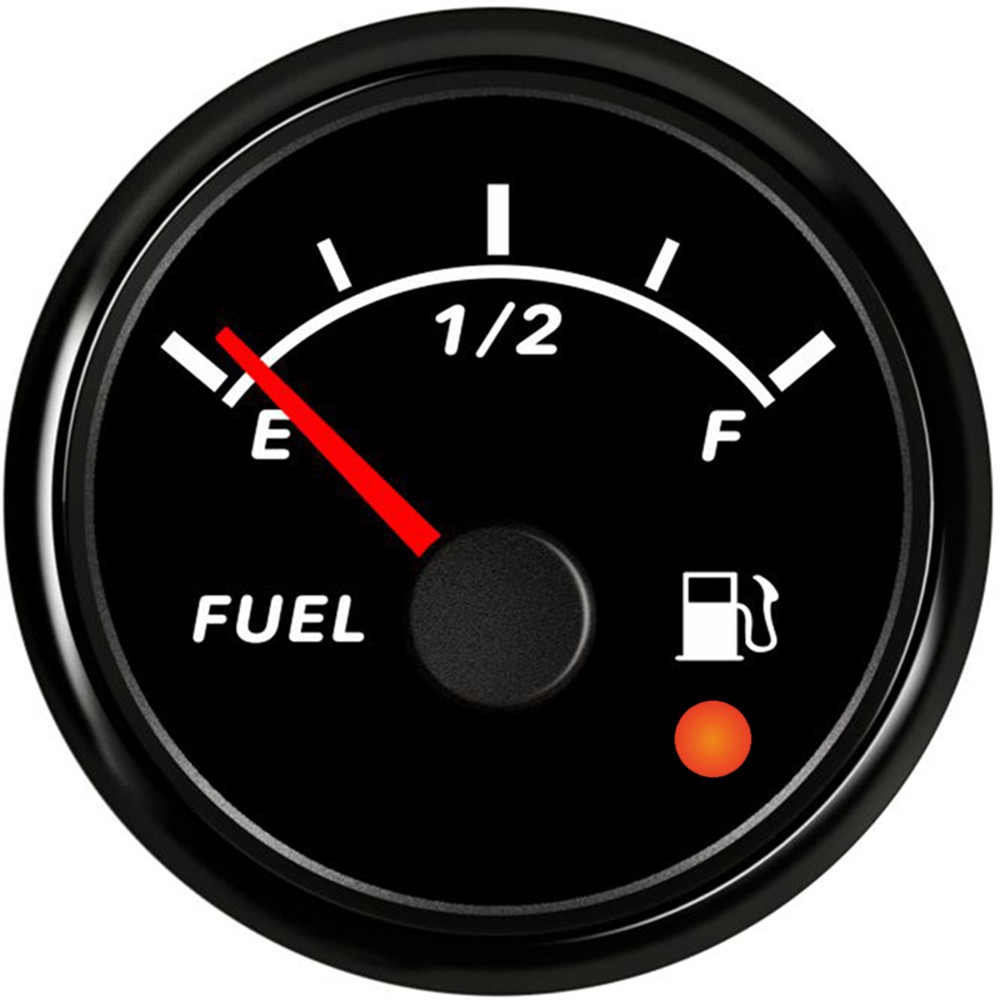

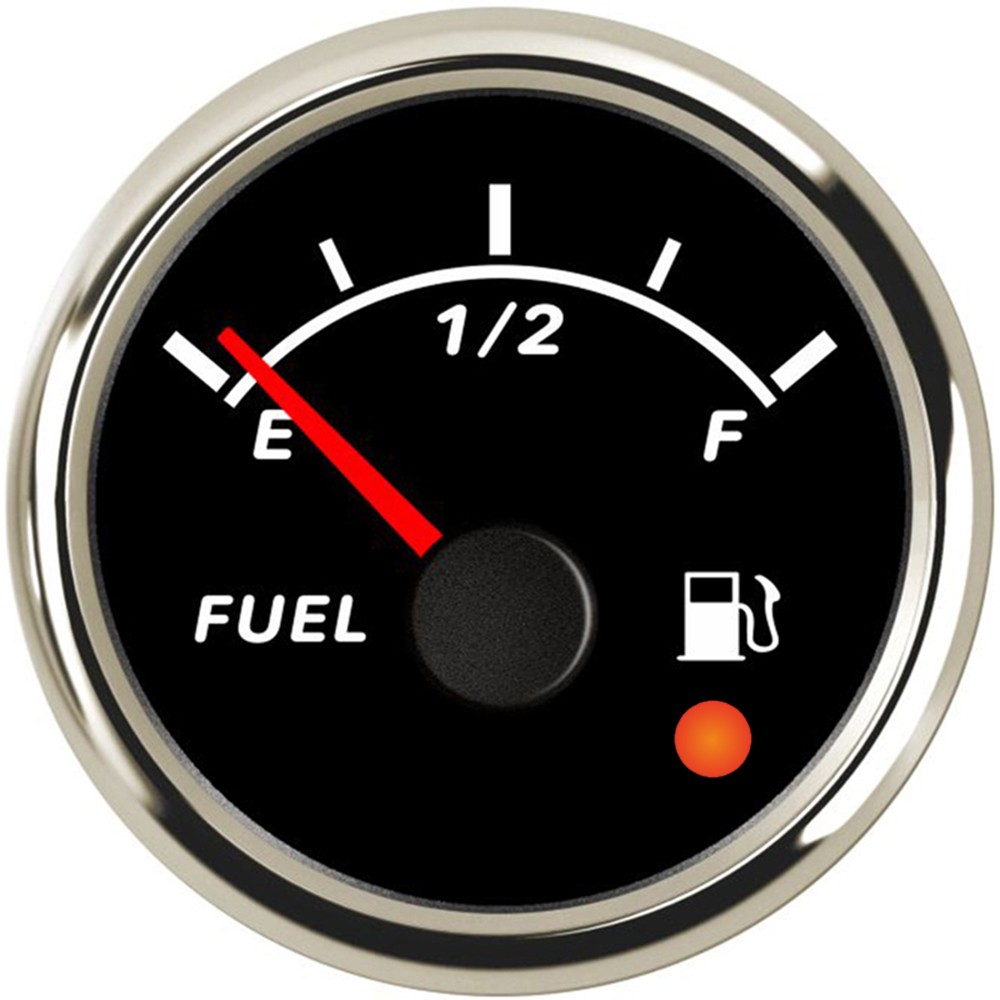

  • ELING ECPC 52mm Fuel Level Gauge Meter with Alarm
  • ELING ECPC 52mm Fuel Level Gauge Meter with Alarm
  • ELING ECPC 52mm Fuel Level Gauge Meter with Alarm
ELING ECPC 52mm Fuel Level Gauge Meter with Alarm ELING ECPC 52mm Fuel Level Gauge Meter with Alarm ELING ECPC 52mm Fuel Level Gauge Meter with Alarm

ELING ECPC 52mm Fuel Level Gauge Meter with Alarm

  • Product Item:ECPC 52mm Fuel Level Gauge Meter with Alarm
  • Fixing dimension: 52mm(2")
  • Indicating Range:E-1/2-F
  • Signal: 0-190ohm,0-180ohm,10-180ohm,240-33ohm,240-30ohm
  • Default for gauges with alarm light: Fuel Level ≤ 1/8 alarm
  • Fuel Level Gauge  , Fuel Level Meter  , Fuel Level Indicator
    Inquiry Send Email PDF

    Description

    Product Feature:


    -Be suitable for all kinds of fuel level sensors with same signal, and display liquid level of the fuel tank


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With curved glass (with anti-fogging function)


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Product Data:


    -Fixing dimension: 52mm(2")


    -Indicating Range:E-1/2-F


    -Signal: 0-190ohm,0-180ohm,10-180ohm,240-33ohm,240-30ohm


    -Default for gauges with alarm light: Fuel Level ≤ 1/8 alarm


    -Backlight: 8 Colors Backlight , red (default) → green → blue → white → yellow → yellow green → orange → Purple .


    -Working Voltage: 9-32V(12V/24V)


    -Operation mode: LCD display, stepper motor


    Package include:


    1x Fuel Level Gauge


    1x Multi-Plug Socket


    1x Installation Instruction
