Description
Model : FMHB
♦ Uses stepper motor drivers to display vehicle speed.
♦ High precision, excellent reliability and universal compatibility
♦ Style(SS=stainless steel): SS & black(BS),black SS & black(BN),SS & White (WS)
♦ Bezel Material: SUS316,Double layer anti-fogging glass
♦ Installation Dimension: Φ85mm(3 3/8”)
♦ Installation: lock the gauge to baseboard directly by hand
♦ Connector: integrate 12V/24V patchcord
♦ Background light: Red or Yellow

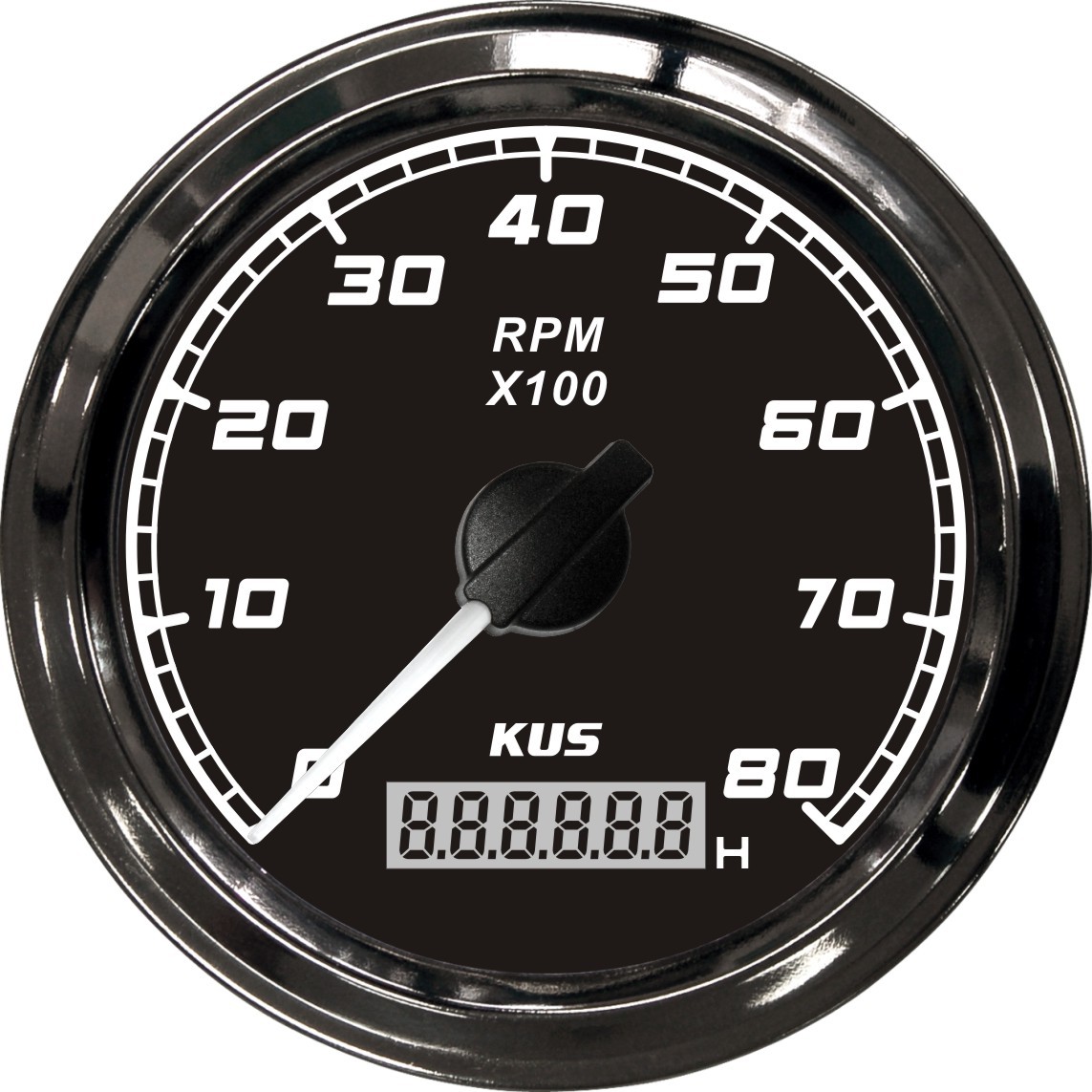

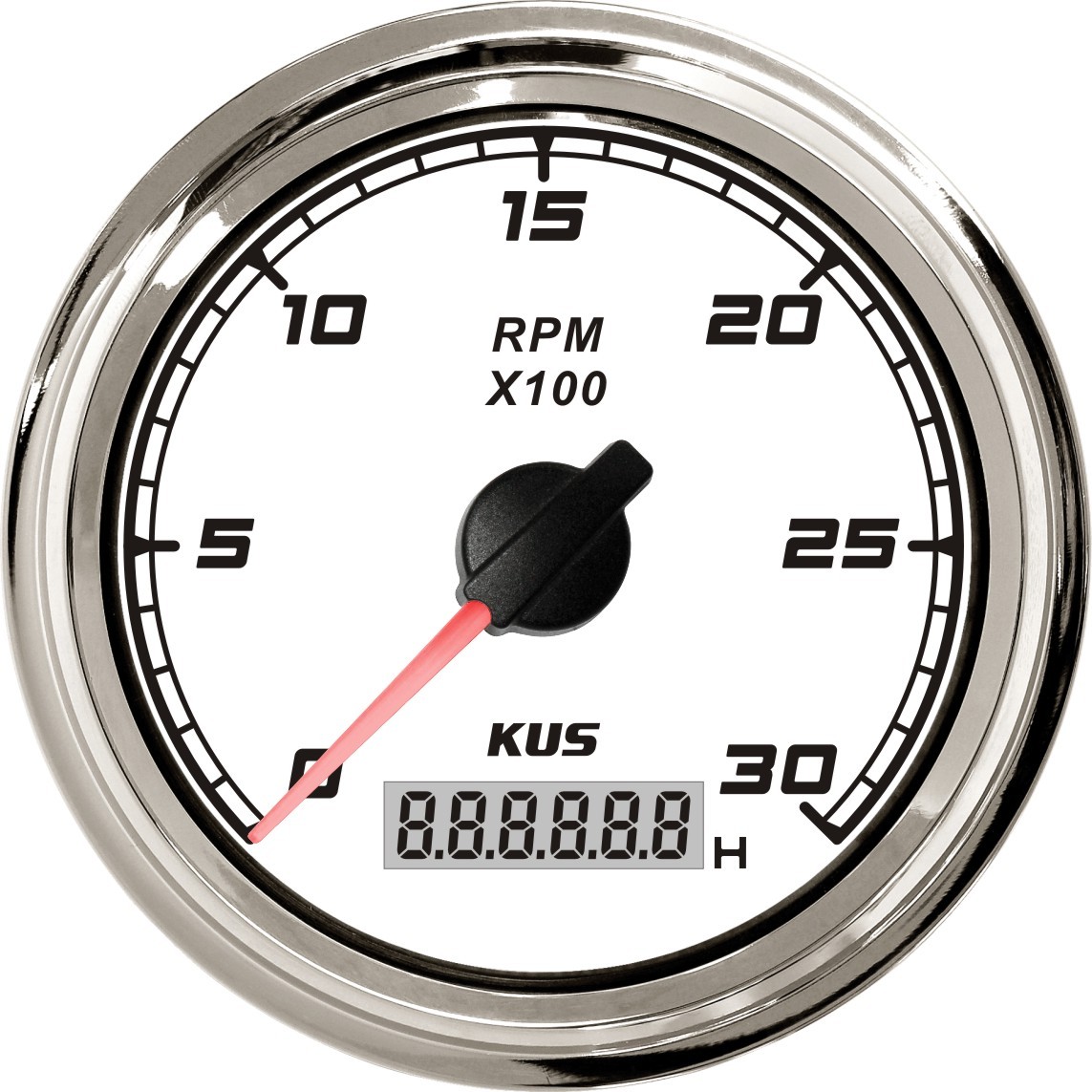

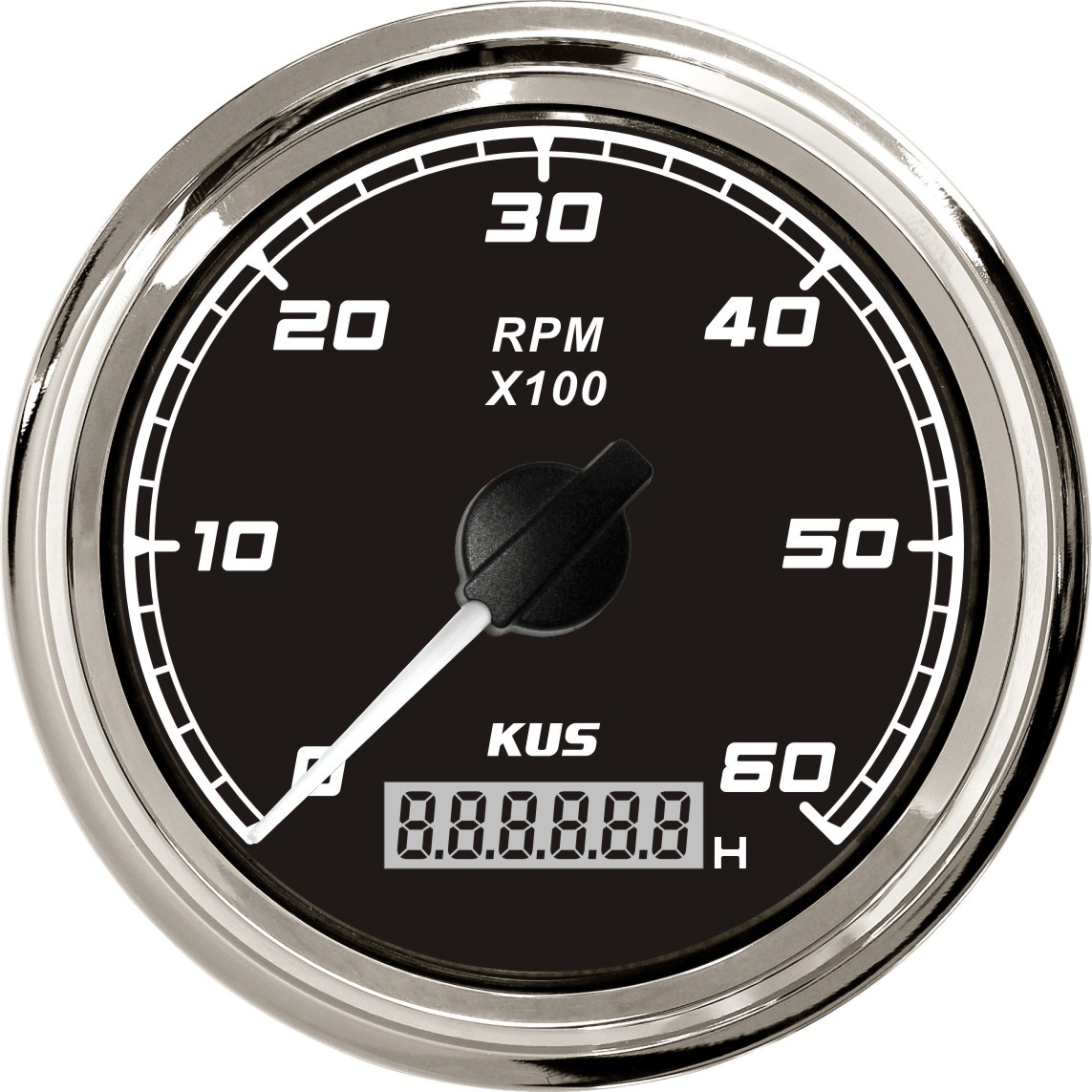

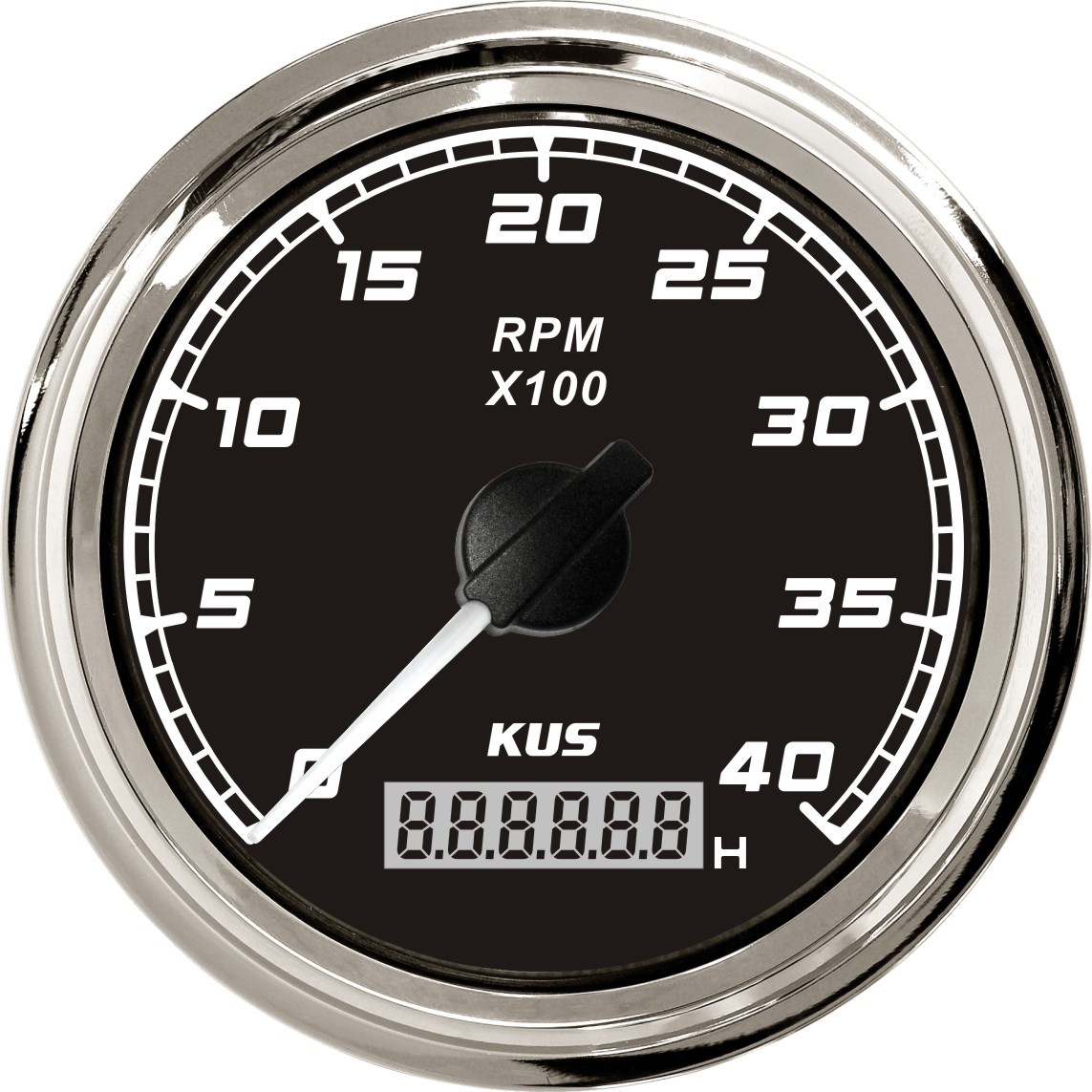

♦ Indicating Range0~3000 or 0~4000 or 0~6000 or 0~8000rpm
♦ Working Voltage:12V/24V
♦ Signal: 0.5~250.0
♦ Protection grade:IP67 for front side;IP65 for back side
Package Include:
1×tachometer
1×Installation Instruction
