Description
Model : FPGR

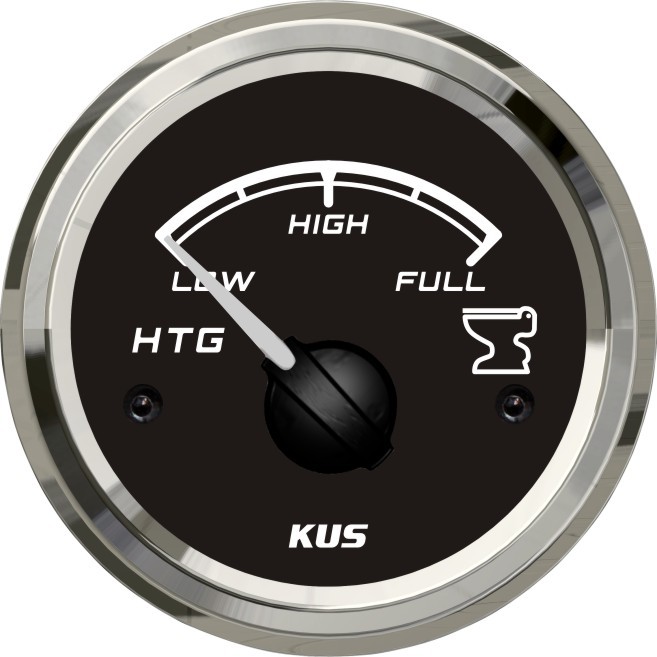

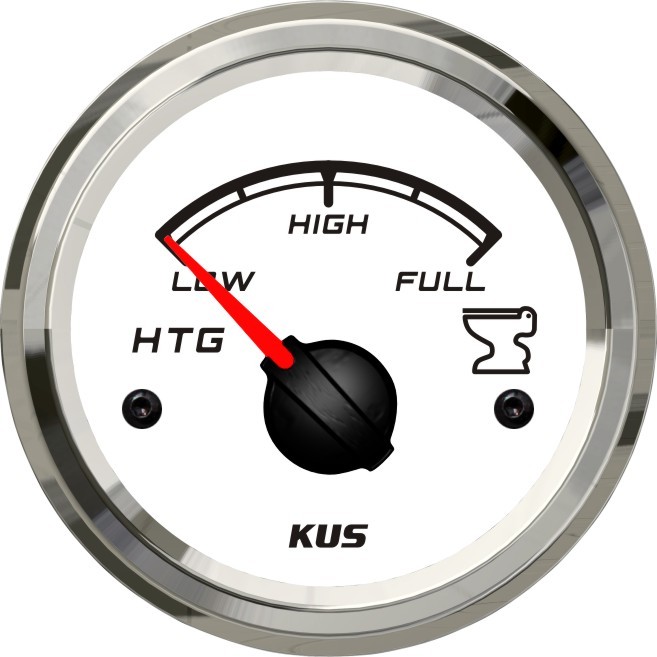

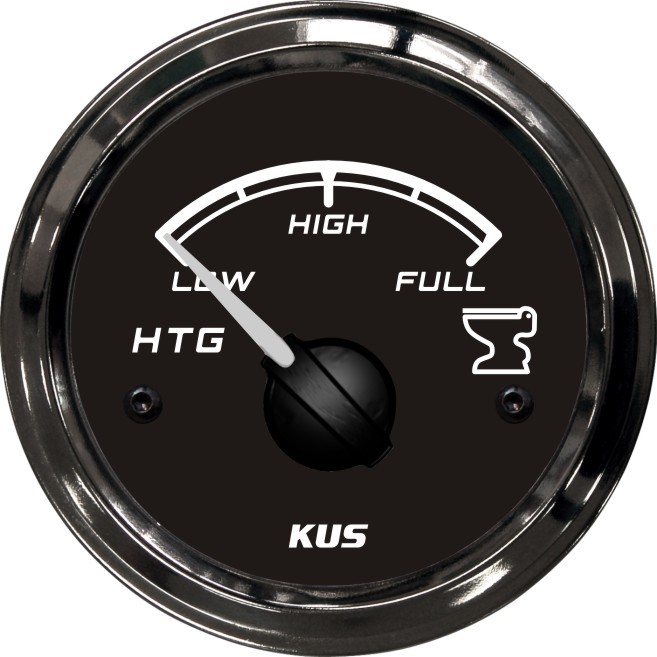

♦ Suitable for all kinds of holding tank level sensors, and display the liquid level of the holding tank
♦ Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration
♦ Style(SS=stainless steel): SS & black(BS),black SS & black(BN),SS & White (WS)
♦ Bezel Material: SUS316,Double layer anti-fogging glass
♦ Installation Dimension: Φ52mm(2”)
♦ Installation: lock the gauge to baseboard directly by hand
♦ Connector: integrate 12V/24V patchcord
♦ Background light: Red or Yellow
♦ Indicating Range: LOW- FUL
♦ Working Voltage:12V/24V
♦ Signal: 0~190Ω and 240~33Ω or customized
♦ Protection grade:IP67 for front side;IP65 for back side
Package Includes:
1x Oil Pressure Gauge
1x Installation Instruction
