  • ELING ECH GPS Speedometer (120KM/H)
  • ELING ECH GPS Speedometer (120KM/H)
  • ELING ECH GPS Speedometer (120KM/H)
  • ELING ECH GPS Speedometer (120KM/H)
ELING ECH GPS Speedometer (120KM/H) ELING ECH GPS Speedometer (120KM/H) ELING ECH GPS Speedometer (120KM/H) ELING ECH GPS Speedometer (120KM/H)

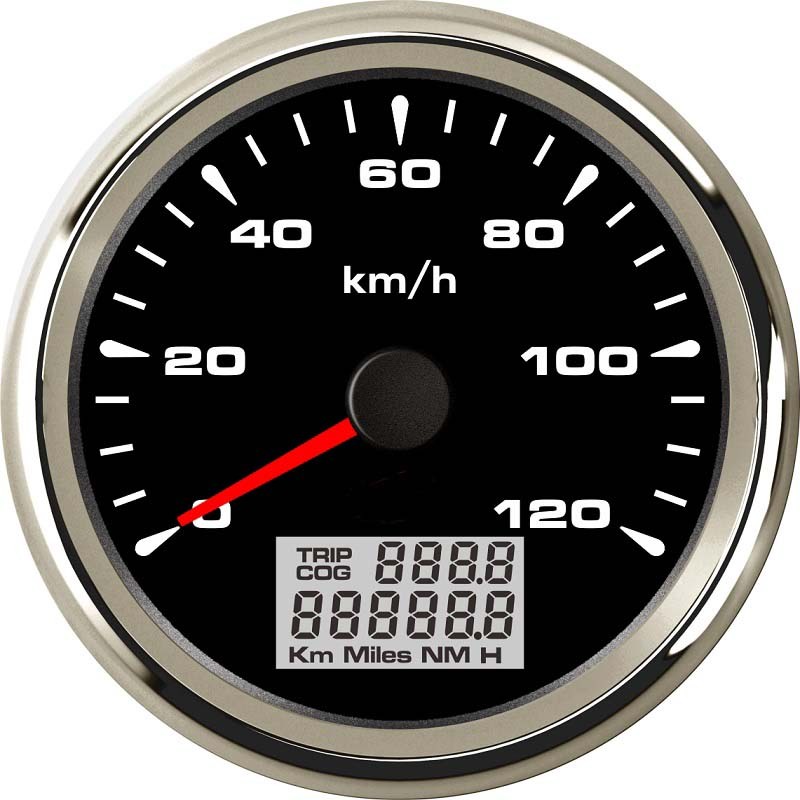

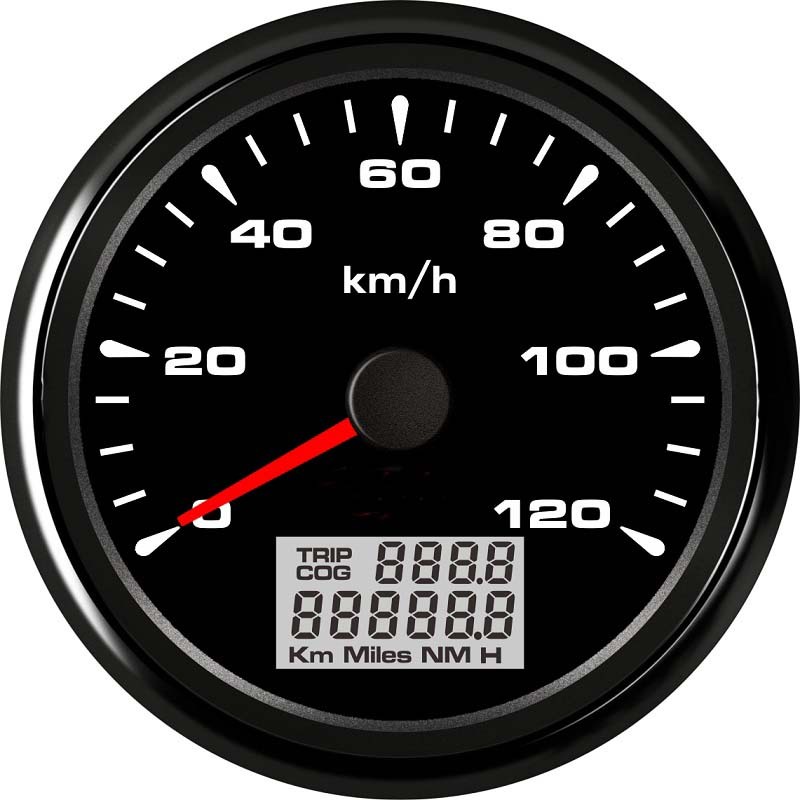

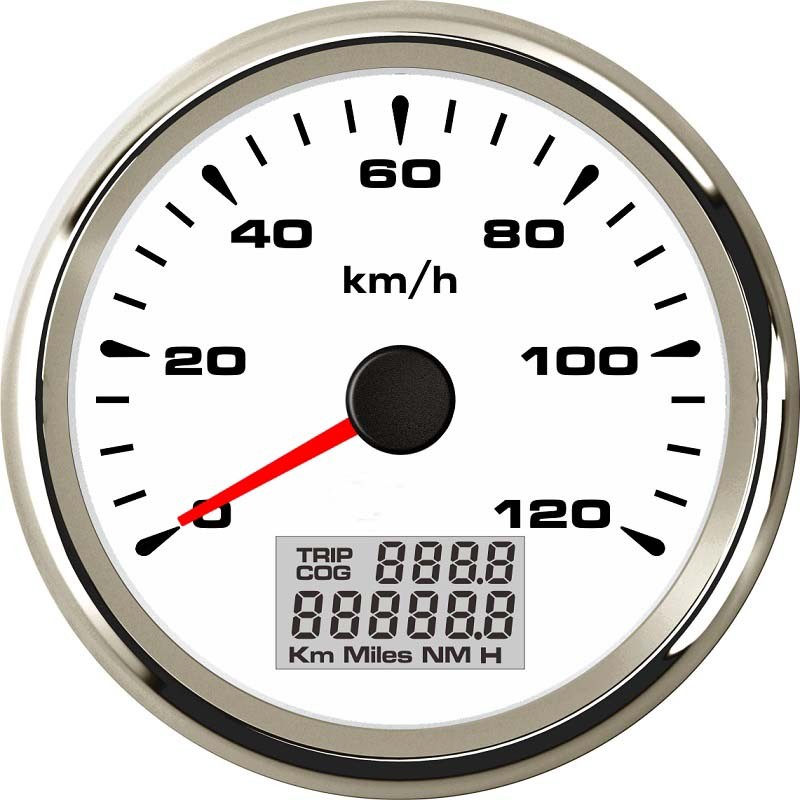

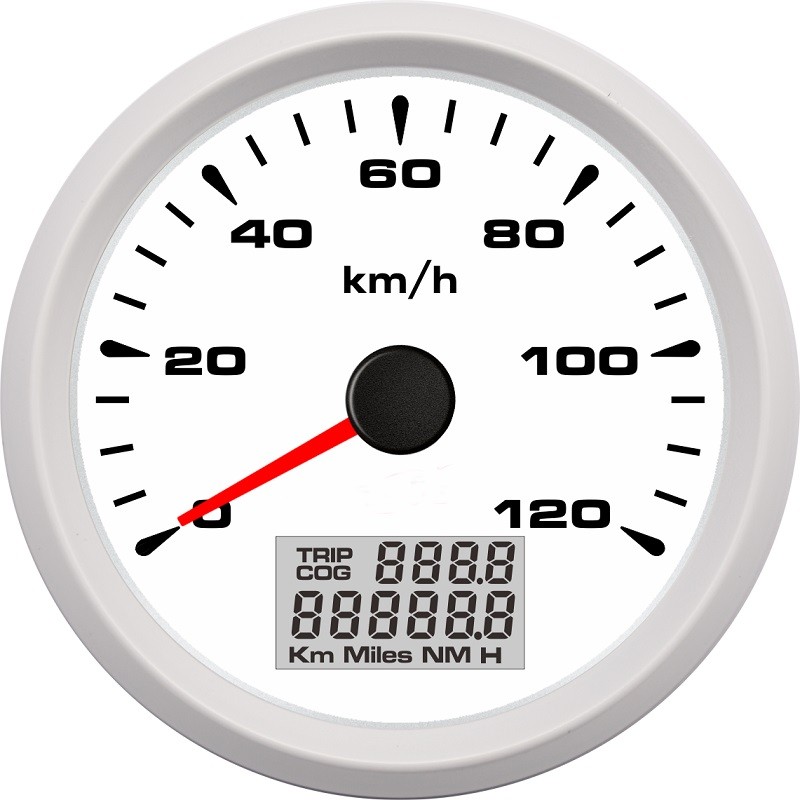

ELING ECH GPS Speedometer (120KM/H)

  • Product Item:ELING ECH 120KM/H
  • Installation Dimension:85mm(3-3/8
  • Working Voltage:9-32V
  • Indicating Range:0-120km/h
  • 8 Color Backlight: Red, Green, Blue, White , Yellow, Grass, Orange, Purple, Automatic
  • gps speedometer  , kmh speedometer  , speedometer  , odometer
    Inquiry Send Email PDF

    Description

    Product Features:

    -Suitable for all vehicles, cars, trucks, motorcycle, etc..

    -The signal comes directly from the satellite signal receiver(GPS Speed Sensor)

    -The gauge has the advantages of high precision, quick location confirmation and short start up time.

    -IP67 waterproof and dustproof grade

    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.

    -With curved glass (with anti-fogging function)

    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Technical Data:

    -Fixing dimension: 85mm(3-3/8")

    -Indicating Range: 0-120KM/H

    -Tripmeter:0-999.9 KM

    -Odometer:0-999999 KM

    -COG(Course Over Ground):0-359

    -Working current:≤100mA

    -Operating temperature:-30℃~+75℃

    -Storage temperature:-40℃~+85℃

    -Backlight: Red Green Blue White Yellow Orange Purple Light Green, 8 colors available, you can press the button to choose anyone.


    Functions:

    -Needle shows current speed;

    -Led window shows: TRIP/COG(choose anyone) and ODO

    -TRIP---TRIP01(Default) one-trip mileage which will come back to 0 after power off, TRIP02 one-trip mileage which accumulates after power off, but you can press “Set” button for 3-5 seconds to clear the data.

    -COG---moving direction

    -ODO---recording total mileages automatically and cannot be reset

    -Operation mode: LCD display, stepper motor

    Notes:for this speedometer,we suggest buyers to connect black gps antenna/sensor firstly and then connect power (can not connect power firstly and then connect gps antenna ),otherwise it will be easy to make gps mould damaged.


    Package Includes:

    1x GPS speedometer

    1x GPS Speed Sensor

    1x Multi-plug socket

    1x Installation Instruction
