  5. ELING ECCW Oil Temperature Gauge
  • ELING ECCW Oil Temperature Gauge
  • ELING ECCW Oil Temperature Gauge
  • ELING ECCW Oil Temperature Gauge
  • ELING ECCW Oil Temperature Gauge
ELING ECCW Oil Temperature Gauge ELING ECCW Oil Temperature Gauge ELING ECCW Oil Temperature Gauge ELING ECCW Oil Temperature Gauge

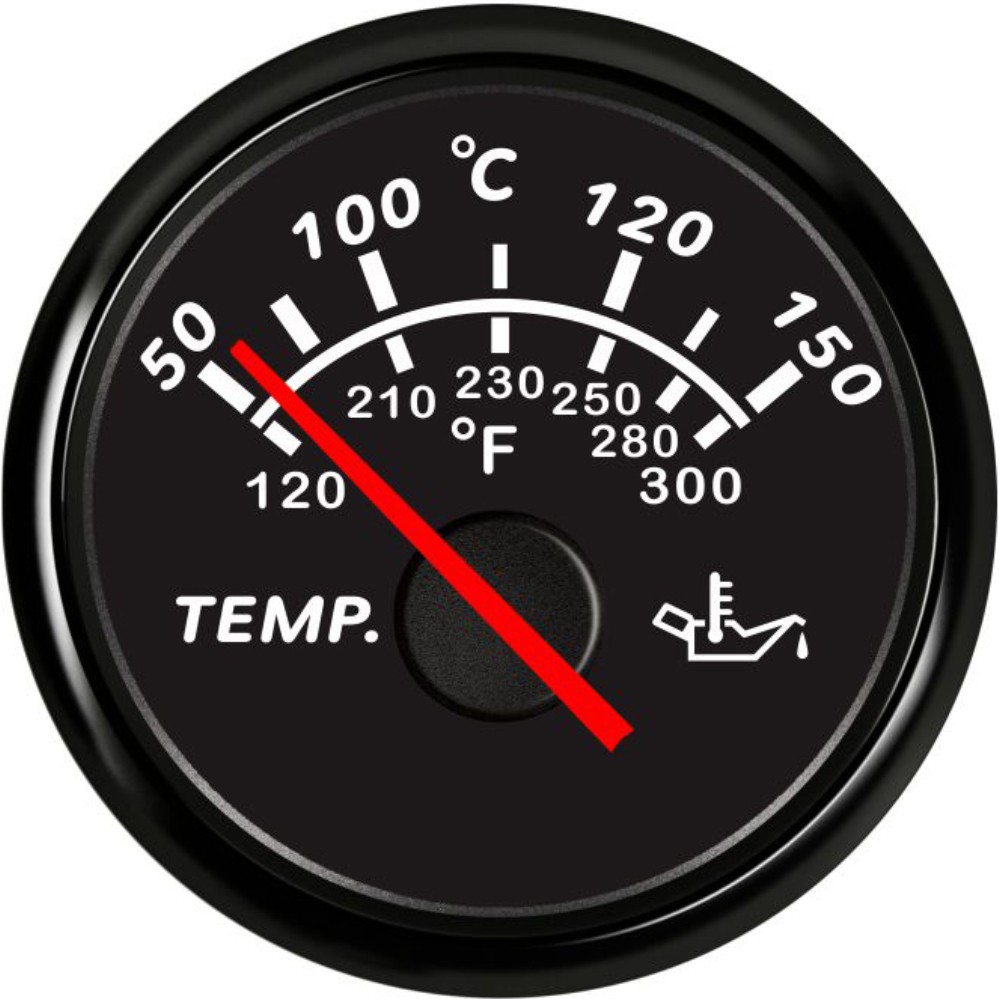

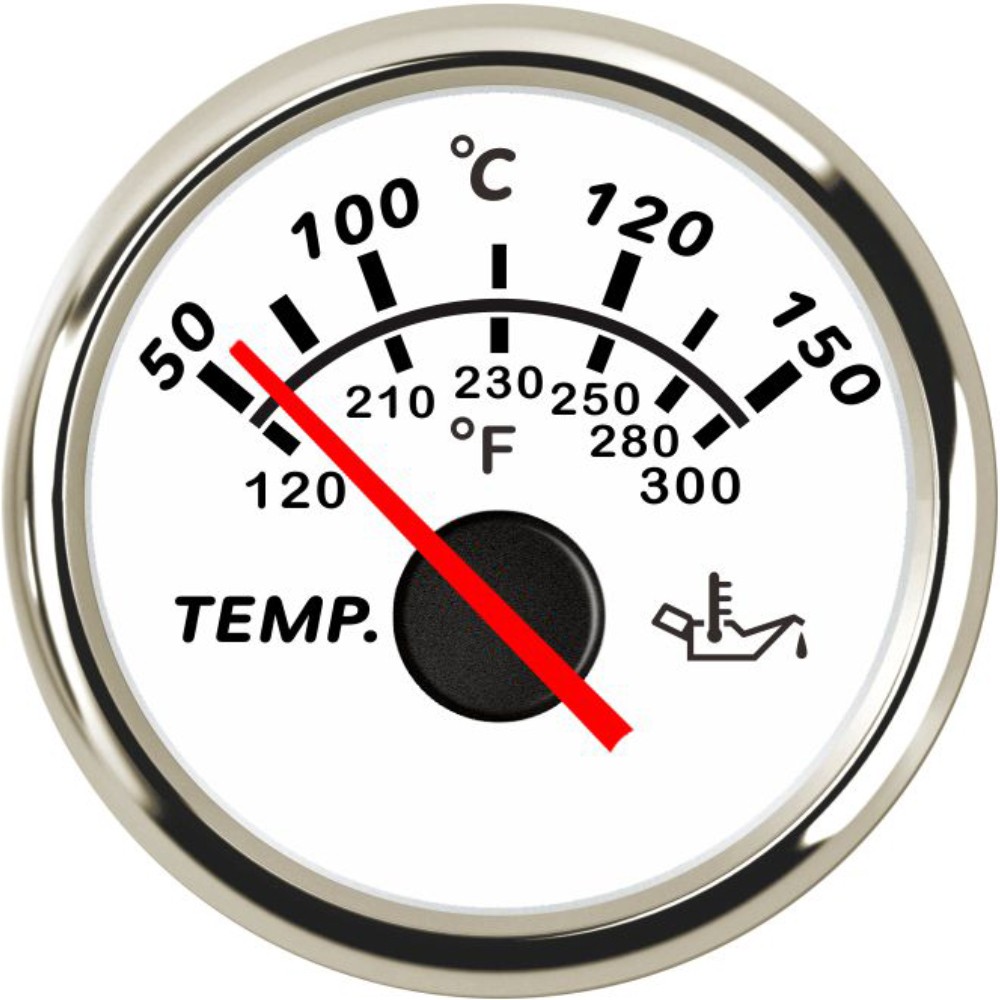

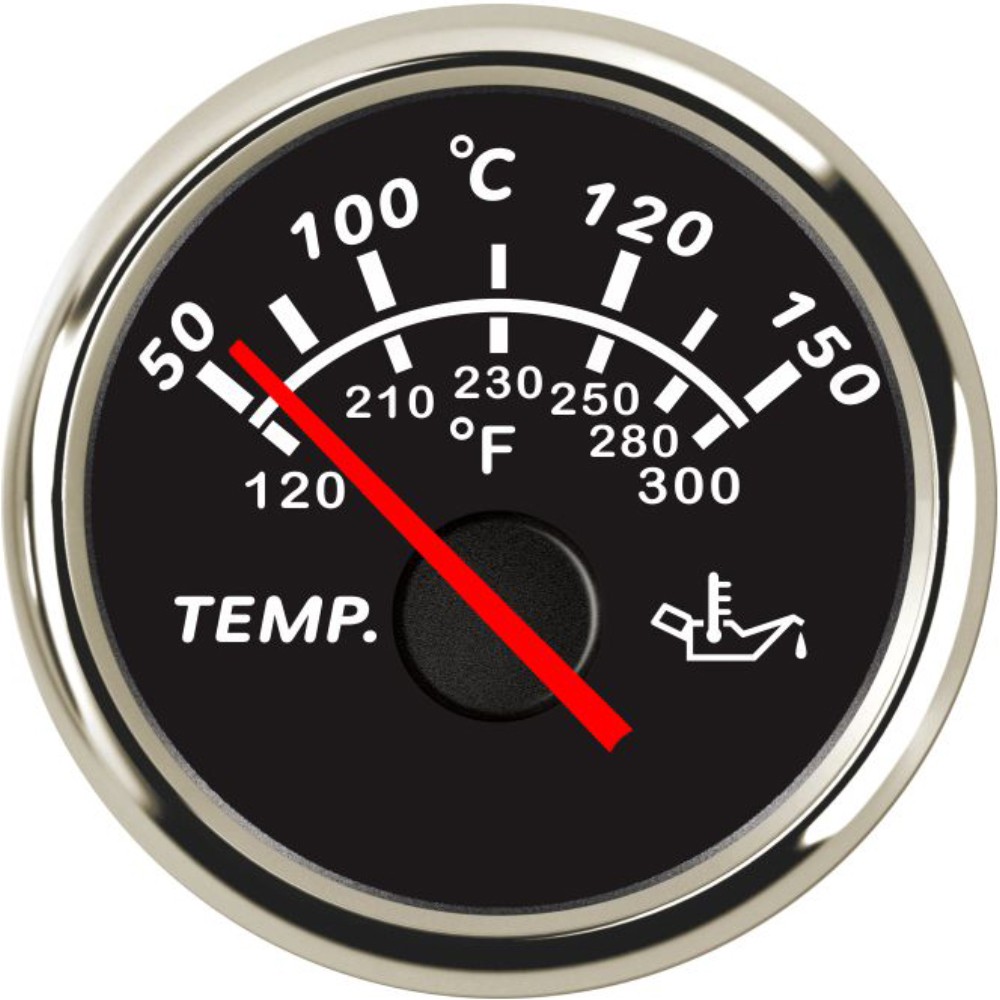

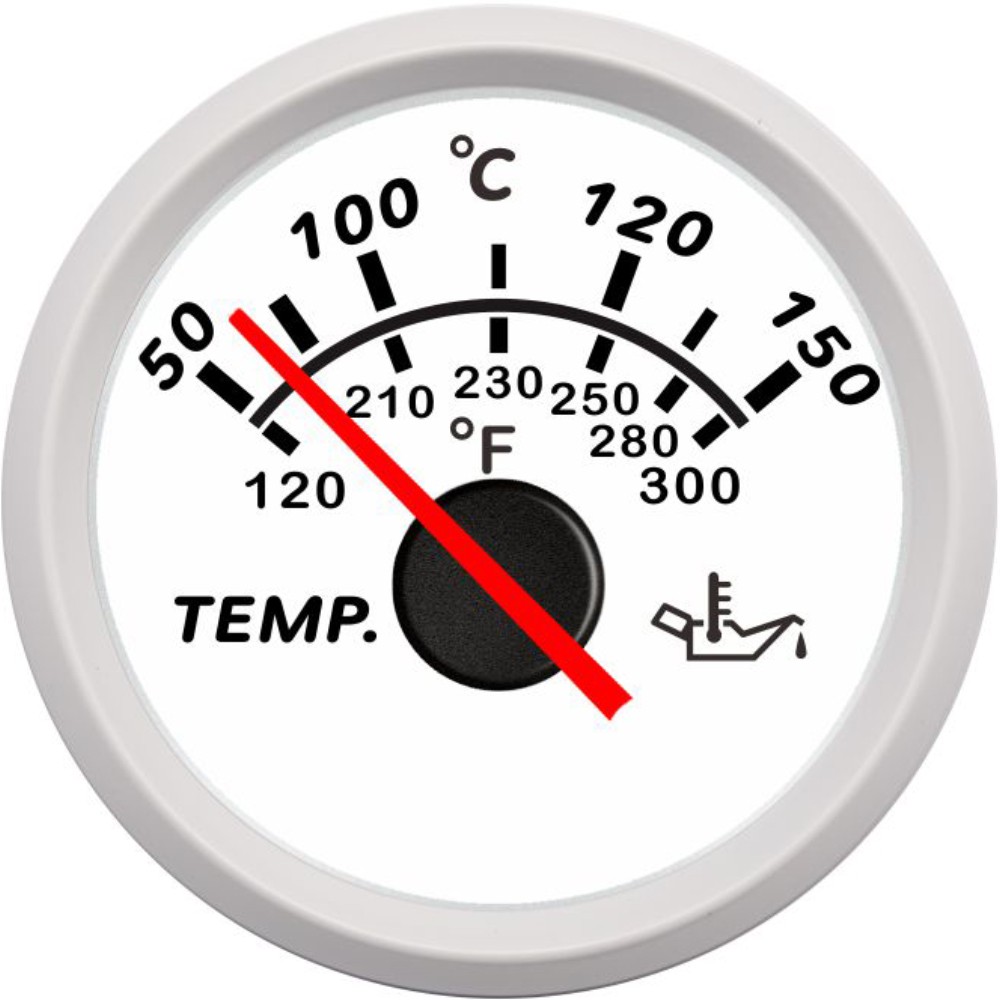

ELING ECCW Oil Temperature Gauge

  • Product Item:ECCW Oil Temperature Gauge
  • Fixing dimension: 52mm(2")
  • Indicating Range: 50-150℃
  • Signal: 361-19 ohm
  • Backlight: Red
  • oil temp gauge  , oil temp meter
    Inquiry Send Email PDF

    Description

    Product Features:


    -Be suitable for all kinds of oil temperature sensors , and display the temperature of the oil tank .


    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With flat glass (with anti-fogging function)


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Technical Data:


    -Fixing dimension: 52mm(2")


    -Indicating Range: 50-150℃


    -Signal: 361-19 ohm


    -Working Voltage: 9-32V(12V/24V)


    -Backlight: Red


    -Operation mode: LCD display, stepper motor


    Package Includes:


    1x Oil Temp. Gauge

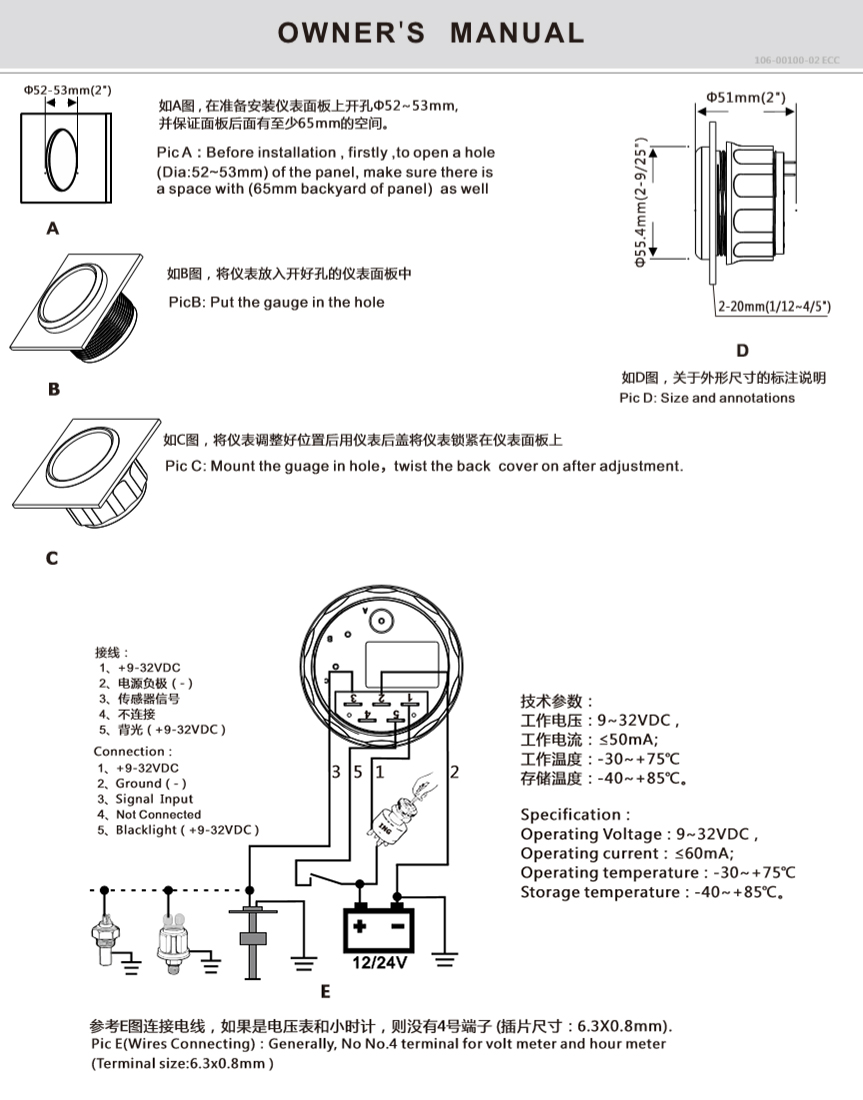

    1x Installation Instruction
