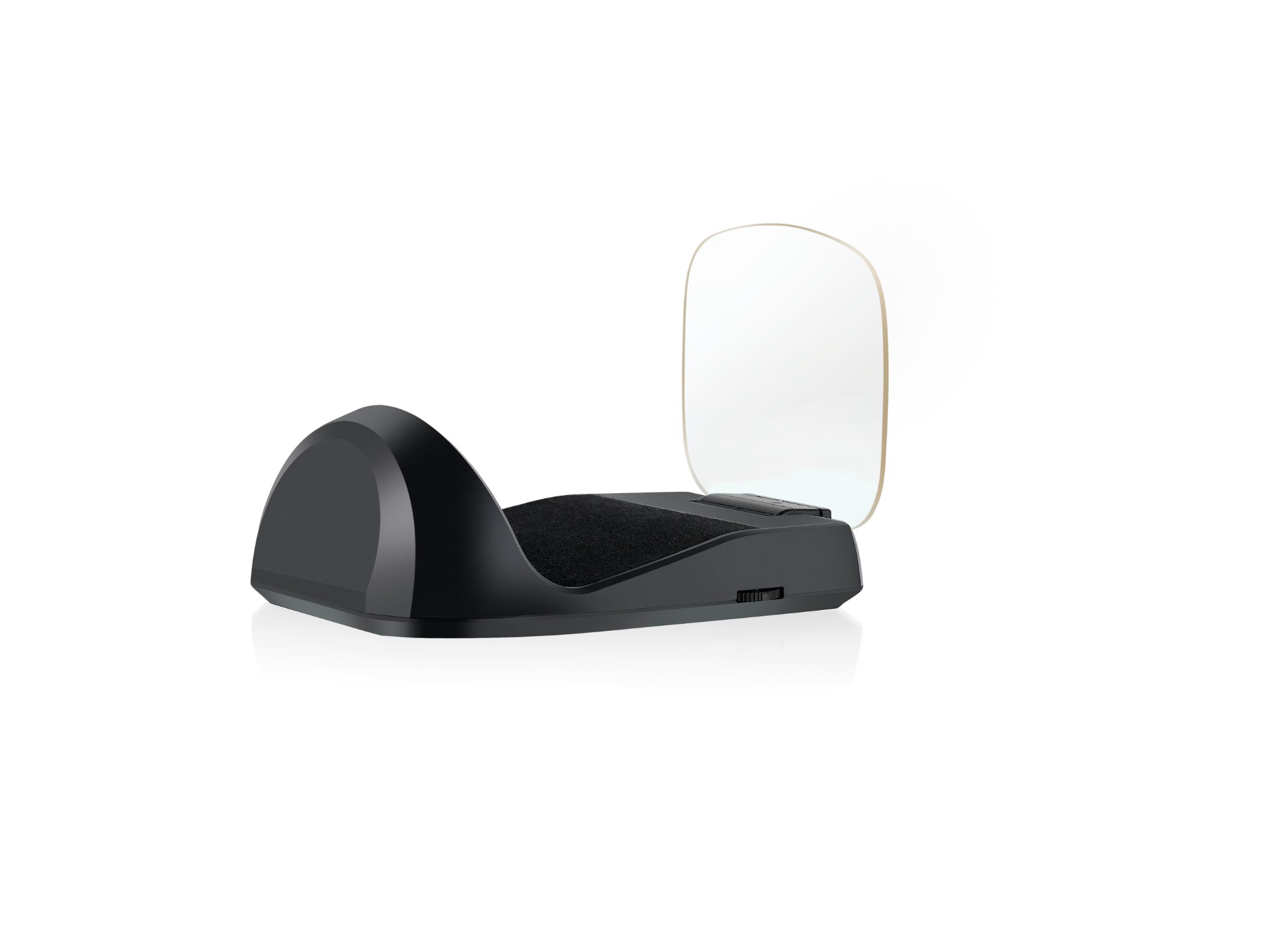

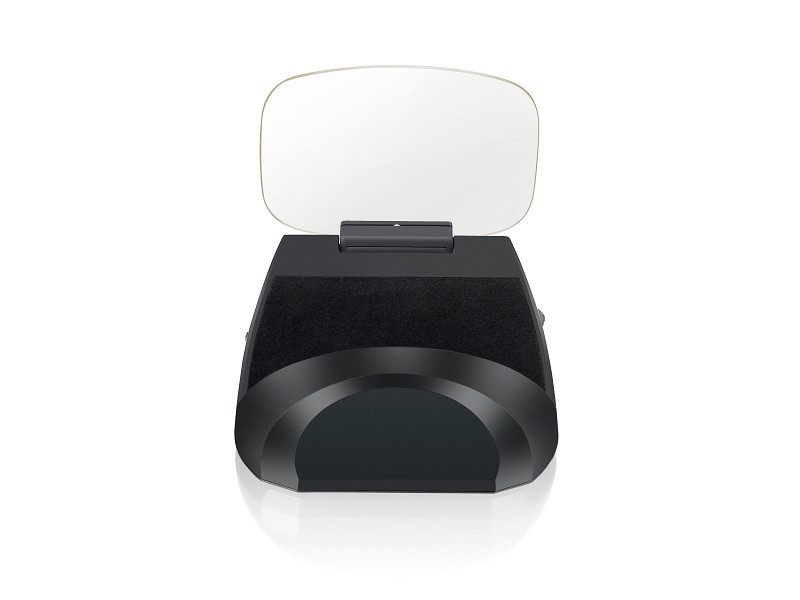

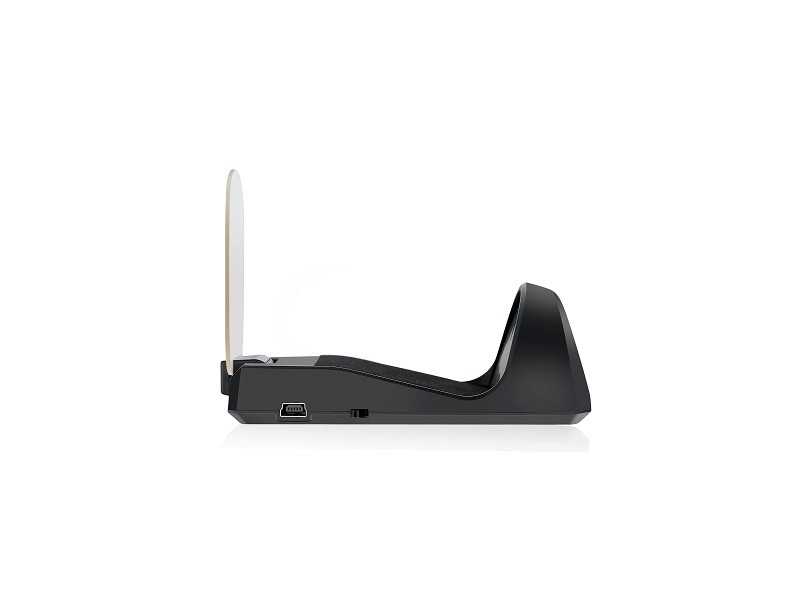

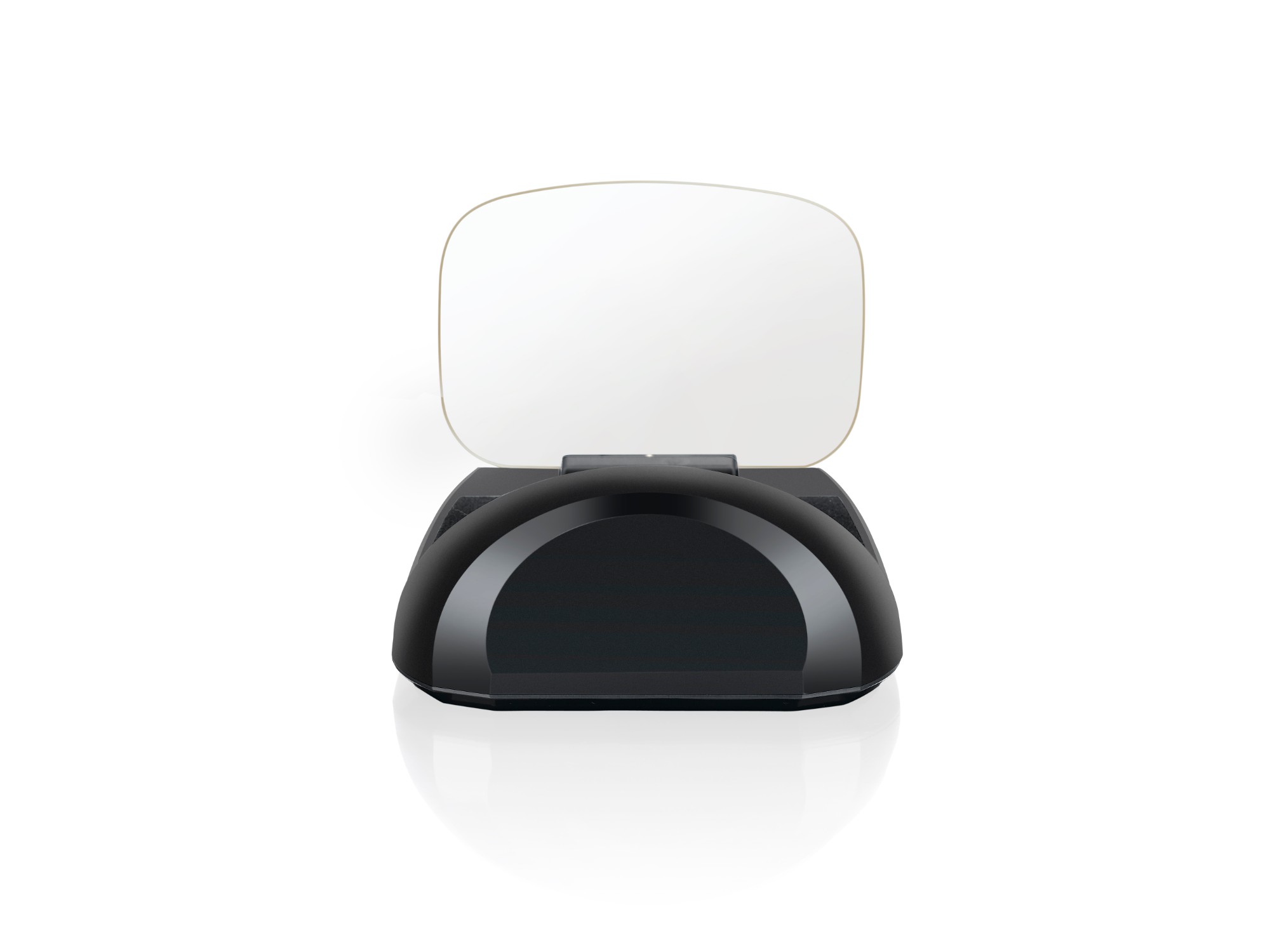

  • ELING OBD2+GPS HUD Speedometer C700S
  • ELING OBD2+GPS HUD Speedometer C700S
  • ELING OBD2+GPS HUD Speedometer C700S
  • ELING OBD2+GPS HUD Speedometer C700S
ELING OBD2+GPS HUD Speedometer C700S ELING OBD2+GPS HUD Speedometer C700S ELING OBD2+GPS HUD Speedometer C700S ELING OBD2+GPS HUD Speedometer C700S

ELING OBD2+GPS HUD Speedometer C700S

  • Product Item:HUD C700S
  • HUD
  • GPS Speedometer
  • Head Up Display
  • HUD  , Head Up Display  , GPS Speedometer  , Alarm
    Inquiry Send Email PDF

    Description

    Functions:

    1.Decorative lights: always all bright(long pull up the setting button to turn off)

    2.Multi functions area: OBD mode: Speed, battery voltage, water temperature

                    GPS mode: Speed, battery voltage, satellite numbers

    3.Unit icons: V=battery voltage, C=Celsius water temperature, F=Fahrenheit water temperature, GPS-satellite icon

    4.RPM icon: The engine speed is displayed in OBD mode, and the speed icon is displayed in GPS mode.

    5.Light sensor: HUD can automatically adjust the brightness according to the environment

    6.Speed unit: KM/H=kilometer/hour, MPH=Mile/hour

    Technical Parameters:

    1.Terms of Use: Environment temperature:-40C— +80C

       Barometric press: 86-106KPa

       Relative humidity: 10%-95%

       Environment voice:<=60dB

    2.Work voltage: 11V~18Vdc(12Vdc/200mA)

    3.Sleep current: <=30mA

    4.Display way: projector

    5.Display channel: LED Display

    6.Reflector transmittance: 98%

    7.Virtual image distance: 55 mm
