  • KUS SV Digital Multi-function Gauge
  • KUS SV Digital Multi-function Gauge
KUS SV Digital Multi-function Gauge KUS SV Digital Multi-function Gauge

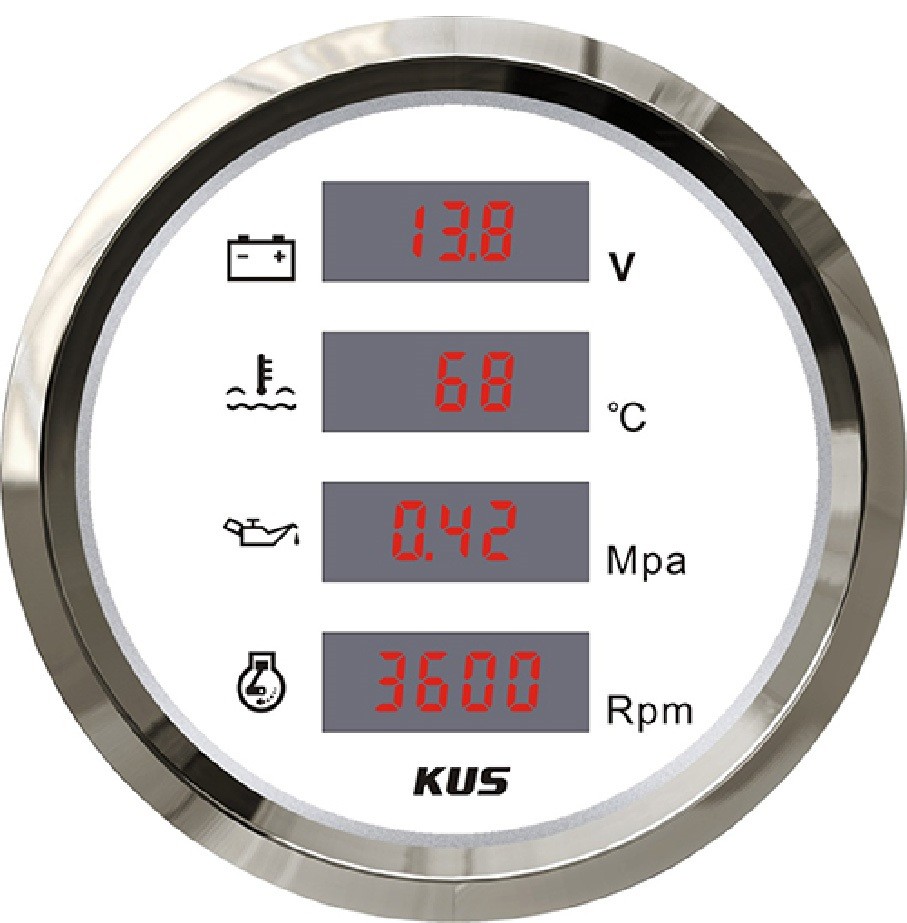

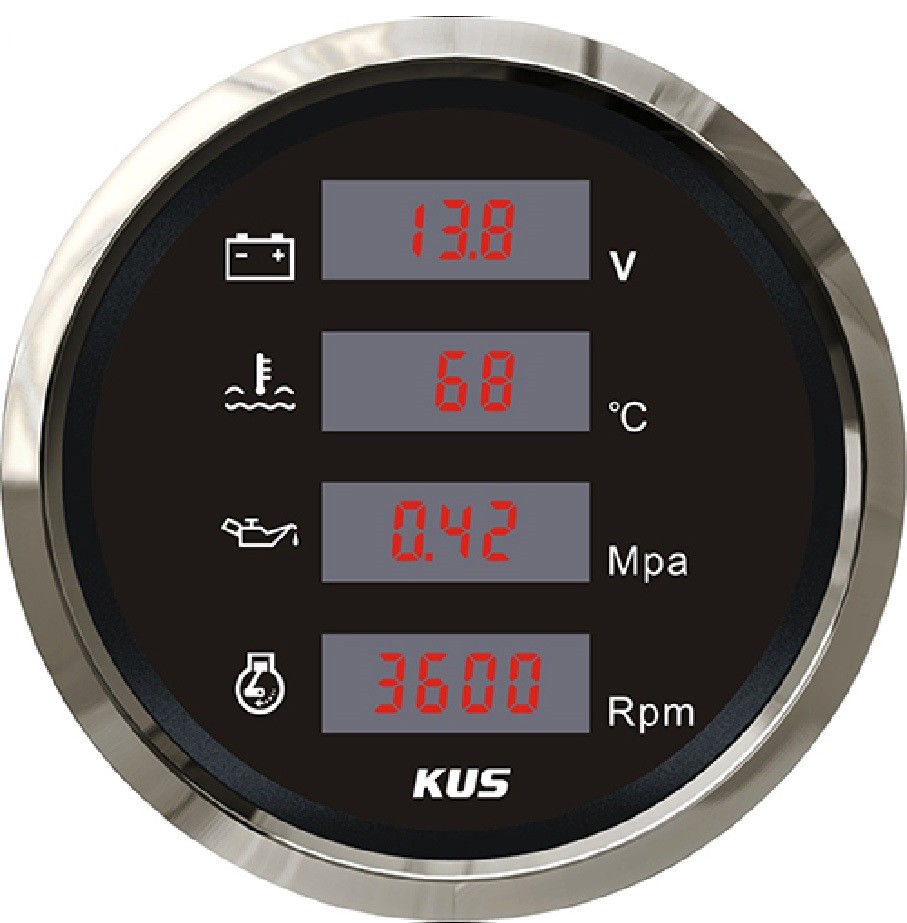

KUS SV Digital Multi-function Gauge

  • Product Item:Digital Multi-function Gauge
  • Tahcometer: 0-8000rpm
  • Voltmeter: 9-32V
  • Oil pressure meter: 0-1Mpa
  • Water temp meter: 25-120℃
  • Digital Tachometer  , Voltmeter  , Water temp meter  , Oil pressure meter
    Inquiry Send Email

    Description

    Features:


    The world's newest 4 in 1 multi-function gauge


    Convenient Installation by multi-plug socket connecting way


    The gauge has the advantages of high precision, quick location confirmation and short start up time


    Most importantly, the gauge is easy to setup, and can be used in all vehicles, boats and off-road vehicles


    Specifications:


    Installation Dimension: 85mm


    Working voltage: 12V/24V


    Signal of oil pressure meter: 10-185ohm


    Signal of water temp. meter: 560.2-22.94ohm


    Speed ratio of tachometer: 0.5-250


    Display Range of the oil pressure meter: 0-1Mpa


    Display Range of water temp. meter: 25-120℃


    Display Range of voltage meter: 9-32V


    Display Range of tachometer: 0-8000RPM


    Backlight: red


    Protection grade is IP67, the whole body is completely waterproof


    Excellent antifogging function


    316 Stainless steel bezel with curved glass


    Convenient Installation by multi-plug socket connecting way


    Accessories: matched with connectors, Installation Instruction


    Package Includes:


    1 x 4 in 1 Multi-function Gauge


    1 x Cable


    1 x Installation Instruction
