Description
Specification:
-Be suitable for all kinds of vehicles and boats,ships
-Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.
-Operating temperature: -20°C ~+70°C
-Protection rank : IP67.
Technical data:

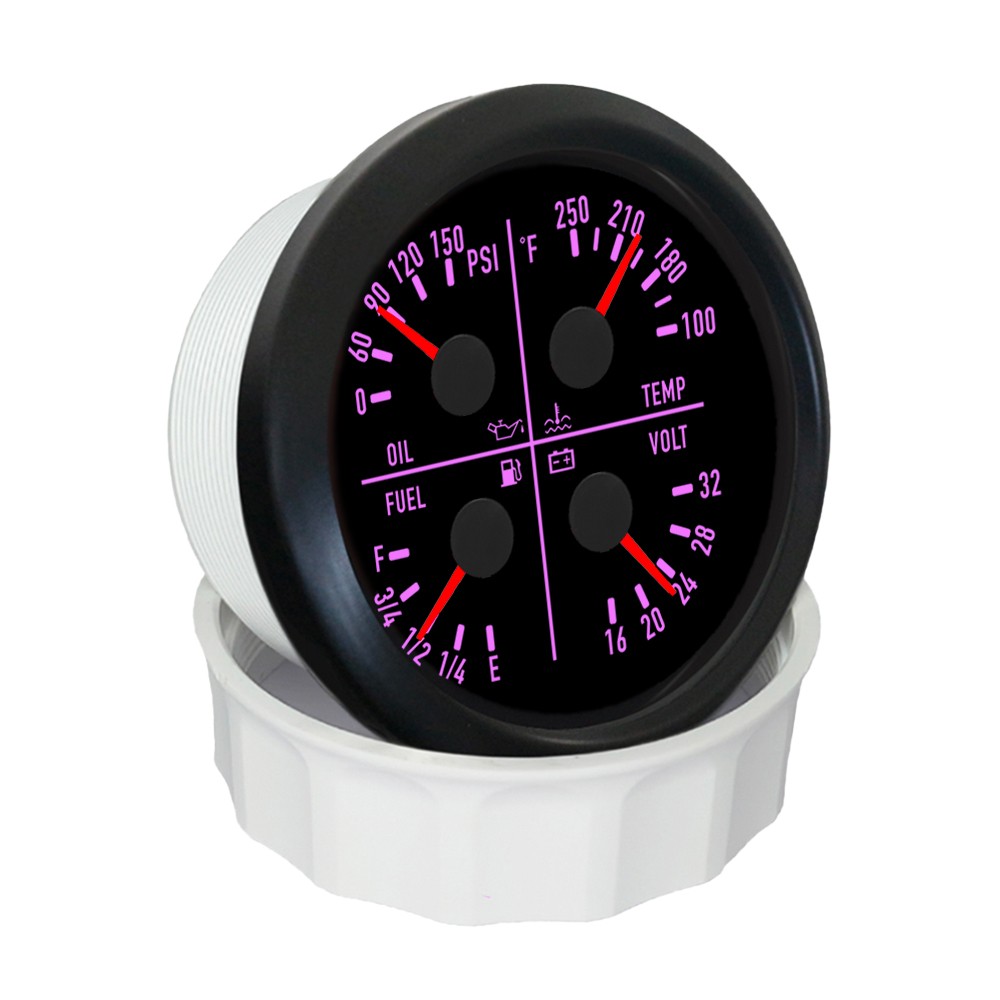

-Name :4 In 1 Multifunction Gauge
-Fixing dimension: 80mm

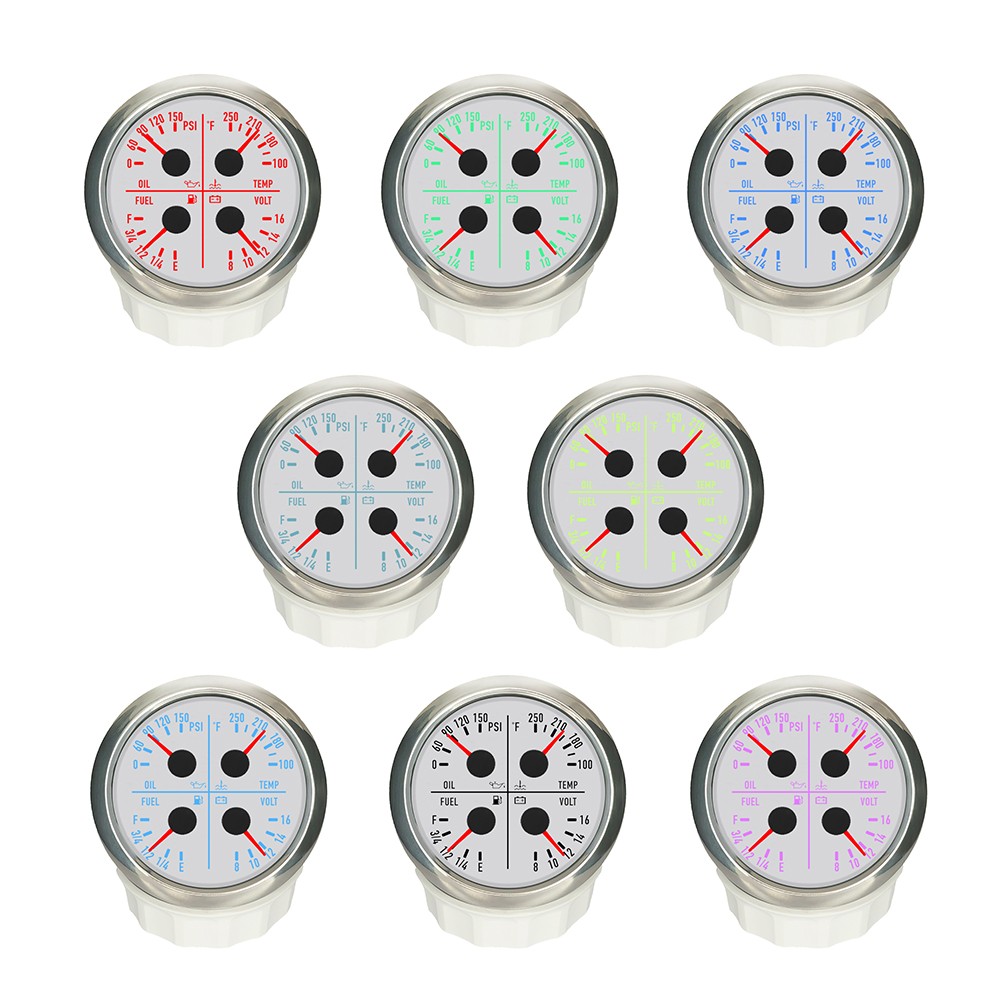

-Backlight :7 backlights (red, green, blue, white, yellow, cyan, purple)
-Oil pressure: 0-150PSI
-Oil pressure sensor:10-184ohm
-Water temperature: 100-250°F
-Water temperature sensor:301-22ohm
-Voltmeter: 8-16V 16-32V
-Fuel level: E-1/4-1/2-3/4-F
-Fuel level Signal:0-190ohm/240-33ohm/10-180ohm/0-90ohm/240-30ohm

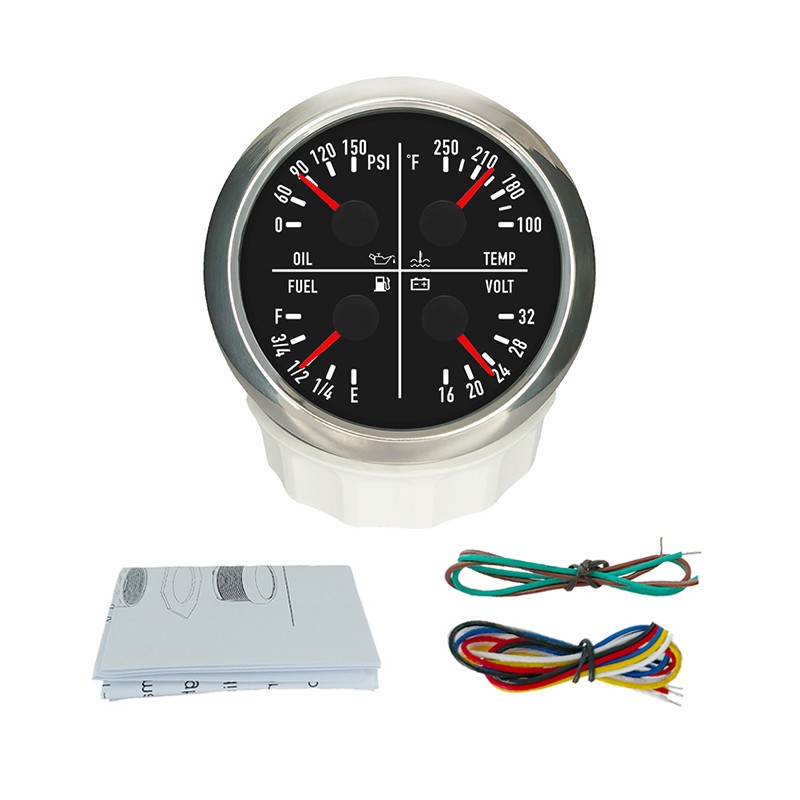

Package Included:
1 x 4 in 1 Multifunctional Gauge
2 x Multi-plug socket
