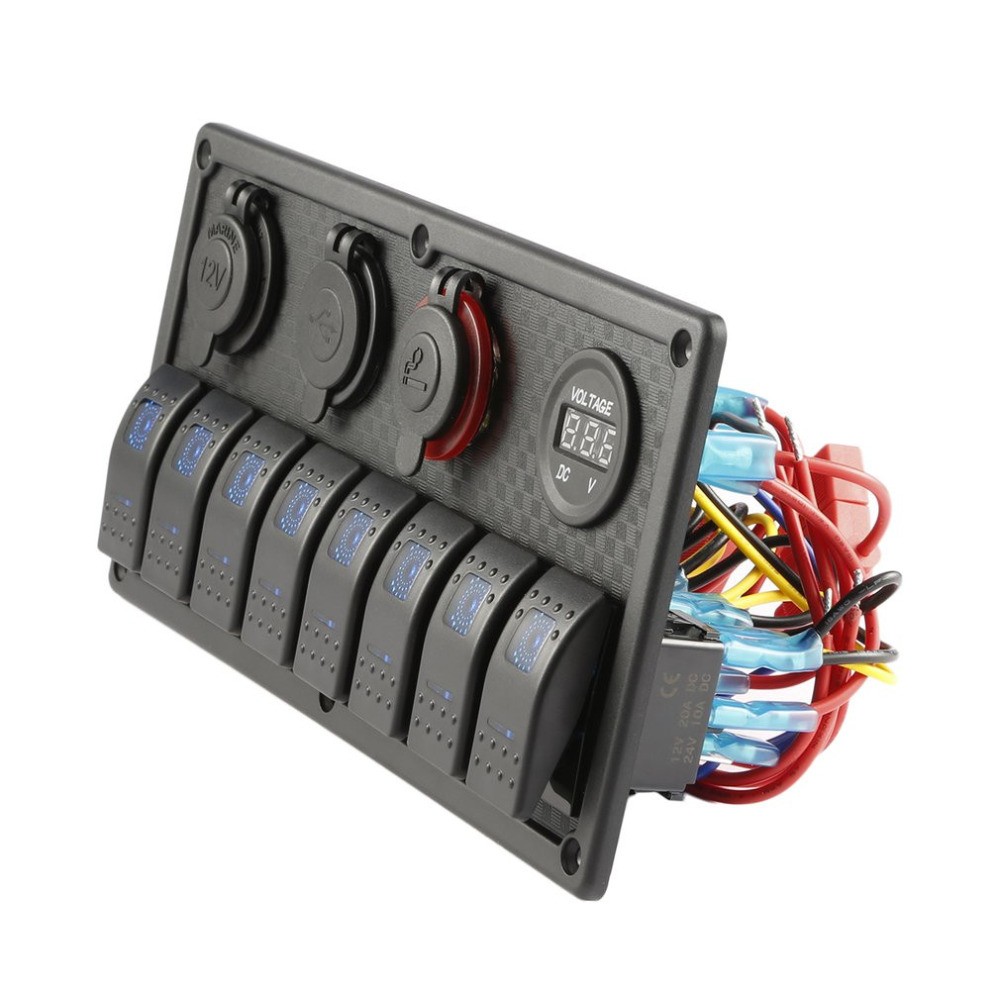

  • ELING Multi-functional 8 Gang Switch Panel
  • ELING Multi-functional 8 Gang Switch Panel
  • ELING Multi-functional 8 Gang Switch Panel
ELING Multi-functional 8 Gang Switch Panel ELING Multi-functional 8 Gang Switch Panel ELING Multi-functional 8 Gang Switch Panel

ELING Multi-functional 8 Gang Switch Panel

  • Product Item:Switch Panel
  • 8 Gang Switch Panel
  • USB Charger
  • Voltmeter
  • Cigarette Lighter
  • 8 Gang Switch Panel  , Rocker switch  , USB Charger  , Voltmeter  , Cigarette Lighter
    Inquiry Send Email

    Description

    Feature:

    -Super luxurious 8 Gang switch panel with blue/green / red (optional) LED work lights.

    -Built-in overload, over current and short circuit protection, very safe to use.

    -The dual USB charger port can meet your various charging needs, and can quickly charge iOS / Android phones, GPS navigation, cameras, etc.

    -Use a voltmeter with a range of 0-24V to monitor the battery voltage in real time.

    -The attached mounting screws and labels are easy to install and can be installed horizontally or vertically.

    -Widely used in 12V-24V electric vehicles, such as cars, motorcycles, buses, ships, recreational vehicles, yachts, trailers, trucks

    Specification:

    -Material: ABS+ aluminum

    -Item Color: Black

    -LED Color: Red, Green, Blue(optional)

    -Voltage: 12V-24V

    -Rocker Switch: 8 Gang

    -Switch Function: SPST / ON-OFF

    -Polarity: SPST

    -Maximum Continuous Load: AC 125V/10A, 12V/20A, 24V/10A

    -Maximum Load and Time: DC 12V/23A 24V 11.5A  5 seconds/times  can continuous 30 times

    -DC Maximum Voltage: 30V

    -DC Minimum Voltage: 3V

    -Maximum Contact Load: AC 125V/10A, 12V/20A, 24V/10A

    -Maximum Break Contact: AC 1500V 1 minute

    -Working Cycle: 5 Seconds/Times

    -Life-cycles No-load: 20.000 Times

    -Life-cycles Full-load: 10.000 Times

    -Operating Temperature Range: +30K

    -Protection Grade: IP68

    -Size(L*W): 23.9 * 11.9cm/9.4 * 4.7in

    -Package Weight: approx.677g

    -Fitment: Universal for all 12V-24V vehicle, yacht, ship, caravan, bus, car, etc.

    Product Material:

    -ABS, nylon, aluminum plate resistant to high and low temperature, flame retardant and environmentally friendly materials

    Product Use:

    Can be used as headlight switch, fog light switch, line-of-sight light switch, car refrigerator switch, car vacuum cleaner switch, car external device power supply, power supply for mobile phones, tablets, etc.

    Installation Scope: applicable to ships, yachts , RVs, buses and other high-end large-scale transportation tools installation and use

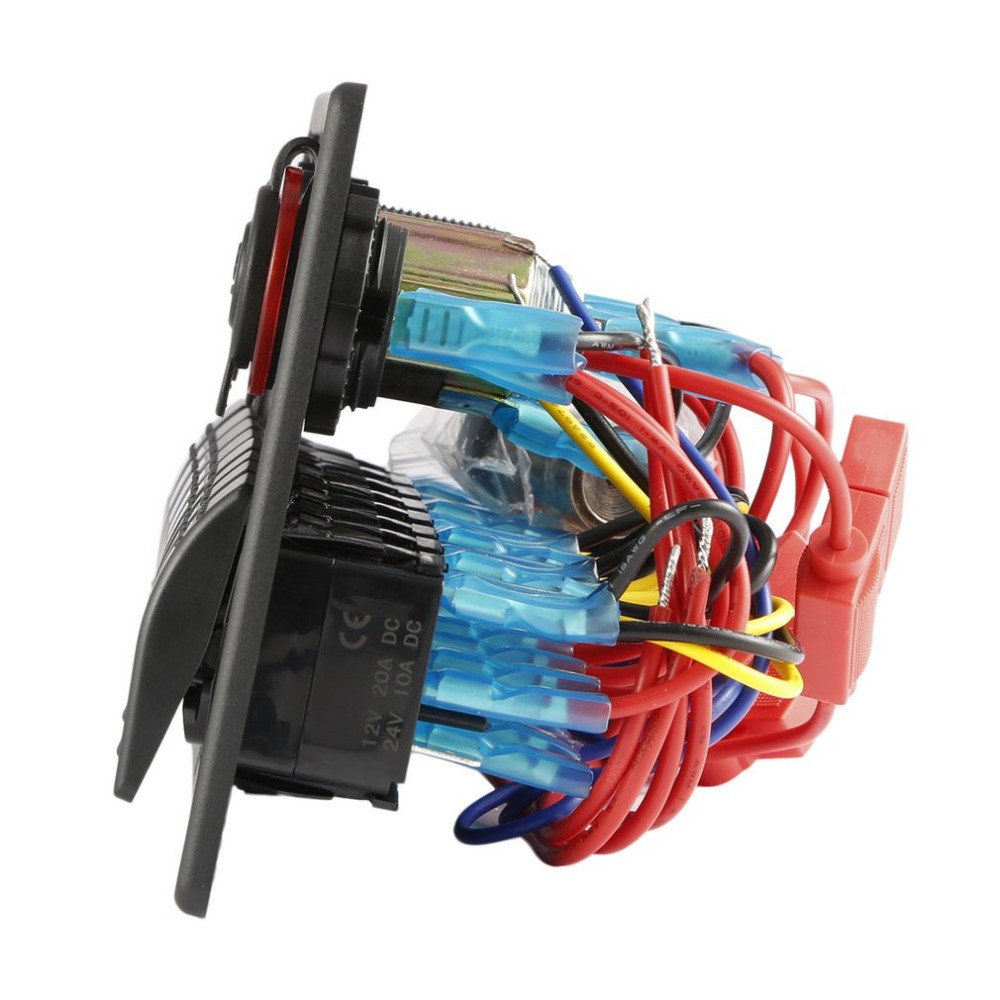

    Wiring instruction:

    Installation:pre-wired
    Can be vertical or horizontal mounted
    Red wire: connect the cathode of the storage battery.
    Black wire: connect the anode of the storage battery.
    Blue wire: connect the cathode of the storage battery.
    Yellow wire: connect the anode of the storage battery.
    Six sheet coppers: connect the load generator.

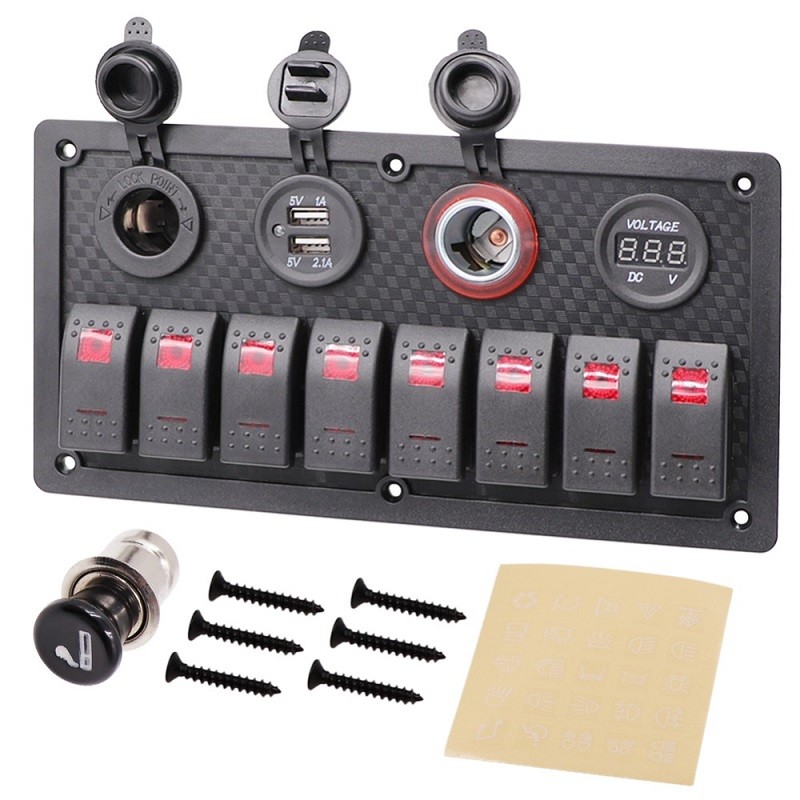

    • Packing included:
    • 1 x Switch panel
    • 1 x Pop out lighter
    • 1 x Rubber seal pad
    • 2 x Sticker label
    • 6 x Screw
