Description
Product Specifications:
Suitable for All of Marine Boats Vessels Yachts and so on.
Bezel: SUS 316 Stainless Steel

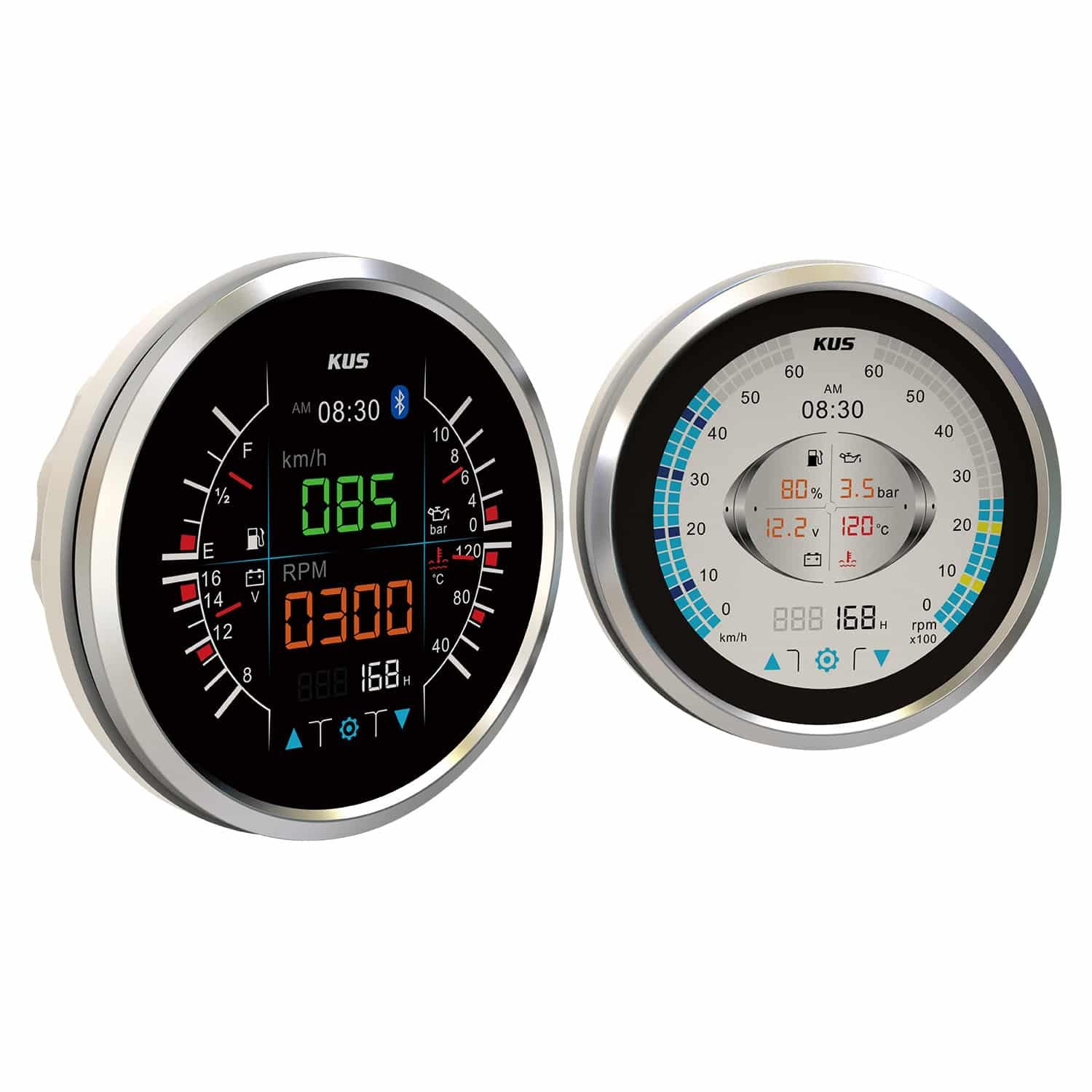

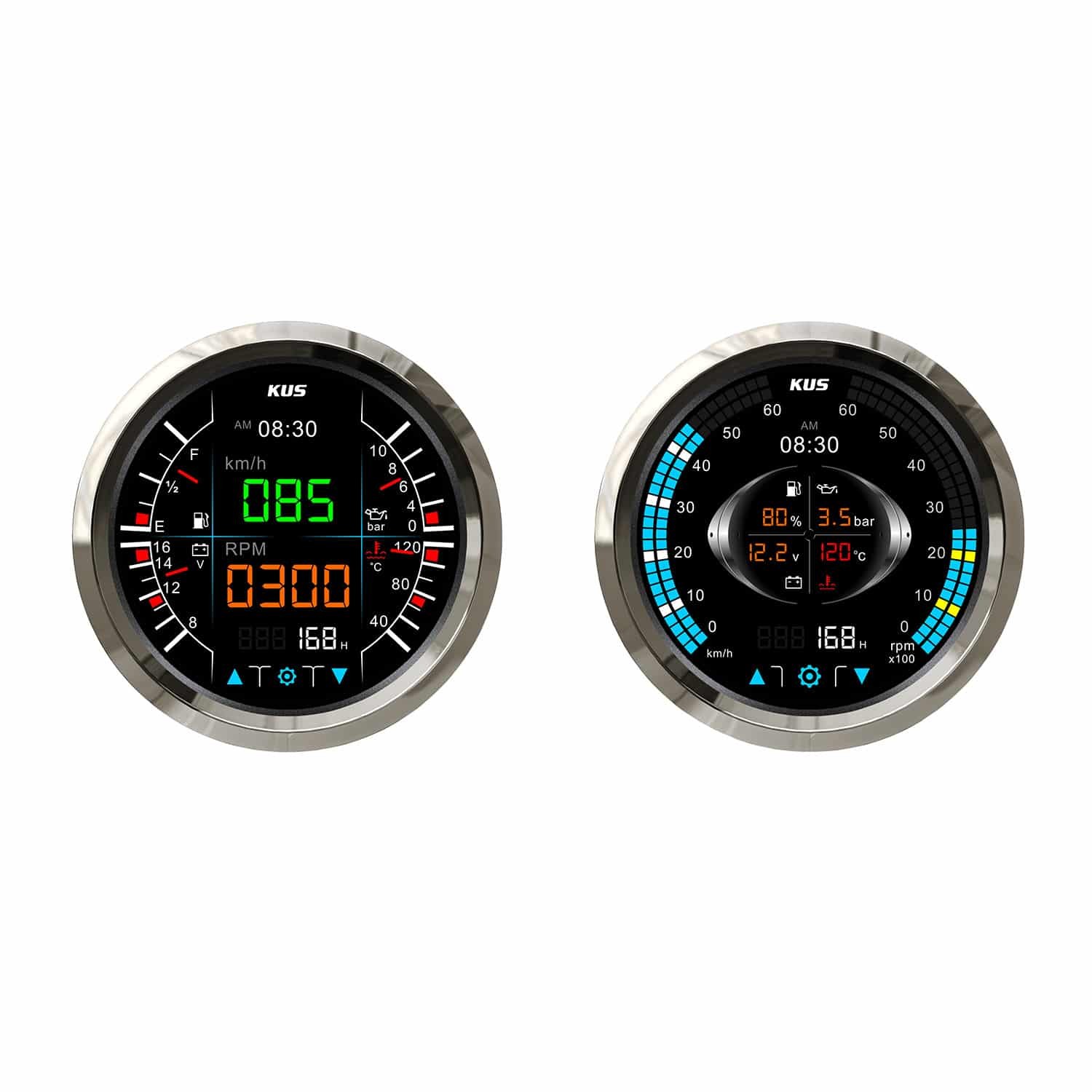

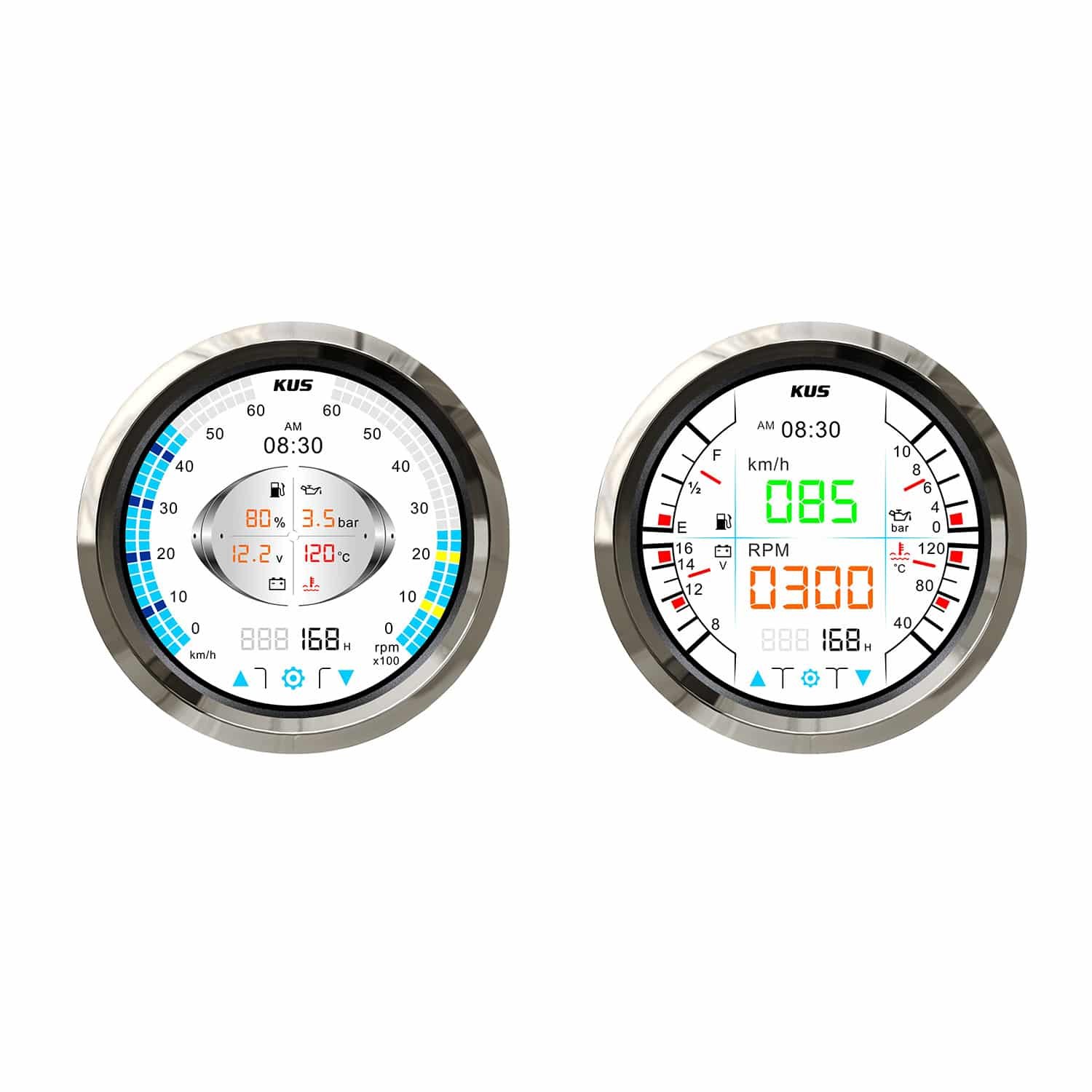

Two Display Settings Option: Model 1 & 2
Product Dimension: 4.2 Inches
Mounting Dimension: 135 mm
Protection Rating: IP67
Resolution: 720 x 720 Pixels
Input Signal: NMEA 2000, J1939 and Support 4 Analog signals input (Tacho Sensor, Fuel Level, Water Temperature and Oil Pressure Sensor)
Operating Voltage: 8-16V DC
Operating current: <330 mA (12V)
Working temperature: -30 ℃ ~ +85 ℃
Storage temperature: -30 ℃ ~ +85 ℃
Background Brightness: 10-100%
Alarm Function: Customizable (Fuel, Water Temperature & Oil Pressure)
Accessories: 1m 5 core CAN harness, 1m 6 core and 1m 8 core analog signal harness, Instructions
Product Data:
Display range: 0-999 (knots, km/h, mph available)
Tachometer:0-9999RPM,Speed Ratio:0.5-250
Hourmeter:0-999999 H
Oil Pressure:0-10Bar/0-145Psi,Signal:10-185ohm or customized
Water Temperature:40-120℃/100-250℉,Signal:301-23ohm or customized
Fuel Level:0-100%,Signal:0-190ohm/240-33ohm or customized
Voltmeter:8.0-16.0V
Plackage includes:
Multifunctional Gauge
GPS Antenna
CAN-BUS Cable
Analog signal Cable
Instructions
