Description
Function:
1.Suitable for all vehicles and off-road vehicles
2.The speedometer signal comes directly from the satellite signal receiver (GPS antenna), no other speed sensor required.The fuel level meter must receive a fuel level signal
3. The measuring device offers the advantages of high precision, quick location confirmation and short start-up time.
4.IP67 waterproof and dustproof
5.Reverse polarity protection and anti-fog performance
6.No stationery drift
7.Stepper motors are used for the full range of step meters, great function with lower power consumption, longer lifespan, higher precision etc.
Specification:
-Mounting dimension: 110mm
-Display range:

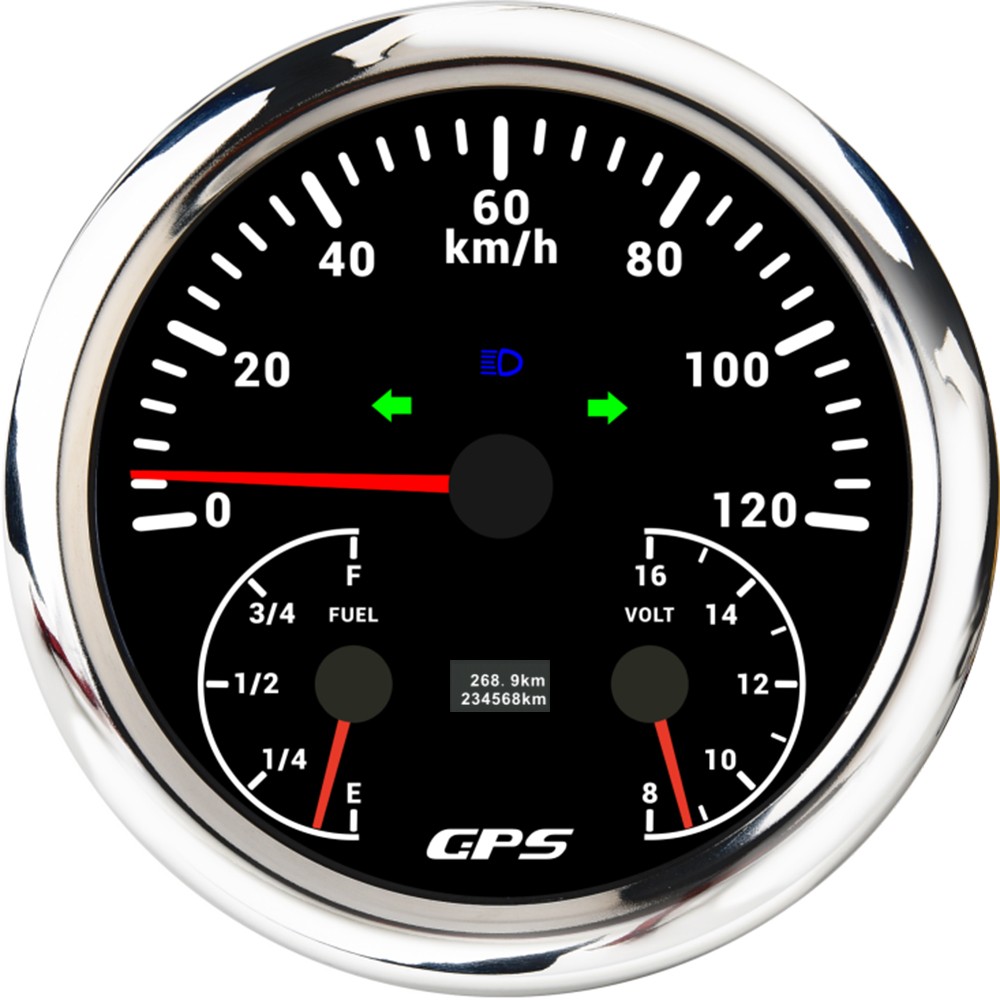

0-120km/h and E-1/4-1/2-3/4-F and 8-16V

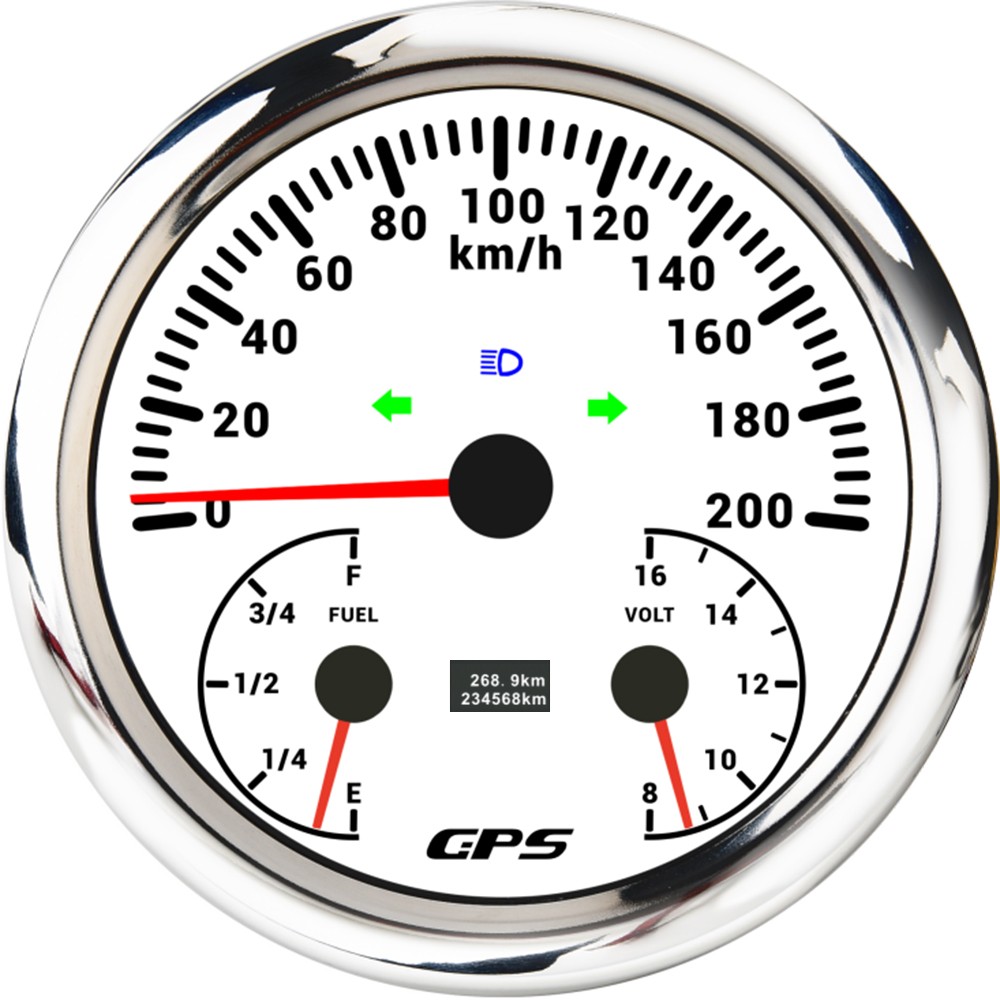

0-200km/h and E-1/4-1/2-3/4-F and 8-16V

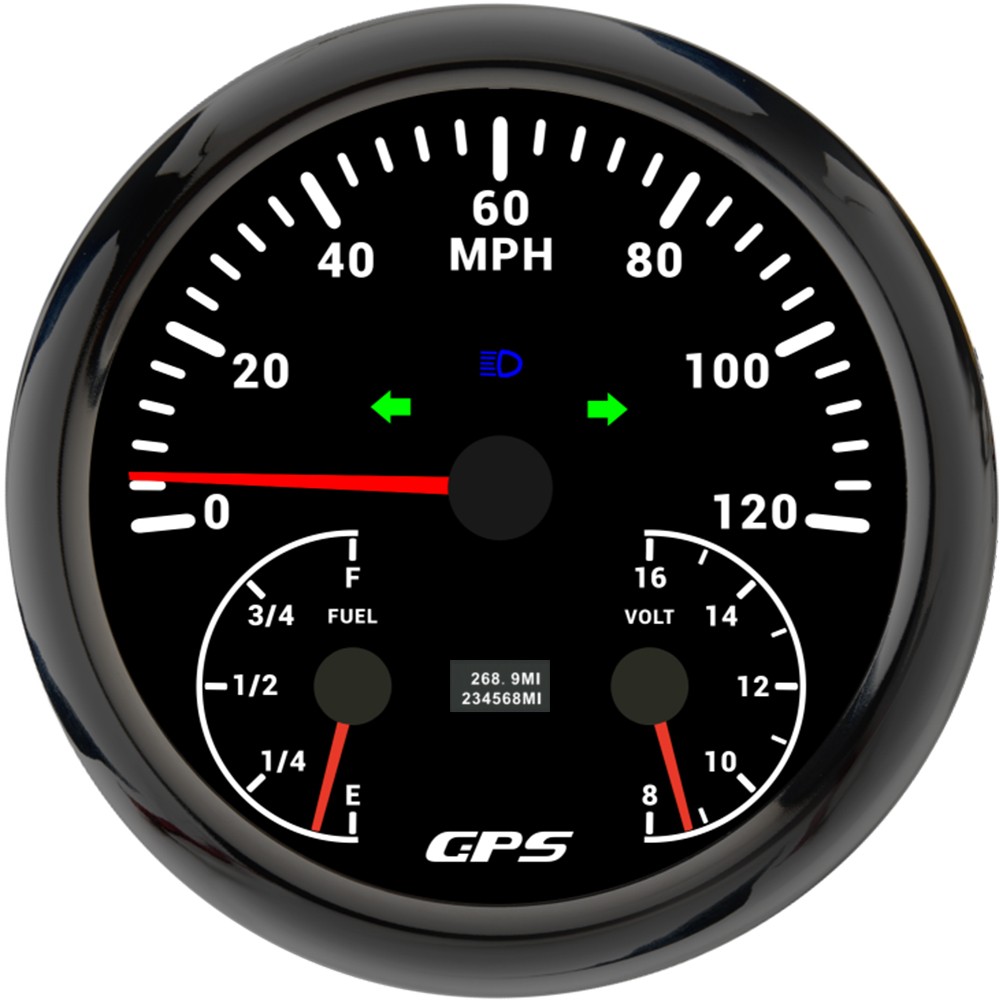

0-120mph and E-1/4-1/2-3/4-F and 8-16V
0-200mph and E-1/4-1/2-3/4-F and 8-16V
-Working voltage: 12V
- Fuel level gauge signal:10-180ohm,240-33ohm,0-190ohm,0-90ohm
-Trip odometer range: 0-999.9km
-ODO mileage range: 0-999999km
-Overspeed buzzer alarm (value adjustable)
-Indicator light: LEFT , HIGH BEAM, RIGHT

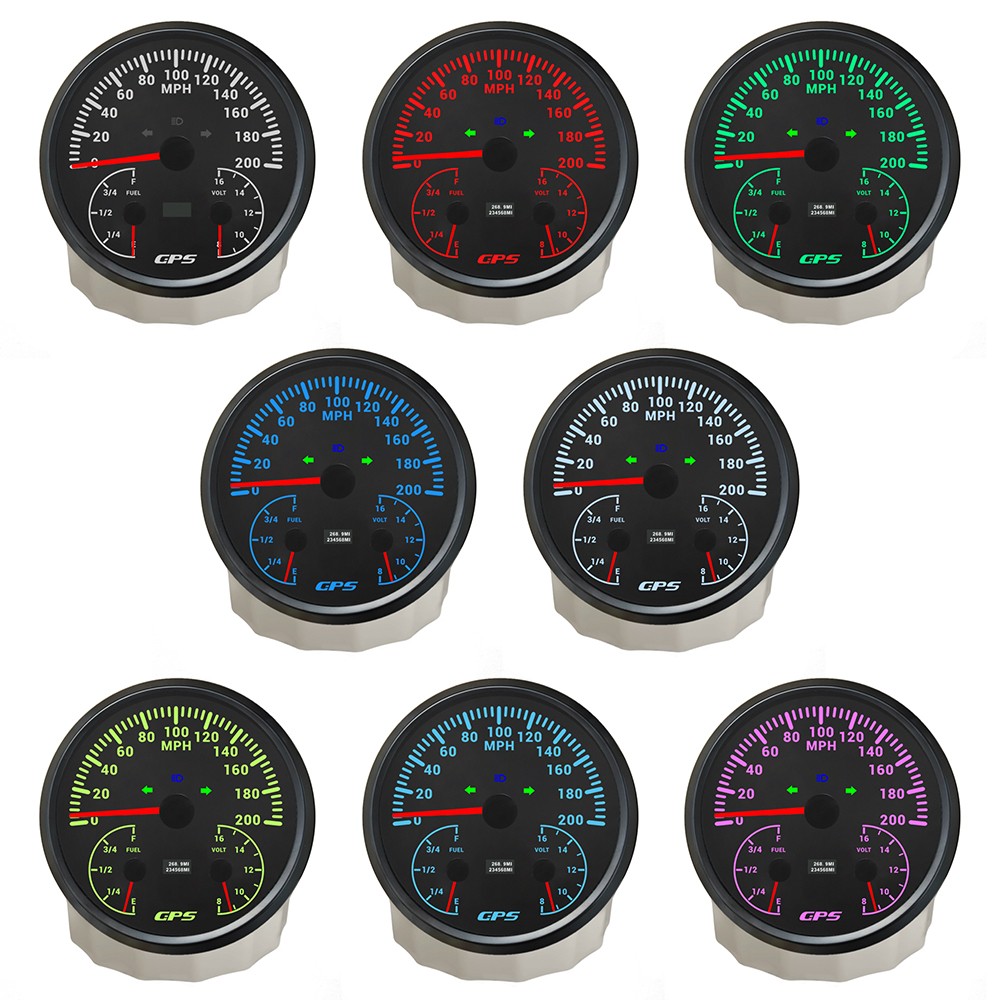

-Backlight: 7 backlights available (Red, Green, Blue, White, Yellow, Cyan, Purple)
-Working temperatures: - 40 to 85 °C
-Operating mode: LCD display, stepper motor
Package includes:
1x 3in1 Multifucntion Gauge
1x GPS antenna
2x multiple socket
