  5. ELING ECP 52mm Depth Gauge
  • ELING ECP 52mm Depth Gauge
  • ELING ECP 52mm Depth Gauge
  • ELING ECP 52mm Depth Gauge
ELING ECP 52mm Depth Gauge ELING ECP 52mm Depth Gauge ELING ECP 52mm Depth Gauge

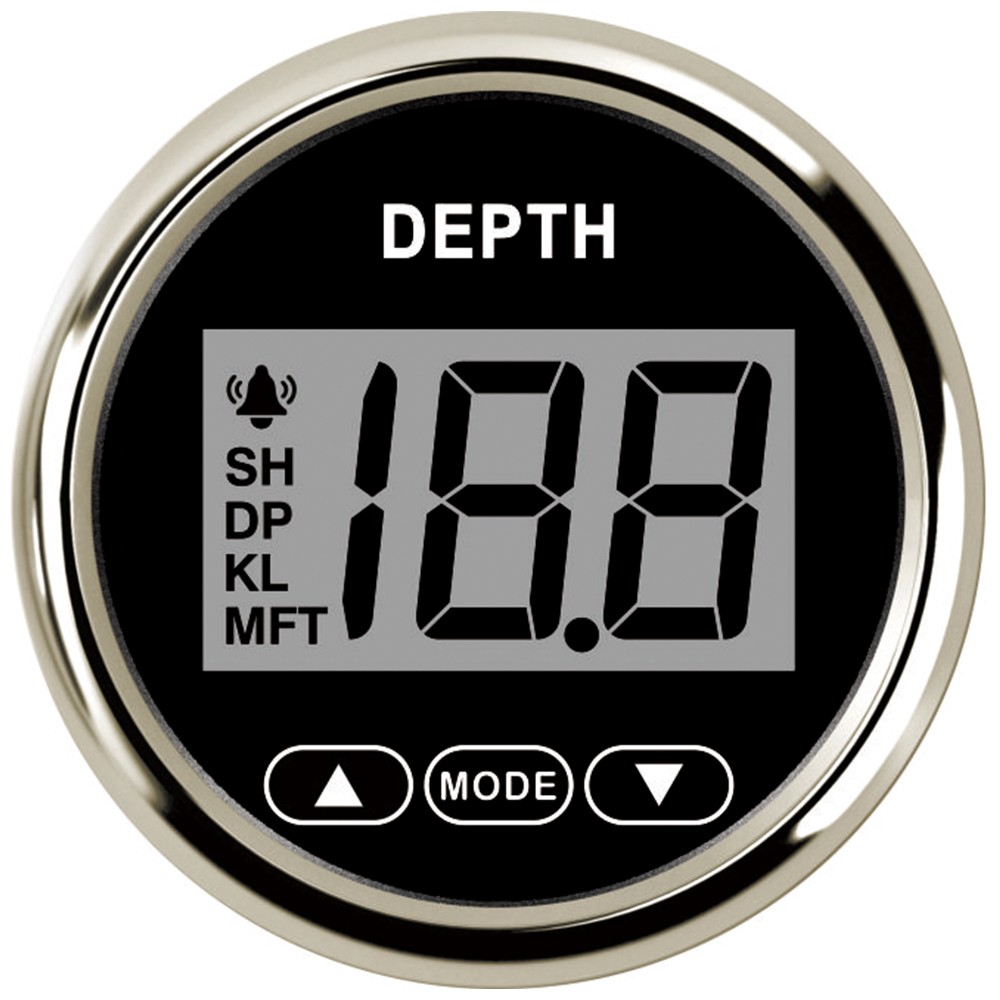

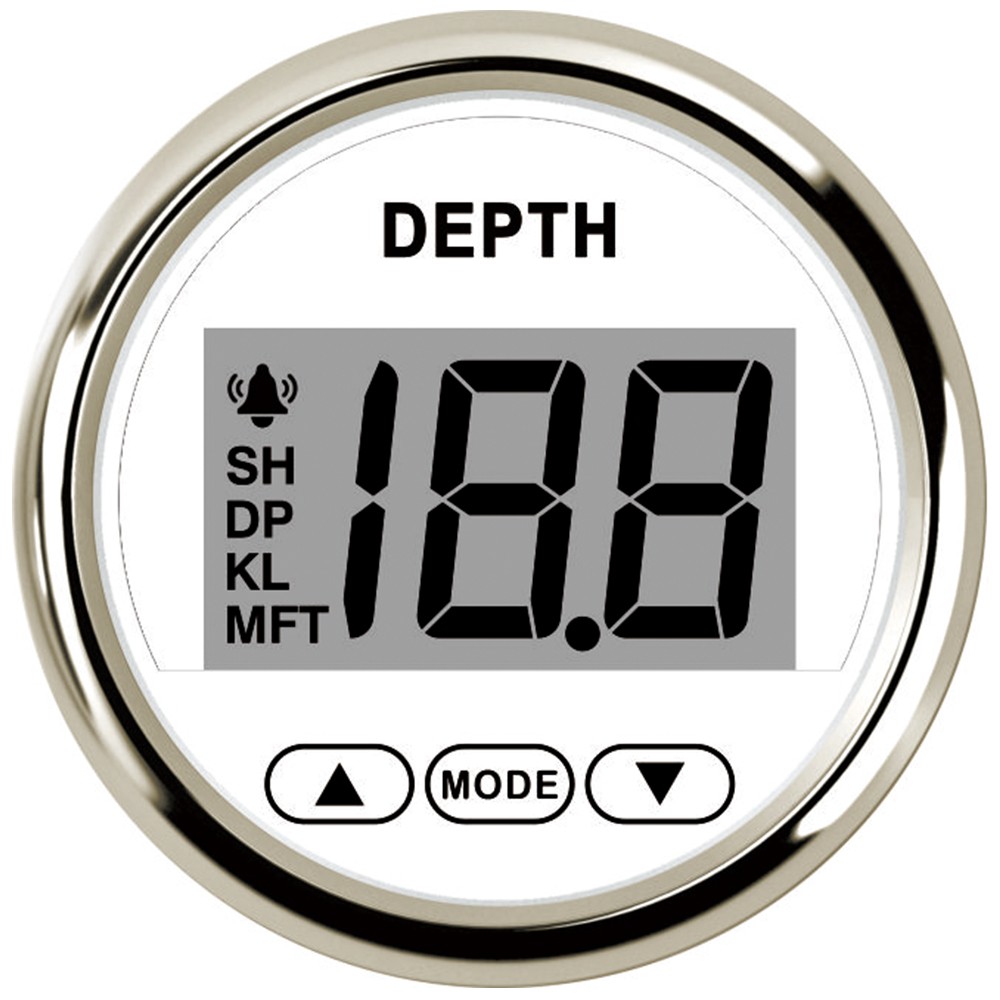

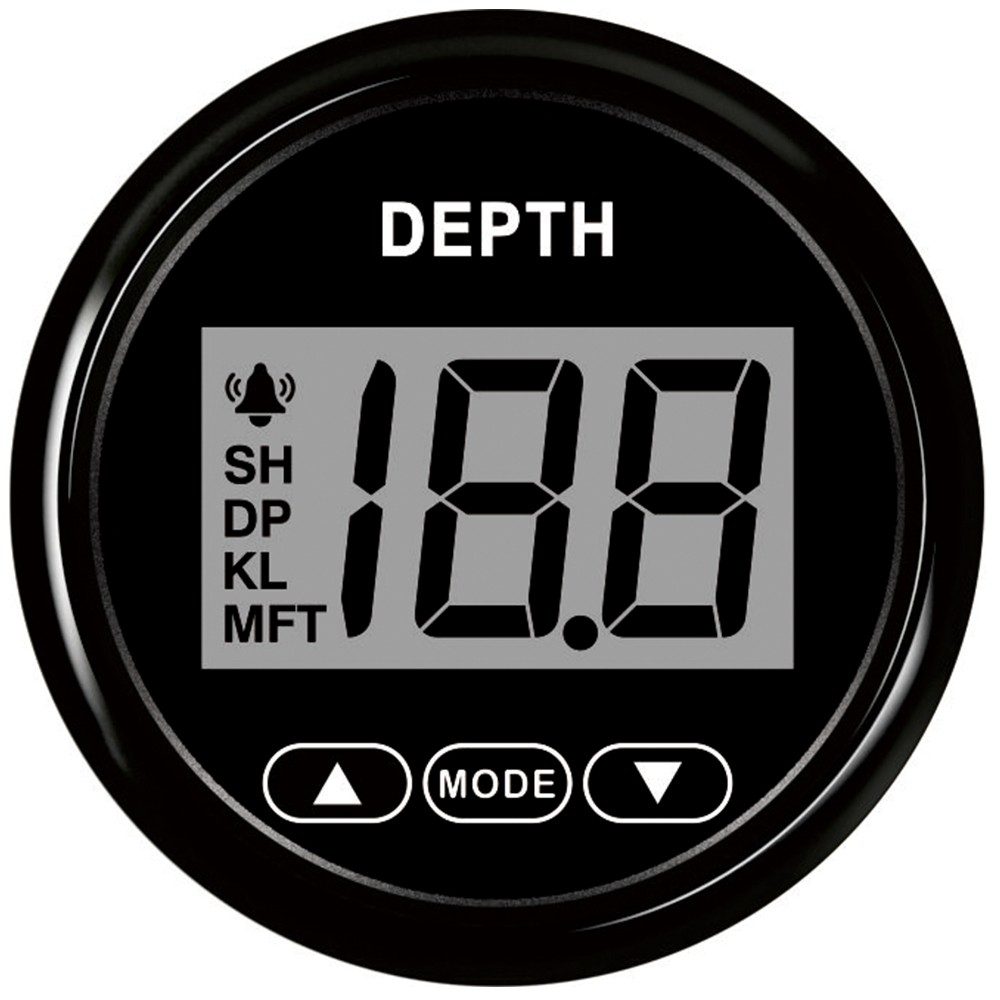

ELING ECP 52mm Depth Gauge

  • Product Item:ECP 52mm Depth Gauge
  • Installation Diameter: Approx. Φ52mm/2 inches
  • Backlight Color: White
  • Material: Stainless Steel 316L + Anti-Fog Glassccccc
  • Waterproof Design: the dial is IP67, and the back cover is IP65
  • 52mm Depth Gauge  , Depth Gauge  , Depth Gauge Meter  , 2'' Depth Gauge
    Inquiry Send Email PDF

    Description

    Wide Application: 52mm/2 Inch Marine Depth Gauge Suitable for yachts, small and medium sized boats, fishing boats and other marine vehicles.


    Material: Stainless Steel 316L + Anti-Fog Glass


    Maximum Depth Indicator: about 100m/110yd


    Waterproof Design: the dial is IP67, and the back cover is IP65


    Installation: easy to install, good durability and anti-vibration, equipped with alarm performance, flexible and simple operation.


    Product Features:


    Item Type: Depth Gauge


    Material: Stainless Steel 316L + Anti-Fog Glass


    Installation Diameter: Approx. Φ52mm/2 inches


    Depth Indication Range: Approx. 100m/110yd


    Backlight Color: White


    Working Voltage: 12VDC


    Working Current: ≤60mA


    Working Temperature: -30℃ to +75℃


    Storage Temperature: -40℃ to +85℃


    Protection Grade: IP67, the back cover is IP65


    Operation:


    A. This device is work with 12V system only, to indicate the depth appointed. Normally, the buzzer beeps once when it was connected correctly then turn on the power.


    B. Keypad Mode: Quick press the keypad Mode to switch SH/DP/KL/ UN. Hold on the keypad Mode to turn on/off the monitor. Shortly press the keypad “▲“▼to set the value required. Hold on the keypad “▲”“▼ to keep the digital increasing/decreasing fluently.


    Parameter:


    SH: (Low level alarm)


    Range : 0-0.6-19.9, when the level no more than value(SH) appointed, the symbol flickering and the buzzer beeps all the time.


    If SH=0--> No alarm, alarm setting range is 0.6-19.9


    DP (Depth Alarm) Range:


    1. Unit “M”: 0-99


    2. Unit “FT: 0-199


    3. Unit “F”: 0-49


    If the level exceed the a pointed value , the buzzer will beeps twice


    KL(Keel offset) Range:


    1. Unit “M”: 0-6.0


    2. Unit“FT: 0-19.9


    3. Unit“F”: 0-3.3


    If the value(KL) was appointed, the depth indicated should be deducted by this .That is to say :


    Indication =Actual depth -appointed value


    UN: Switch the unit M(meet)- FT(feet) – F(Fathom)


    Remark:


    1. The digital will be flickering where there is not signal or the signal is too weak to read .


    2. Indication range: 3 ft~199ft , if the depth > 19.9, the digital will be like “XXX”, if less the digital will be like “XX.X”


    Package List:


    1 x Depth Gauge


    1 x Multi-plug socket


    1 x Transducer (with Wire)


    1 x Installation Instruction
