  3. ELING Motorcycle Gauge MLS044
  • ELING Motorcycle Gauge MLS044
  • ELING Motorcycle Gauge MLS044
  • ELING Motorcycle Gauge MLS044
  • ELING Motorcycle Gauge MLS044
ELING Motorcycle Gauge MLS044 ELING Motorcycle Gauge MLS044 ELING Motorcycle Gauge MLS044 ELING Motorcycle Gauge MLS044

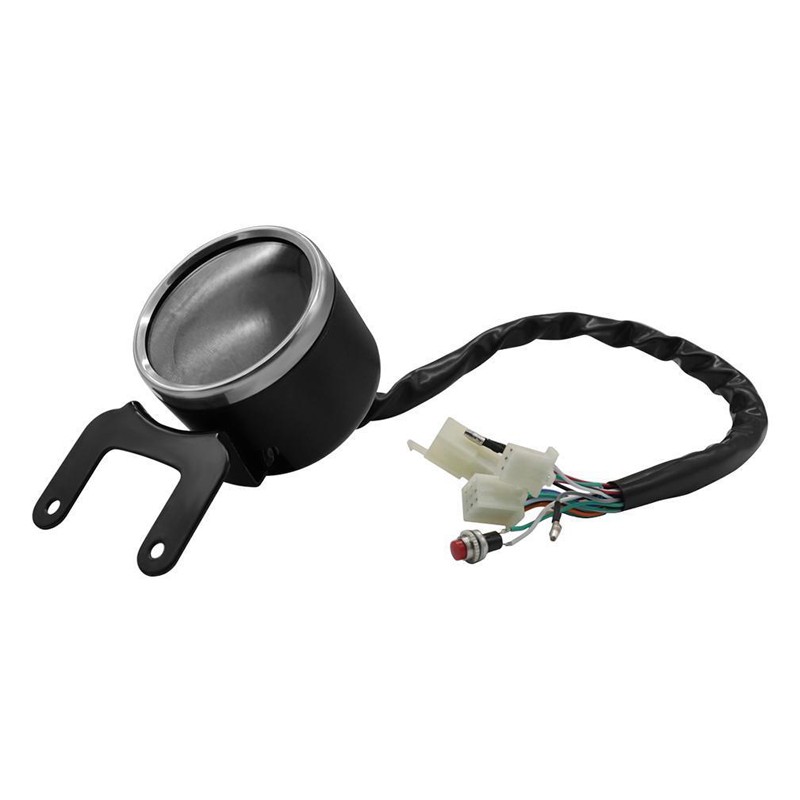

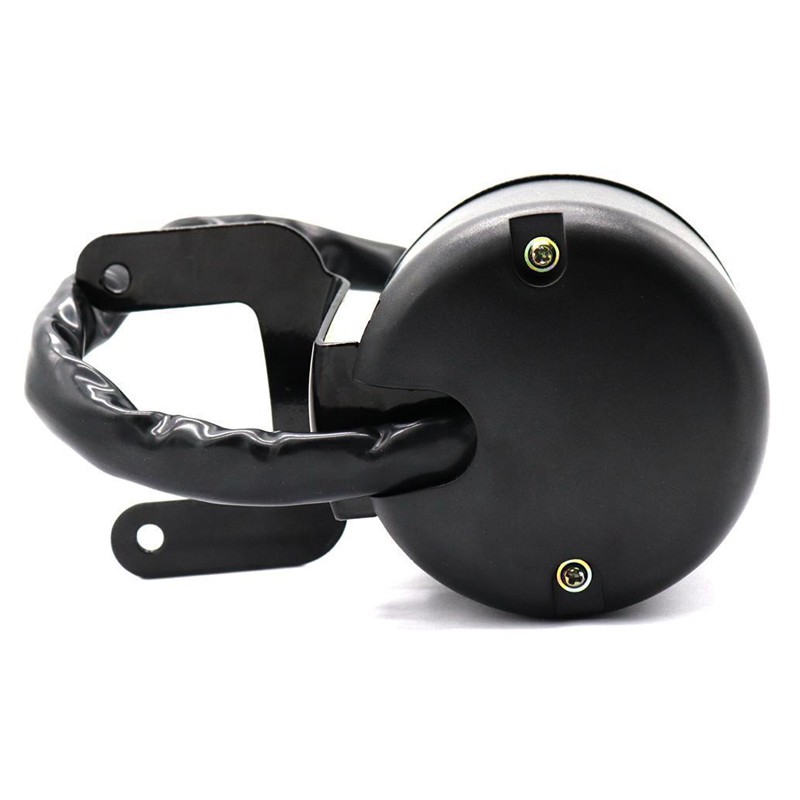

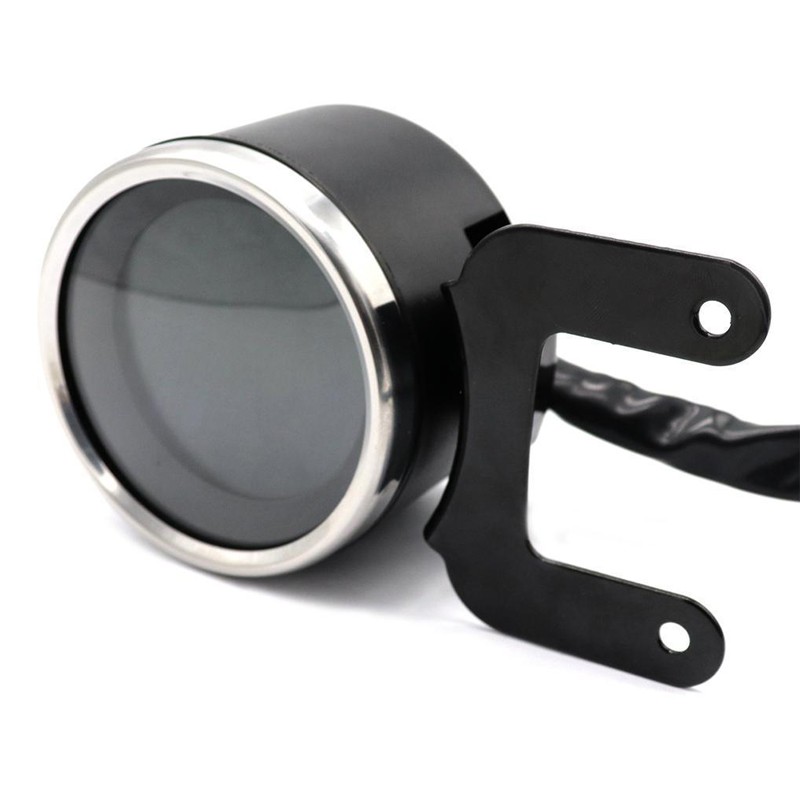

ELING Motorcycle Gauge MLS044

  • Product Item:Motorcycle Gauge MLS044
  • Speedometer: 0-299km/h; MPH
  • Tachometer: 0-12000RPM
  • Working voltage: DC 12V
  • Gear: 1-6
  • Motorcycle Gauge  , Motorcycle speedometer  , Motorcycle tachometer
    Inquiry Send Email PDF

    Description

    Features:

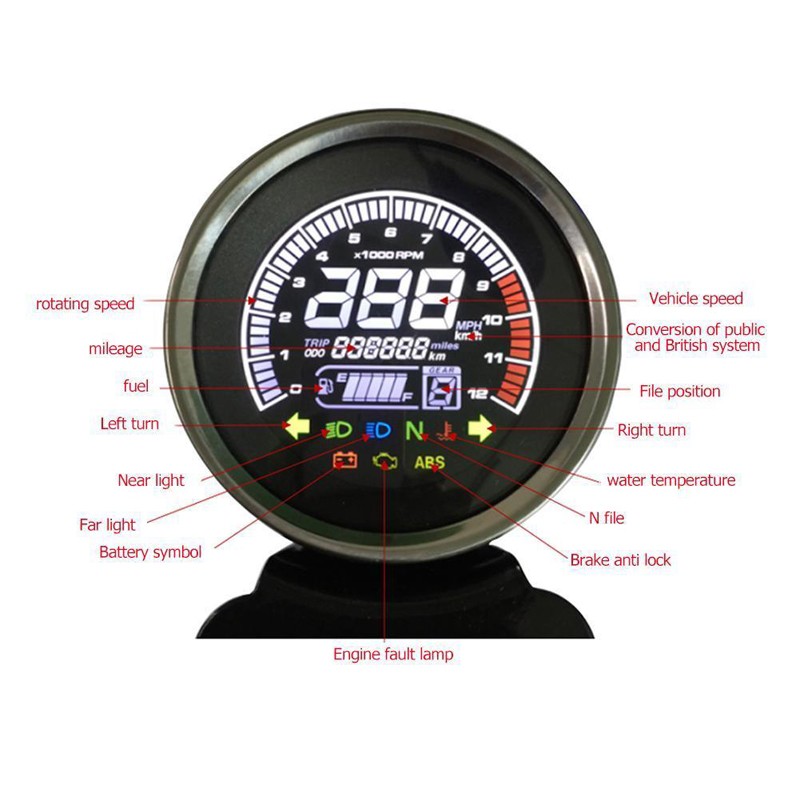

    1. Complete functions: the function includes (speedometer, tachometer, fuel gauge, water temperature gauge), the LCD screen is very clear, the viewing angle is large and soft vision, can relieve eye fatigue.


    2. Left and right turn signals: show where the vehicle's turn signals are located. Usually in the flameout state, when the owner lights the turn signal, the indicator will light up in the corresponding direction.


    3. Gear position (N, 1-6 gear position display function, and there is no need to add another gear positioner)


    4. Oil quantity indicator: shows the amount of oil stored in the vehicle. When the electric door is opened and the meter performs self-test, the fuel gauge function prompts you whether you need to refuel.


    5. High beam: display the status of the vehicle high beam, usually extinguished, when the owner turns on the high beam, the indicator light indicates that the vehicle high beam is on


    6. KM/H to MPH (metric system display switch)


    Specification:


    Surface diameter: 96mm/3.78 inches


    Thickness: 75mm/2.95 inches


    Height: 170mm/6.69 inches


    Product color: black + silver


    LED backlight: white light


    Input voltage: DC 12V


    Working voltage: 12V


    Speedometer: Tire model 120/80/17, 34Hz means 60KM/H. Speed up 5%, 34Hz means 63KM/H


    Fuel gauge: LCD display F point 8Ω-E point 98Ω


    Water temperature below 165Ω, long indicator display


    Main switch off, standby power consumption is less than 4Ma


    Package includes:


    1 x Motorcycle Gauge


    1 x Installation Instruction


    1 x Sensor(optional)
