Mechanical Pressure Sensor Mechanical Pressure Sensor Mechanical Pressure Sensor Mechanical Pressure Sensor

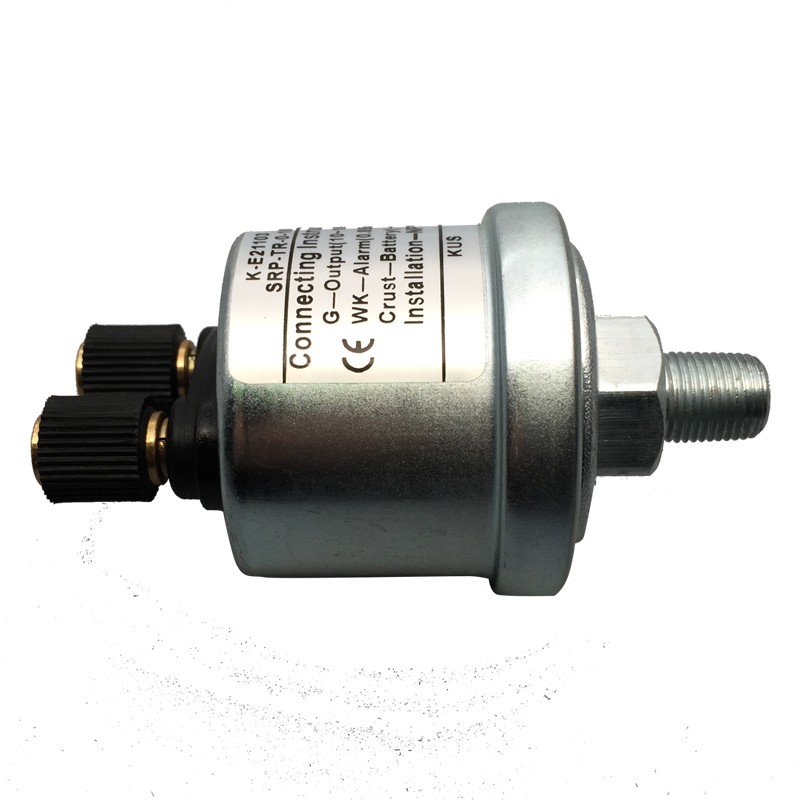

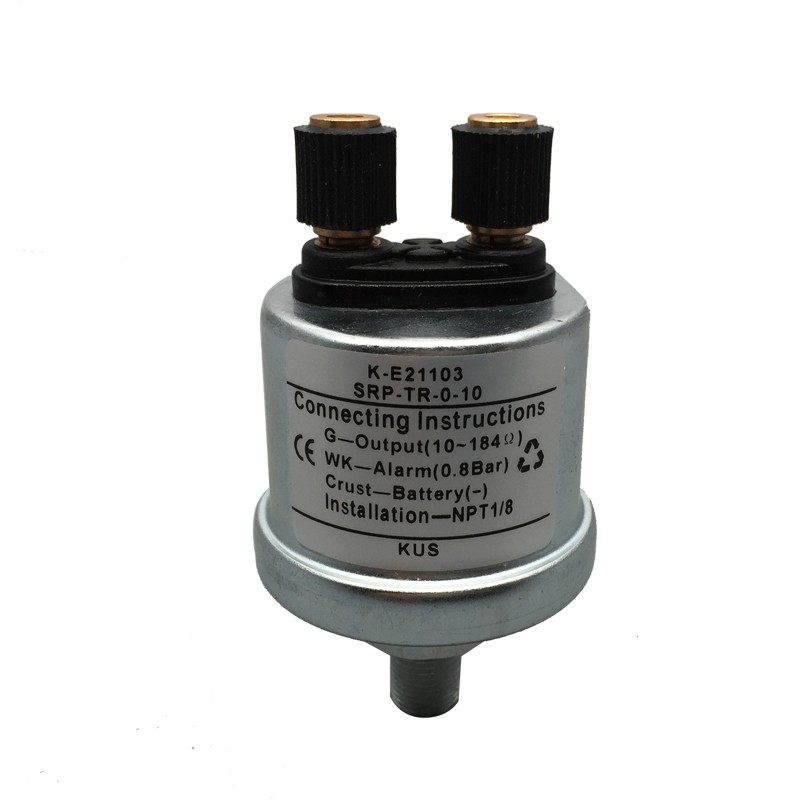

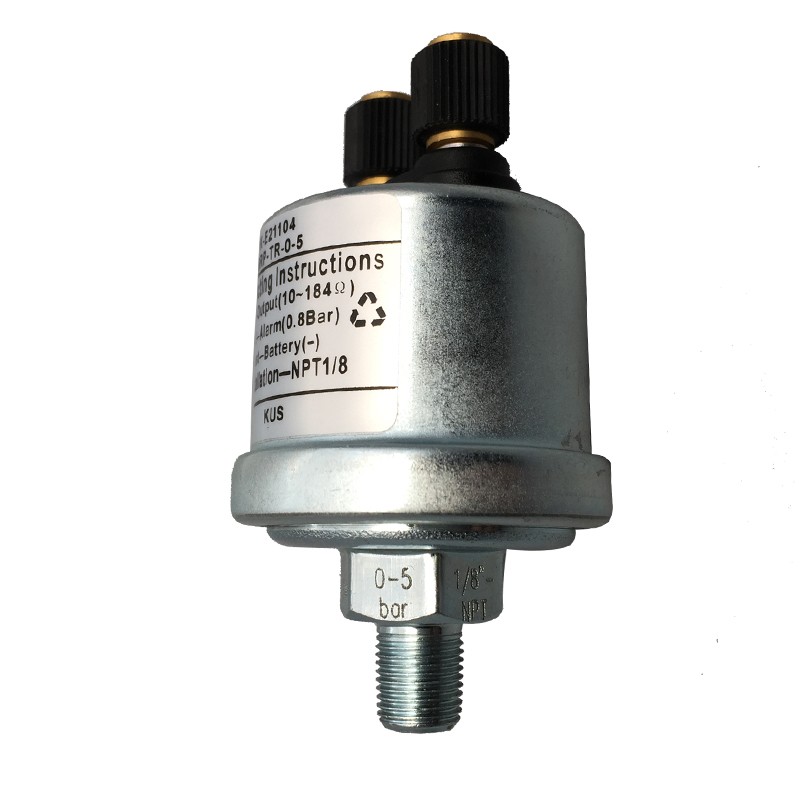

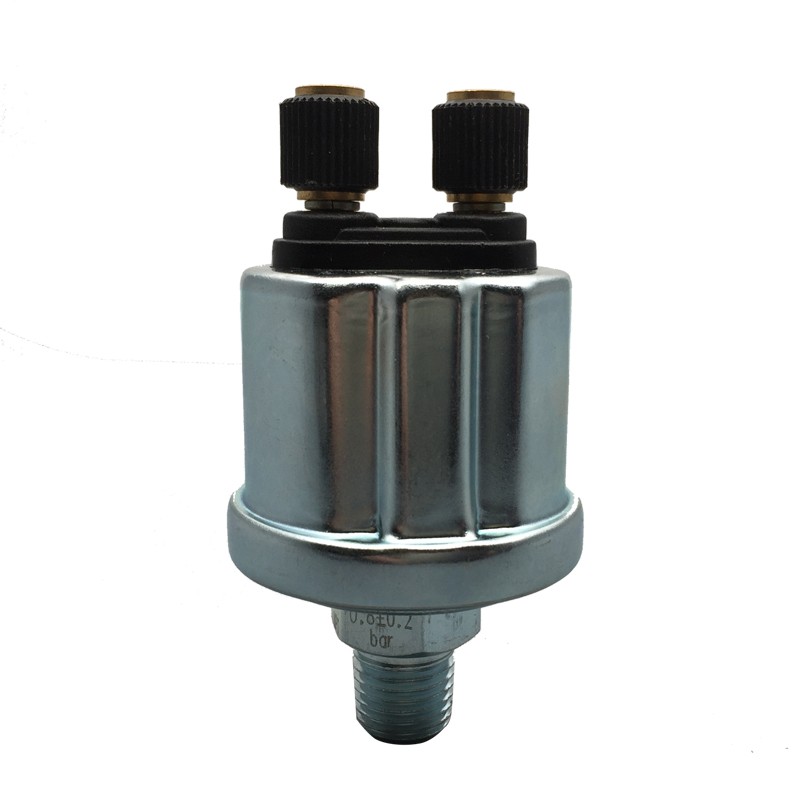

Mechanical Pressure Sensor

  • Product Item:Mechanical Pressure Sensor
  • Mechanical Pressure Sensor
  • Pressure Sensor
  • 0-5Bar, 0-10Bar
  • M10*1 NPT1/4 NPT1/8
  • 0-5Bar  , 0-10Bar  , Mechanical Pressure Sensor  , Pressure Sensor
    Inquiry Send Email PDF

    Description

    Widely applied to many fields, such as the engine pipe of vehicle and ship, etc.

    Combines the advantages of excellent antivibration performance, long service life, simple assembly, stable quality, wide range of operating temperature, etc.

    Operating voltage: 8~32V

    Conducting power: <5W

    Operating temperature:-25 ~120℃(120℃ MAX 1H)

    Measuring range:0~5Bar or 0~10Bar

    Alarm:0.8Bar or 1.4Bar

    Output signal:10~184Ω

    Thread fitting:NPT1/4、NPT1/8、M10、M10X1 or customized as requires

    Protection rank:IP67
