Description
Product Features:
-Be suitable for all kinds of Holding Tank Level sensors with same signal, and display Holding Tank Level of the Holding Tank
-Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.
-IP67 waterproof and dustproof grade
-Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.
-With curved glass (with anti-fogging function)
-With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).
Technical Data:
-Fixing dimension: 52mm(2")
-Indicating Range: E-1/4-1/2-3/4-F
-Signal: 0-190ohm 240-33ohm Signal adjustable
-Working Voltage: 9-32V(12V/24V)

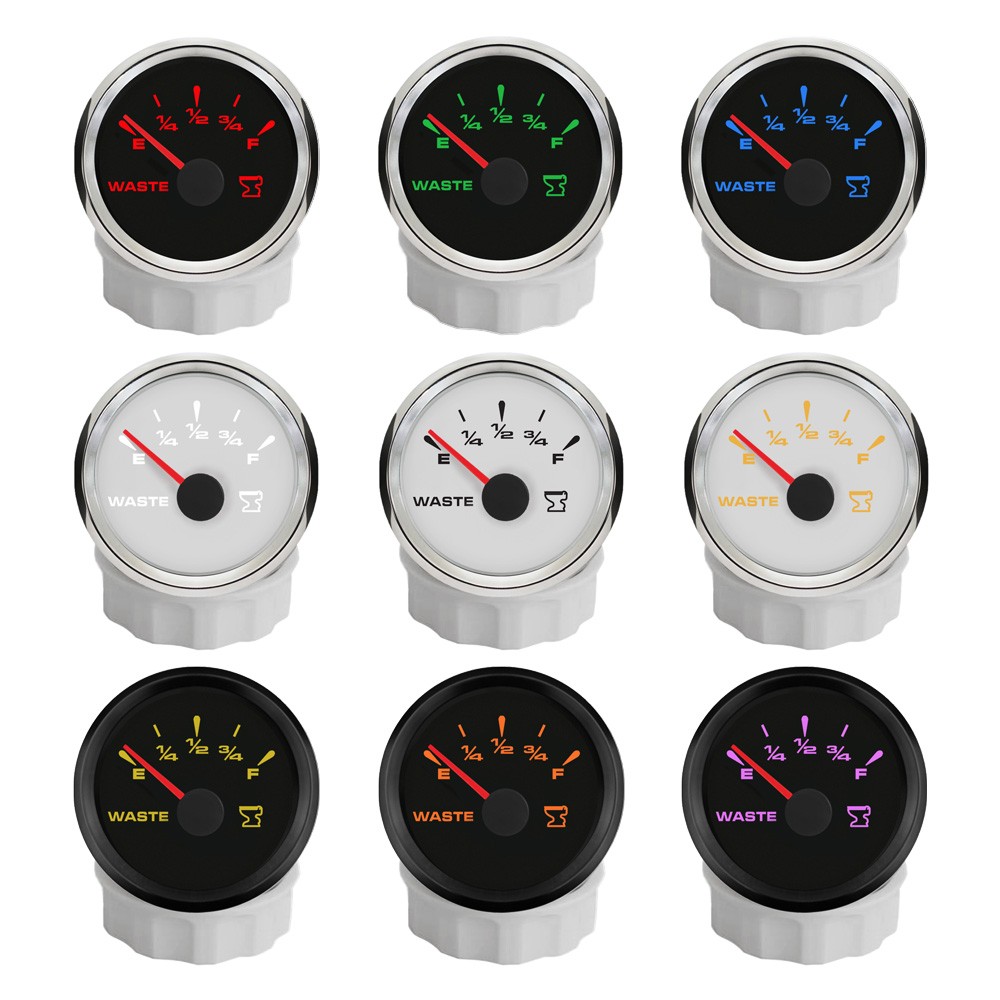

-Backlight: 8 Color ,Red Green Blue White Yellow Kelly Orange Purple or automatic
-Operation mode: LCD display, stepper motor
Package Includes:
1x Holding Tank Level Gauge
1x Cable
