  5. ELING ECPC 52mm Holding Tank Level Gauge
  • ELING ECPC 52mm Holding Tank Level Gauge with Alarm
  • ELING ECPC 52mm Holding Tank Level Gauge with Alarm
  • ELING ECPC 52mm Holding Tank Level Gauge with Alarm
ELING ECPC 52mm Holding Tank Level Gauge with Alarm ELING ECPC 52mm Holding Tank Level Gauge with Alarm ELING ECPC 52mm Holding Tank Level Gauge with Alarm

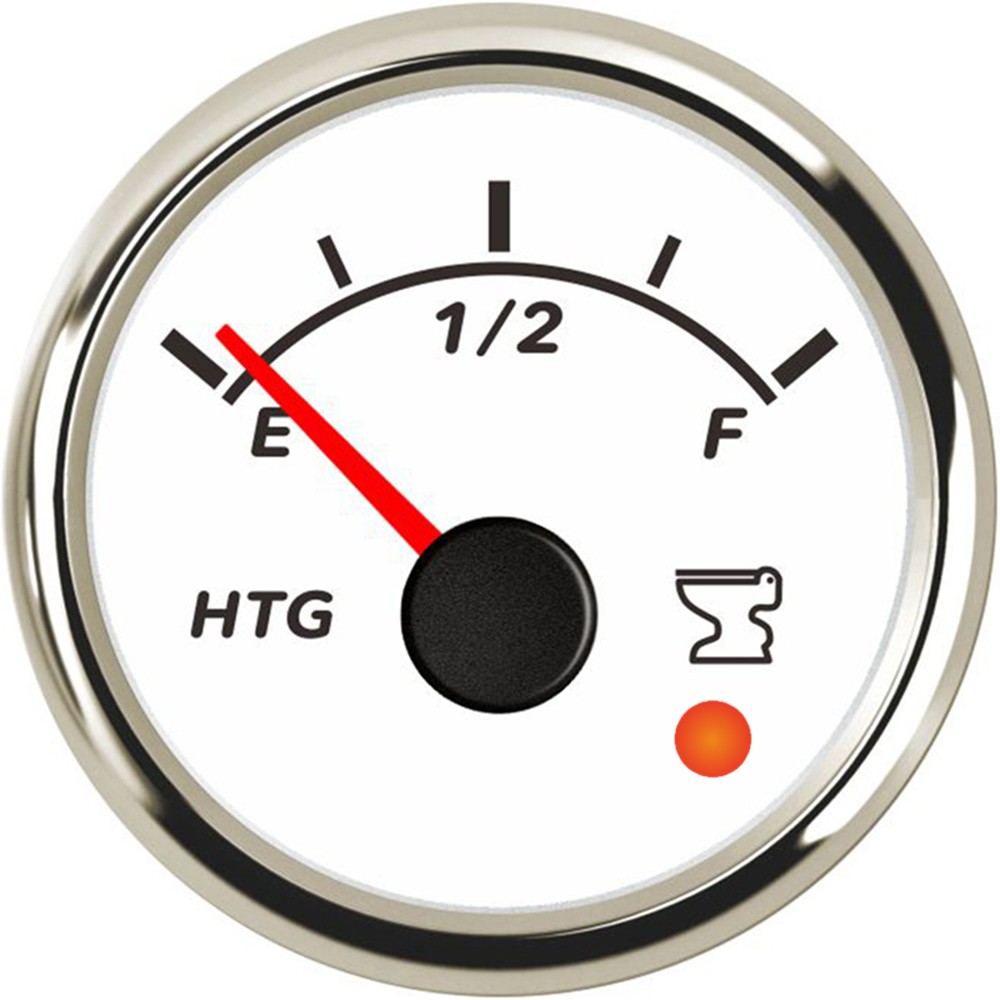

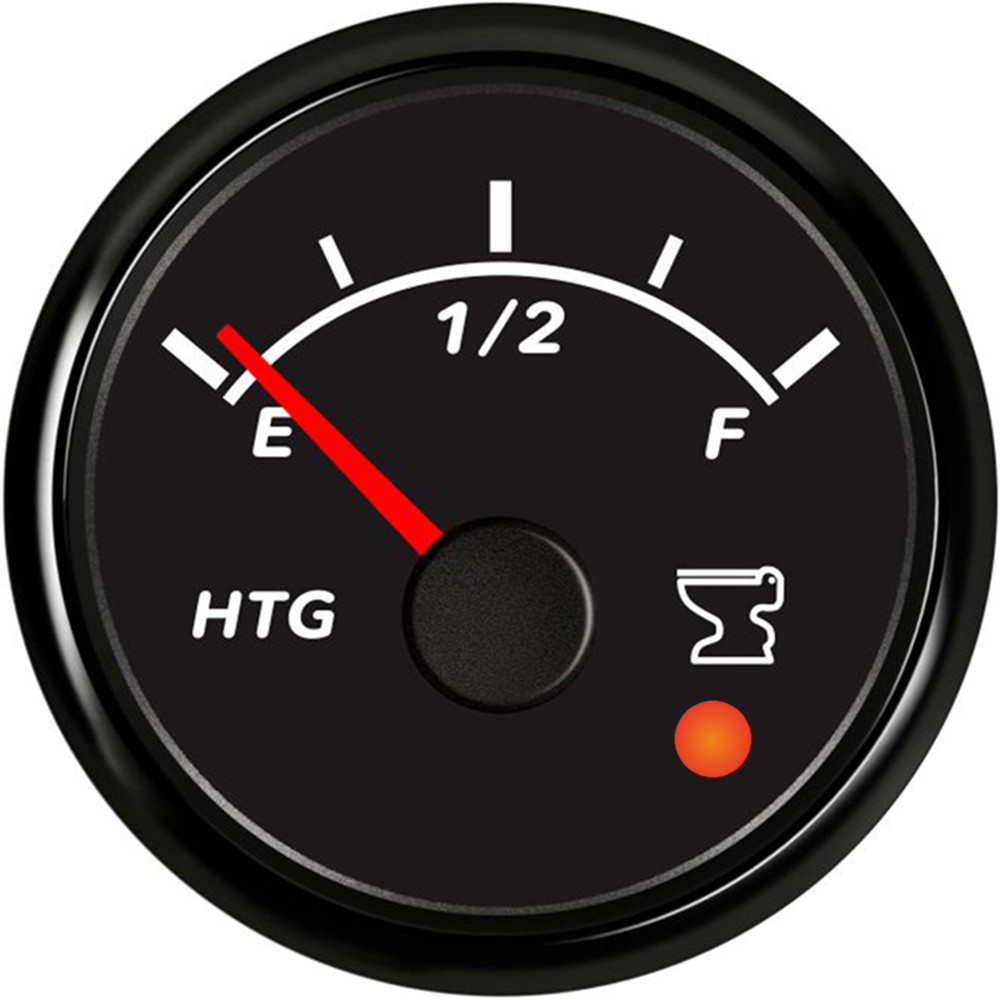

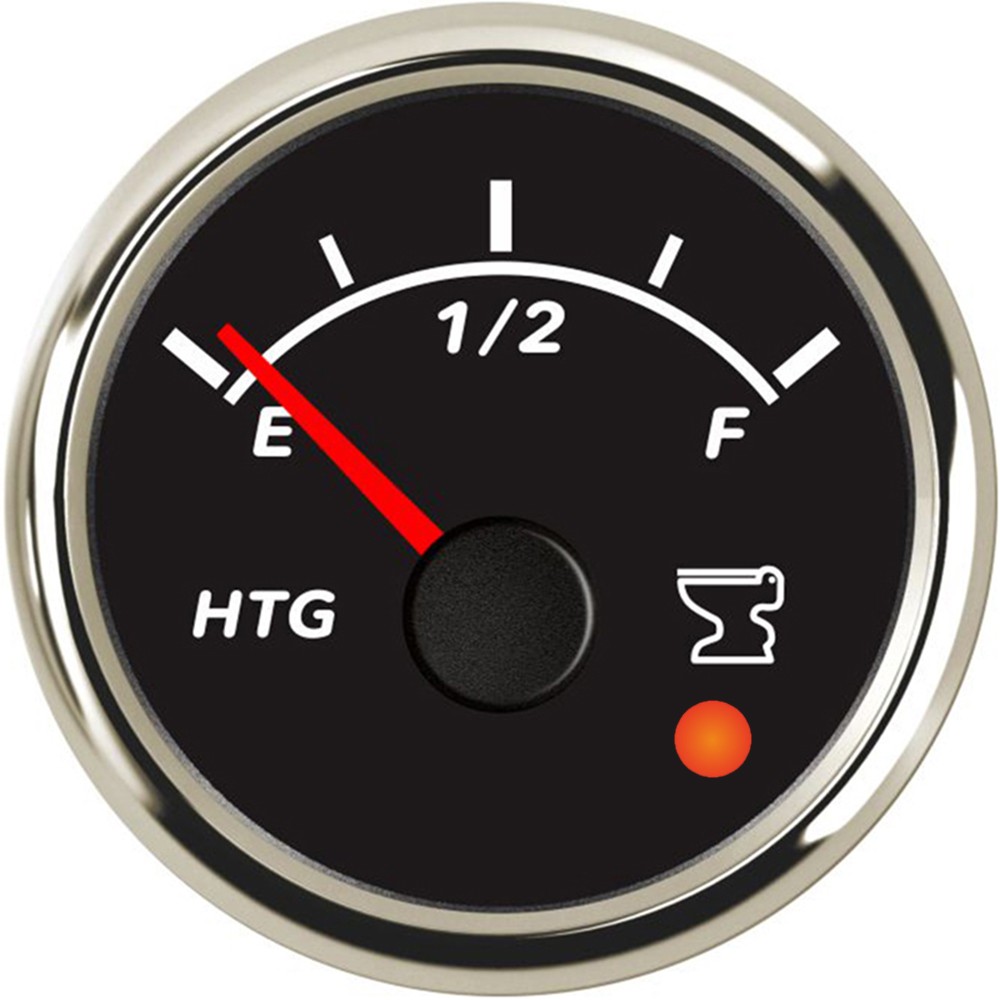

ELING ECPC 52mm Holding Tank Level Gauge with Alarm

  • Product Item:ECPC 52mm Holding Tank Level Gauge with Alarm
  • Fixing dimension: 52mm(2")
  • Indicating Range: E-1/2-F
  • Signal: 0-190ohm,0-180ohm,10-180ohm,240-33ohm,240-30ohm
  • Default for gauges with alarm light:Holding Tank Level ≥ 7/8 alarm
  • Holding Tank Level Gauge  , Sewage Meter
    Inquiry Send Email PDF

    Description

    Product Feature:


    -Be suitable for all kinds of holding tank level sensors with same signal, and display level of the holding tank


    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With curved glass (with anti-fogging function)


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Product Data:


    -Fixing dimension: 52mm(2")


    -Indicating Range: E-1/2-F


    -Signal: 0-190ohm,0-180ohm,10-180ohm,240-33ohm,240-30ohm


    -Default for gauges with alarm light:Holding Tank Level ≥ 7/8 alarm


    -Working Voltage: 9-32V(12V/24V)


    -Backlight: 8 Colors Backlight,red (default) → green → blue → white → yellow → yellow green → orange → Purple .


    -Operation mode: LCD display, stepper motor


    Package include:


    1x Holding Tank Level Gauge


    1x Multi-plug socket


    1x Installation Instruction
