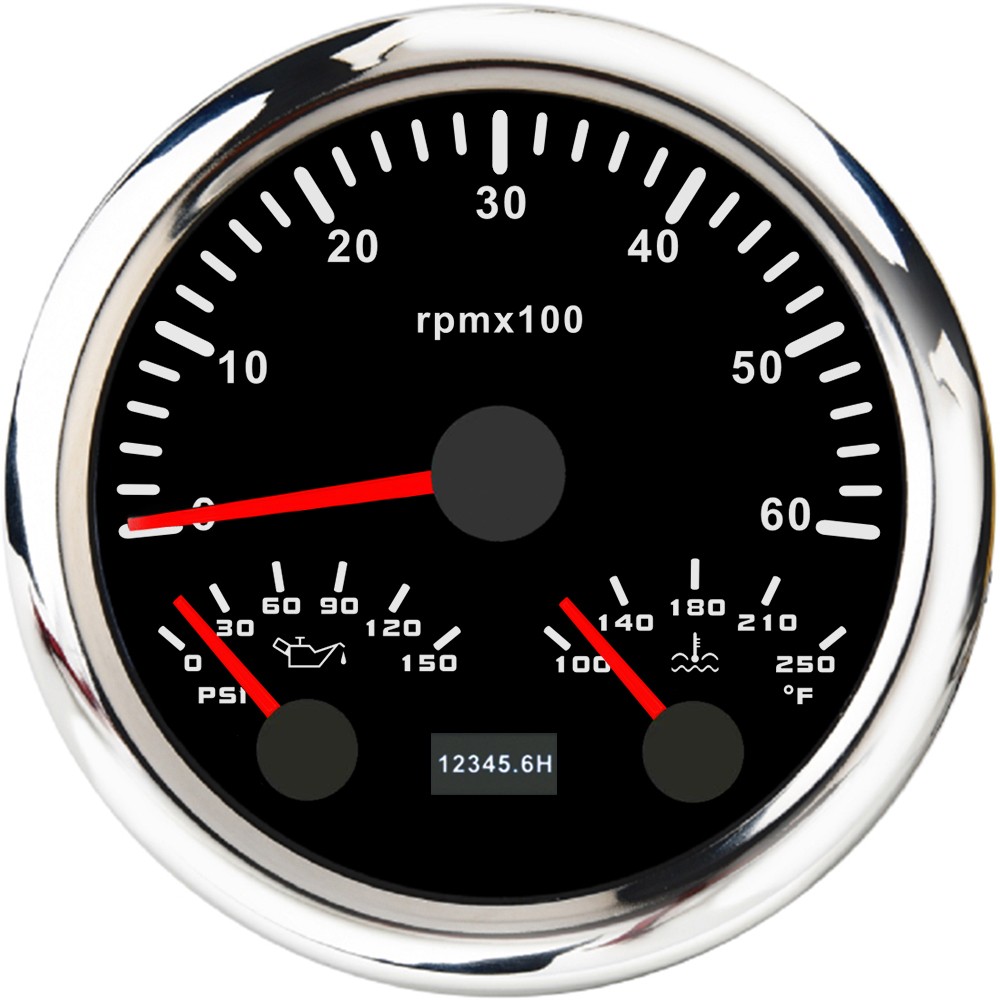

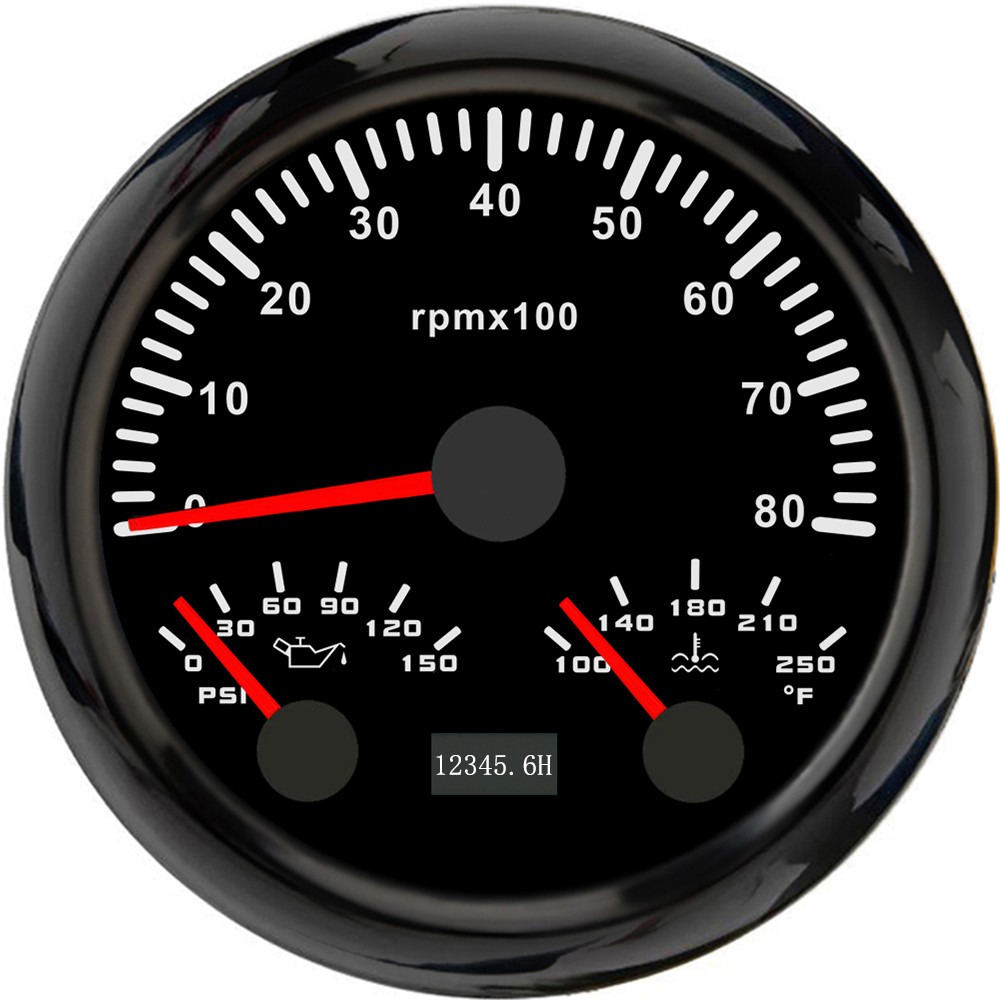

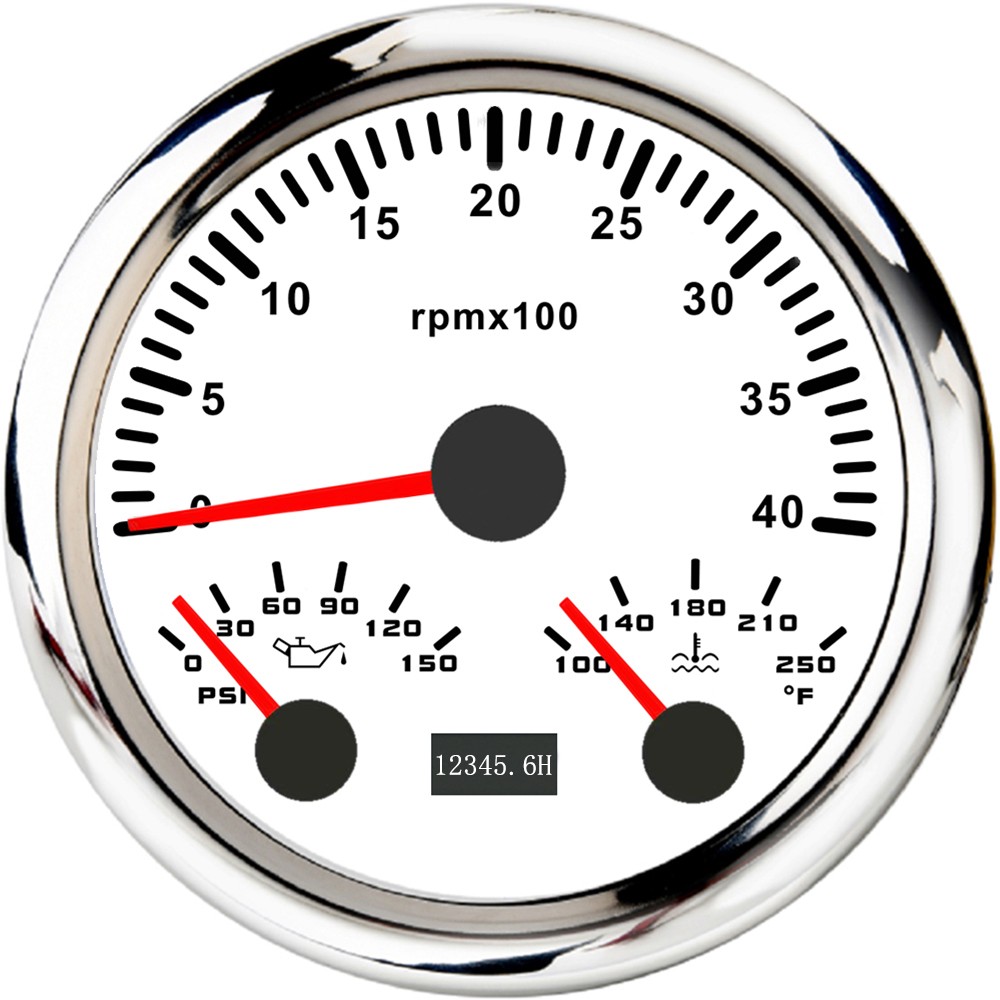

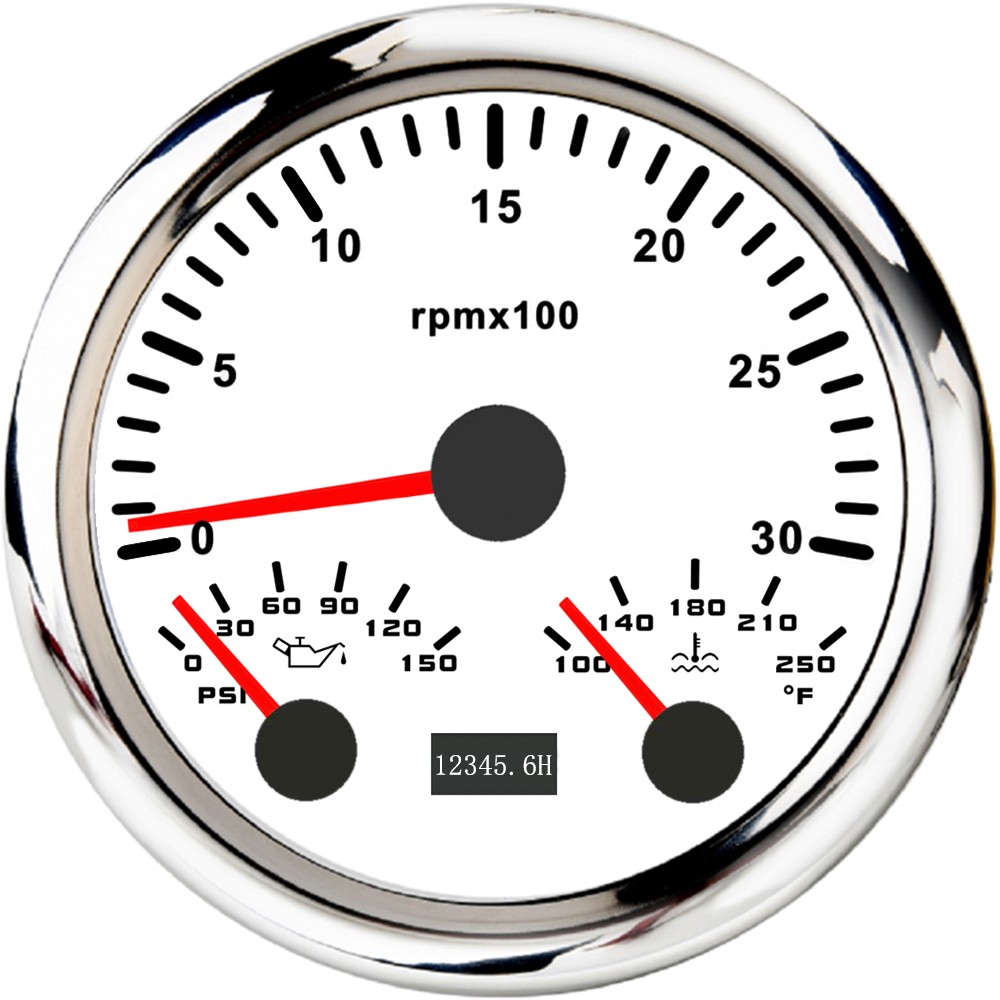

  • ELING 85mm CX ROTP 3 in 1 Multifunction Gauge
  • ELING 85mm CX ROTP 3 in 1 Multifunction Gauge
  • ELING 85mm CX ROTP 3 in 1 Multifunction Gauge
ELING 85mm CX ROTP 3 in 1 Multifunction Gauge ELING 85mm CX ROTP 3 in 1 Multifunction Gauge ELING 85mm CX ROTP 3 in 1 Multifunction Gauge

ELING 85mm CX ROTP 3 in 1 Multifunction Gauge

  • Product Item:85mm CX ROTP 3 in 1 Multifunction Gauge
  • Mounting dimension: 85 mm (3-3/8")
  • Display: rpm and 0-150 PSI and 100-250 ℉
  • Hour counter: 0.0-99999 .9H
  • Working voltage: 9-32VDC
  • 3 in 1 Multifunction Gauge  , 85mm Tachometer  , Oil Pressure  , Water Temperature
    Inquiry Send Email PDF

    Description

    Function:


    1.Suitable for all vehicles and off-road vehicles


    2.The measuring device is characterized by high precision and short start-up time.


    3.IP67 waterproof and dustproof


    4.Reverse polarity protection and anti-fog performance


    5.Stepper motors are used for the full range of pedometers, excellent function with lower power consumption, longer life, higher precision, etc.


    Specification:


    -Mounting dimension: 85 mm (3-3/8")


    -Display range: 0-3000 rpm and 0-150 PSI and 100-250 ℉


                               0-4000 rpm and 0-150 PSI and 100-250 ℉


                               0-6000 rpm and 0-150 PSI and 100-250 ℉


                               0-8000 rpm and 0-150 PSI and 100-250 ℉


    -Hour counter: 0.0-99999 .9H


    -Working voltage: 9-32VDC


    -Speed ratio: 1.0-360 adjustable


    -Backlight: 7 backlights available (Red, Green, Blue, White, Yellow, Cyan, Purple)


    -Working temperatures: - 30 to 80 °C


    -Operating mode: LCD display, stepper motor


    The package includes:


    1x 3-in-1 multifunctional Gauge


    2x multiple socket


    1x installation instructions
