  • ELING ECP GPS Speedometer 80MPH
  • ELING ECP GPS Speedometer 80MPH
  • ELING ECP GPS Speedometer 80MPH
ELING ECP GPS Speedometer 80MPH ELING ECP GPS Speedometer 80MPH ELING ECP GPS Speedometer 80MPH

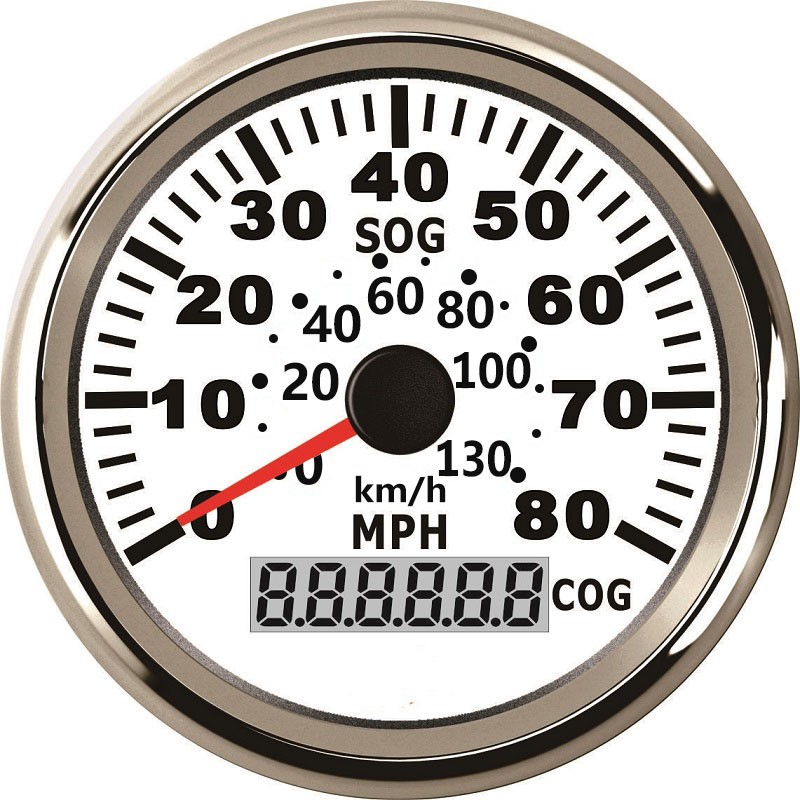

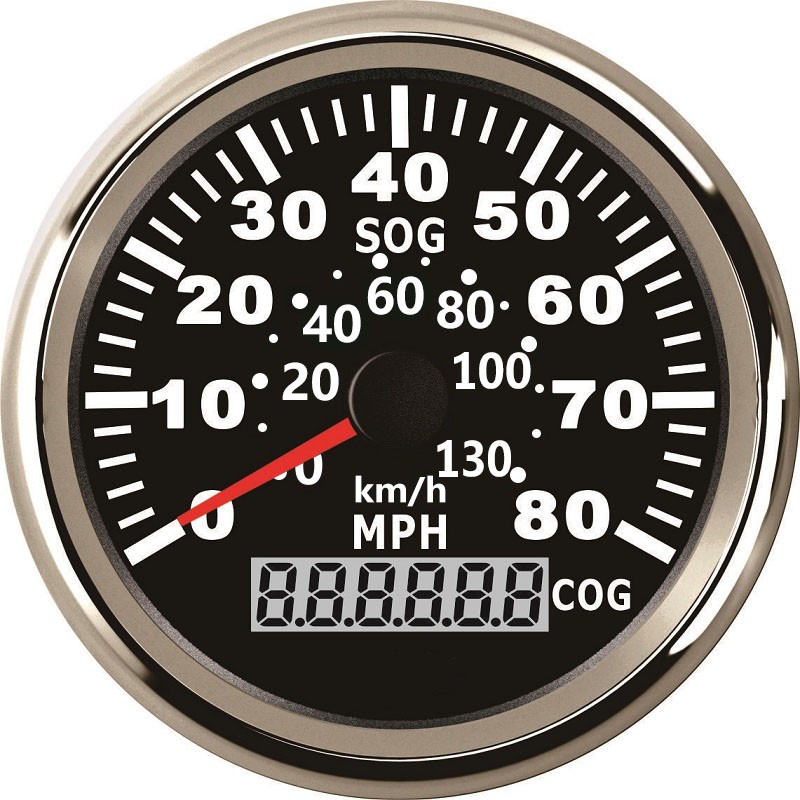

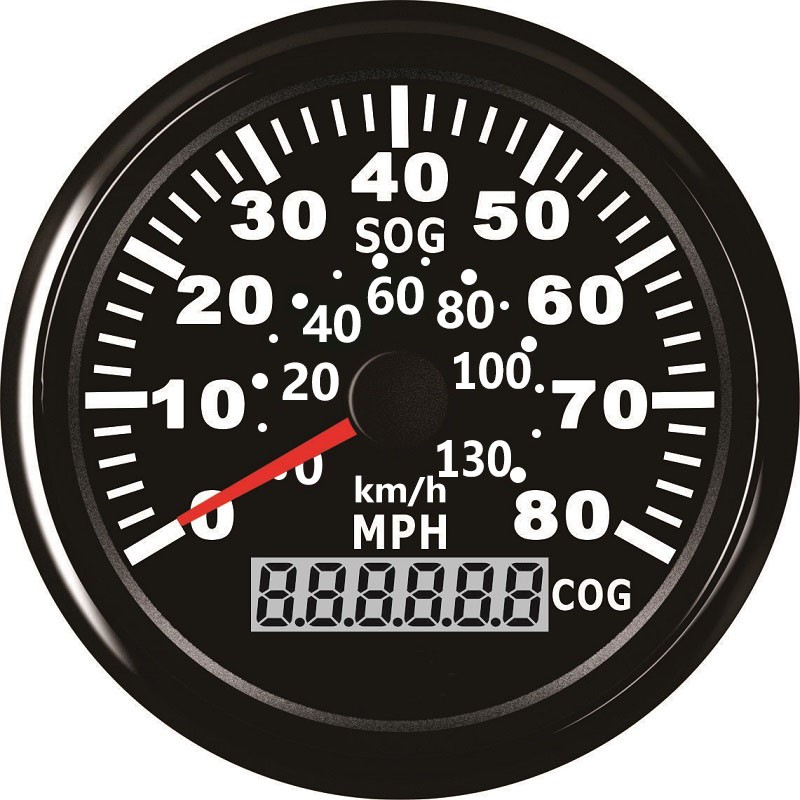

ELING ECP GPS Speedometer 80MPH

  • Product Item:ELING ECP 80MPH
  • Installation Dimension:85mm(3-3/8'')
  • Working Voltage:9-32V
  • Backlight:Red
  • Speedometer Range:0-80MPH
  • gps speedometer  , mph speedometer  , speedometer
    Inquiry Send Email PDF

    Description

    Product Features:

    -Suitable for all vessels, boats, yachts, etc..

    -The signal comes directly from the satellite signal receiver(GPS Speed Sensor)

    -The gauge has the advantages of high precision, quick location confirmation and short start up time.

    -IP67 waterproof and dustproof grade

    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.

    -With curved glass (with anti-fogging function.

    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Technical Data:

    -Fixing dimension: 85mm(3-3/8")

    -Indicating Range: 0-80MPH 0-130KM/H

    -COG(Course Over Ground):0-359

    -Working Voltage: 9-32V(12V/24V)

    -Backlight: Red

    -Functions:

    -needle shows current speed;

    -COG---moving direction

    -Operation mode: LCD display, stepper motor


    Package Includes:

    1x GPS speedometer

    1x GPS Speed Sensor

    1x Multi-plug socket

    1x Installation Instruction

    Inquiry Us
