  • ELING CX 52mm GPS Speedometer
  • ELING CX 52mm GPS Speedometer
  • ELING CX 52mm GPS Speedometer
  • ELING CX 52mm GPS Speedometer
ELING CX 52mm GPS Speedometer ELING CX 52mm GPS Speedometer ELING CX 52mm GPS Speedometer ELING CX 52mm GPS Speedometer

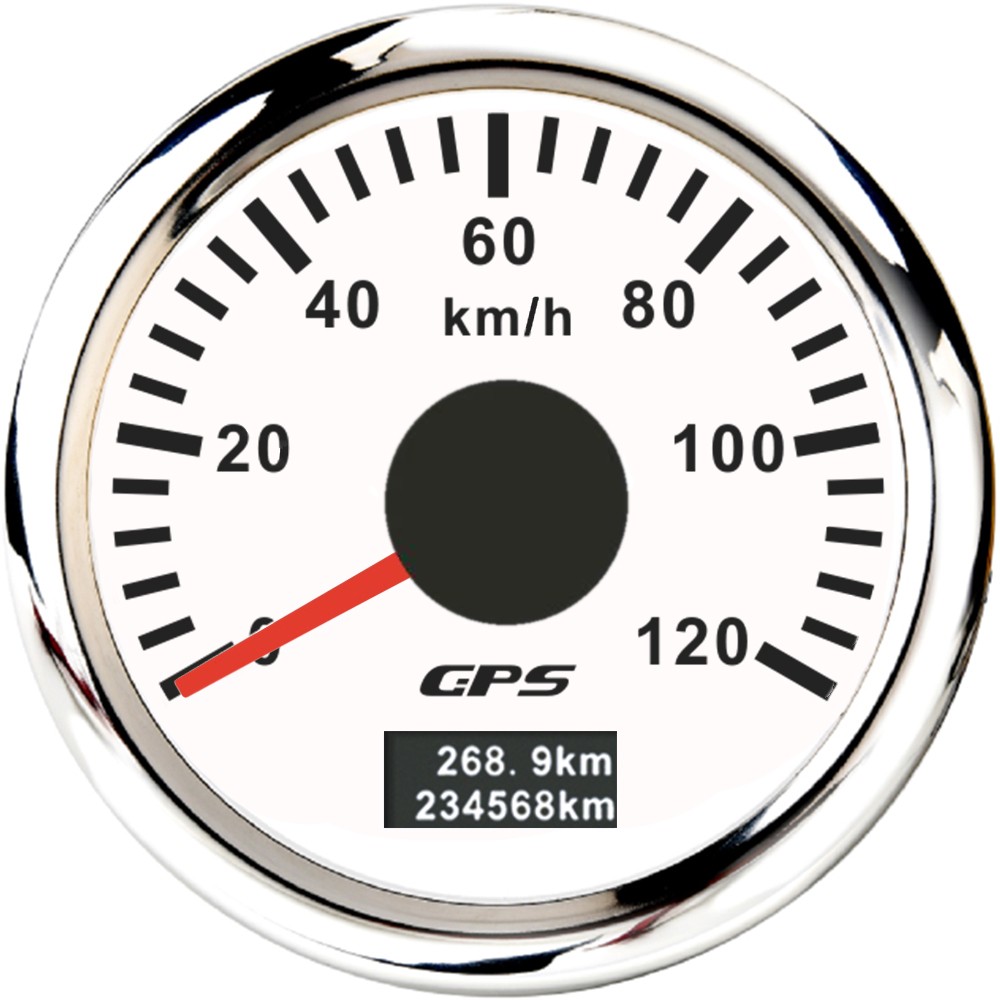

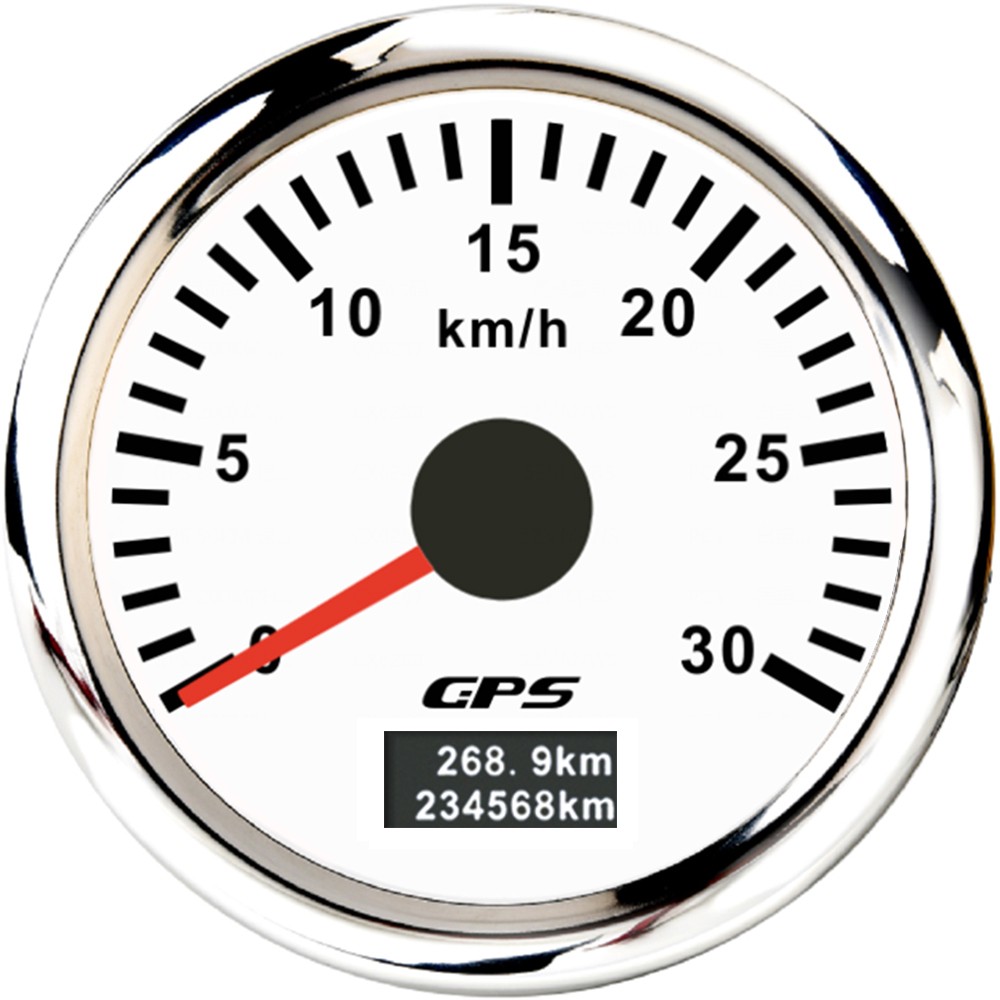

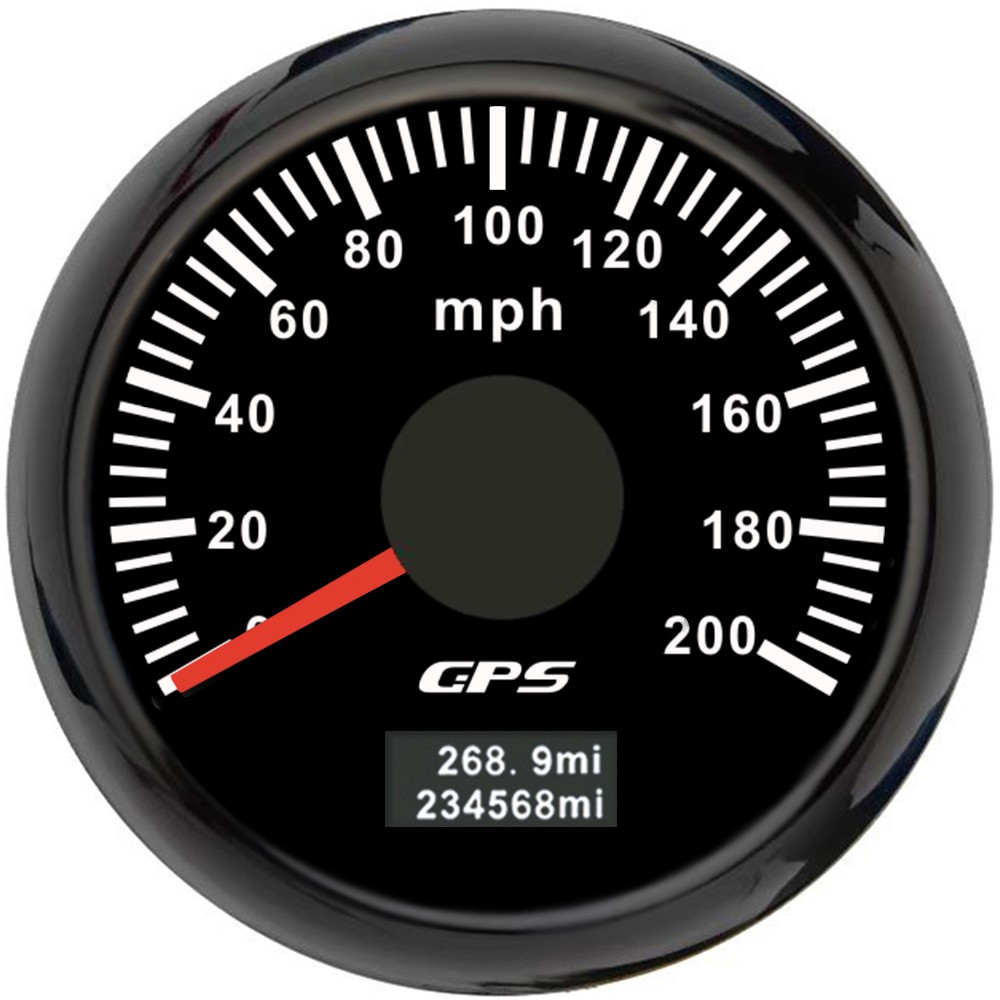

ELING CX 52mm GPS Speedometer

  • Product Item:CX 52mm GPS Speedometer
  • Installation diameter: Φ52mm or 2
  • Backlight:7 backlights available
  • Signal: GPS
  • IP67 waterproof and dustproof
  • GPS Speedometer  , 52mm GPS Speedometer  , Speedometer
    Inquiry Send Email PDF

    Description

    Product Features:


    -High-brightness LED backlight.


    -Stainless steel 316 for long-term use even in acidic and humid environments.


    -IP67 waterproof and dustproof.


    -With curved glass (with anti-fog function).


    -Suitable for all kinds of vehicle modifications.


    -With stepper motor drive pointer, accurate motor speed display and clear mileage display on the LCD display.


    Technical data:


    - Installation diameter: Φ52mm or 2"


    - Display range: 0-30km/h 0-60km/h 0-80km/h 0-120km/h 0-200km/h 0-30MPH 0-60MPH 0-80MPH 0-120MPH 0-200MPH


    -Trip odometer: 0-999.9 km or miles


    -Odometer: 0-999999 km or miles

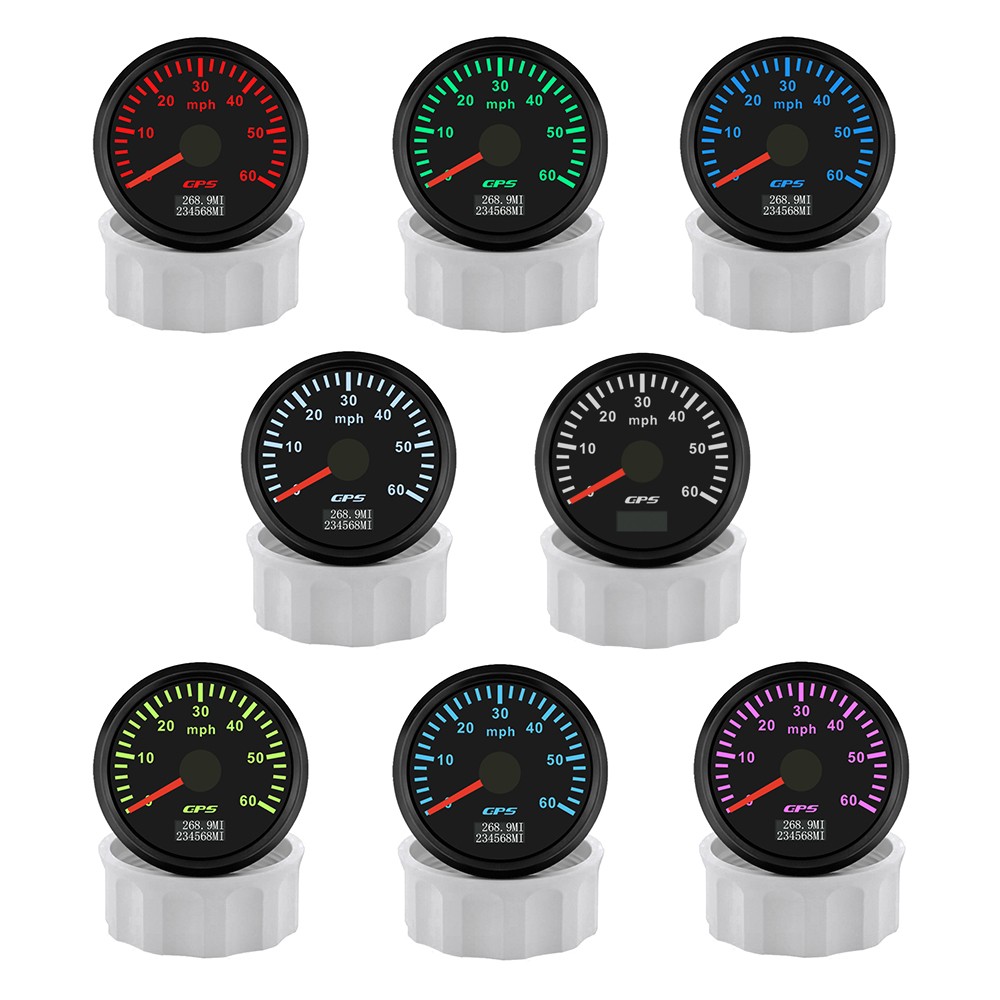

    - Backlight:7 backlights available (Red, Green, Blue, White, Yellow, Cyan, Purple)


    - Function: Current speed, trip meter and odometer


    - Trip odometer and odometer record mileage after power off,but you can touch the blue wire with power negative to reset tripmeter to 0.


    - Material: 316L stainless steel bezel + anti-fog glass


    - Signal: GPS


    - Working voltage: 9~32V DC


    - Working current: ≤100mA


    - Operating temperature: -30℃ ~ 75℃


    - Storage temperature: -40℃ ~ 85℃


    - IP67 waterproof and dustproof


    Package includes:


    1X GPS speedometer


    1X GPS antenna


    1X cable


    1X installation instructions
