  • ELING 52mm CX Oil Pressure Gauge with Alarm
  • ELING 52mm CX Oil Pressure Gauge with Alarm
  • ELING 52mm CX Oil Pressure Gauge with Alarm
ELING 52mm CX Oil Pressure Gauge with Alarm ELING 52mm CX Oil Pressure Gauge with Alarm ELING 52mm CX Oil Pressure Gauge with Alarm

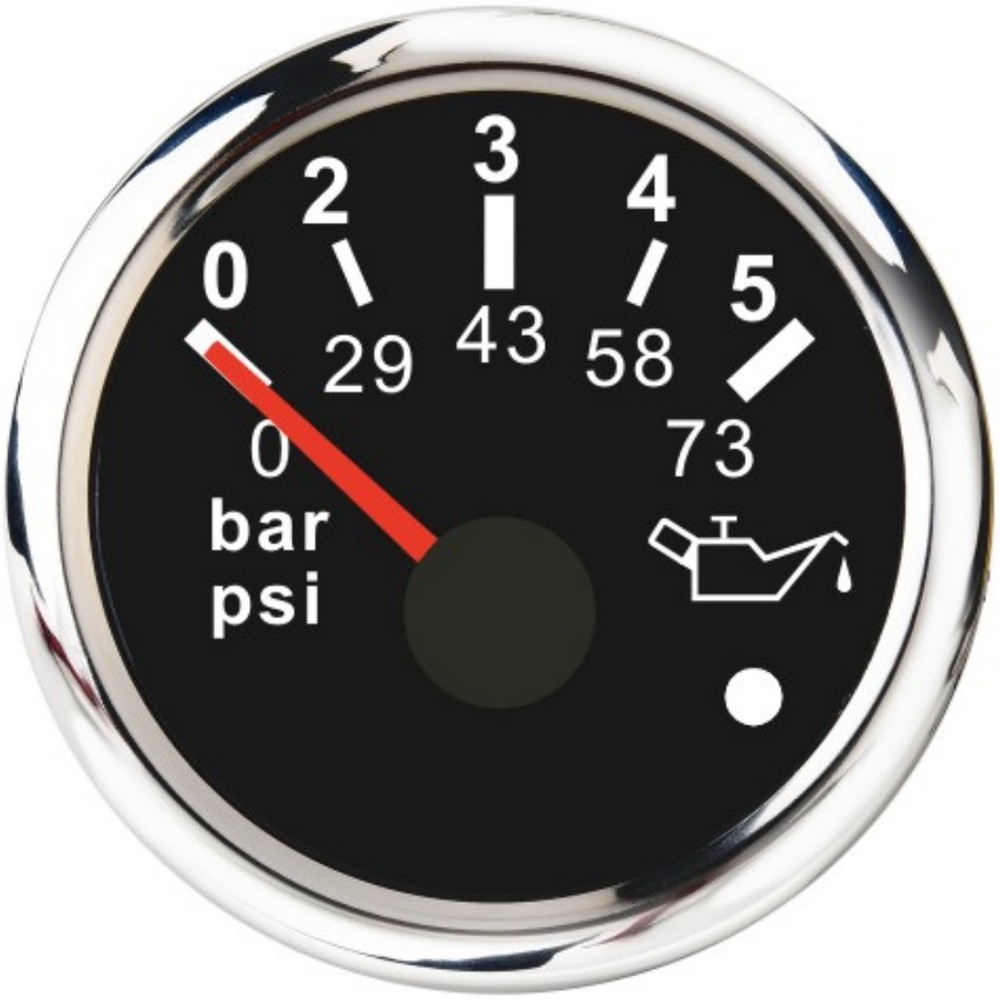

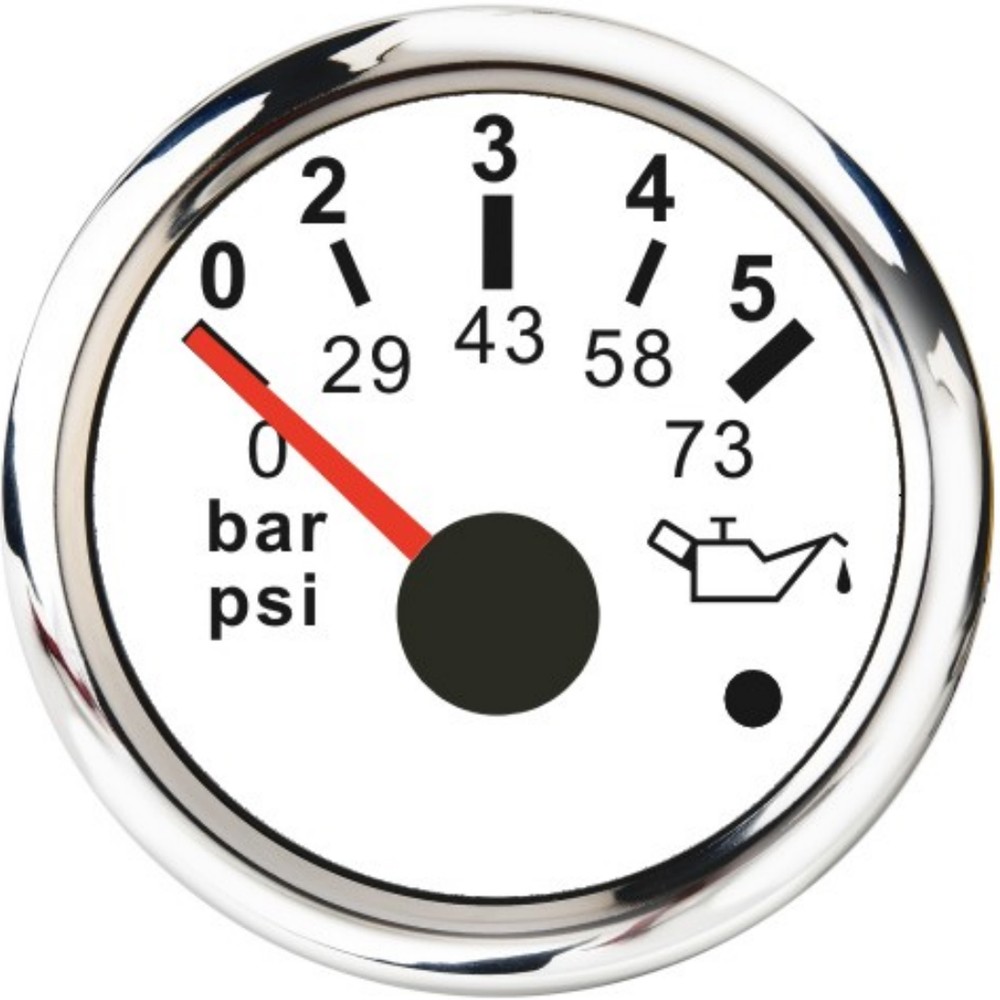

ELING 52mm CX Oil Pressure Gauge with Alarm

  • Product Item:52mm CX Oil Pressure Gauge
  • Fixing dimension: 52mm(2")

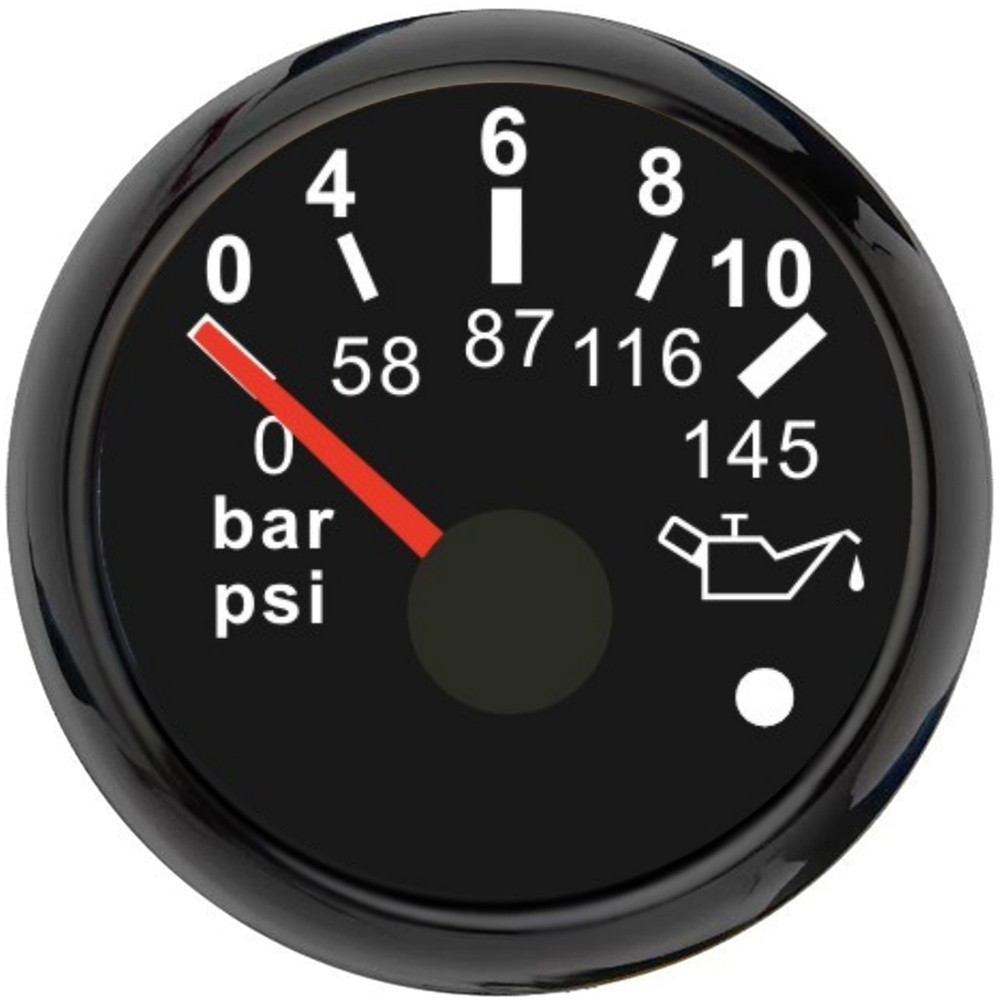

  • Indicating Range: 0-5bar,0-73psi;0-10bar,0-145psi
  • Working Voltage: 9-32V(12V/24V)
  • Backlight: Red
  • Oil Pressure Gauge  , 52mm Oil Pressure Meter  , Oil Pressure Meter
    Inquiry Send Email PDF

    Description

    Product Features:


    -Be suitable for all kinds of pressure sensors, and display the value of oil pressure


    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With curved glass (with anti-fogging function)


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Technical Data:


    -Fixing dimension: 52mm(2")


    -Indicating Range: 0-5bar,0-73psi;0-10bar,0-145psi


    -Alarm:When the oil pressure is less than 0.8bar ,the alarm light will flash yellow.


    -Signal: 10-184ohm


    -Working Voltage: 9-32V(12V/24V)


    -Backlight: Red


    -Operation mode: LCD display, stepper motor


    Package Includes:


    1x Oil Pressure Gauge


    1x Cable


    1x Installation Instruction
