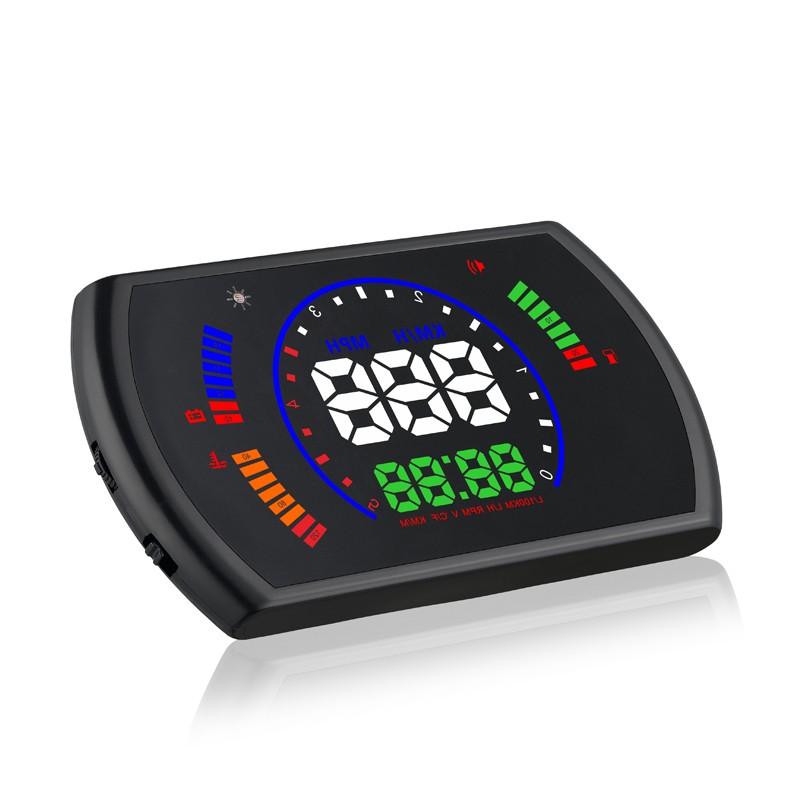

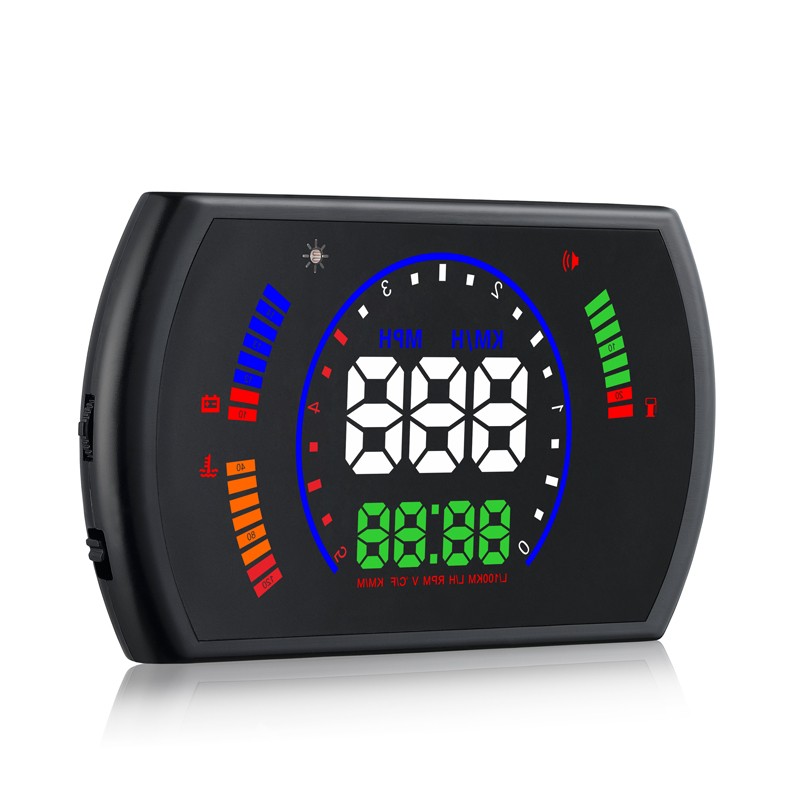

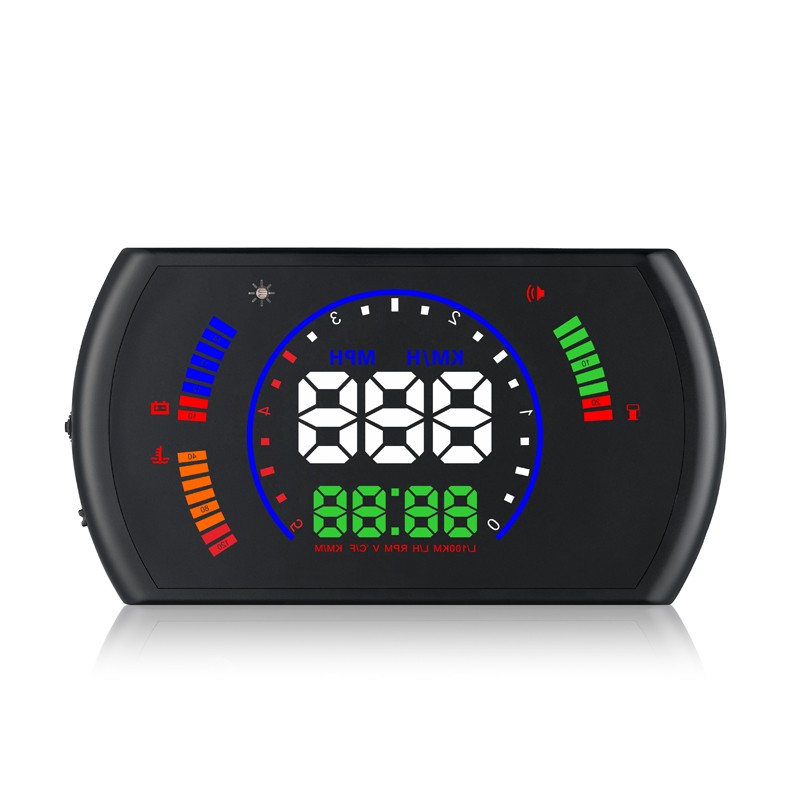

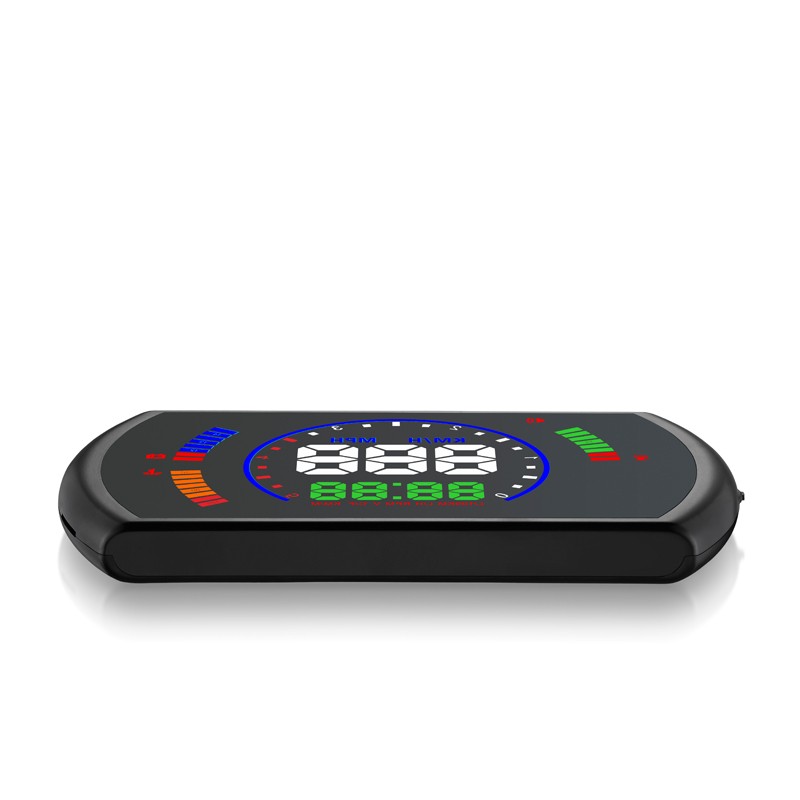

  • ELING OBD2 HUD Speedometer S600
  • ELING OBD2 HUD Speedometer S600
  • ELING OBD2 HUD Speedometer S600
  • ELING OBD2 HUD Speedometer S600
ELING OBD2 HUD Speedometer S600 ELING OBD2 HUD Speedometer S600 ELING OBD2 HUD Speedometer S600 ELING OBD2 HUD Speedometer S600

ELING OBD2 HUD Speedometer S600

  • Product Item:HUD S600
  • HUD
  • GPS Speedometer
  • Head Up Display
  • HUD  , Head Up Display  , GPS Speedometer  , Alarm
    Inquiry Send Email PDF

    Description

    Display Function:

    1. Buzzer

    2. Fuel consumption

    3. Fuel consumption icon

    4. RPM

    5. Multi functions unit: L/100KM=Unit of Average fuel consumption for each 100KM,  L/H=instantaneous fuel consumption, RPM=Engine speed, V=Voltage, °C/°F=Water temperature in different unit, KM/M=Single Driving Distance in Kilometer or Mile

    6. Driving Speed unit at KM/H

    7. Speed

    8. Driving Speed unit at Mile

    9. Light sensor

    10. Voltage

    11. Voltage icon (it will flash when give the low voltage alarm)

    12. Water temperature icon(it will flash when give the high water temperature alarm)

    13. Water temperature

    14. Multi functions display area: instantaneous fuel consumption for 100 kilometers/Instantaneous fuel consumption/RPM/Voltage/Water temperature/Single Driving Distance can be switched

    Technical Parameters:

    Environment temperature: -40c- + 80c

    atmospheric pressure: 86-106KPa

    Relative Humidity: 10% -95%

    environmental noise: <= 60dB (A)

    Alarm sound level: 》= 30dB (A)

    Working voltage: 9V ~ 16Vdc (12Vdc / 400mA)
