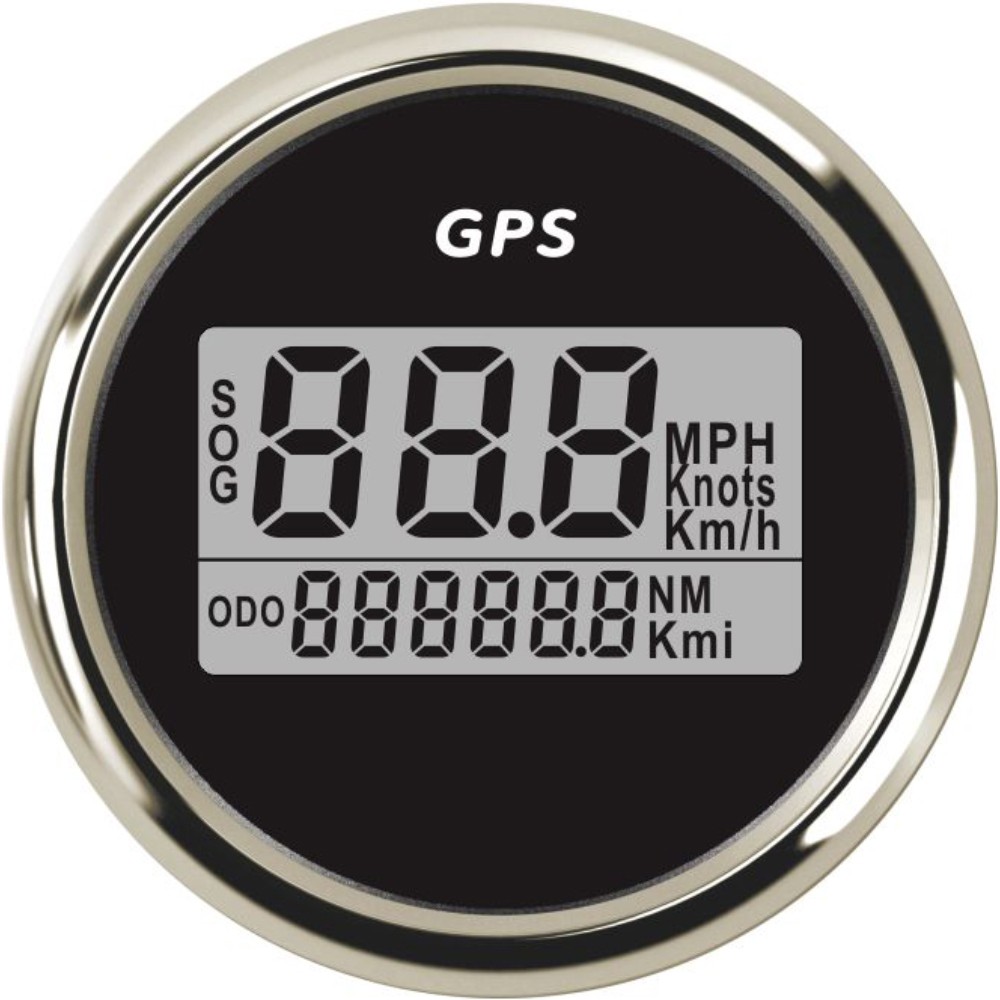

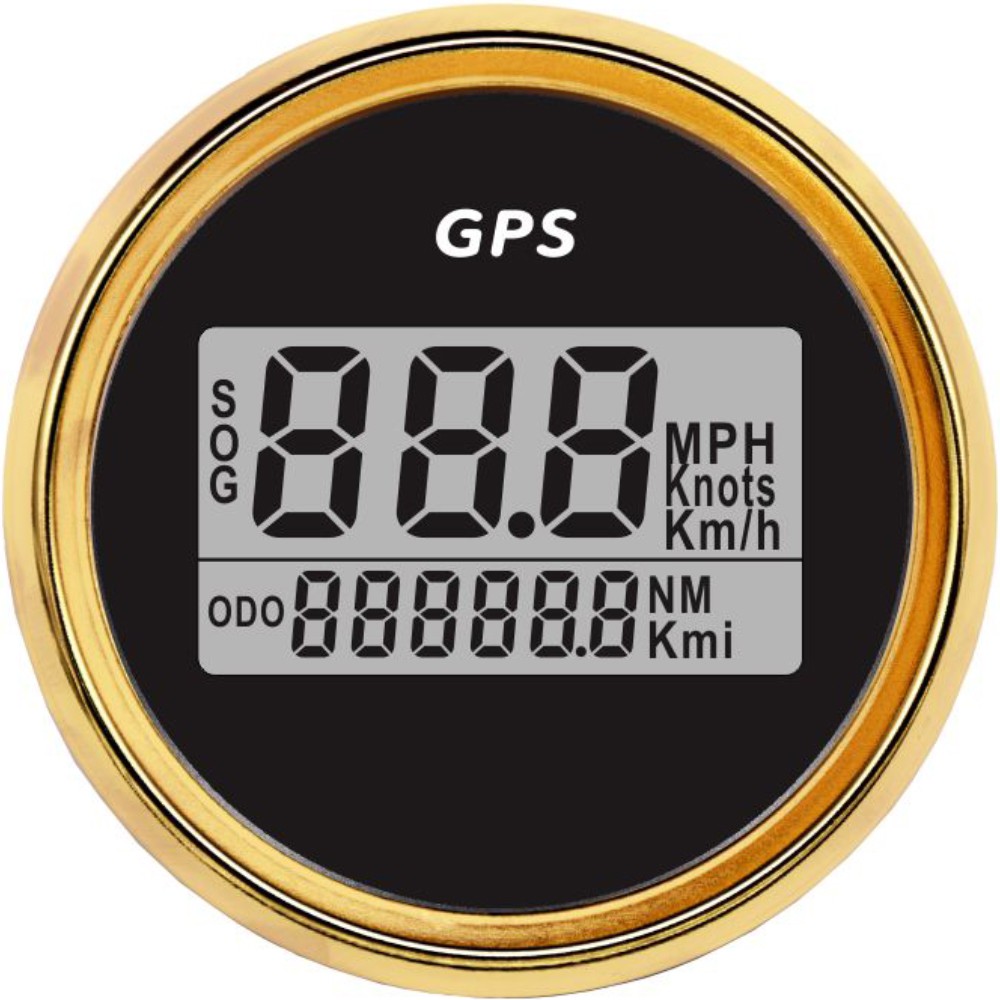

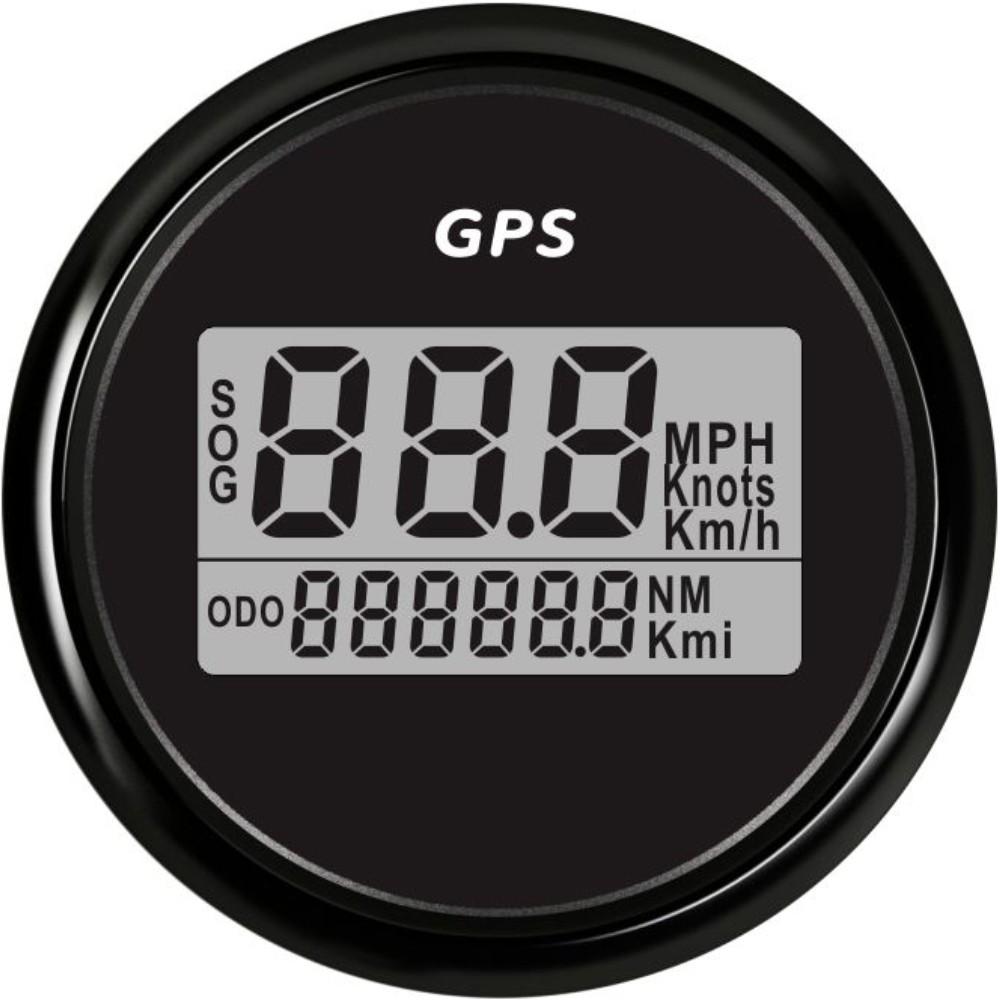

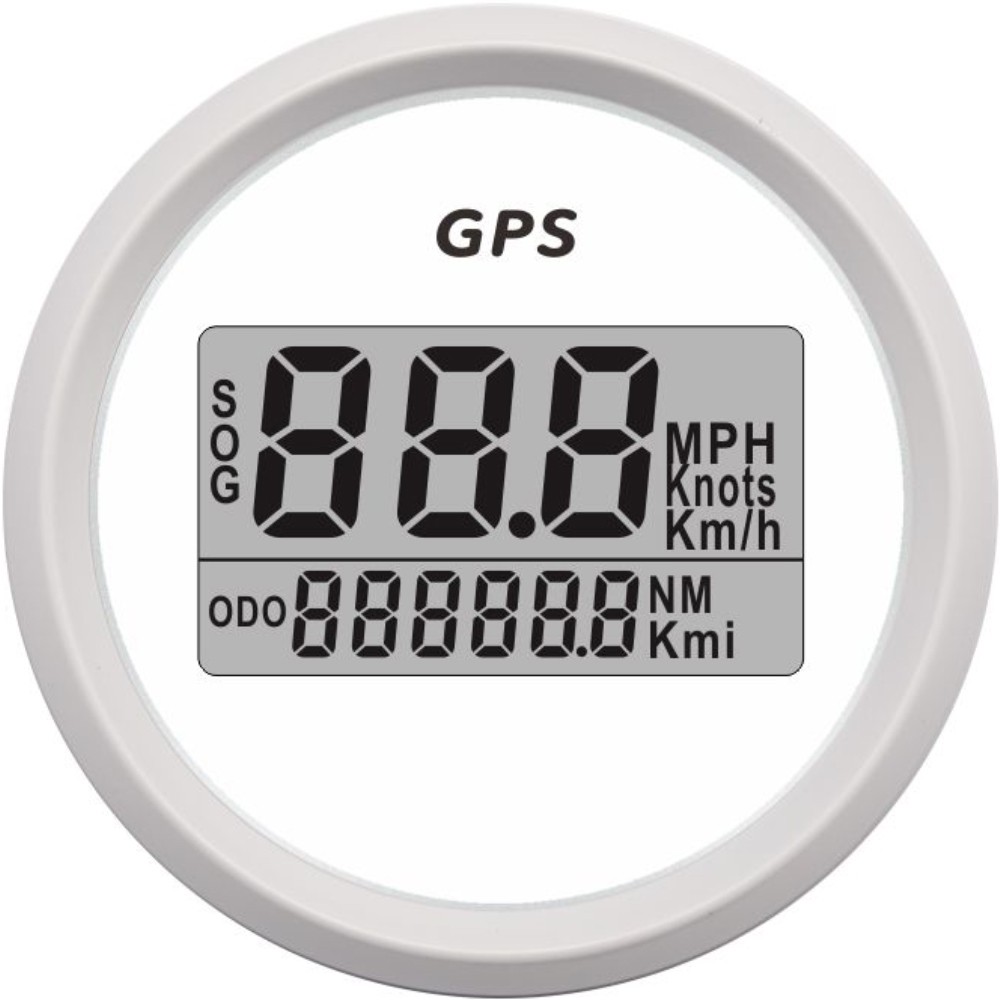

ELING ECPW Digital GPS Odometer 52mm

  • Product Item:ECPW Digital GPS Odometer 52mm
  • Fixing dimension: 52mm(2")
  • Working Voltage:9-32V
  • Indicating Range: 0-999(MPH, Knots, KM/H adjustable)
  • Backlight: Red
  • gps speedometer  , digital speedometer  , speedometer
    Inquiry Send Email PDF

    Description

    Product Features:


    -Suitable for all vehicles, boats and off-road vehicles


    -The signal comes directly from the satellite signal receiver(GPS Speed Sensor)


    -The gauge has the advantages of high precision, quick location confirmation and short start up time.


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With curved glass (with anti-fogging function)


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Technical Data:


    -Fixing dimension: 52mm(2")


    -Indicating Range: 0-999(MPH, Knots, KM/H adjustable)


    -Odometer:0-999999 (miles, NM, km adjustable)


    -Working Voltage: 9-32V(12V/24V)


    -Backlight: Red


    -Functions:


    SOG---current speed;


    ODO---cumulative total mileage(cannot be reset)


    -Connection: Blue wire--Negative/Ground, Red wire--Positive, Orange wire--Positive(lighting wire)


    -This GPS Speedometer is complete unit, can work directly with gps sensor together, not need other sensor cables.


    -After connection, it takes about 30 seconds to get signal in the first time, but less than 3 seconds after that. It gets quicker under a clear view of the sky. Sometimes if signal is missing, pls. reconnect all wires and restart it.


    -Operation mode: LCD display, stepper motor


    Package Includes:


    1x GPS speedometer


    1x GPS Speed Sensor


    1x Multi-plug socket


    1x Installation Instruction
