  • ELING ECH Water Level Gauge
  • ELING ECH Water Level Gauge
  • ELING ECH Water Level Gauge
  • ELING ECH Water Level Gauge
ELING ECH Water Level Gauge ELING ECH Water Level Gauge ELING ECH Water Level Gauge ELING ECH Water Level Gauge

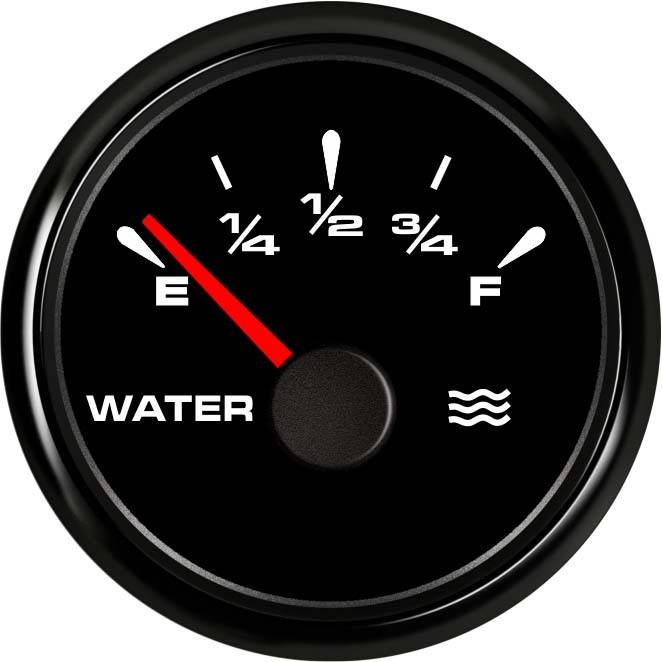

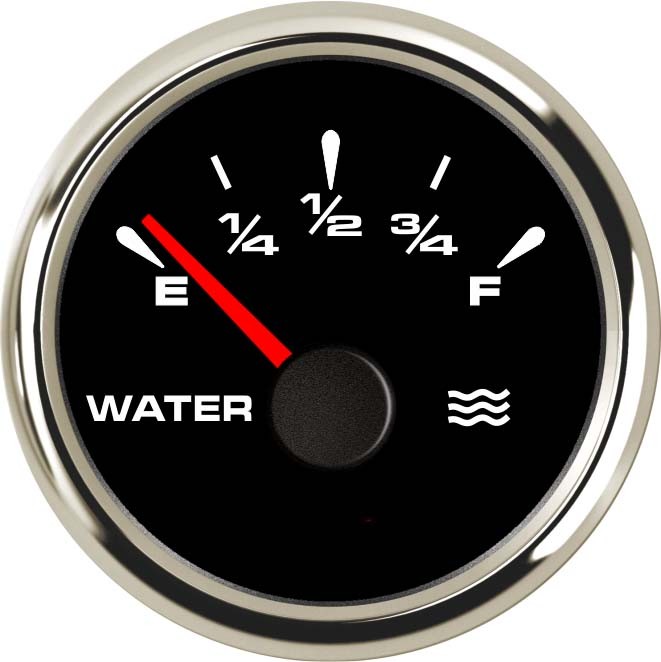

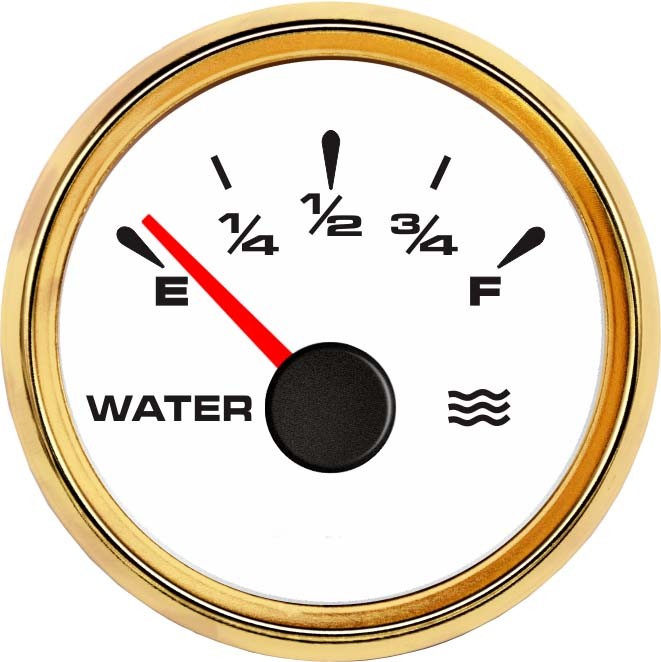

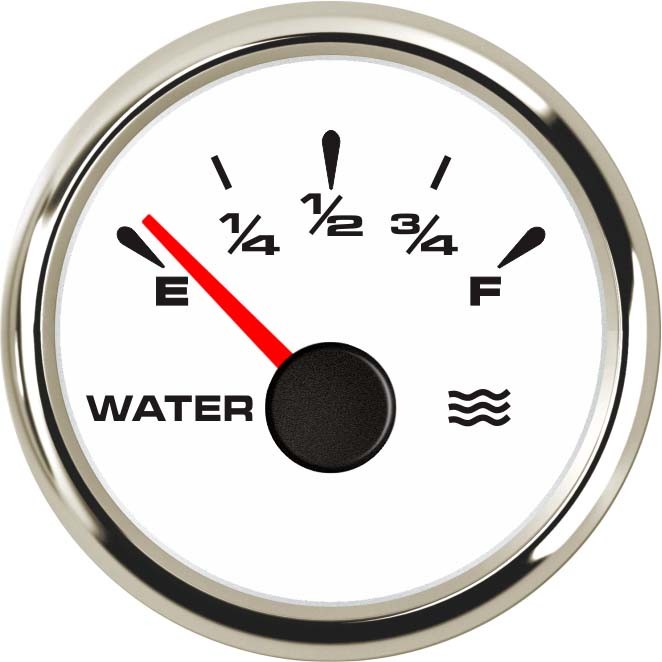

ELING ECH Water Level Gauge

  • Product Item:ELING ECH Water Level Gauge
  • Installation Dimension:52mm(2")
  • Working Voltage:9-32V
  • Backlight: 8 Colors
  • Input signal: 0-190ohm/240-33ohm
  • water level gauge  , water level meter
    Inquiry Send Email PDF

    Description

    Specifications:

    -Name: Water Level Gauge

    • -Materials: stainless steel+nickel-plated plastic

    • -Operating Voltage: 9-32V

    • -Indicating Range: E-1/4-1/2-3/4-F

    • -Input signal: 0-190ohm/240-33ohm

    • -Connectioning: Red-Battery(+9-32VDC) Blue-Battery(-)  Black-Signal Orange-Blacklight(+9-32VDC)

    • -Backlights: 8 colors

    • -Protection Class: IP67,can work underwater 1m position


    Features:

    • -Suitable for all kinds of vehicle modification, accurate display water level, with instructions of high precision, repeatability and versatility, reliability and stability, drive And control is relatively simple and so on


    Package Included:

    • 1 x Water Level Gauge

    • 1 x Cable

    • 1 x Owner's Manual
