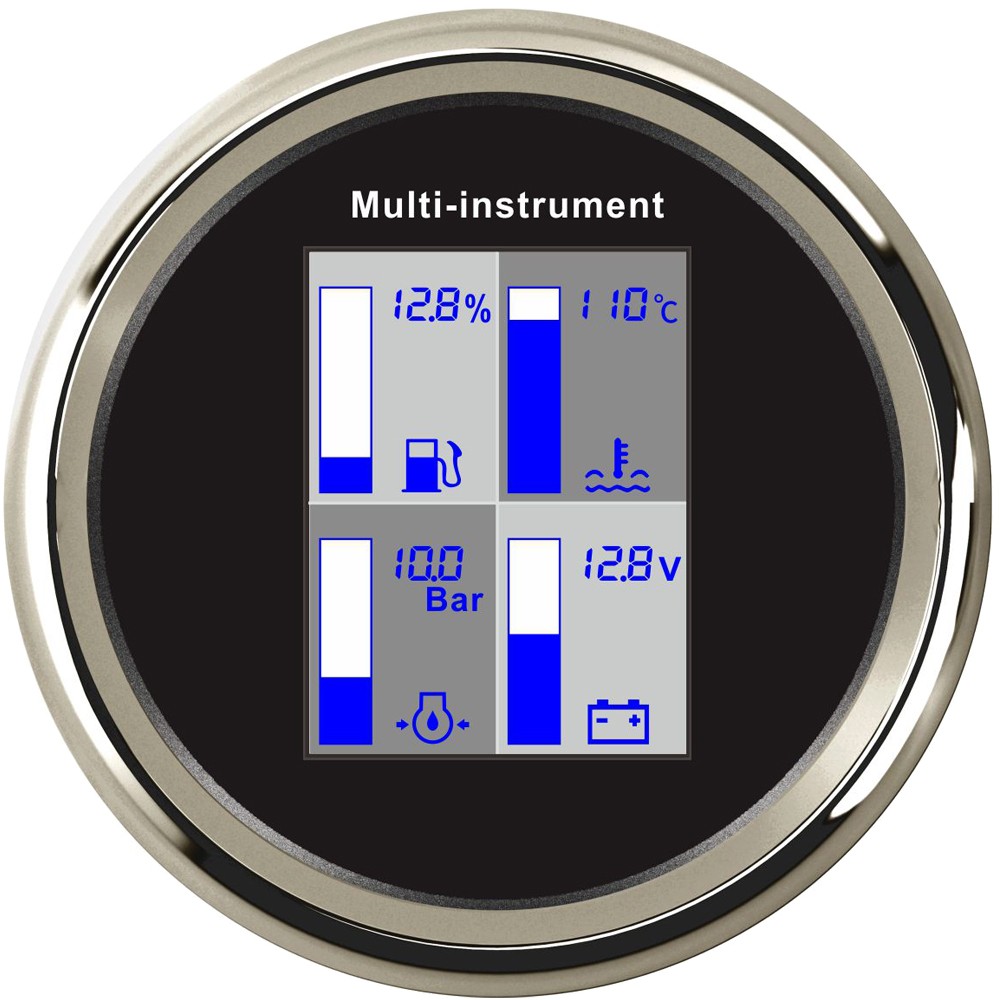

  • ELING ECP TFT 4 in 1 Multi-functional Gauge

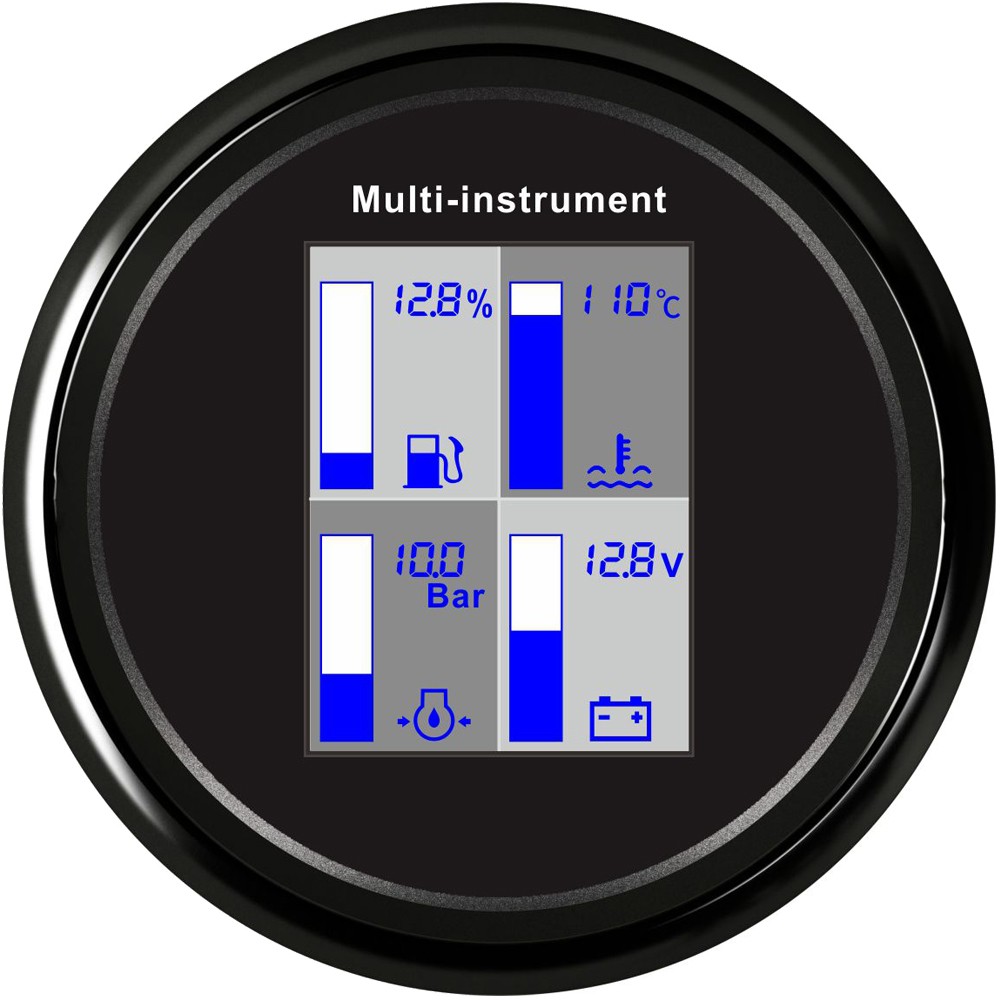

  • ELING ECP TFT 4 in 1 Multi-functional Gauge

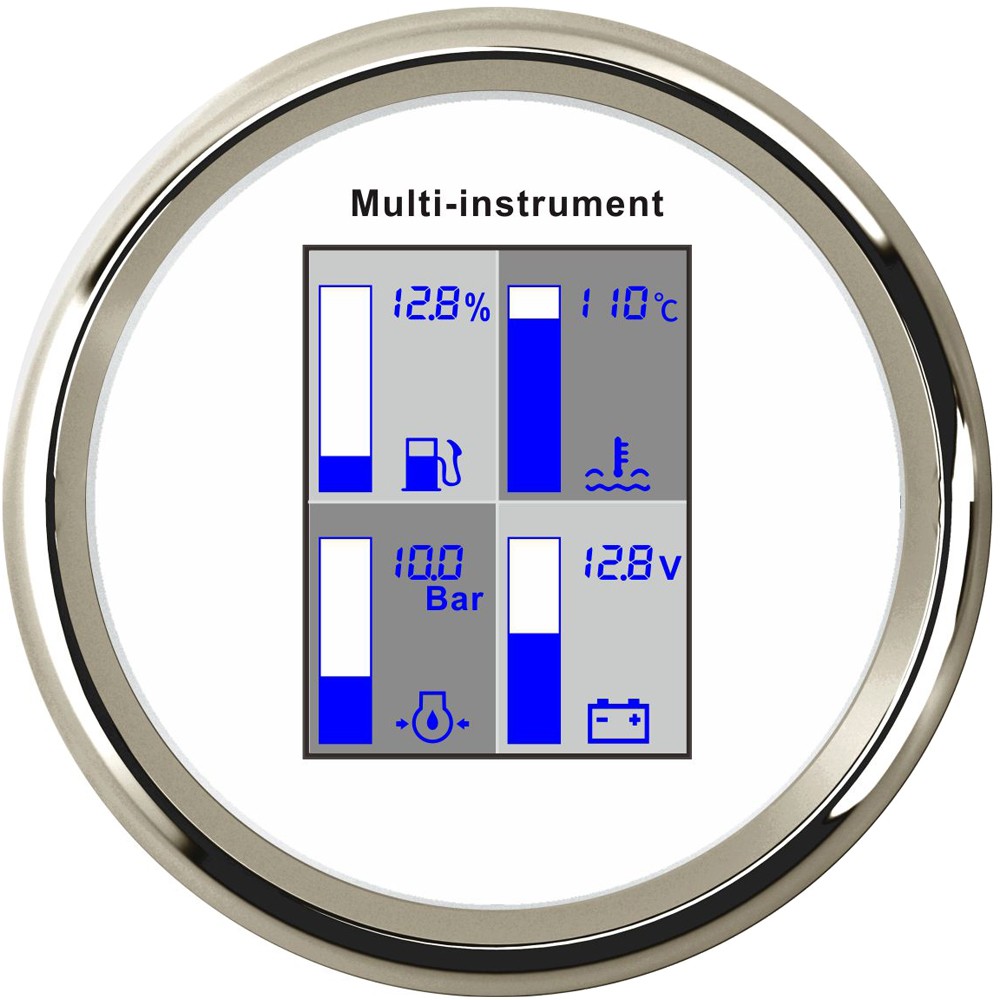

  • ELING ECP TFT 4 in 1 Multi-functional Gauge
ELING ECP TFT 4 in 1 Multi-functional Gauge ELING ECP TFT 4 in 1 Multi-functional Gauge ELING ECP TFT 4 in 1 Multi-functional Gauge

ELING ECP TFT 4 in 1 Multi-functional Gauge

  • Product Item:ECP TFT 4 in 1 Multi-functional Gauge
  • Installation Dimension: 85mm
  • Oil Pressure: 0-5bar/0-10 bar/0-75psi/0-145psi;Water Temperature: 40-120℃/100-250℉;Voltmeter: 9-32V;Fuel Level: 0-100%
  • Degree of Protection: IP67
  • Backlight: TFT Screen
  • Multi-functional Gauge  , 4 in 1 Meter
    Inquiry Send Email PDF

    Description

    Product feature:


    -Be suitable for all kinds of vehicles,boats


    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With anti-fogging function


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min))


    Product data:


    -Installation Dimension: 85mm


    -Oil Pressure: 0-5bar/0-10 bar/0-75psi/0-145psi (Pressure signal: 10-184ohm/240-33ohm) (After power on, press the back button to adjust unit, if the oil pressure unit is "psi", the temperature unit will be "℉".)


    -Water Temperature: 40-120℃/100-250℉(Temperature signal: 301-23ohm/291.5-22.4ohm)


    -Voltmeter: 9-32V


    -Fuel Level: 0-100% (Press the back button to adjust the level signal: 0-180Ω/10-180Ω/0-190Ω/240-30Ω/240-33Ω available)


    -Degree of Protection: IP67


    -Backlight: TFT Screen


    -Alarm with Red Light: water temp>95 degree, oil pressure<0.8bar/12psi, fuel level<20%, volt<8V(12V working voltage) or volt<16V(24V working voltage)


    Package include:


    1x 4-in-1 Gauge


    1x Multi-plug socket


    1x Installation Instruction
