  5. ELING CX Fuel Level Meter
  • ELING CX Fuel Level Meter
  • ELING CX Fuel Level Meter
  • ELING CX Fuel Level Meter
ELING CX Fuel Level Meter ELING CX Fuel Level Meter ELING CX Fuel Level Meter

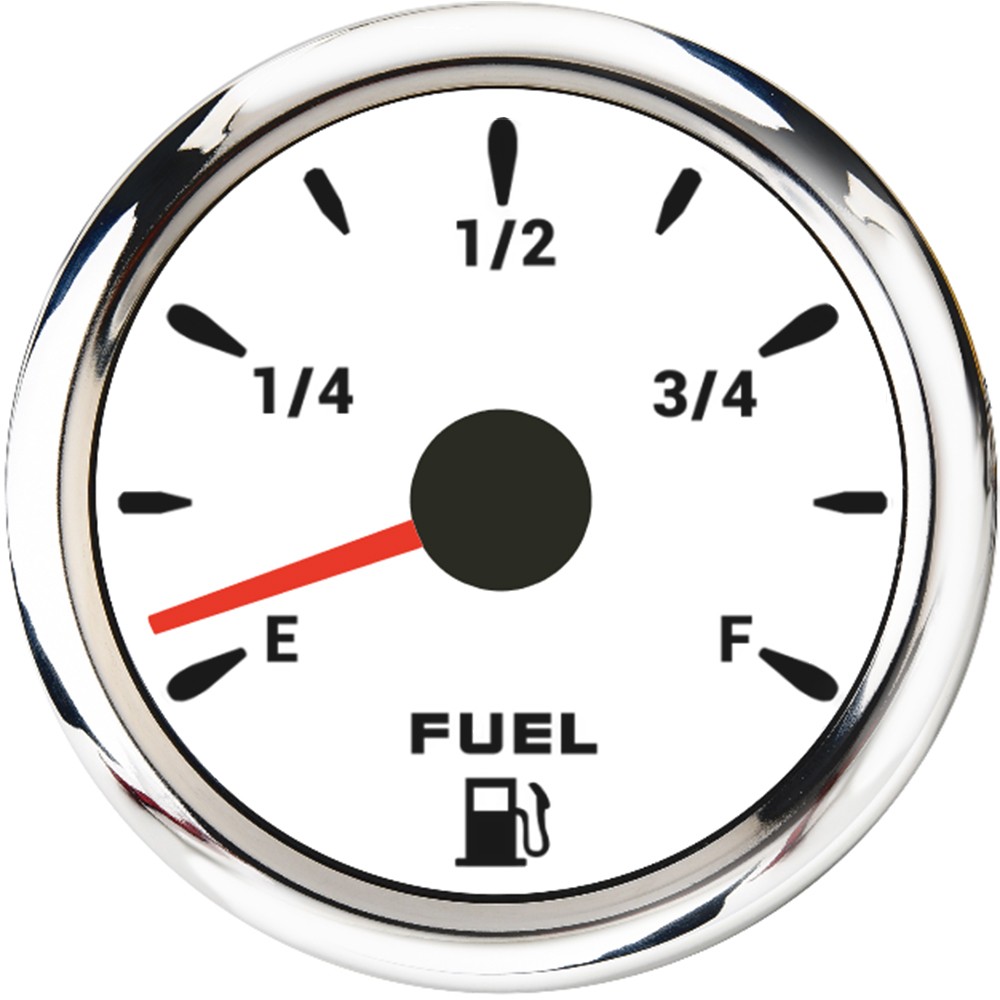

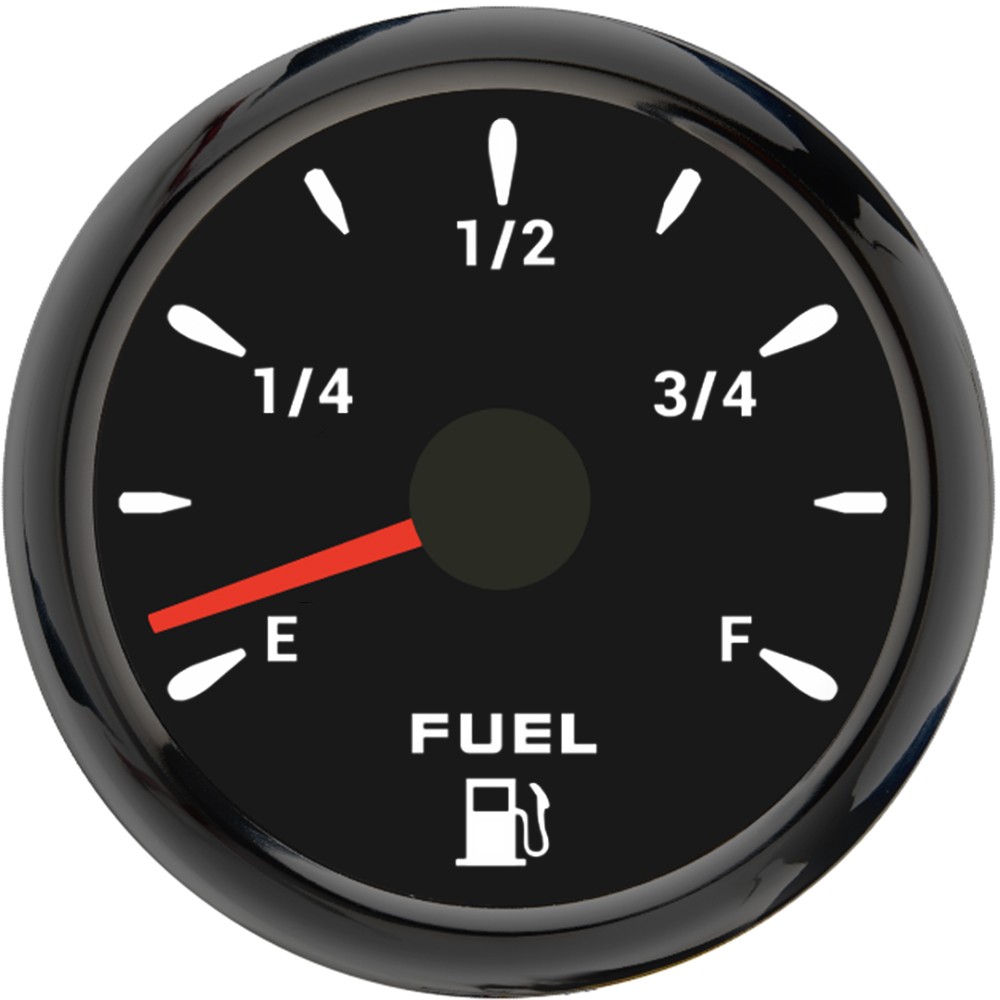

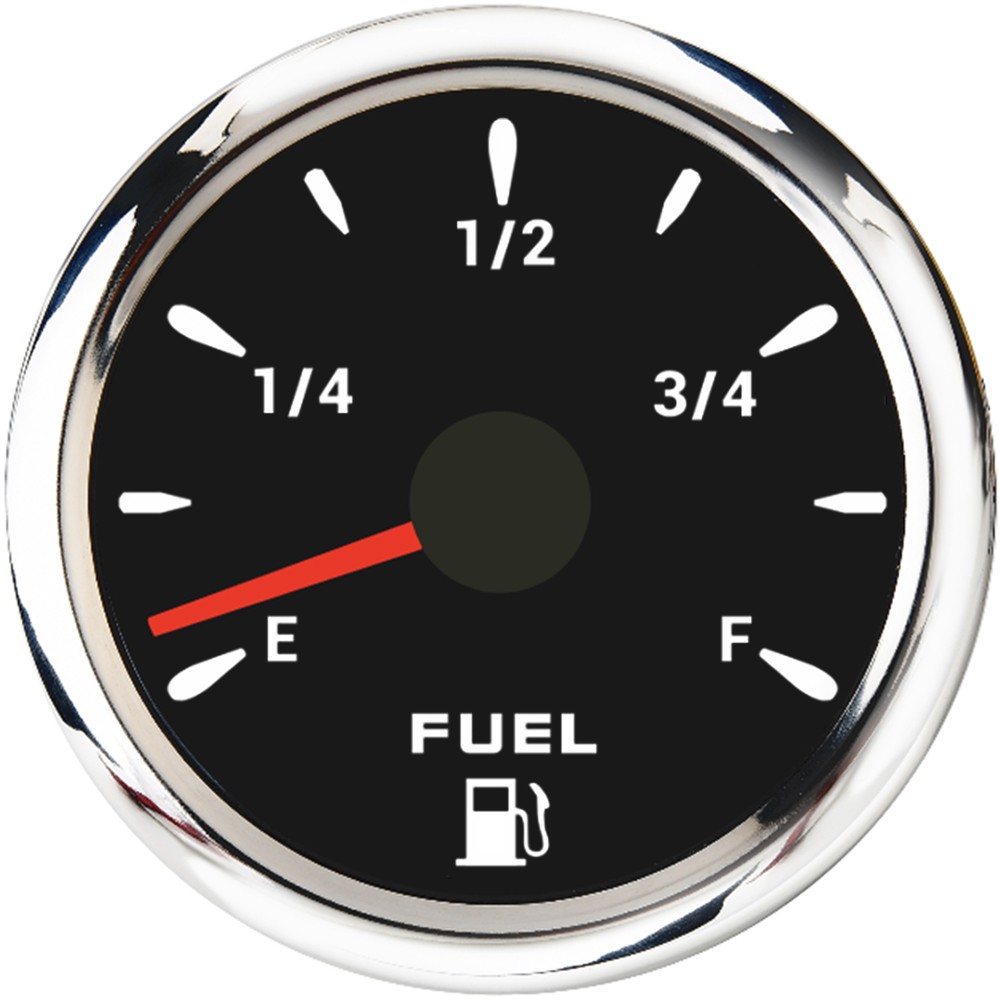

ELING CX Fuel Level Meter

  • Product Item:CX Fuel Level Meter
  • Fixing dimension: 52mm(2
  • Indicating Range: E-1/4-1/2-3/4-F
  • Signal: 0-190ohm,240-33ohm
  • Backlight: 7 backlights available(red, green, blue, white, yellow, cyan,purple)
  • Fuel Level Meter  , Fuel Level Gauge  , Fuel Level Indicator
    Inquiry Send Email

    Description

    Product Features:


    -Be suitable for all kinds of fuel level sensors with same signal, and display liquid level of the oil tank


    -Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.


    -IP67 waterproof and dustproof grade


    -Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.


    -With curved glass (with anti-fogging function)


    -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).


    Technical Data:


    -Fixing dimension: 52mm(2")


    -Indicating Range: E-1/4-1/2-3/4-F


    -Signal: 0-190ohm,240-33ohm


    -Working Voltage: 9-32V(12V/24V)


    -Backlight: 7 backlights available(red, green, blue, white, yellow, cyan,purple)


    -Operation mode: LCD display, stepper motor


    Package Includes:


    1x Fuel Level Gauge


    1x Cable


    1x Installation Instruction
